Spotfire: Define the coloring of a visualization from the Properties window

Prior to this task:

✔ Visualization must be added.

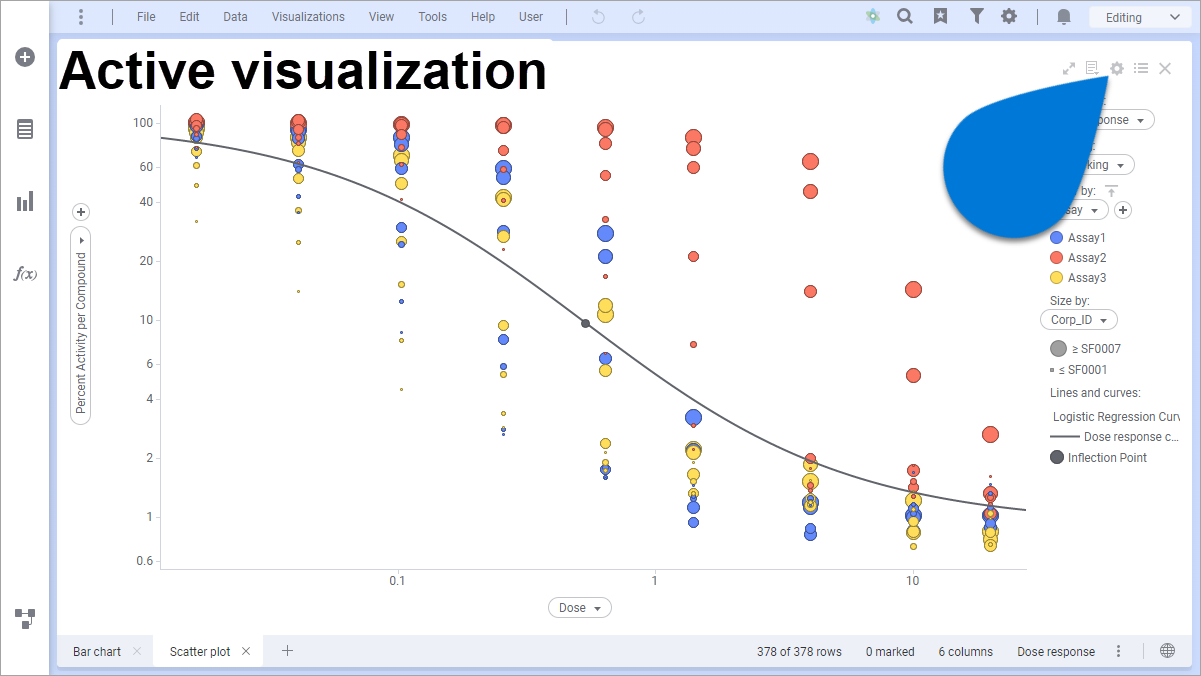

1️⃣ Active visualization ➡ hover over and select  [Properties]

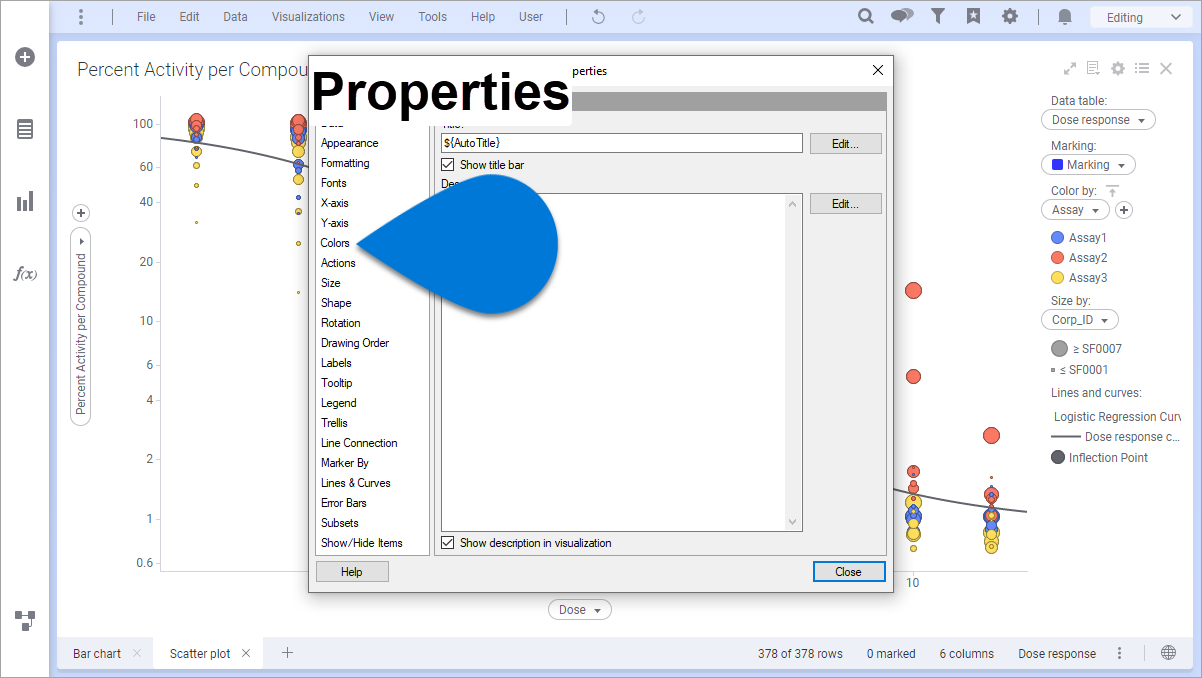

2️⃣ Properties window ➡ select Colors

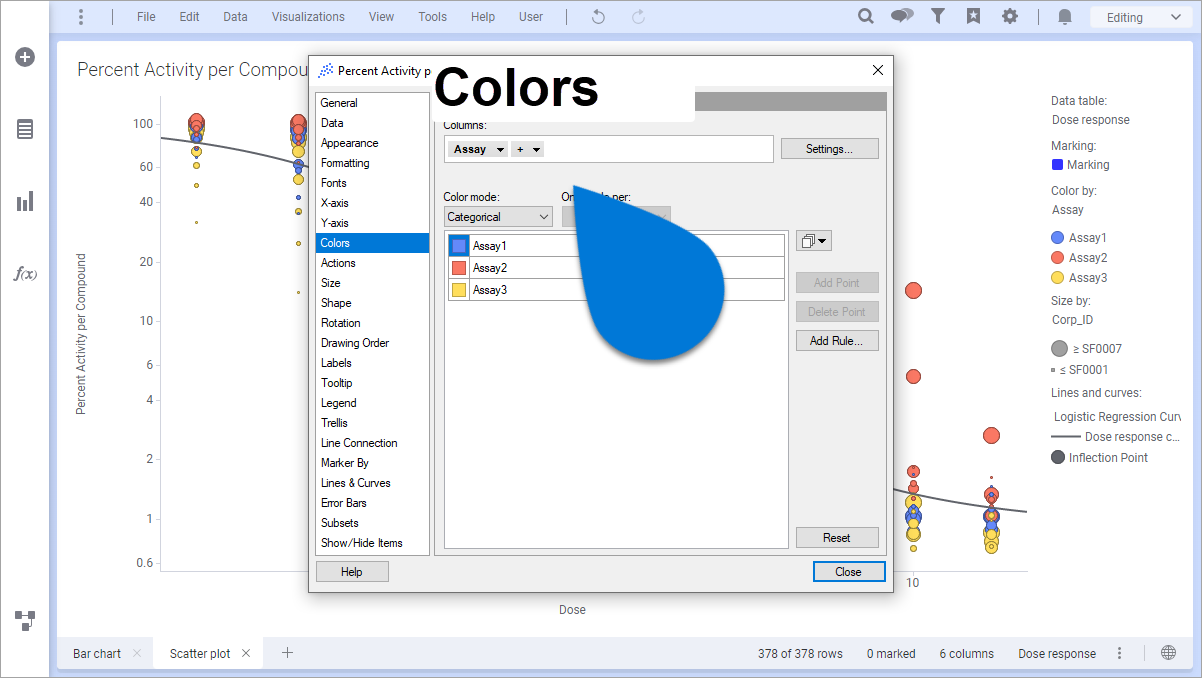

3️⃣ Colors options ➡ Columns ➡ select column(s) ➡ select Color mode One scale per

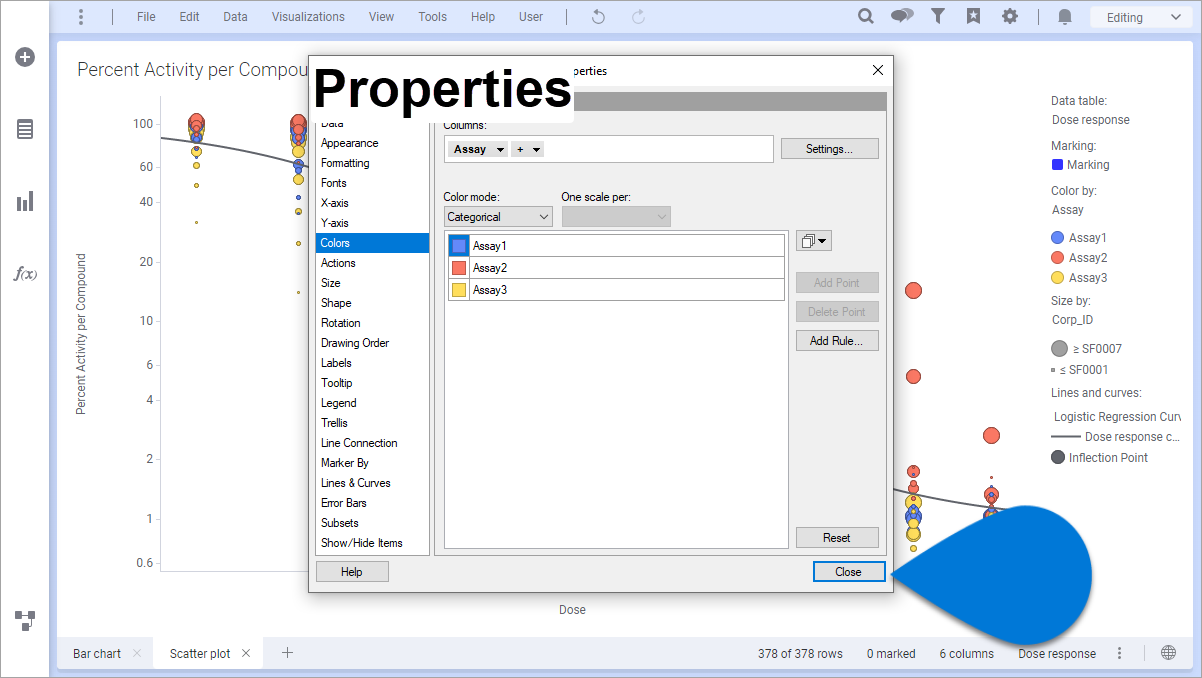

4️⃣ Properties window ➡ select [Close]

Supporting Knowledge

Notes:

• The availability of a given color mode depends on whether the column is in categorical or continuous mode.
• When using the Gradient color mode, additional color points can be added by selecting the  [Add Point] button, then adding a new value of interest in the box that appears.
