Signals VitroVivo: Create and configure a workflow from scratch

Prior to this task:

✔ Spotfire for Signals item must be opened.

1️⃣ Signals Apps page ➡ Workflows ➡ select  [Create new workflow]

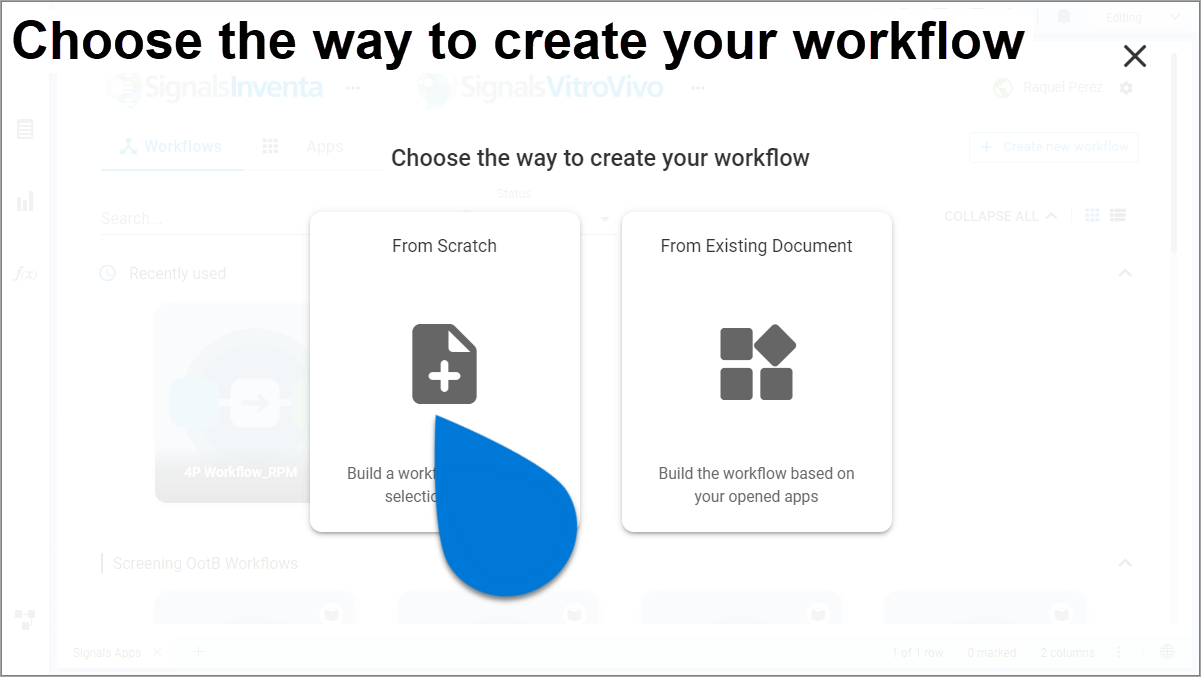

2️⃣ Choose the way to create your workflow ➡ select  [From Scratch]

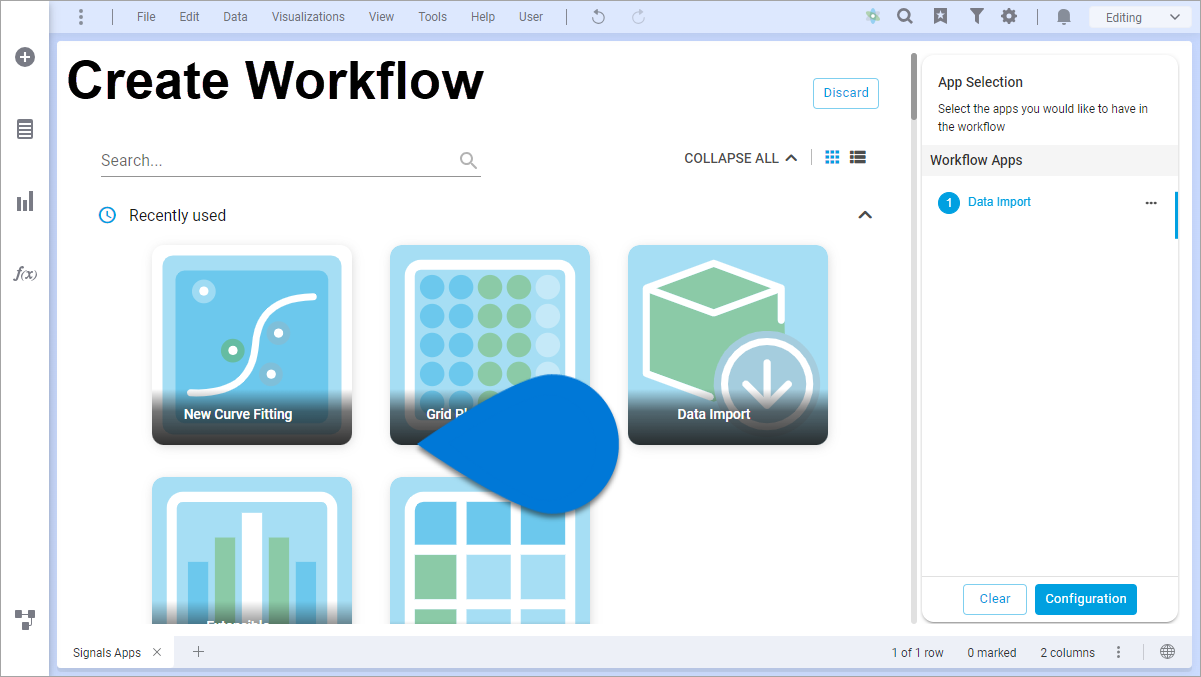

3️⃣ Create workflow section ➡ Screening ➡ select apps

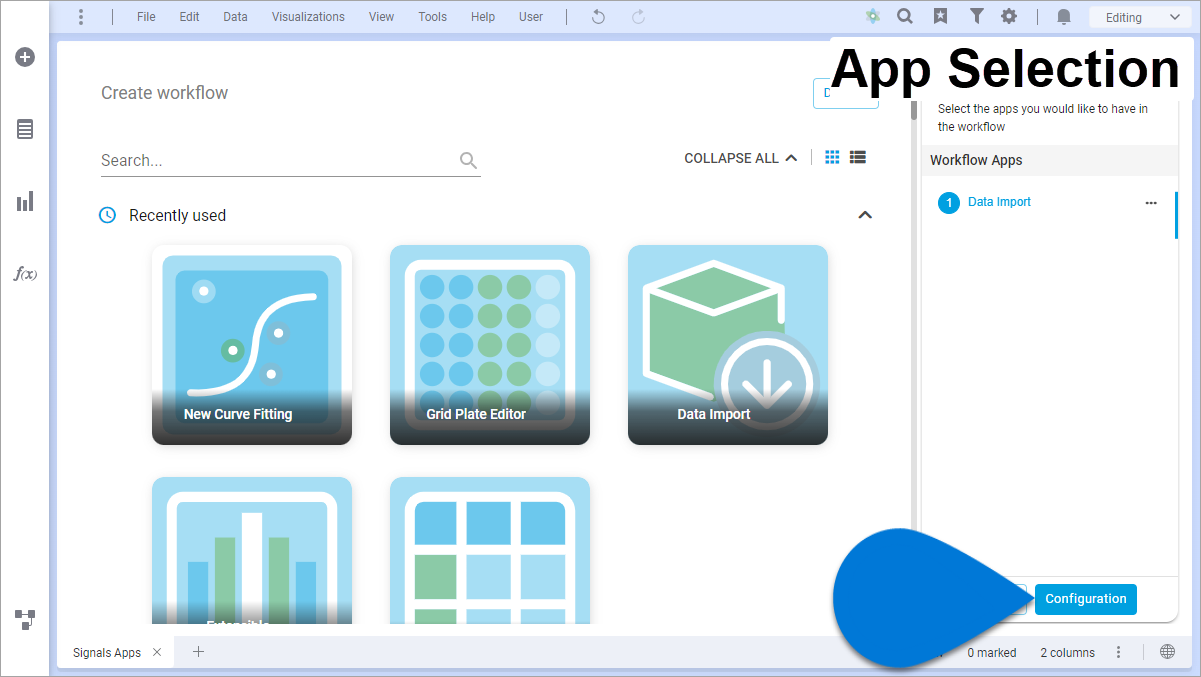

4️⃣ App Selection panel ➡ select  [Configuration]

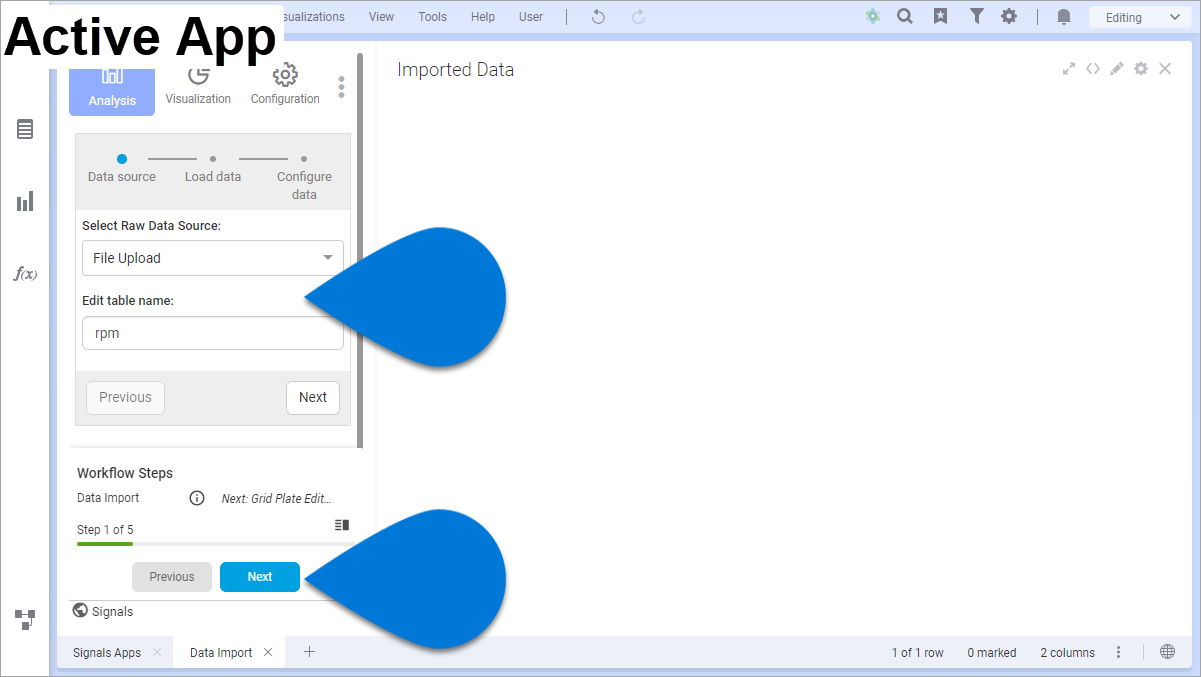

5️⃣ Active App page ➡ configure parameters accordingly* 6️⃣ Active App page ➡ select  [Next]*

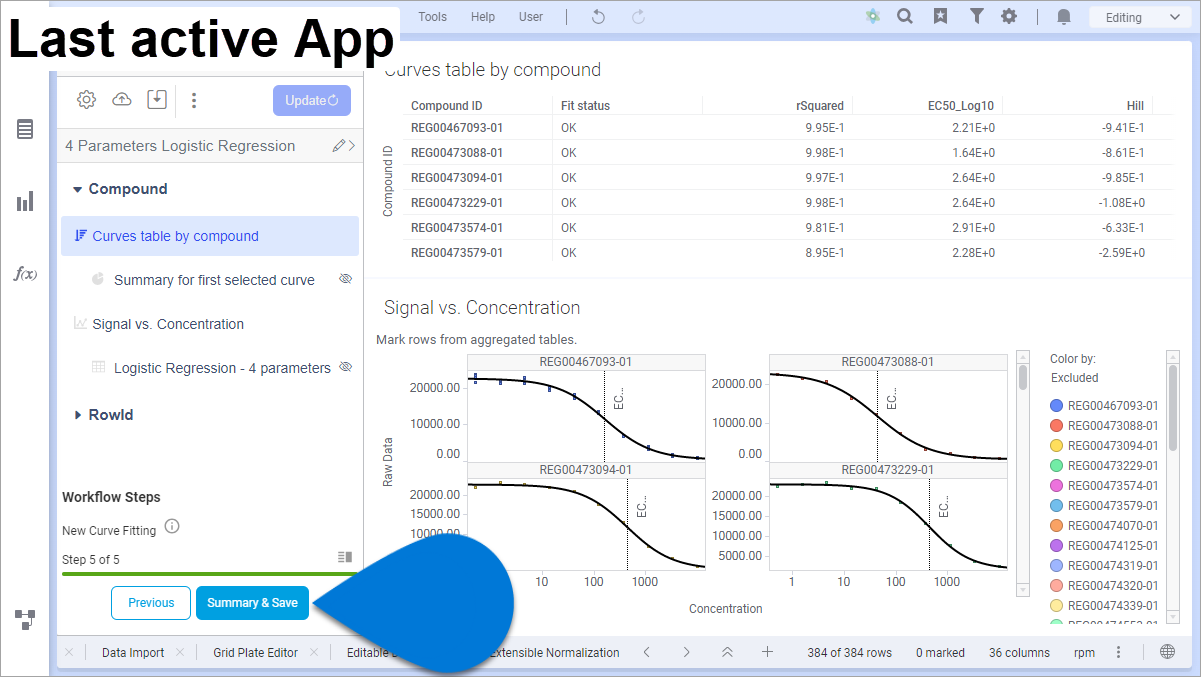

7️⃣ Last active App page ➡ select  [Summary & Save]

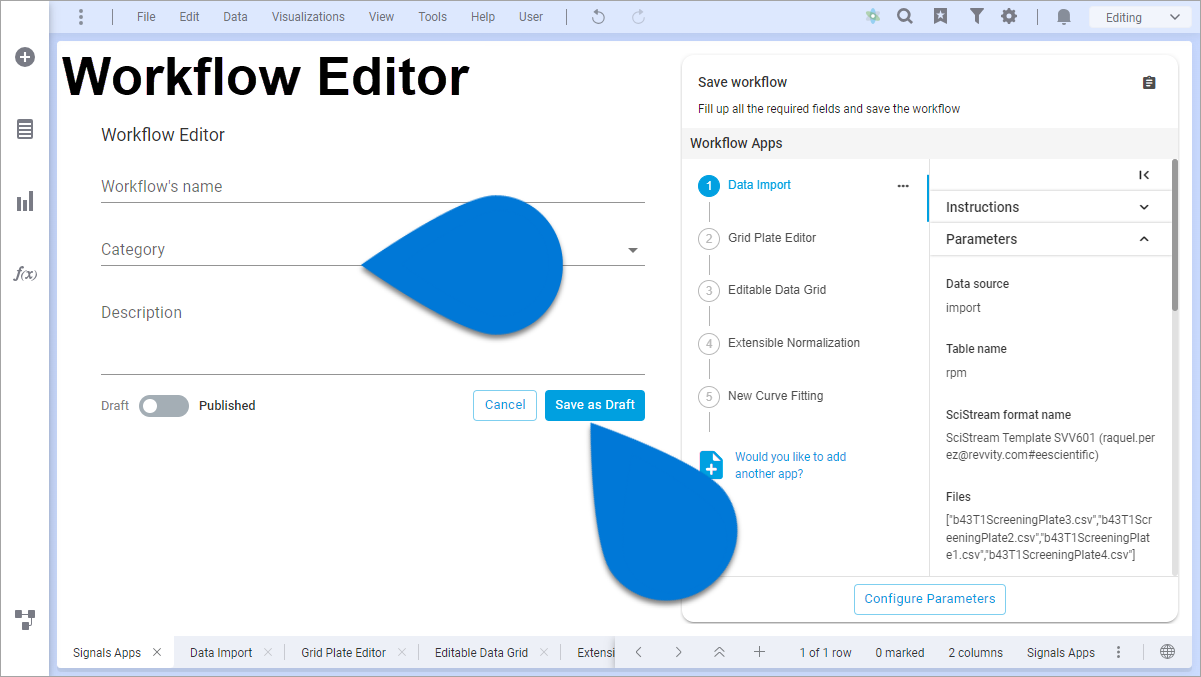

8️⃣ Workflow Editor ➡ type/select Workflow’s name Category Description 9️⃣ Workflow Editor ➡ select [Save as Draft]

Supporting Knowledge

*Steps 5️⃣ and 6️⃣ are performed for each app selected.

The user can utilize this option when there is a clear step-by-step process for the plate-based data analysis; therefore, the user will know beforehand which Apps to configure and in what order they should be configured.

Note: The Apps selected will be added to the workflow in the order in which they are selected.

Optionally, from the App Selection panel, the user can remove all the selected Apps by selecting the  [Clear] button.

Note: The user can go back to a previous App to reconfigure parameters by selecting the  [Previous] button.

Alternatively, from the Workflow Editor page, the user can select the Published toggle, then select [Save and Publish]. Additionally, from the Save Workflow panel, the user can add steps under the Instructions text box.

Note: When a workflow is saved as Draft, the workflow will be listed only in the individual user's internal list of workflows; when saved as Published, the workflow will be shared with others within the organization.

Note: The user can cancel the whole workflow they have just created by selecting the  [Cancel] button.
