Signals VitroVivo: Edit a workflow

Prior to this task:

✔ Spotfire for Signals item must be opened.

✔ A workflow must be created and available.

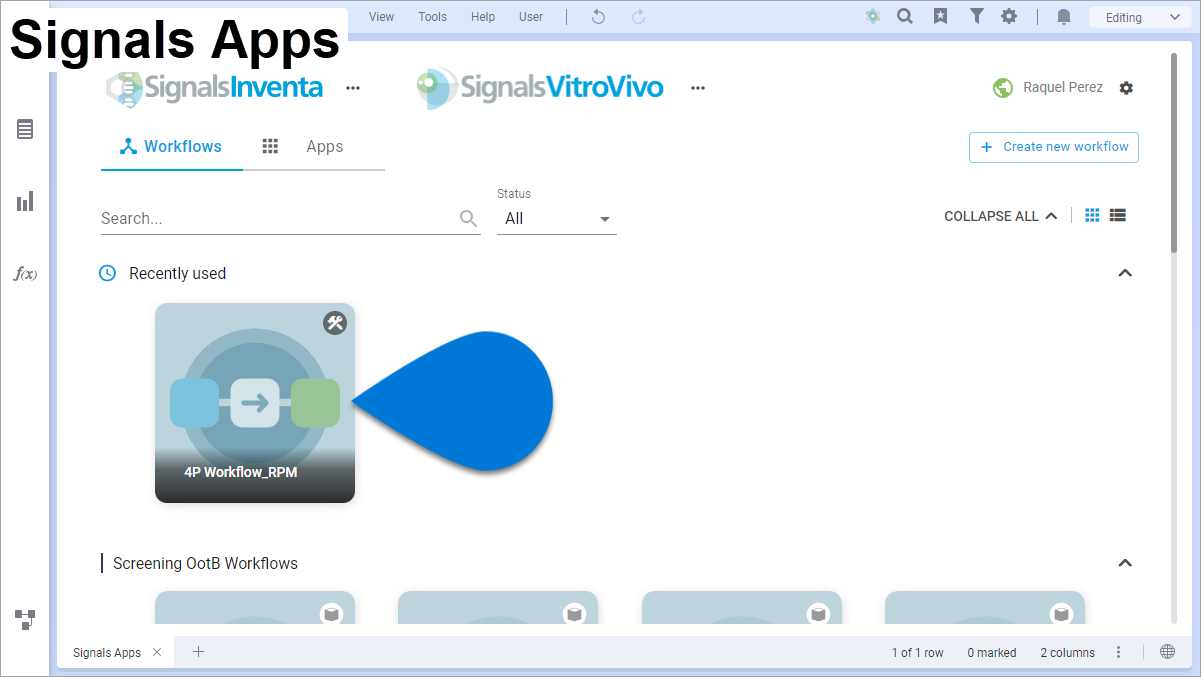

1️⃣ Signals Apps page ➡ Workflows ➡ select workflow to edit

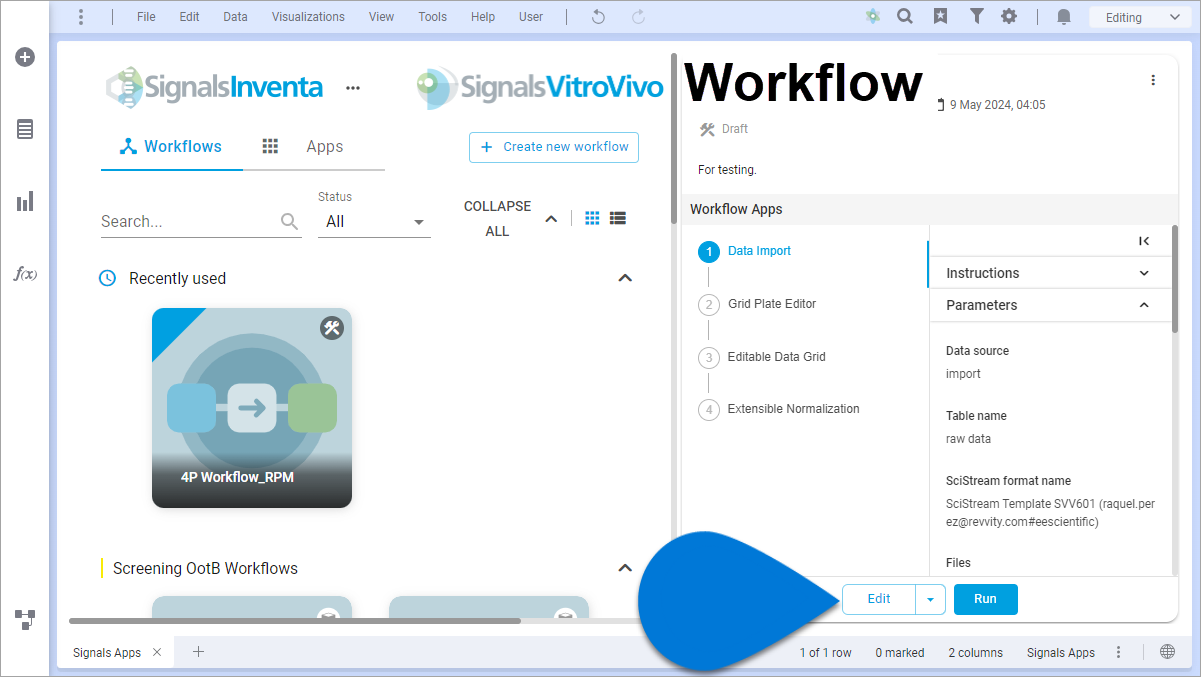

2️⃣ Workflow panel ➡ select  [Edit]

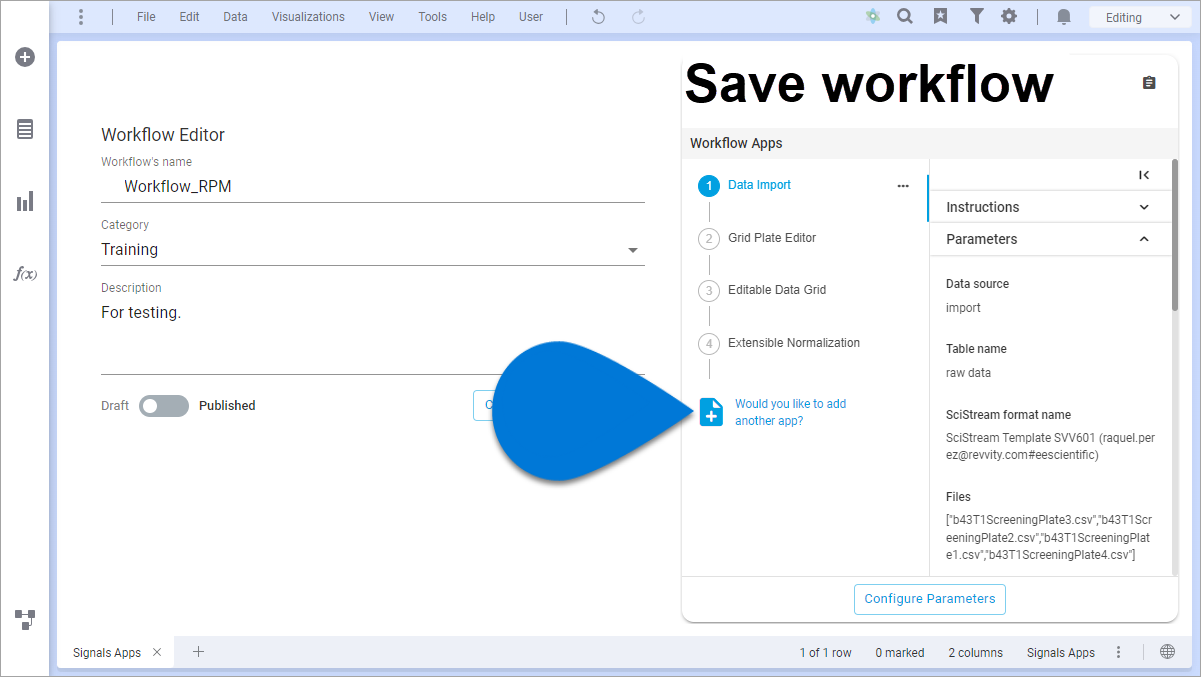

3️⃣ Save workflow panel ➡ select  [Would you like to add another app?]

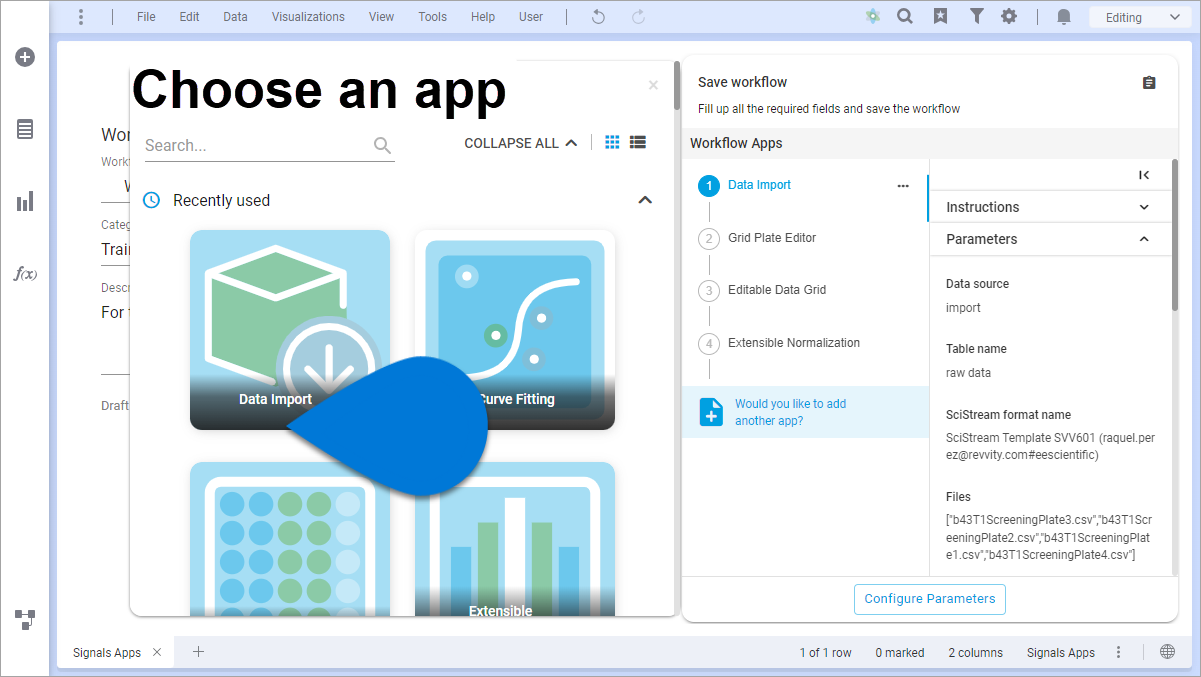

4️⃣ Choose an app window ➡ select app ➡ close

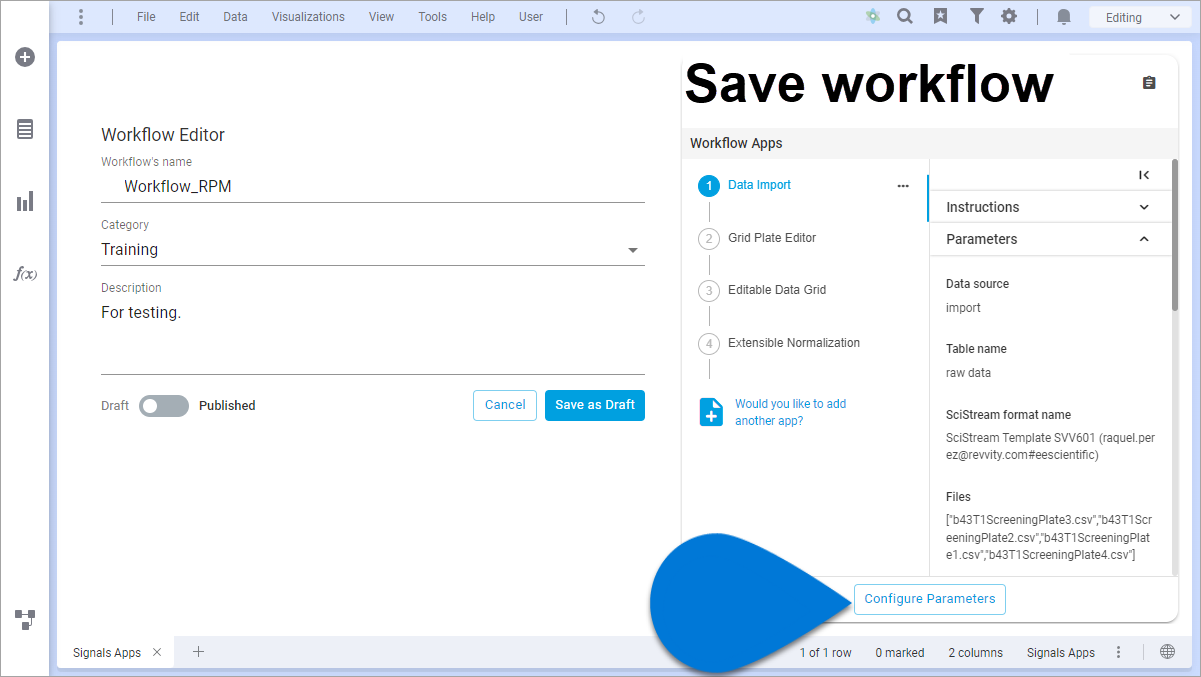

5️⃣ Save workflow panel ➡ select  [Configure Parameters]

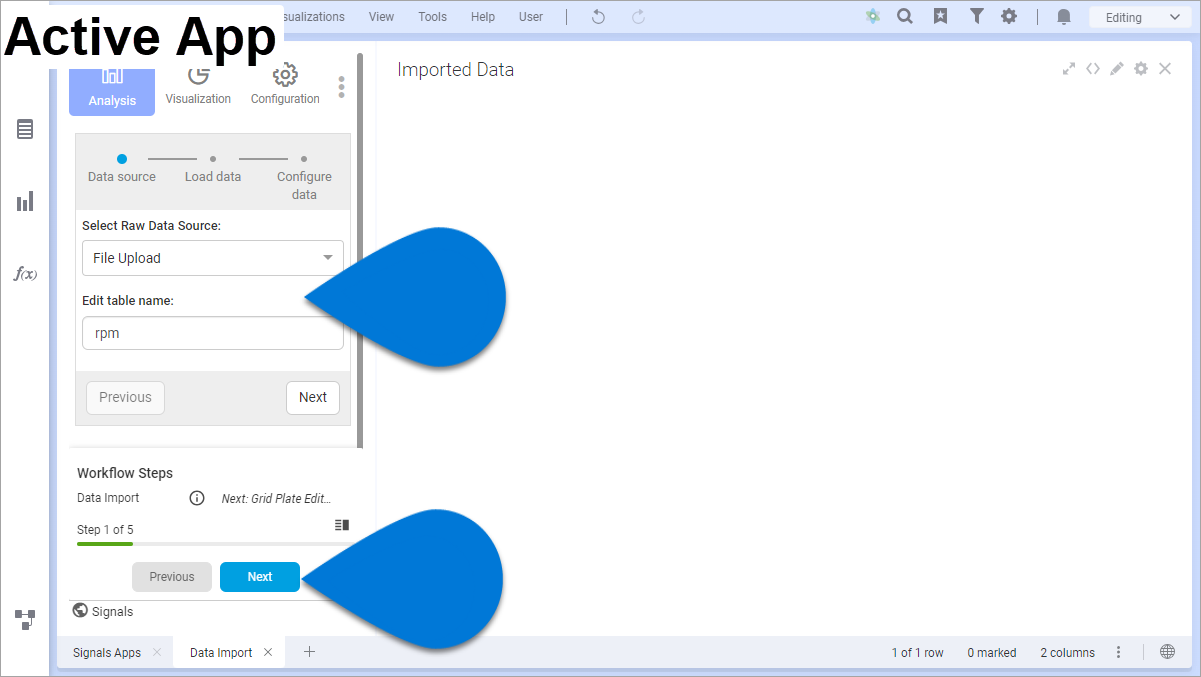

6️⃣ Active App page ➡ edit parameters accordingly* 7️⃣ Active App page ➡ select  [Next]*

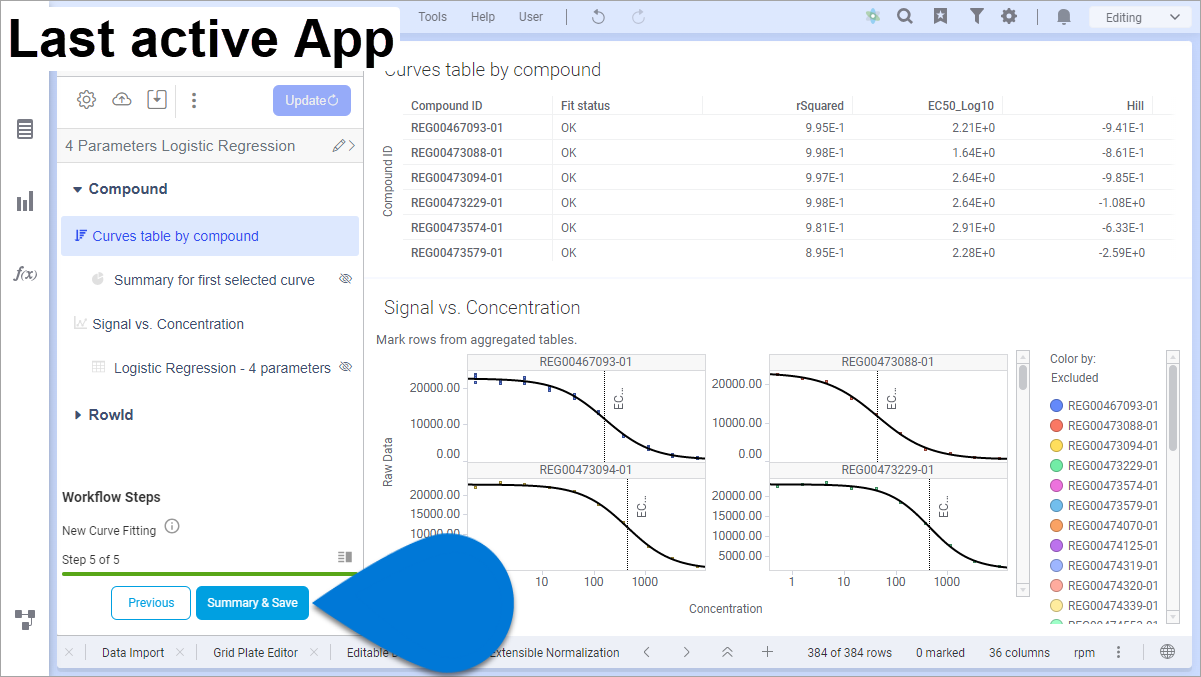

8️⃣ Last active App page ➡ select  [Summary & Save]
9️⃣ Workflow Editor ➡ edit Workflow’s name Category Description 🔟 Workflow Editor ➡ select  [Save as Draft]

Supporting Knowledge

*Steps 6️⃣ and 7️⃣ are performed for each app.

Alternatively, to edit a workflow, hover over the Workflow card, then select  [More Actions] and select [Edit].

Optionally, from the Save workflow panel, the user can move Apps up or down to determine their order in the Workflow by selecting the  [Move up] or  [Move Down] buttons, respectively. Also, the user can delete an App from the selection by selecting the  [Delete app] button.

Alternatively, from the Workflow Editor page, the user can select the Published toggle, then select the  [Save and Publish] button.

Note: When a workflow is saved as Draft, the workflow will be listed only in the individual user's internal list of workflows; when saved as Published, the workflow will be shared with others within the organization.

Note: The user can cancel the editing of the workflow by selecting the  [Cancel] button.
