Signals VitroVivo: Delete an annotation of a plate design from the Grid Plate Editor app

Prior to this task:

✔ Grid Plate Editor app must be opened.

✔ An annotation must be added to a plate design.

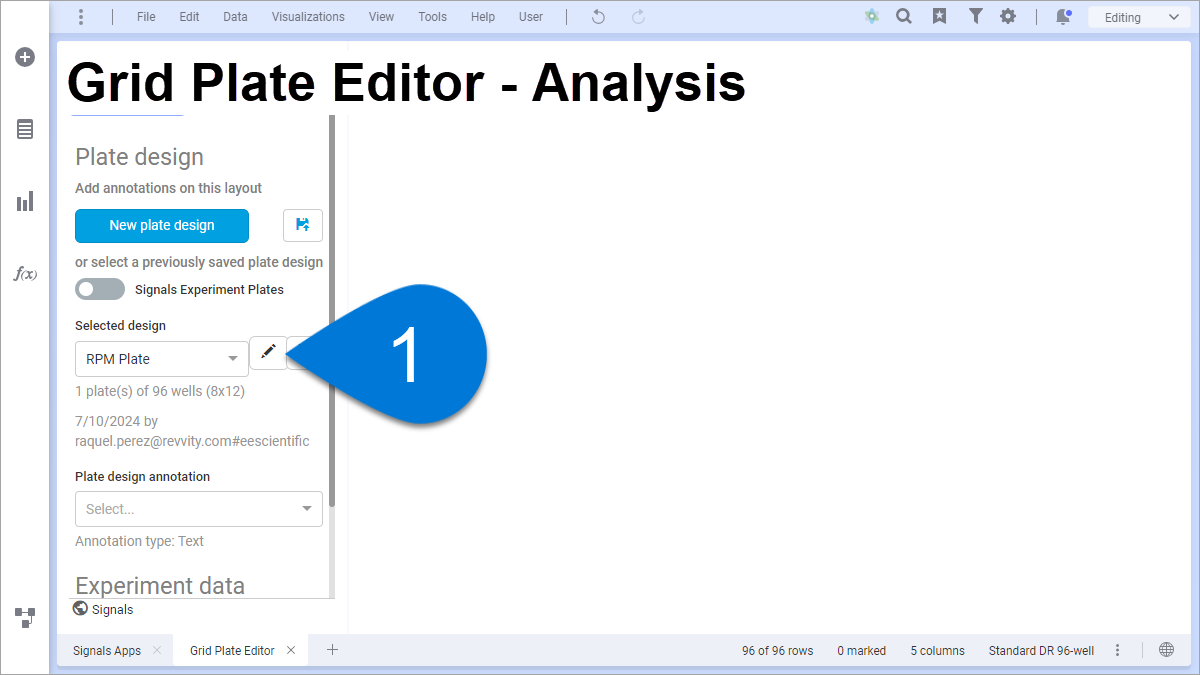

1️⃣ Grid Plate Editor – Analysis tab ➡ select  [“plate design name”] ➡ select  [Edit plate design]

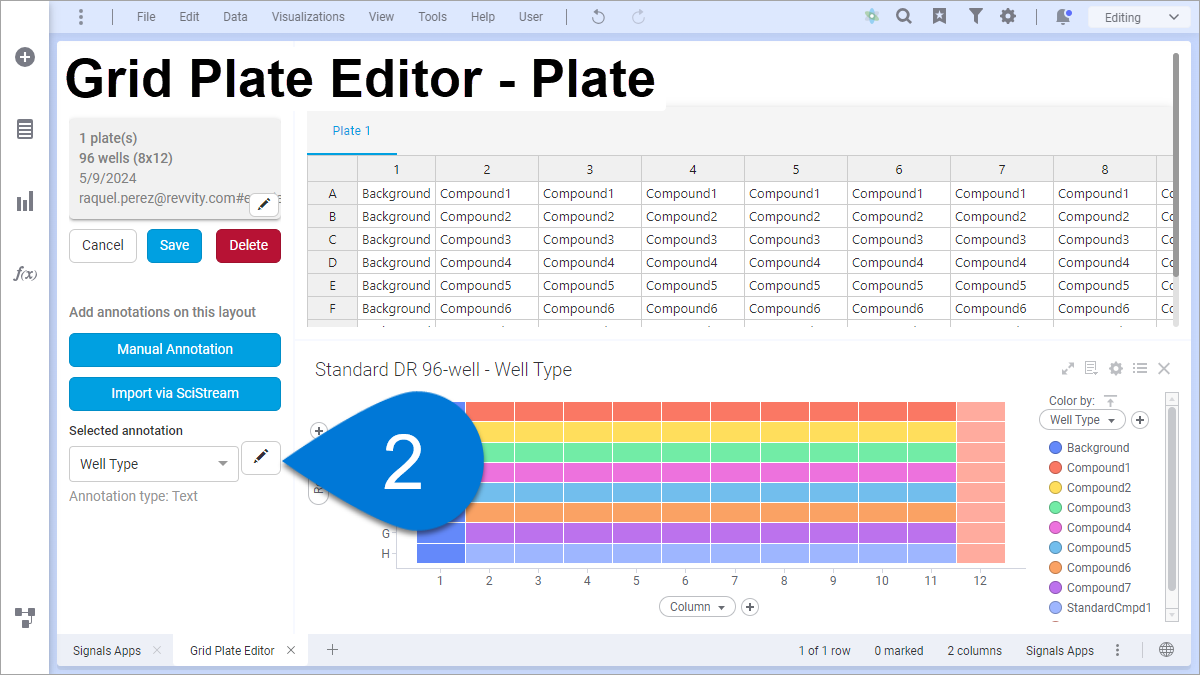

2️⃣ Grid Plate Editor – Plate section ➡ select  [“annotation name”] ➡ select  [Edit or delete annotation]

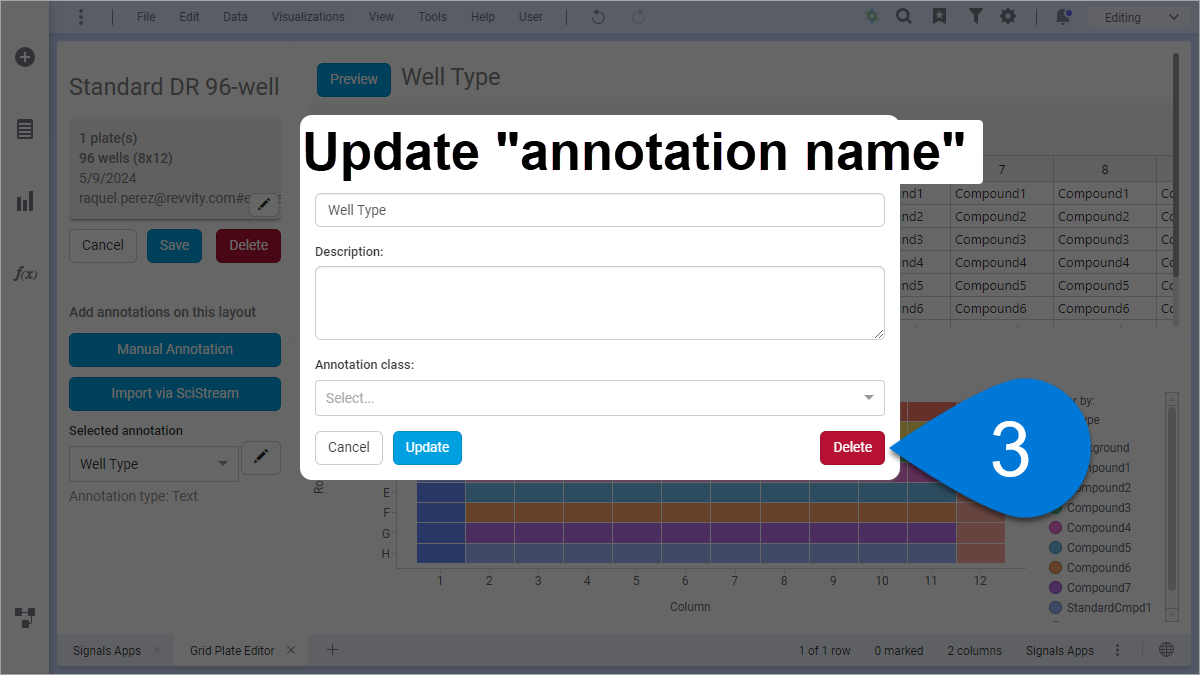

3️⃣ Update “annotation name” window ➡ select  [Delete]

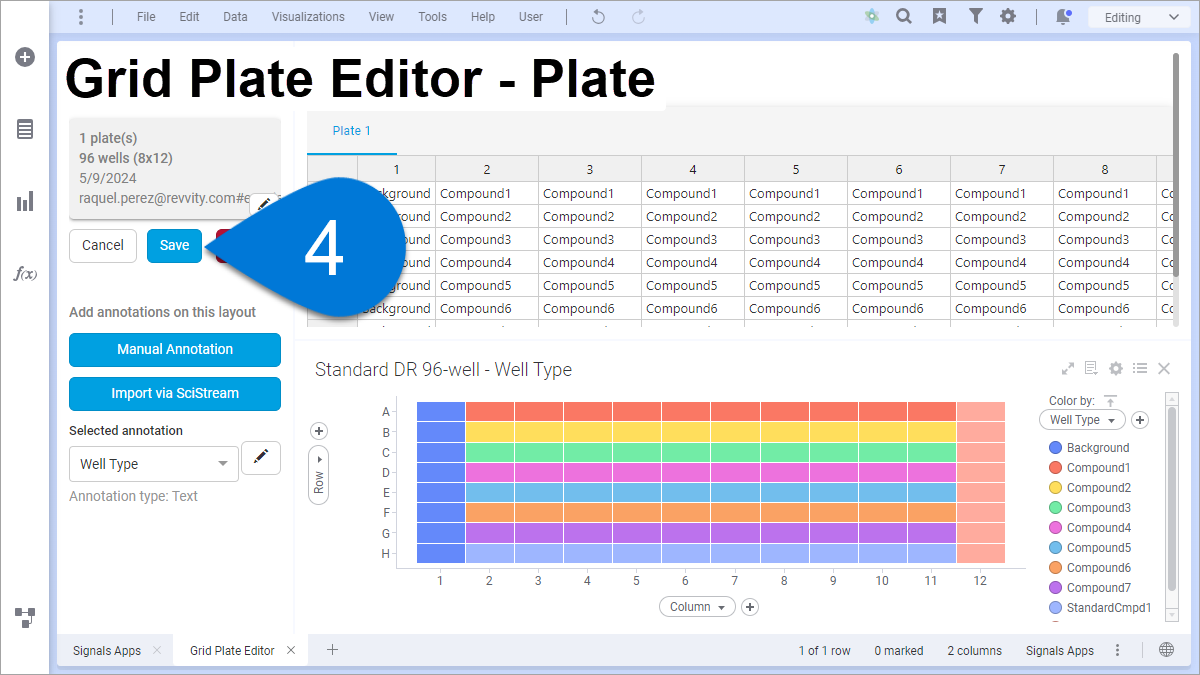

4️⃣ Grid Plate Editor – Plate section ➡ select  [Save]

Supporting Knowledge

Note: The user can cancel deleting an annotation by selecting the  [Cancel] button from the Update “annotation name” window.
