Signals VitroVivo: Delete a plate map file format from SciStream manage formats of the Grid Plate Editor app

Prior to this task:

✔ Spotfire for Signals must be installed.

✔ Grid Plate Editor app must be opened.

✔ A plate map file format must be available.

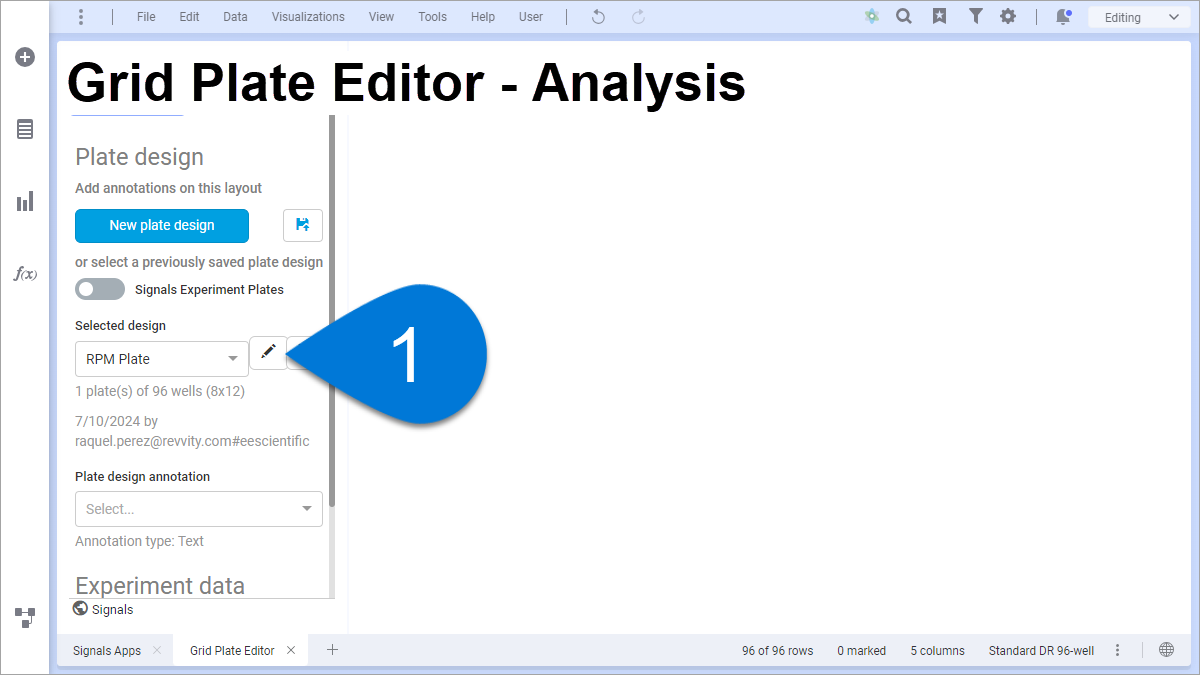

1️⃣ Grid Plate Editor – Analysis tab ➡ select  [“plate design name”] ➡ select  [Edit plate design]

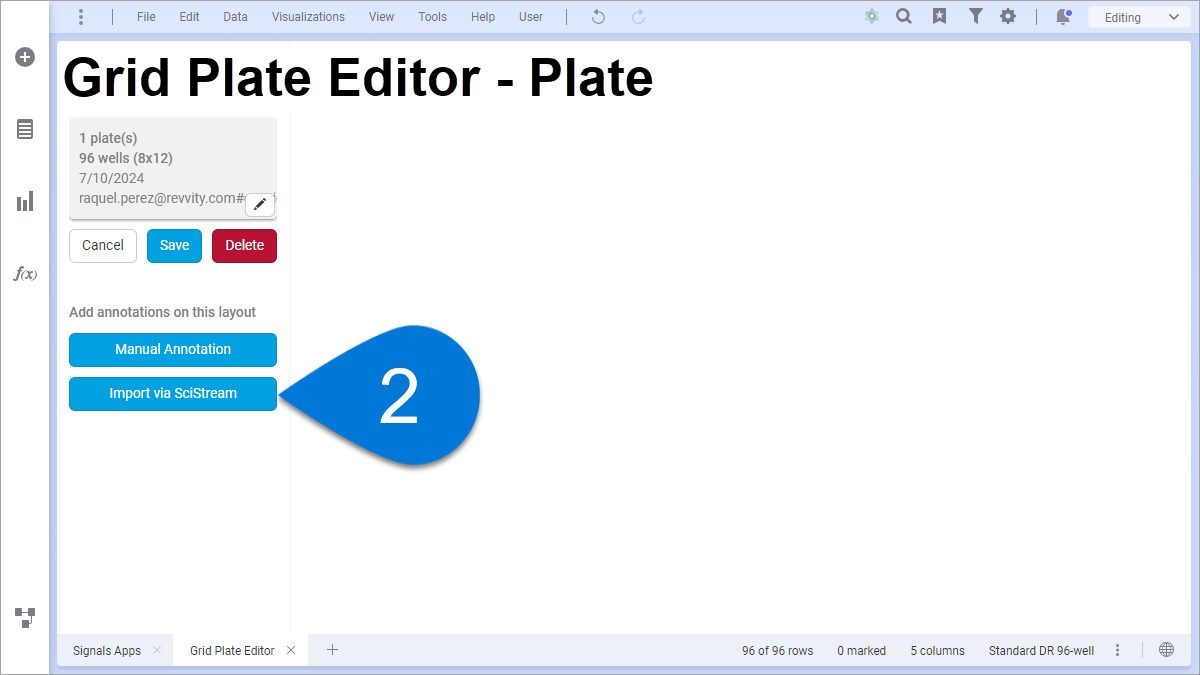

2️⃣ Grid Plate Editor – Plate section ➡ Add annotations on this layout ➡ select  [Import via SciStream]

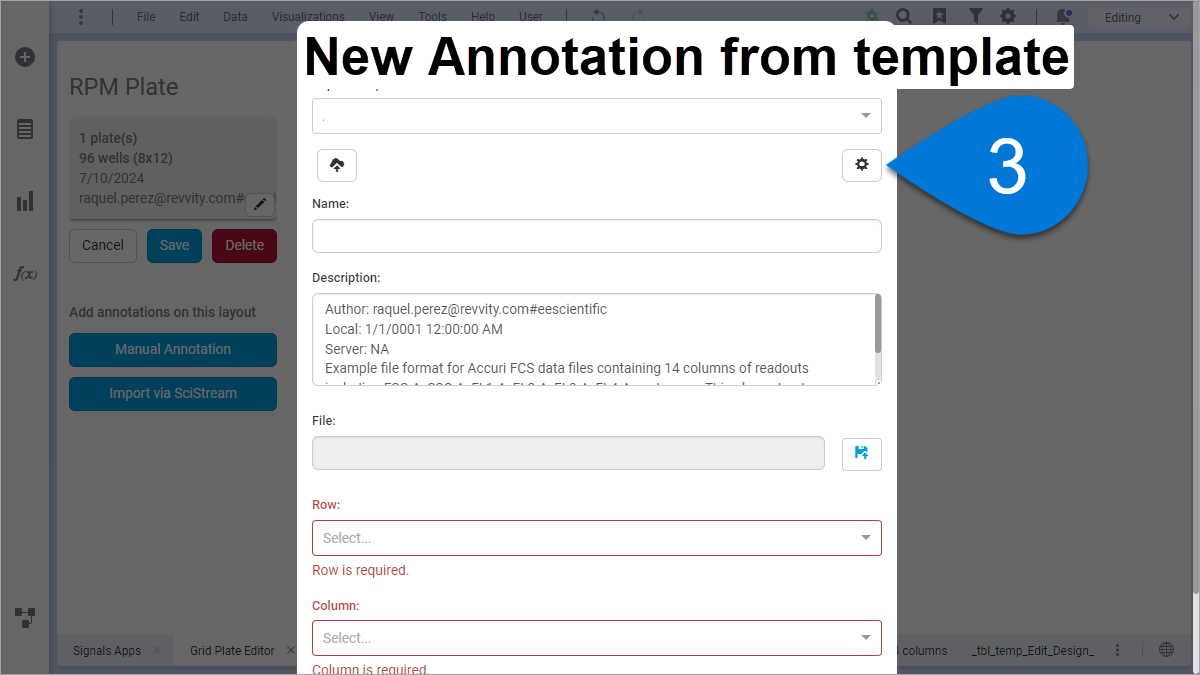

3️⃣ New Annotation from template window ➡ select  [Manage Formats]

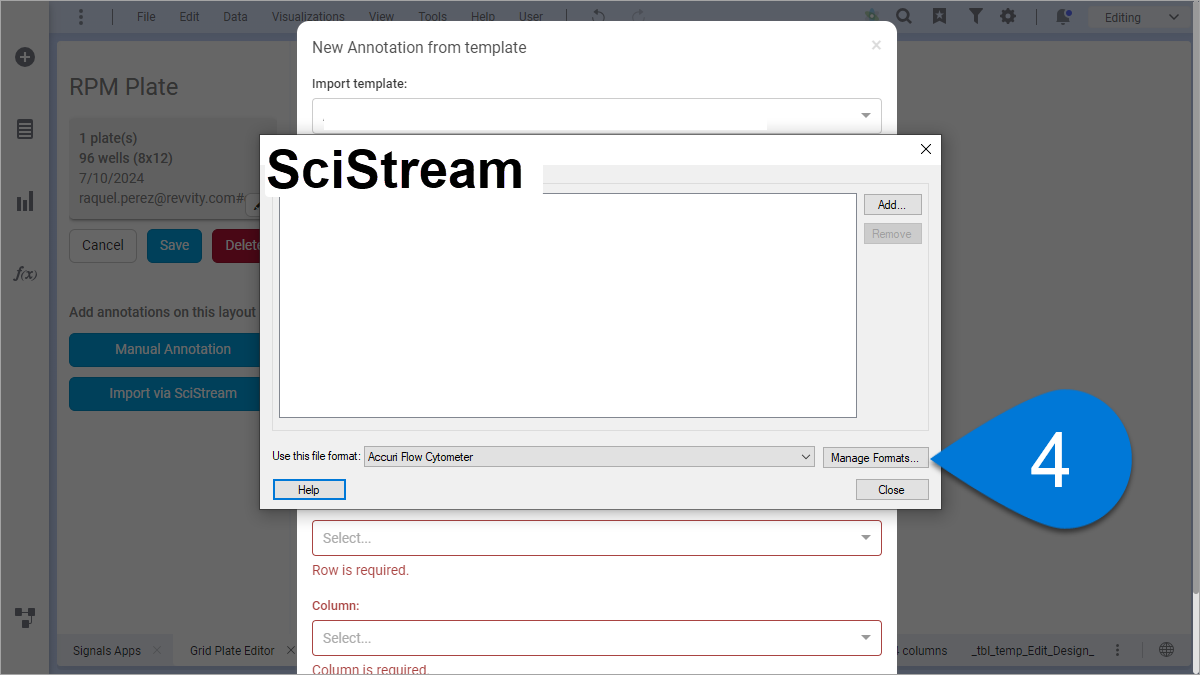

4️⃣ SciStream window ➡ select  [Manage Formats…]

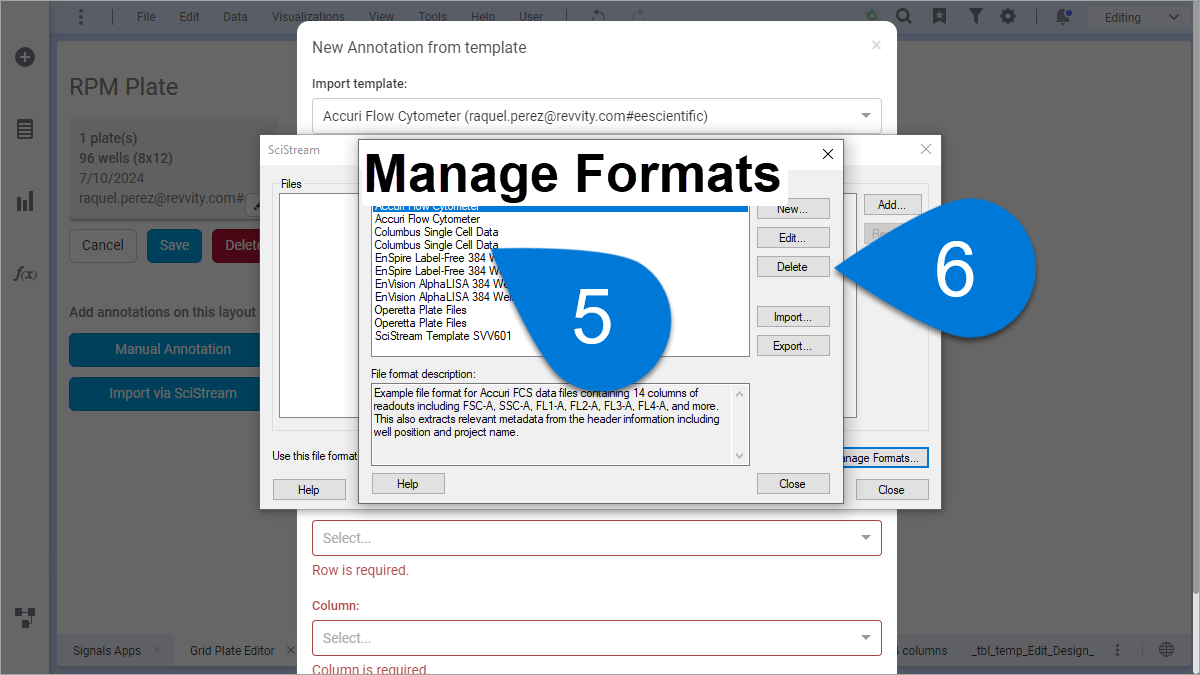

5️⃣ Manage Formats window ➡ File format names ➡ select plate map file format to delete 6️⃣ Manage Formats window ➡ select  [Delete]

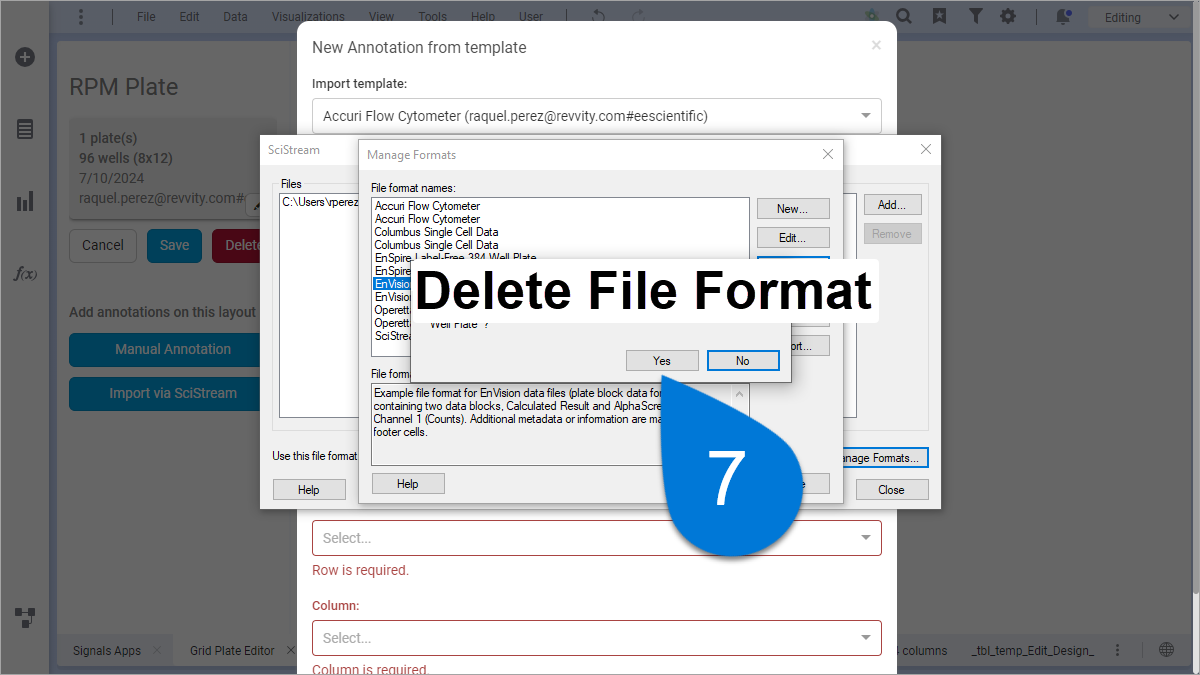

7️⃣ Delete File Format window ➡ select  [Yes]

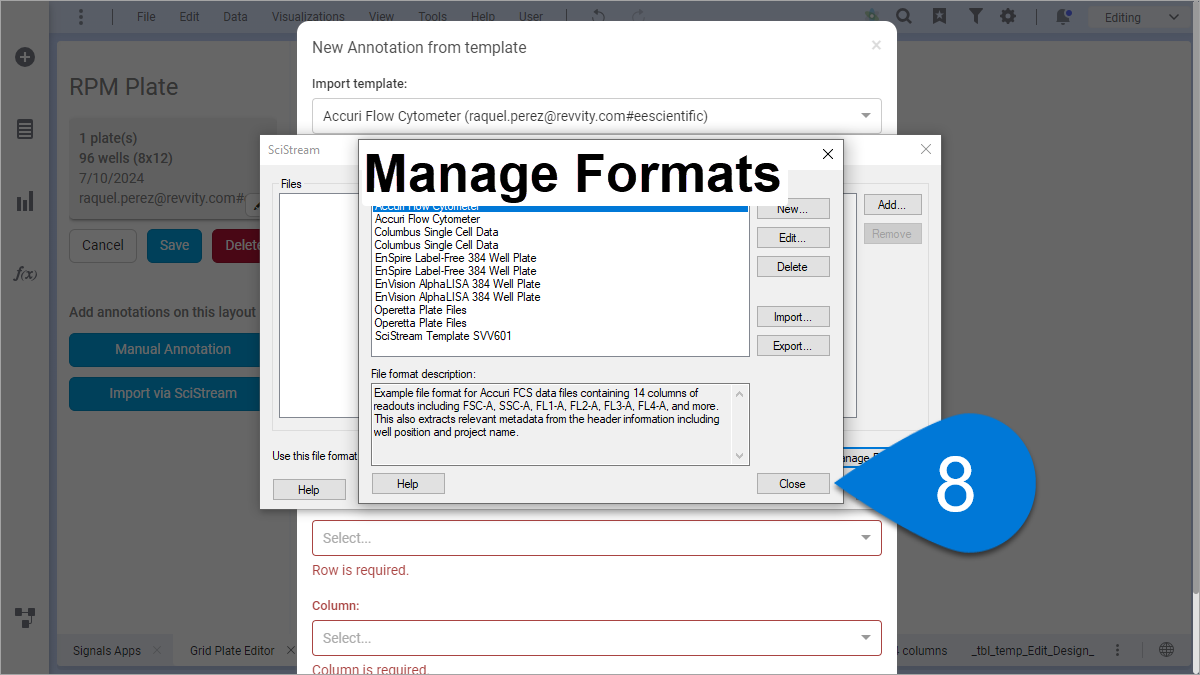

8️⃣ Manage Formats window ➡ select  [Close] (Take the same action for the SciStream window)
