Signals VitroVivo: Export a plate map file format as a .json file from SciStream manage formats of the Grid Plate Editor app

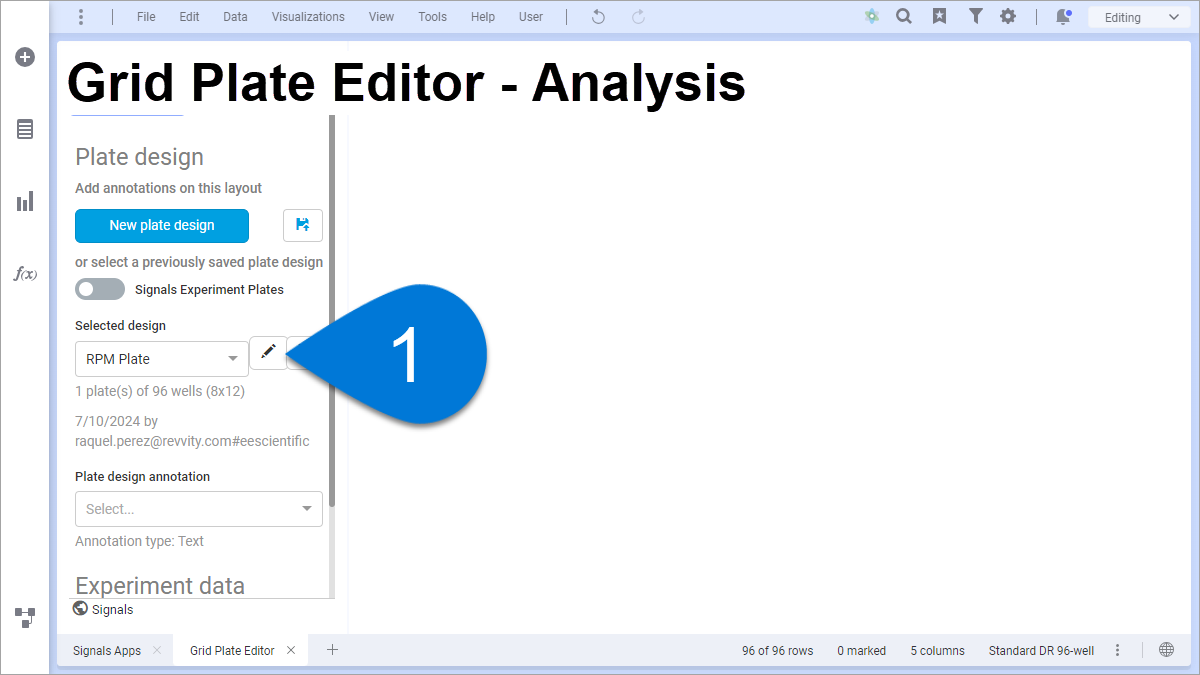

1️⃣ Grid Plate Editor – Analysis tab ➡ select  [“plate design name”] ➡ select  [Edit plate design]

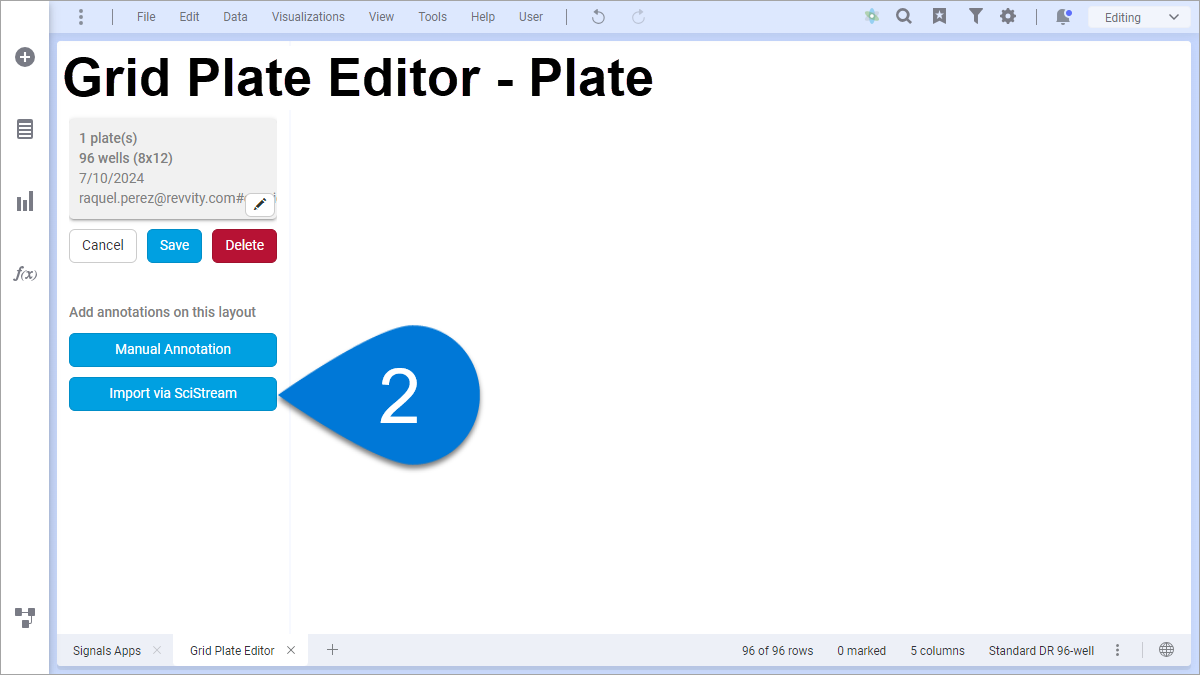

2️⃣ Grid Plate Editor – Plate section ➡ Add annotations on this layout ➡ select  [Import via SciStream]

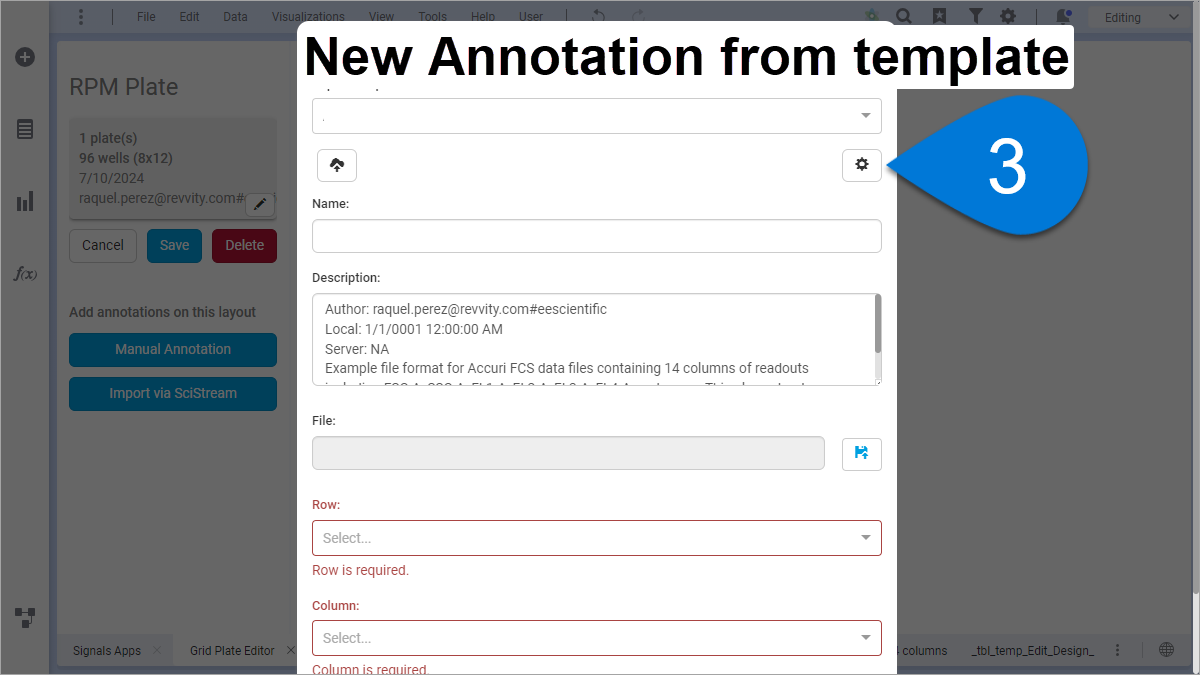

3️⃣ New Annotation from template window ➡ select  [Manage Formats]

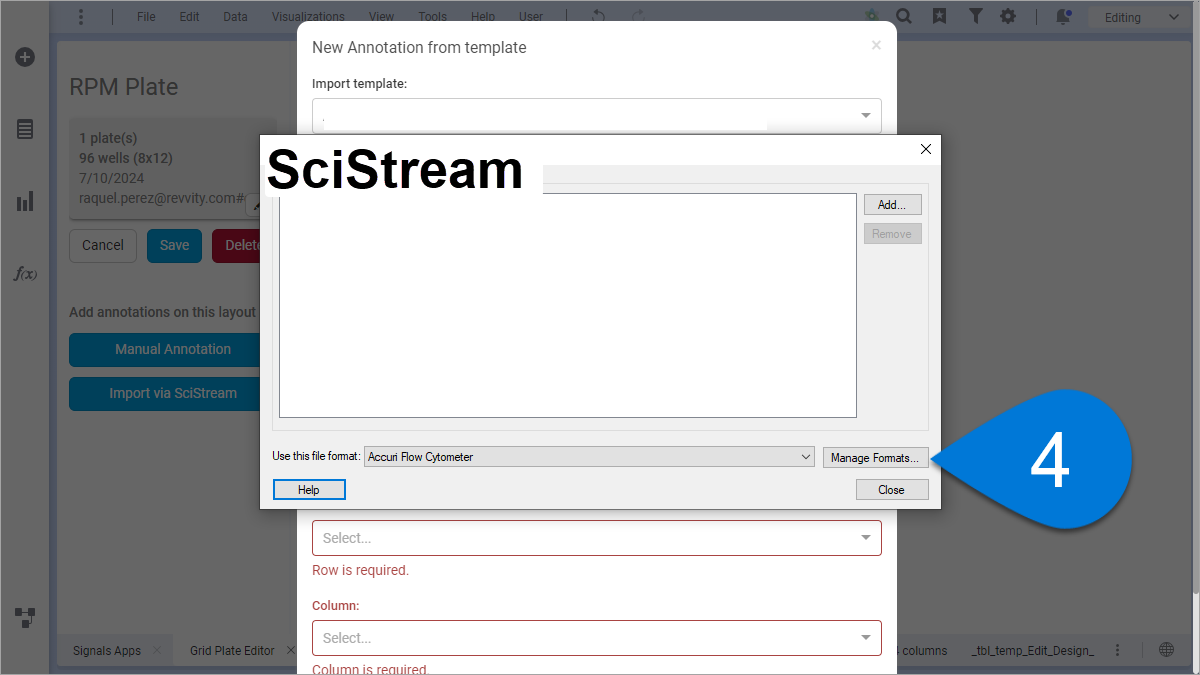

4️⃣ SciStream window ➡ select  [Manage Formats…]

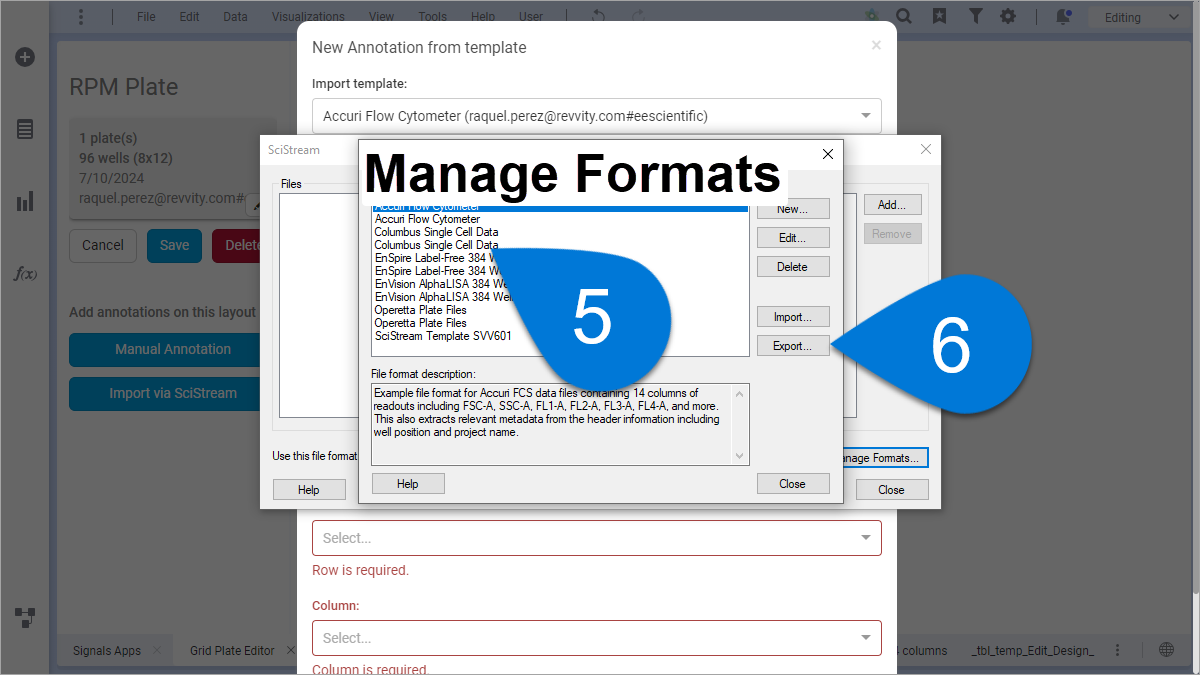

5️⃣ Manage Formats window ➡ File format names ➡ select plate map file format(s) to export

6️⃣ Manage Formats window ➡ select  [Export…]

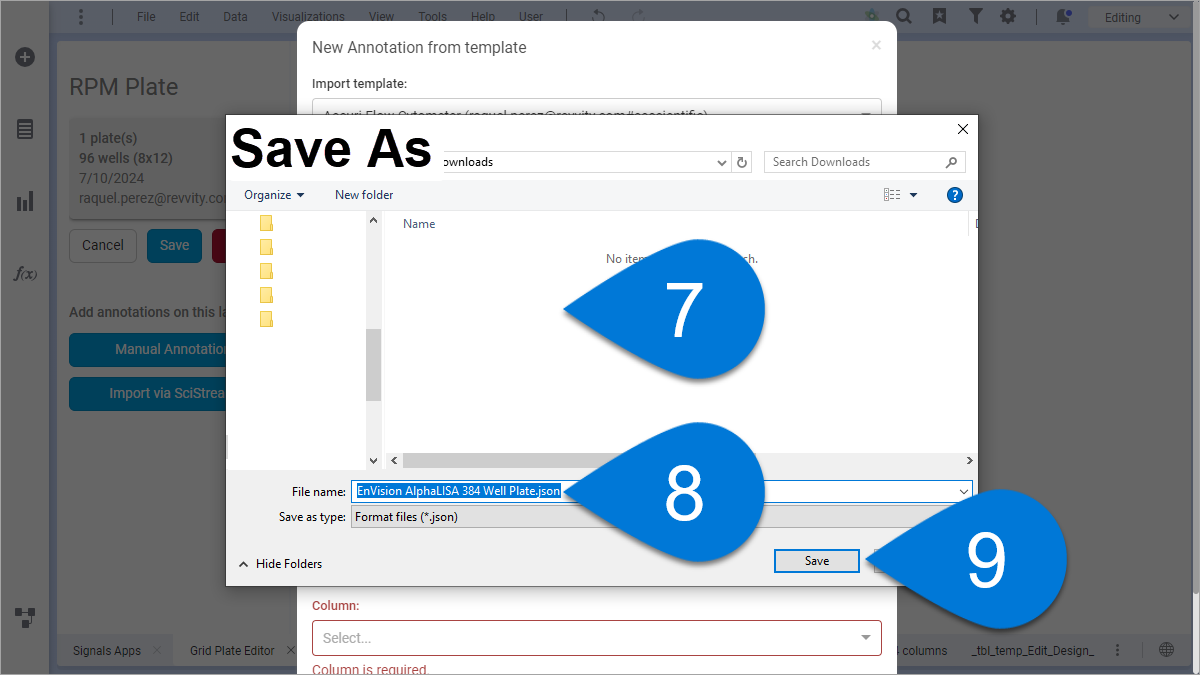

7️⃣ Save As window ➡ browse location on computer

8️⃣ Save As window ➡ type "File name"

9️⃣ Save As window ➡ select  [Save]
