Signals VitroVivo: Add an annotation(s) to a plate design via SciStream from the Grid Plate Editor app

Prior to this task:

✔ Grid Plate Editor app must be opened.

✔ A plate design must be created.

✔ A plate map file format must be available.

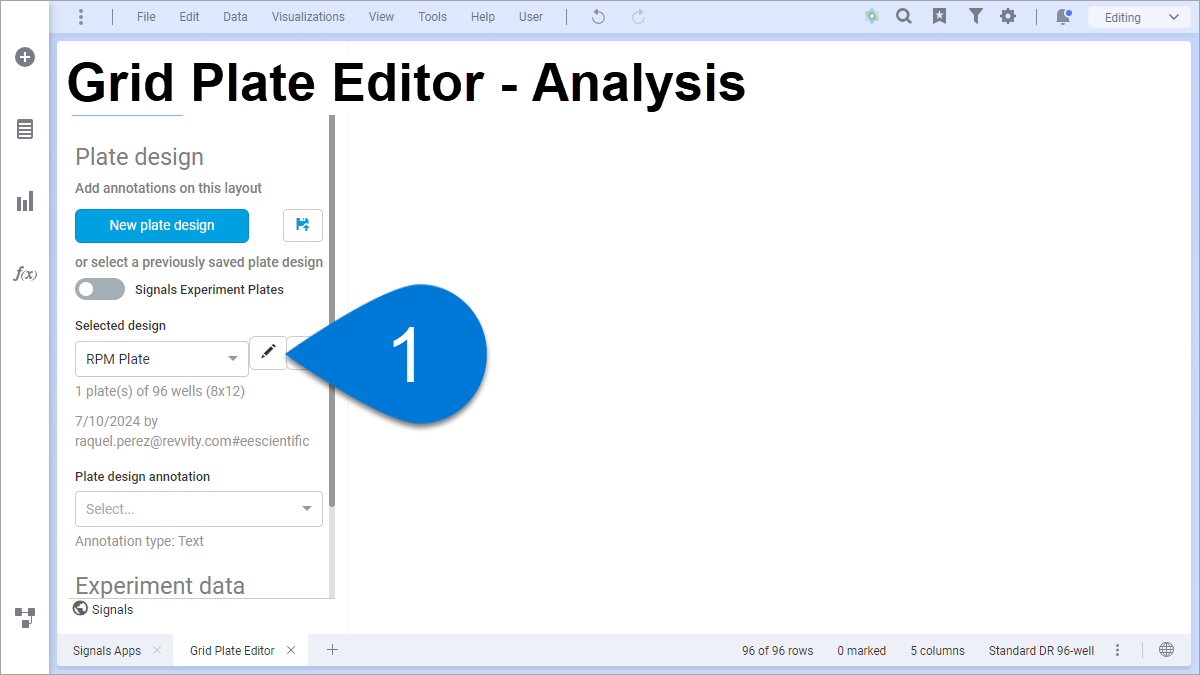

1️⃣ Grid Plate Editor – Analysis tab ➡ select [“plate design name”] ➡ select [Edit plate design]

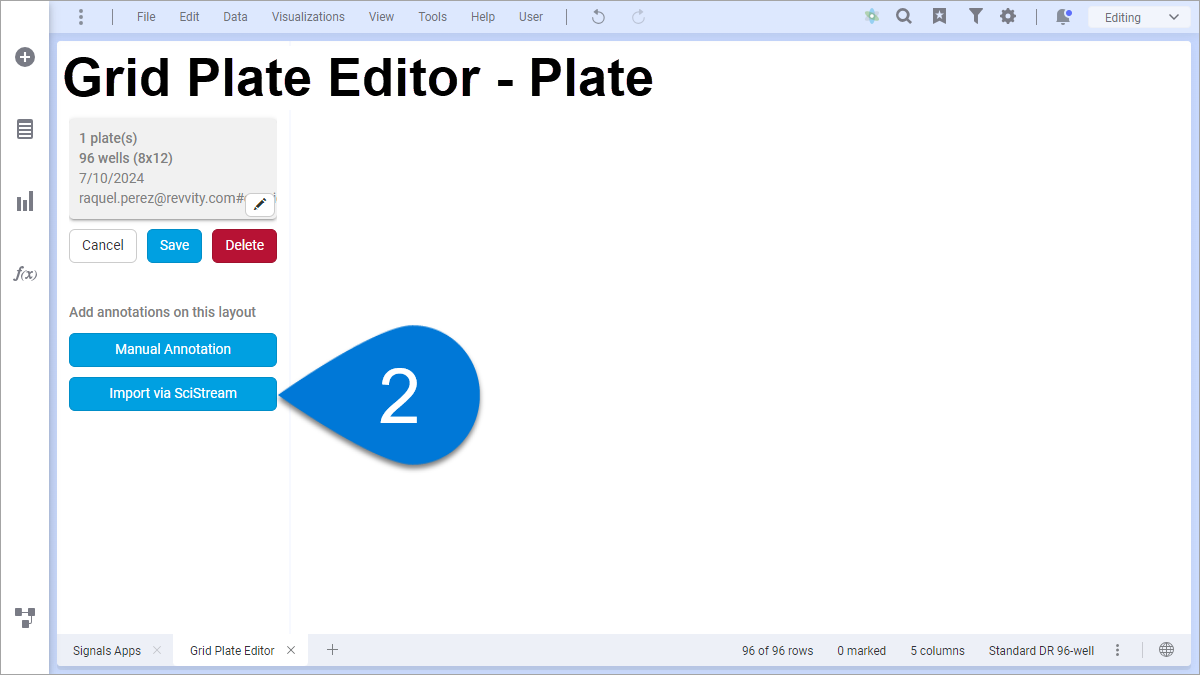

2️⃣ Grid Plate Editor – Plate section ➡ Add annotations on this layout ➡ select [Import via SciStream]

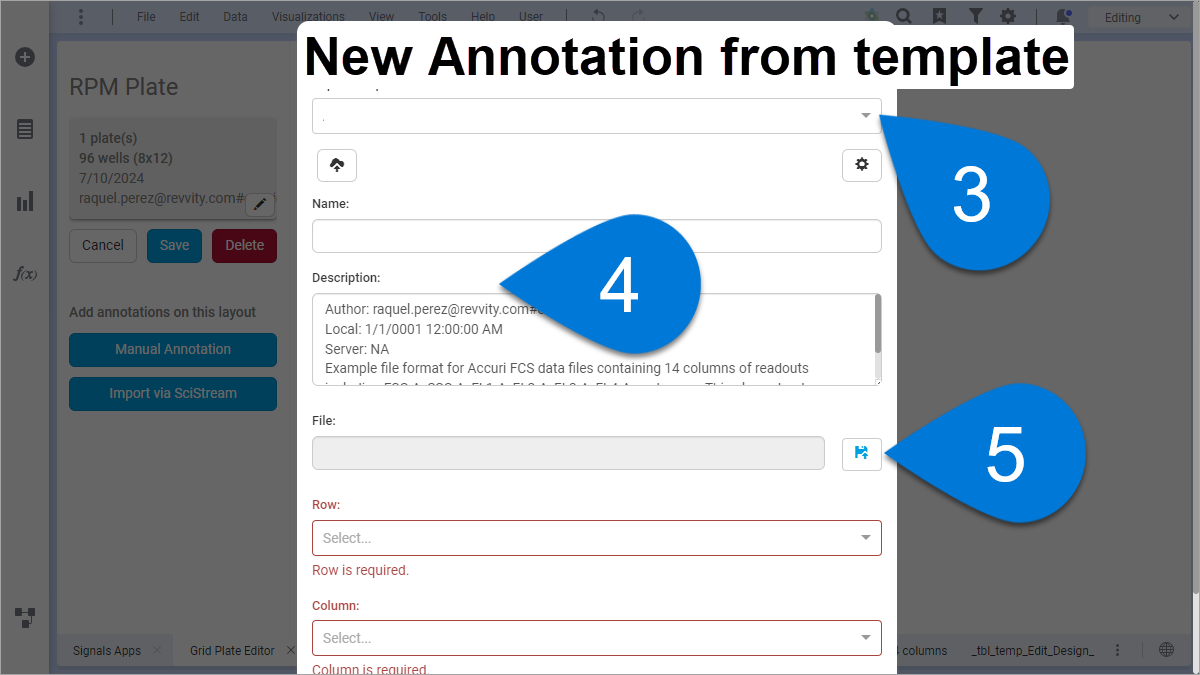

3️⃣ New Annotation from template window ➡ Import template ➡ select plate map file format 4️⃣ New Annotation from template window ➡ edit Name Description 5️⃣ New Annotation from template window ➡ File ➡ select [Load plate design]

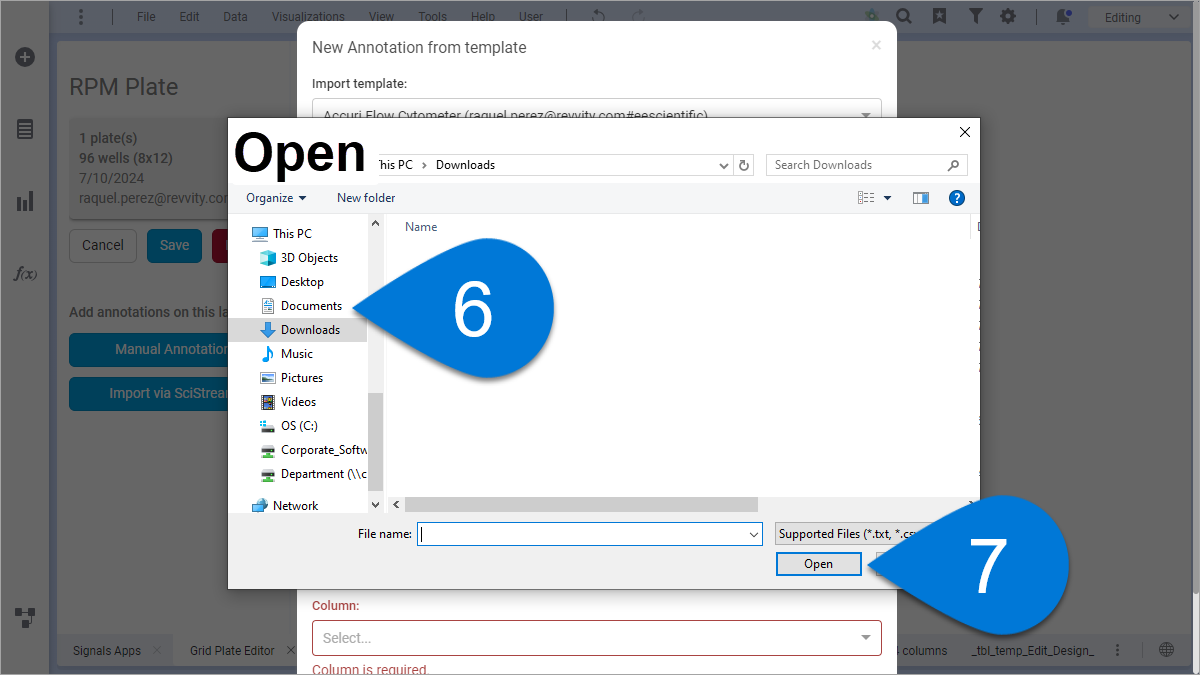

6️⃣ Open window ➡ browse and select file(s) 7️⃣ Open window ➡ select [Open]

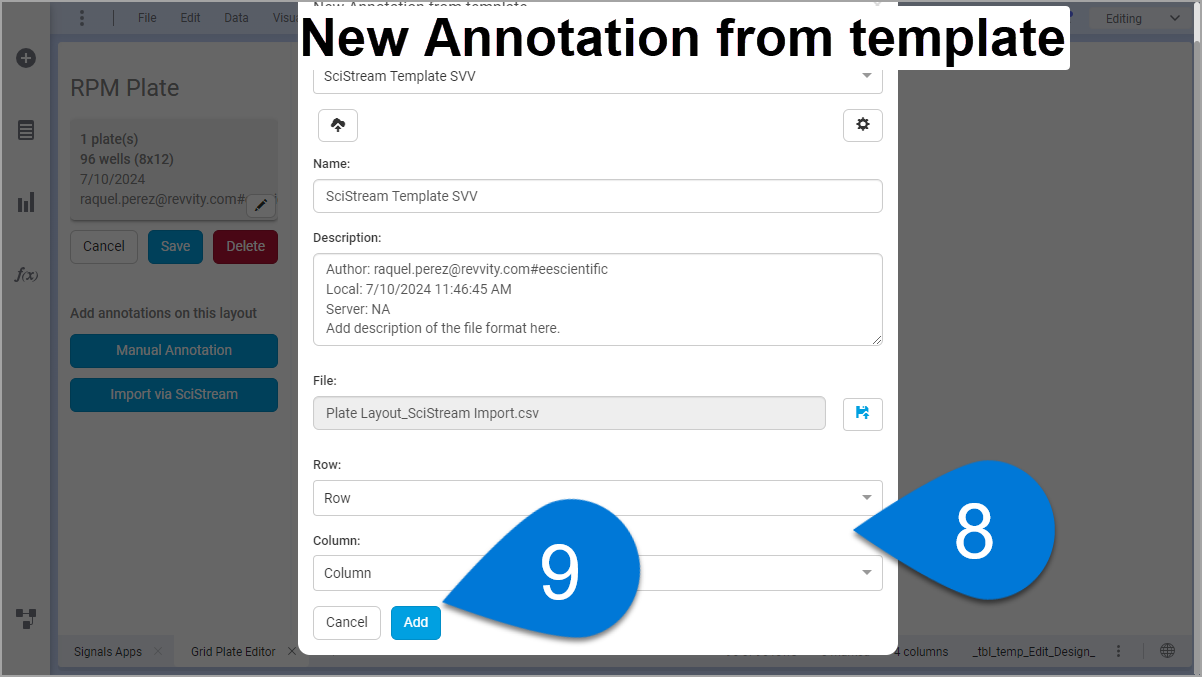

8️⃣ New Annotation from template window ➡ select Row Column 9️⃣ New Annotation from template window ➡ select [Add]

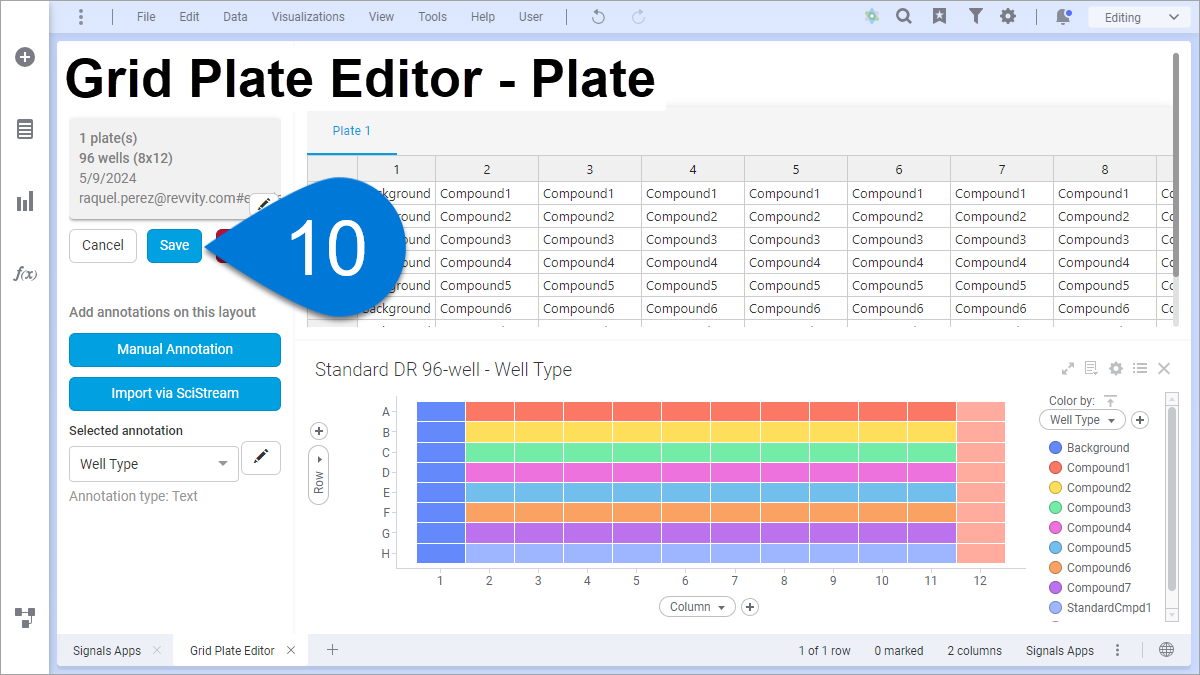

🔟 Grid Plate Editor – Plate section ➡ select [Save]
