Signals Notebook: Add a calculation(s) to a Table template from the Signals Configuration – Revvity Signals

For Administrators only.

Prior to this task:

✔ Table template must be created.

✔ Column(s) and header(s) of a Table template must be added/edited.

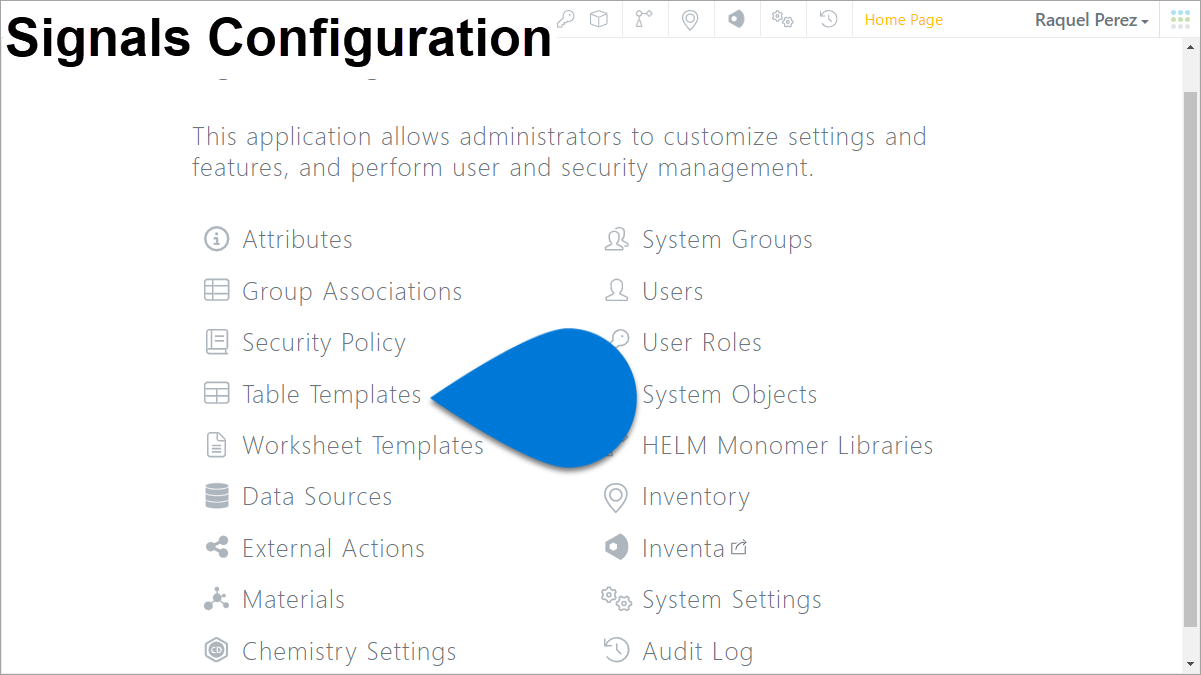

1️⃣ Signals Configuration ➡ select [Table Templates]

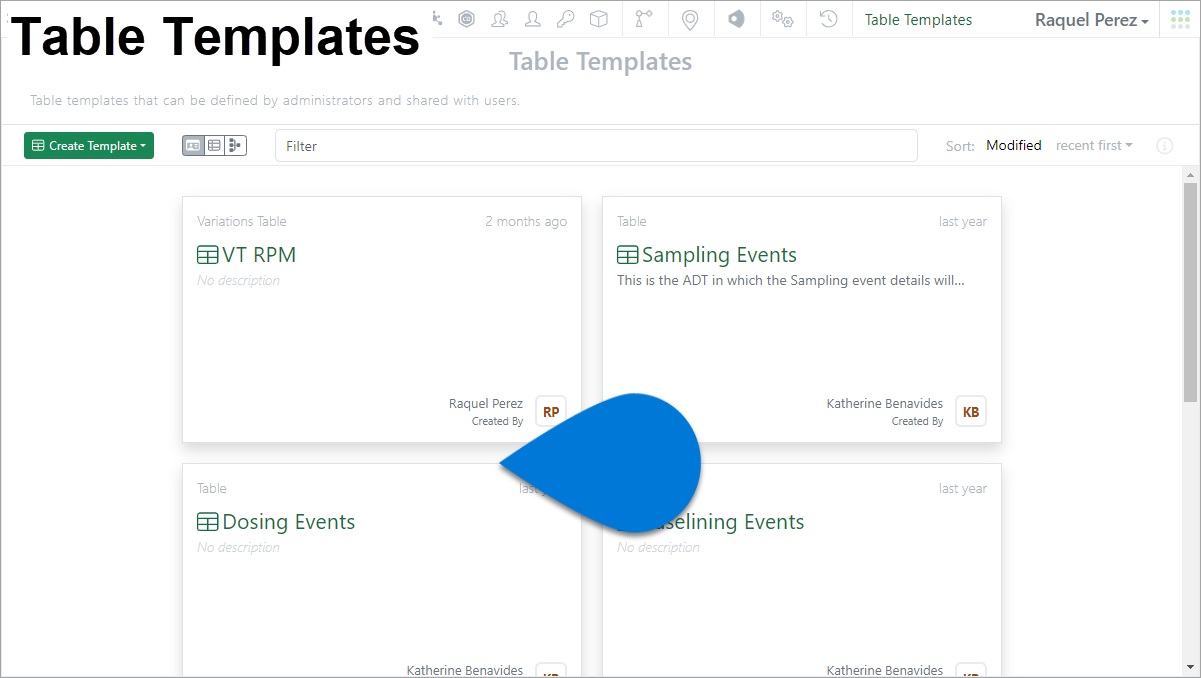

2️⃣ Table Templates ➡ select table template

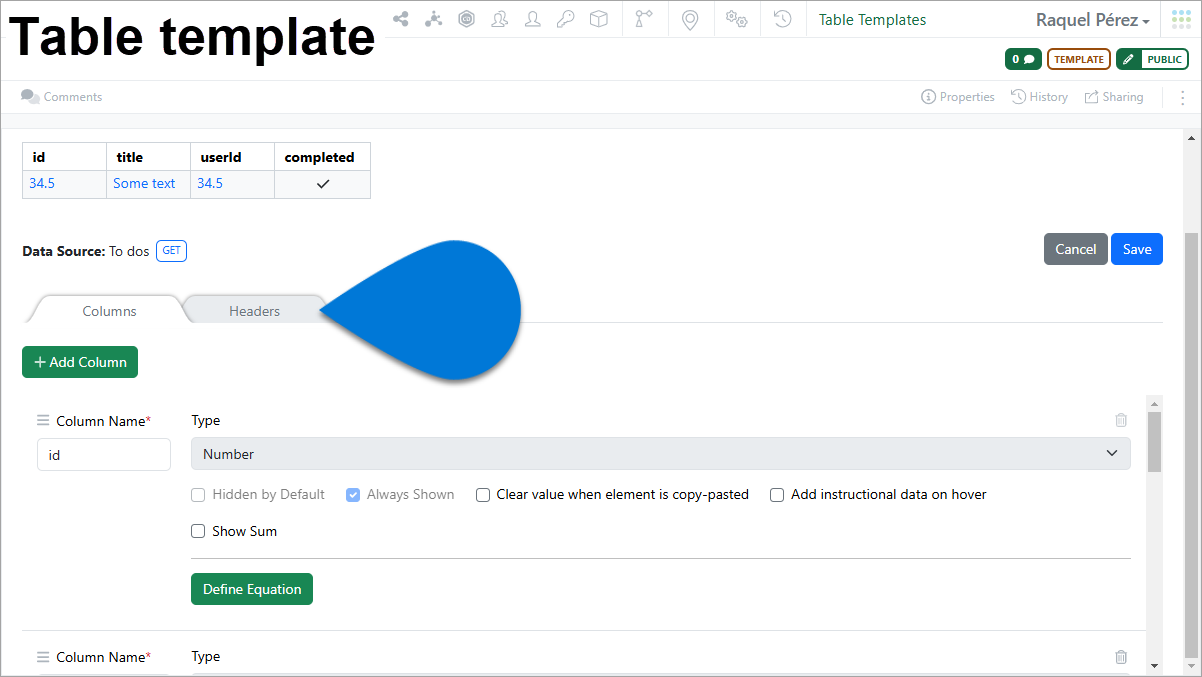

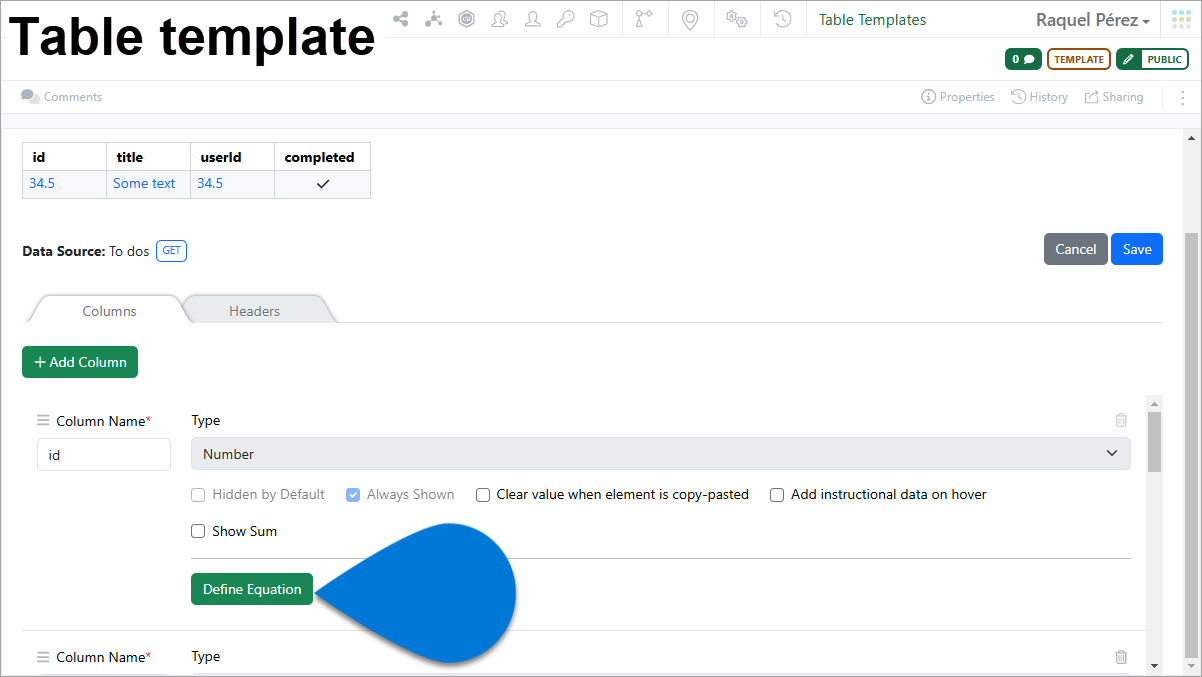

3️⃣ Table template ➡ Columns ➡ "column name" ➡ select [Define Equation]

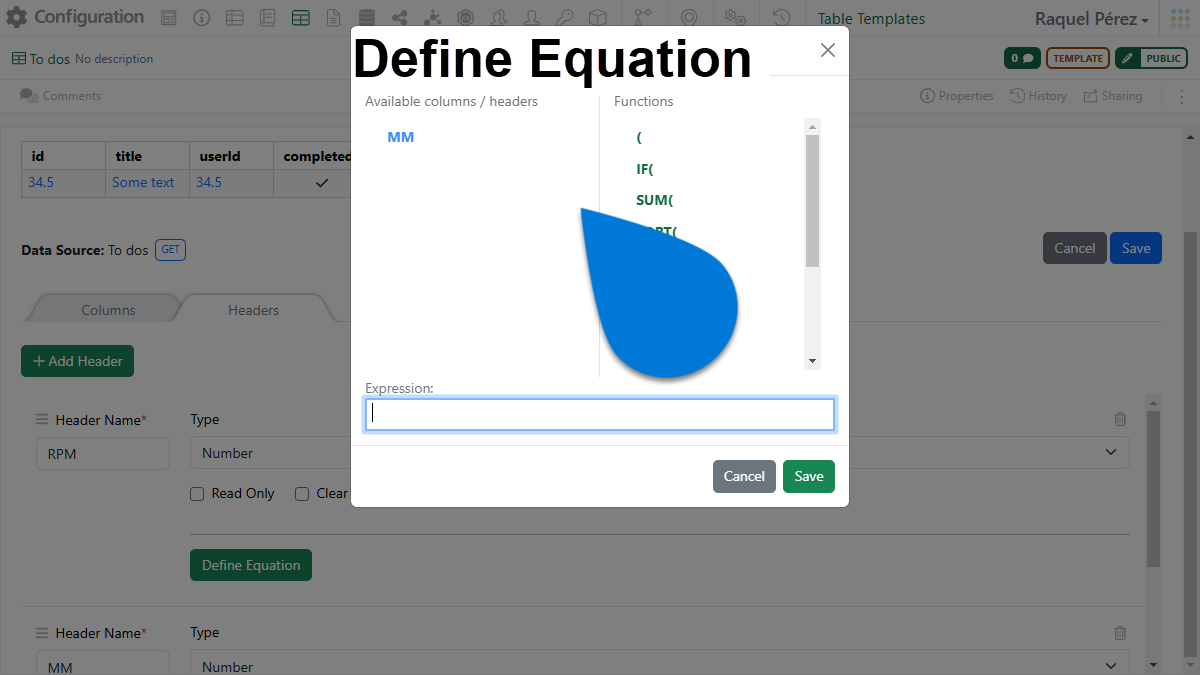

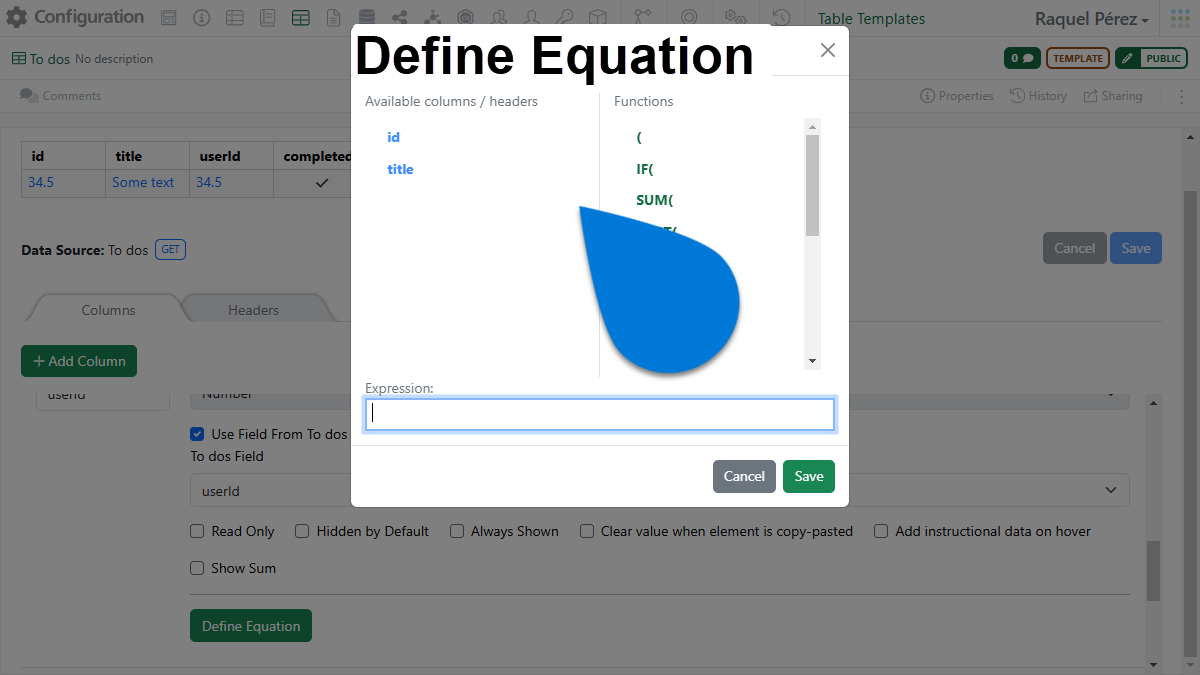

4️⃣ Define Equation window ➡ enter columns/headers plus function(s)

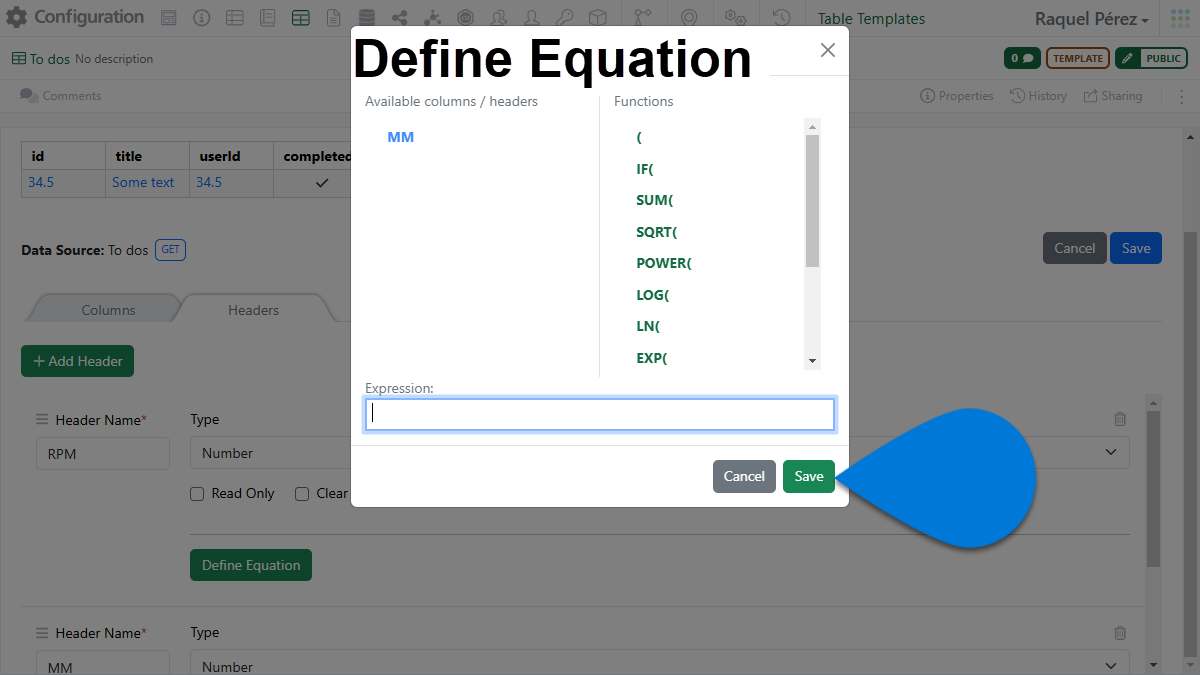

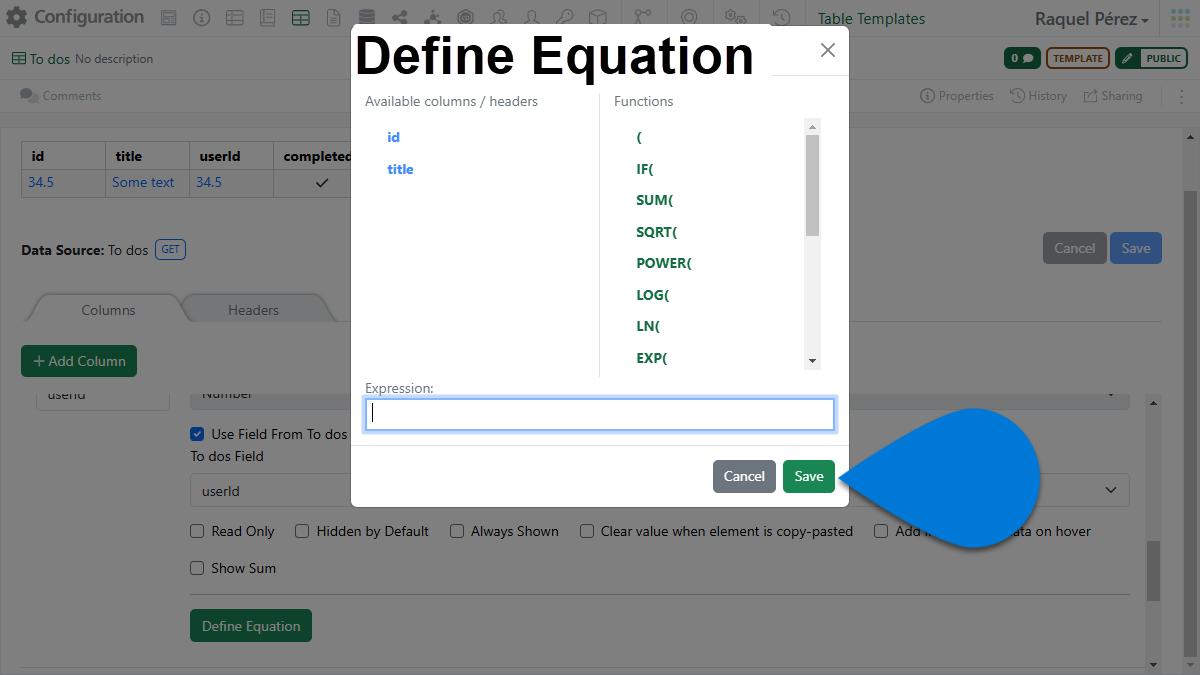

5️⃣ Define Equation window ➡ select [Save]

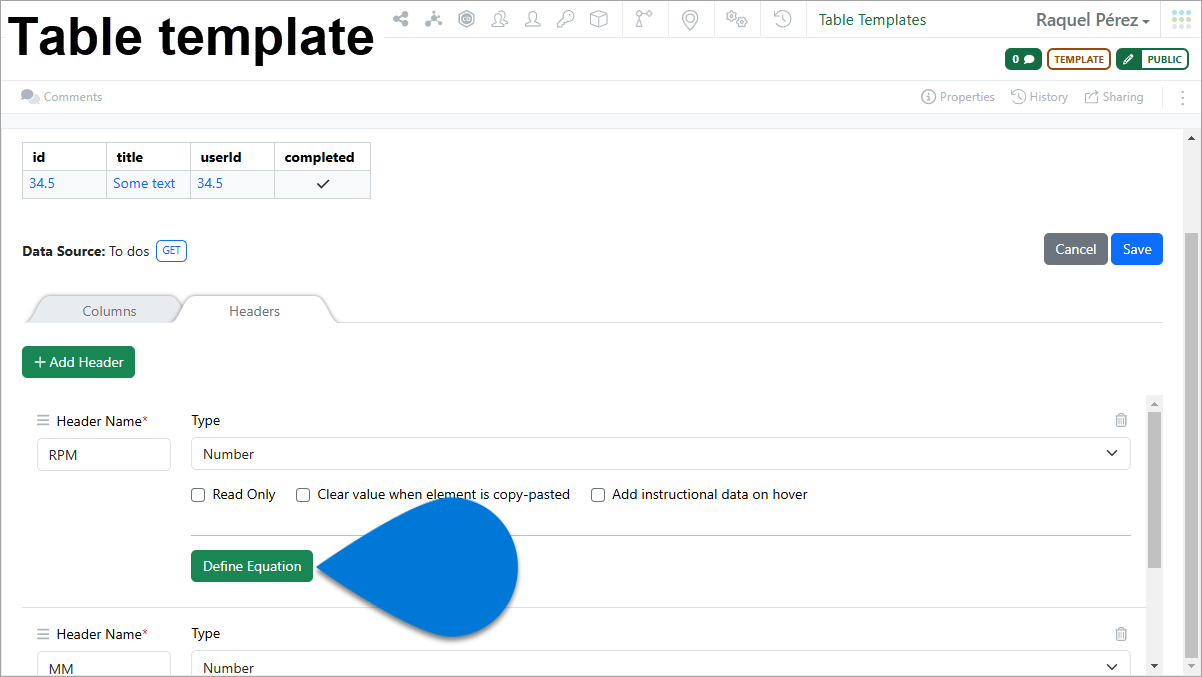

6️⃣ Table template ➡ select Headers
7️⃣ Table template ➡ Headers ➡ "header name" ➡ select [Define Equation]
8️⃣ Define Equation window ➡ enter columns/headers plus function(s)
9️⃣ Define Equation window ➡ select [Save]

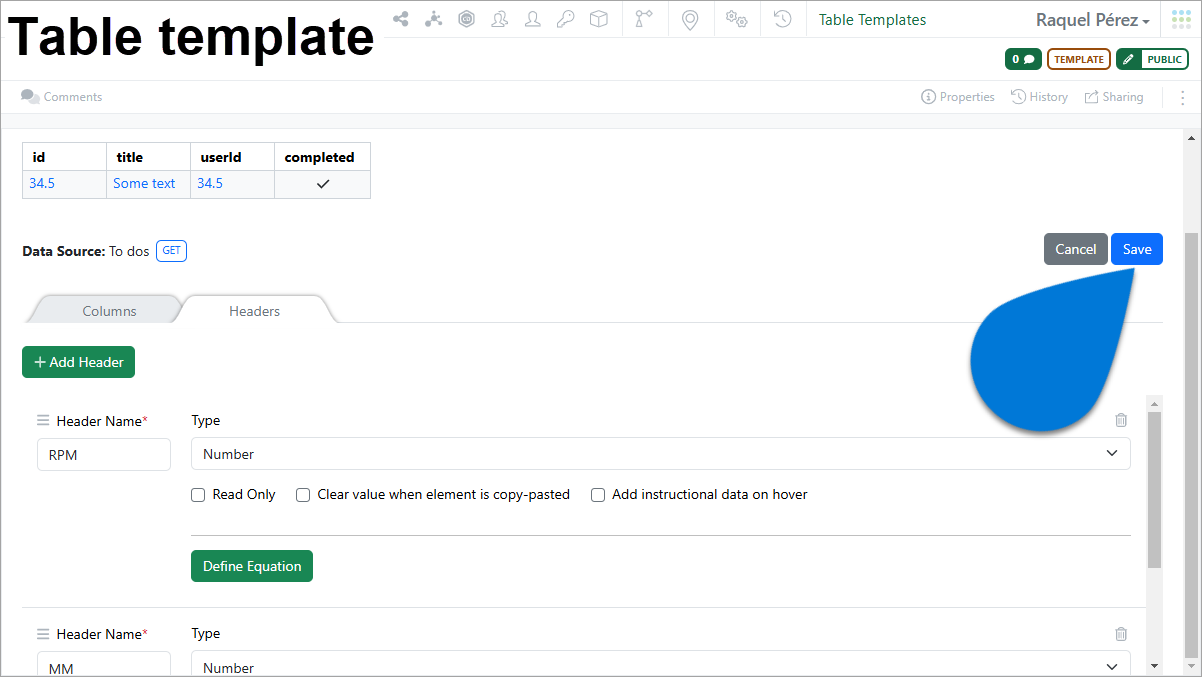

🔟 Table template ➡ select [Save]

Supporting Knowledge

Note: Available functions vary based on column type and are supported only for Text, Date/Time, and Number column types.

From the Define Equation window, the Available Columns/Headers section displays all columns and headers defined in the table template. Under the Functions section, users can view all supported mathematical functions, which can be combined with column/header values to define an equation in the Expression field. Users may input or select mathematical operators and values directly.

Once an equation is defined, a new field appears below it in the template form, where users can specify the calculated values by entering a number between 0 and 6.

When a column is defined as calculated, it becomes non-editable for the end user when a table is created using that template.

Note: Column equations can use both column and header properties in their definitions, while header equations are limited to using only the header columns.

Available Functions:

STDEV OVER – Its formula is: STDEVOVER(Arg1,Arg2), where Arg1 is a Number field and contains the numbers that the Standard Deviation is being calculated for, and Arg2 is a string-type field. The calculation will be the StdDev of the numbers that have identical values in Arg2.
SUMOVER – It sums the values from a particular column over the group of values where the values in a second column match.
Standard Deviation – It calculates the average and standard deviation of a set of values.
AVGOVER – It calculates the average of values from a specific column over a group of matching values from a different column.
IF Statement Formulas – An IF statement is typically constructed in three parts: the first argument is the condition that needs to be met, the second is the value if the condition is met, and the third is the value if the condition is not met. Col1=IF(Arg1, Arg2, Arg3).
IF [ColumnA] = “” allows the definition of behavior if the referenced cell has no value.
TIMEDIFF – It calculates the time duration between two Date/Time fields. General format: TIMEDIFF ([Start], [End], “unit”)
DATEADD – It allows the addition of a time duration to a Date/Time. A statement such as TIMEADD([Start], [Duration], “unit”) is used; supported units include “Millisecond”, “Second’, “Minute”, “Hour”, “Day” and “Week”.

The function must be set up on a Date/Time property, likewise, the Start Time must be of type Time/Date. The duration must be of type Number, alternatively a property of type Number with Unit, with the Duration “measure” can be used in place of both the duration and units, following the format TIMEADD([Start], [Duration].
CONCATENATE – It allows multiple strings to be combined in a column of type Text. A statement such as CONCATENATE([ColumnA], “text”, [ColumnB]) will provide a results string with the relevant column values and strings as a single text string.
GETSVALUE – This is the only function that accepts Number with Units. The function has 2 arguments: Argument 1 is a property of type Number w/Unit; Argument 2 is the unit for conversion.
The calculated value is a number (without a unit) which can be used in subsequent calculations. The unit can come from another column, entered string or header; it reflects accepted “typed values” (the UI accepts, e.g., ug instead of µg).
E.g. GETVALUE (Col1, g), if input is 100mg, output is 0.1
ROWOFFSET – It allows values from a differing row to be used in a given row-based calculation. A statement such as ROWOFFSET([Column], offset) will provide the value from a previous or following row for the stated column, where an offset of -1 is the previous row.
ROUNDUP and ROUNDDOWN – These allow numbers to be rounded to the nearest unit, either Up (away from zero) or Down (towards zero). A statement such as ROUNDUP([Column], rounding), whereby the Column is a number and rounding is an integer, will round the number to the relevant unit A rounding of 0 rounds to ones, -1 to tens, -2 to hundred, 1 to tenths, 2 to hundredths, etc.
Other functions available: SQRT, SUM, POWER, LOG, LN, EXP, √).

Note: Conditional aggregates (STDEVOVER, SUMOVER, AVGOVER) and ROWOFFSET functions are not supported while defining equations for headers.
