In order to view another users data, each user must both be part of the same group. You can find additional information regarding role and permission specific actions here.
There are two main locations you might wish to save the analysis to:
- Save to disk
- Save to the database
Save to disk
Start by logging in under your user account.

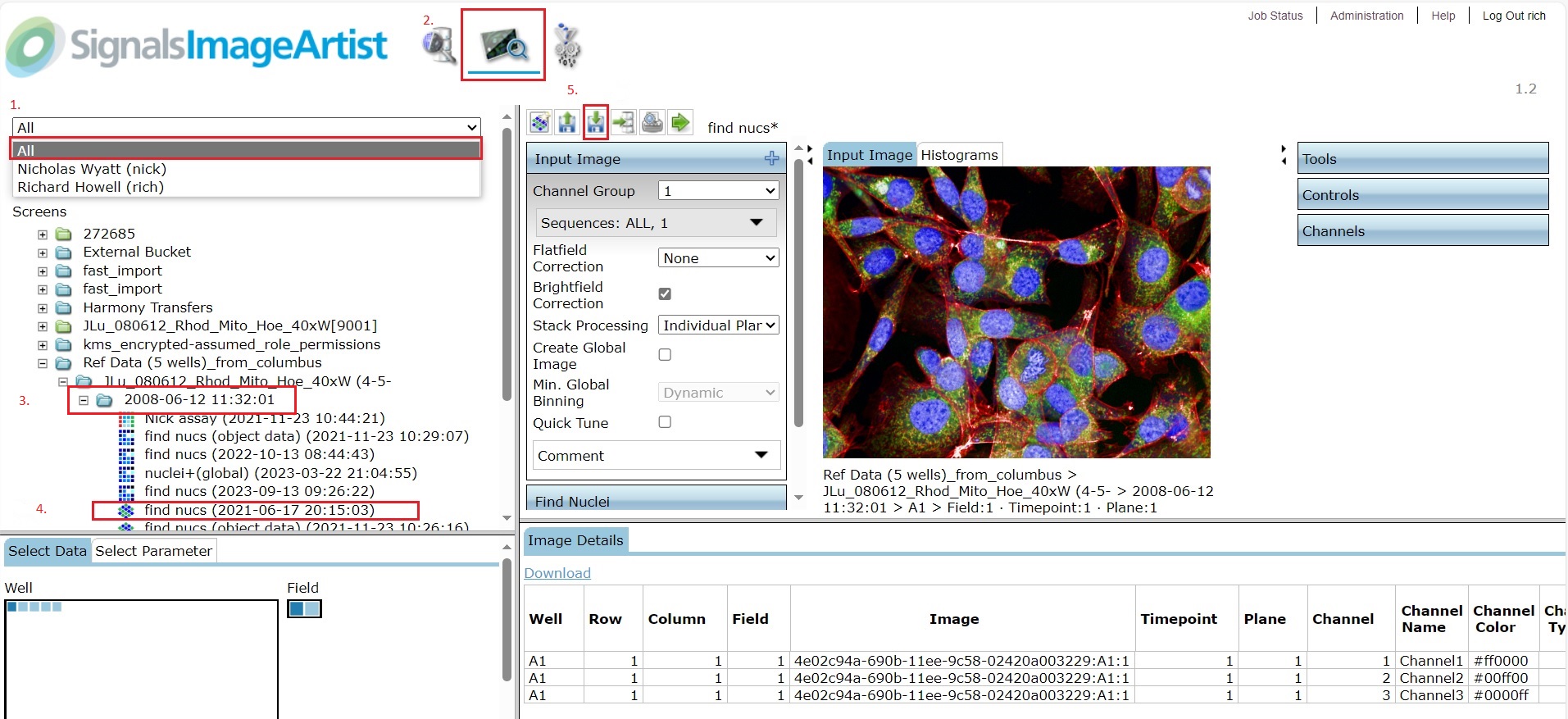

1. Using the Primary Navigation data tree selector, switch the data tree to either view 'All' or switch to another users data tree.
2. Click on the the Image Analysis view icon to switch to the Image Analysis view.
3. Load the image data of the user in question by clicking on the measurement folder
4. Load the analysis sequence of the user in question
5. Click the 'Save analysis to disk' option above the analysis sequence
To import the saved analysis sequence into your data tree, switch back to viewing your own data (Primary Navigation drop down selector), switch to the image analysis view, select a measurement and then hit the 'load analysis from disk' option to import the analysis you've just saved. You can then continue to run the analysis and save that to the database under your data tree.
Save to database

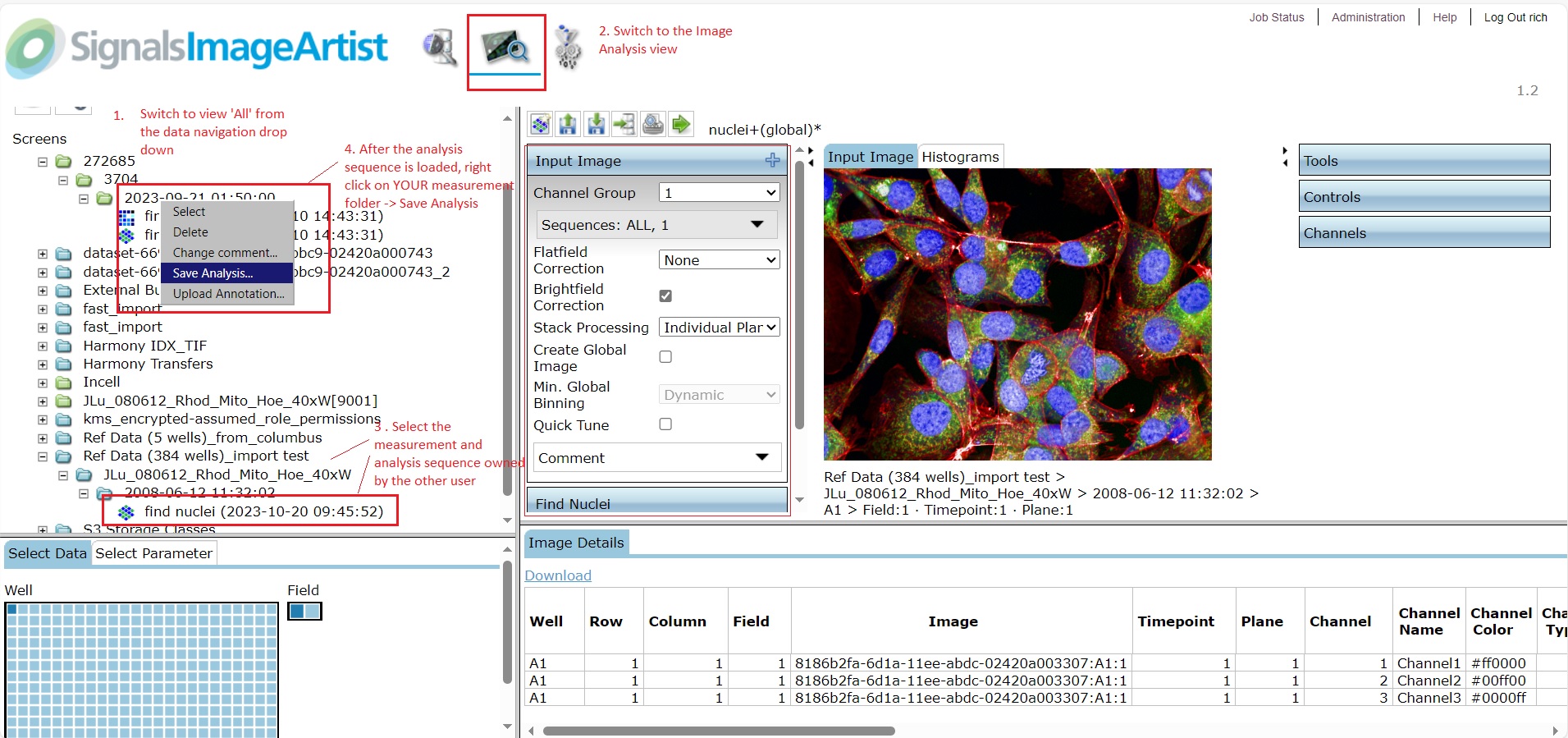

1. Using the Primary Navigation data tree selector, switch the data tree to either view 'All' or switch to another users data tree.
2. Click on the the Image Analysis view icon to switch to the Image Analysis view.
3. Load the image data of the user in question and the image analysis of the user in question by clicking on the measurement folder and the analysis sequence respectively (right click -> select is also an option)
4. Right click on your measurement folder -> Save Analysis. You will be given the option to rename the analysis sequence.
The Analysis sequence should now be stored under your measurement folder in the data tree.
