Signals VitroVivo: Configure the settings of the Editable Data Grid app to insert data from an existing table

Prior to this task:

✔ Data table must be loaded.

✔ Editable Data Grid app must be opened.

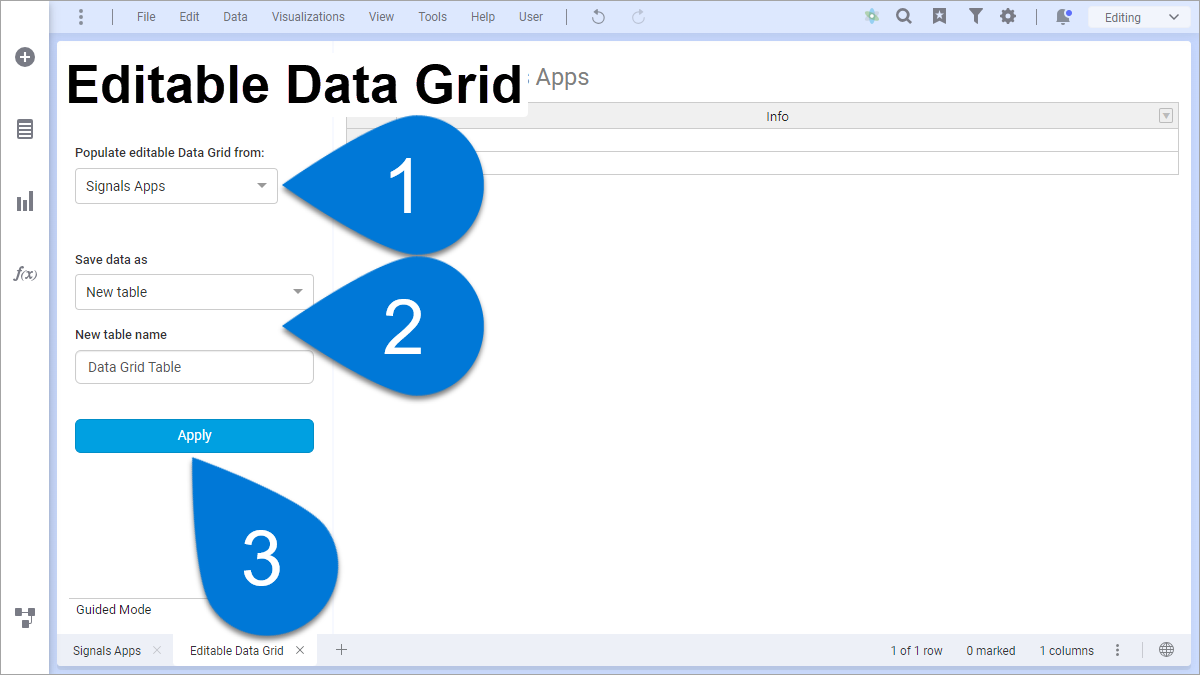

1️⃣ Editable Data Grid tab ➡ Populate editable Data Grid from ➡ select ["data table name"] 2️⃣ Editable Data Grid tab ➡ select Save data as* corresponding settings 3️⃣ Editable Data Grid tab ➡ select  [Apply]

Supporting Knowledge

*From the Editable Data Grid tab, under Save data as, the user can save the data as a New table or New columns as well as Replace columns, Replace column values, or Replace selected table contents. Depending on the option selected, the user will be prompted to select settings accordingly.

Optionally, to clear the information from the Grid area, select the  [Reset grid] button.

Optionally, from the Configuration tab, the user can modify the join type when connecting tables. From the Editable Data Grid tab, select  [Configuration]. From the Editable Data Grid – Configuration tab, under Select join type when joining the tables, select a join option. The Left Single Match Join option executes the join of the rows from original data only and single match from new. The Left Outer Join option performs the join of the rows from original data only.

Additionally, from the Editable Data Grid – Configuration tab, the user can turn on the Filters panel by selecting the [Filter Panel] toggle. This option enables the user to filter out data for further exploration. Selected filters will be applied to the data in the Grid. Select the  [reset filters] button to reset all the active filtering.
