Signals VitroVivo: Edit a curve fit from the Manage Fittings of the Calculations Explorer Controls panel

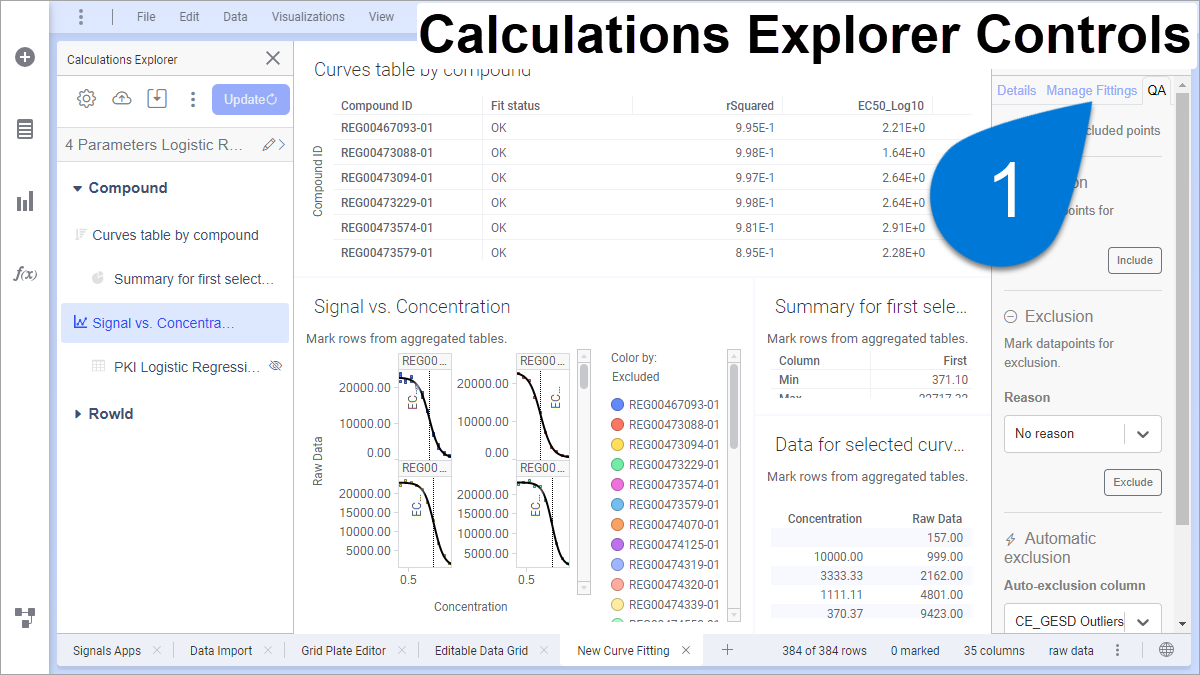

1️⃣ Calculations Explorer Controls panel ➡ select Manage Fittings

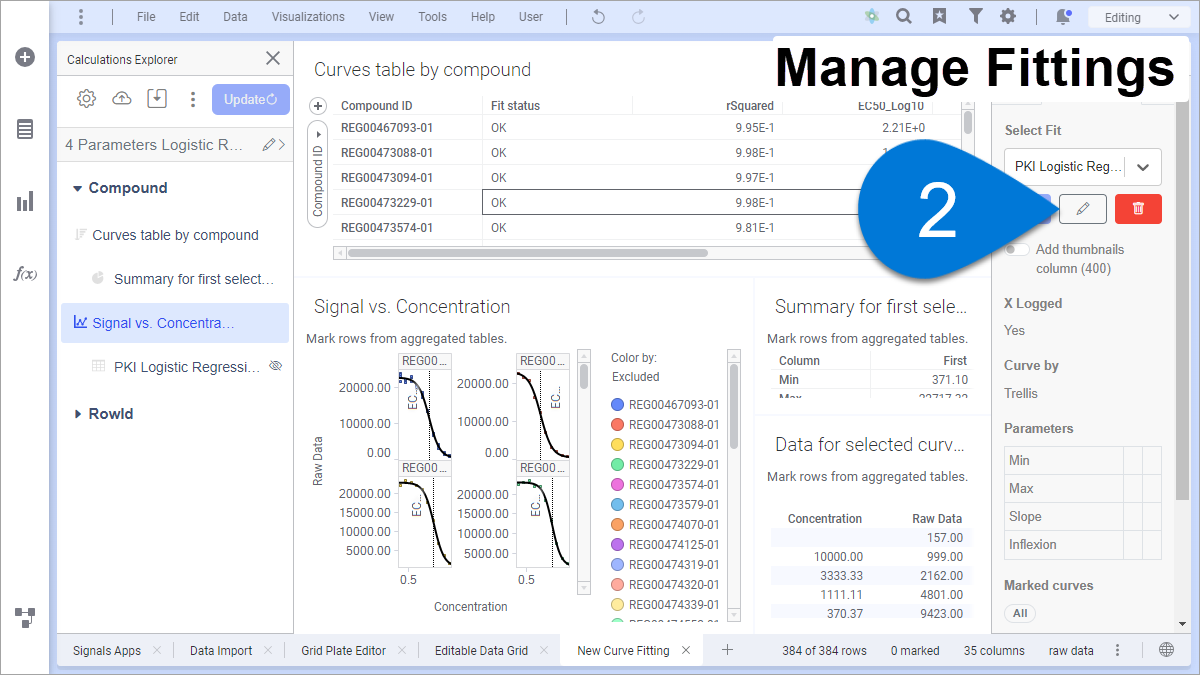

2️⃣ Manage Fittings tab ➡ select  [Edit Fit]

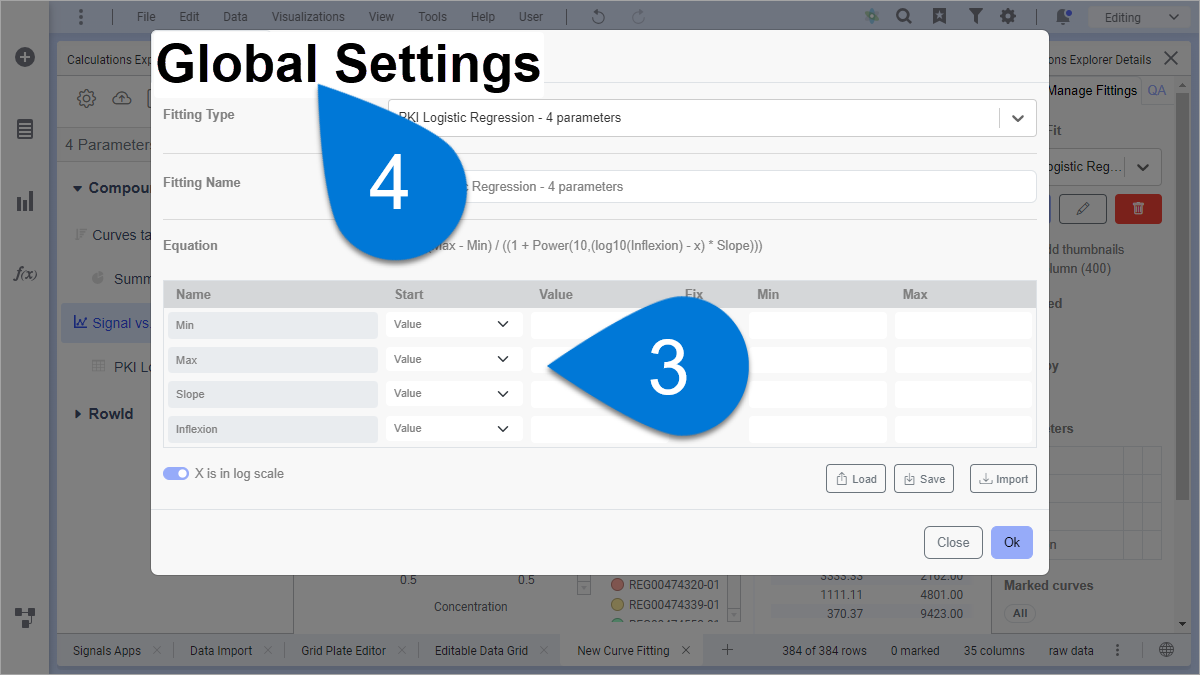

3️⃣ Global Settings tab ➡ edit

• Equation parameters
• Log scale

4️⃣ Global Settings tab ➡ select Advanced

5️⃣ Advanced tab ➡ edit

• Algorithm
• Y Weighting
• Filter by column

6️⃣ Advanced tab ➡ select Columns

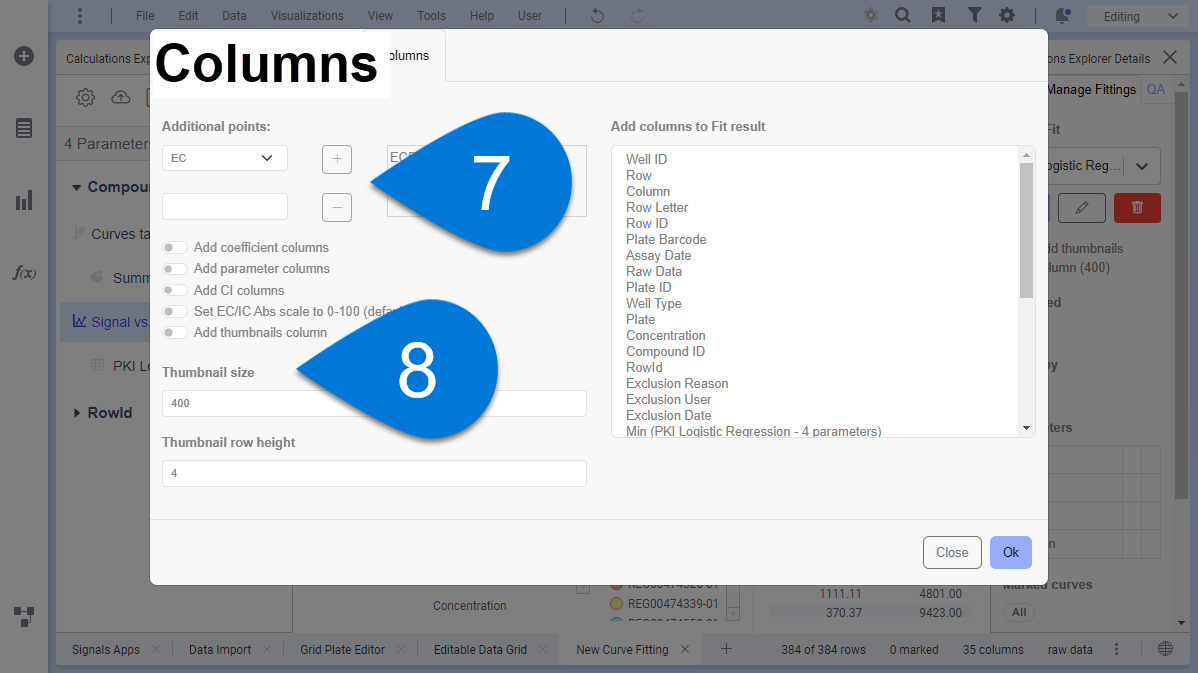

7️⃣ Columns tab ➡ Additional points ➡ edit

• [EC/IC]
• concentration
• [Add Parameter]

8️⃣ Columns tab ➡ edit

• [Add coefficient columns]
• [Add parameter columns]
• [Add CI columns]
• [Set EC/IC Abs scale to 0-100]
• [Add thumbnails column]
• Thumbnail size
• Thumbnail row height

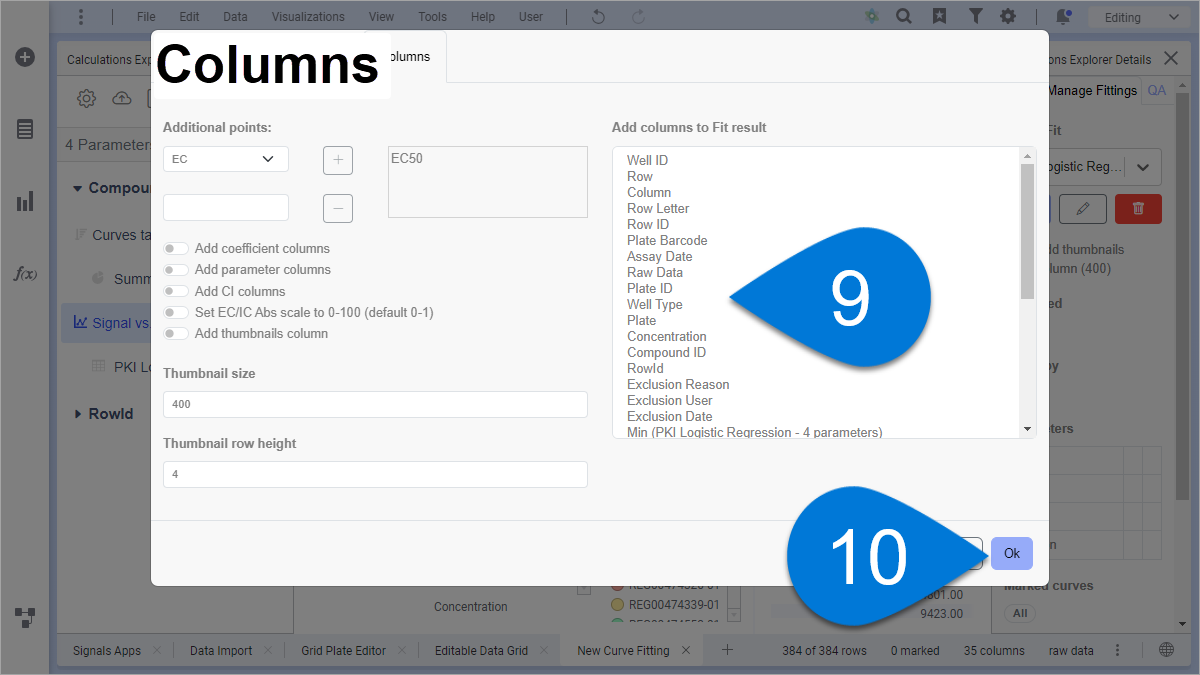

9️⃣ Columns tab ➡ Add columns to Fit result ➡ select column(s)

🔟 Columns tab ➡ select  [Ok]
