Signals VitroVivo: Exclude points out of a curve with the automatic exclusion option from the Calculations Explorer Controls panel

Prior to this task:

✔ Data must be loaded.

✔ Calculations Explorer Controls panel must be opened.

✔ Curve fit must be created.

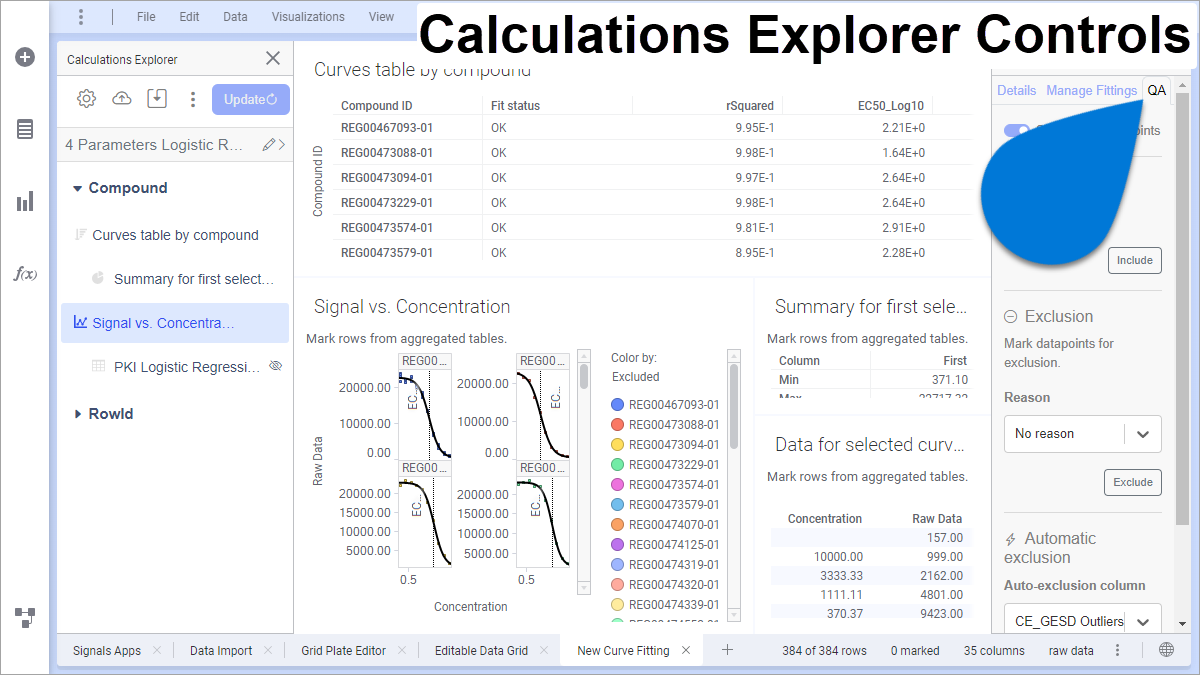

1️⃣ Calculations Explorer Controls panel ➡ select QA

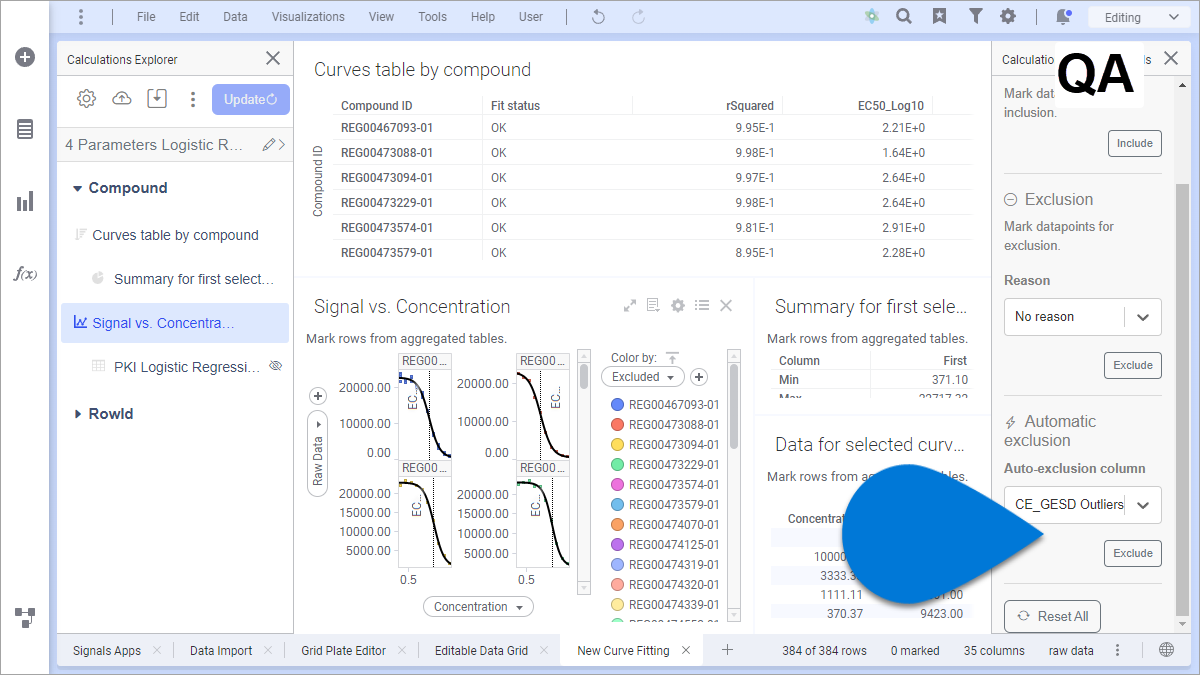

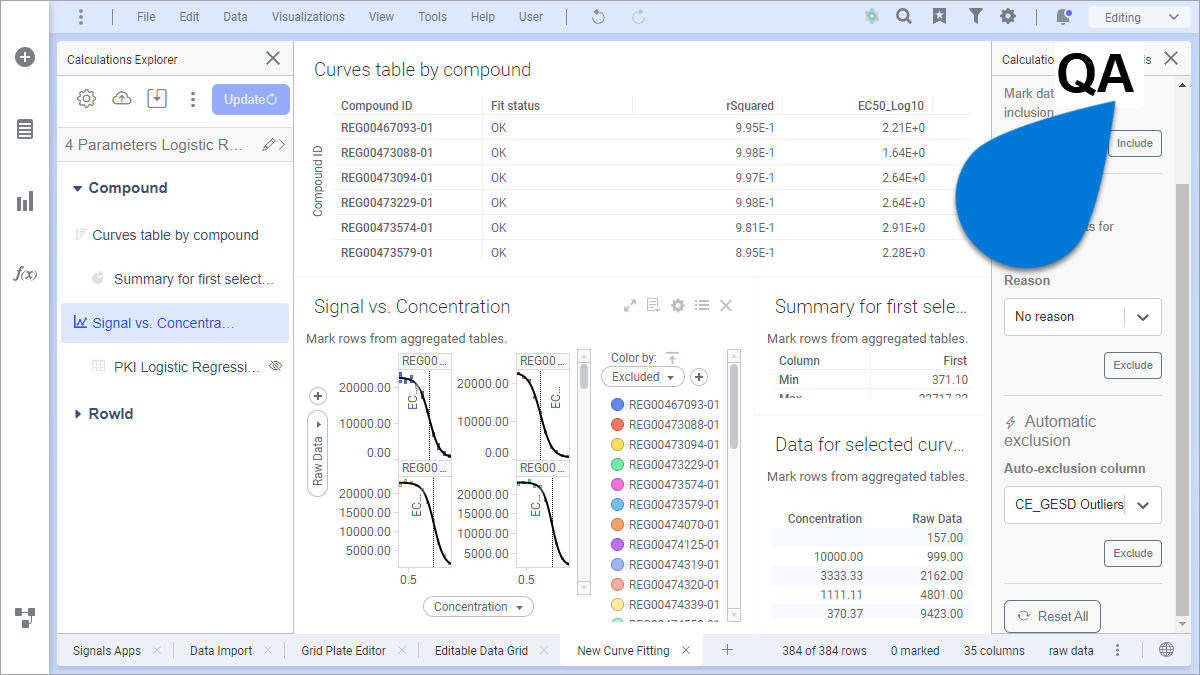

2️⃣ QA tab ➡ Automatic exclusion ➡ select ["auto-exclusion column name"]  [Exclude] 3️⃣ QA tab ➡ select  [Update fitting results]

Supporting Knowledge

Note: In the curve fit visual representation, each excluded point is represented as a red "x."

Note: In the data table where the curve fit method was applied, the user can find the hc_Auto exclusion tag column, which displays the Auto excluded status of the points selected for exclusion.

Optionally, from the QA tab, select [Reset All], then select the [Update fitting results] to include all the excluded points.
