Signals VitroVivo: Exclude points out of a curve manually from the Calculations Explorer Controls panel

Prior to this task:

✔ Data must be loaded.

✔ Calculations Explorer Controls panel must be opened.

✔ Curve fit must be created.

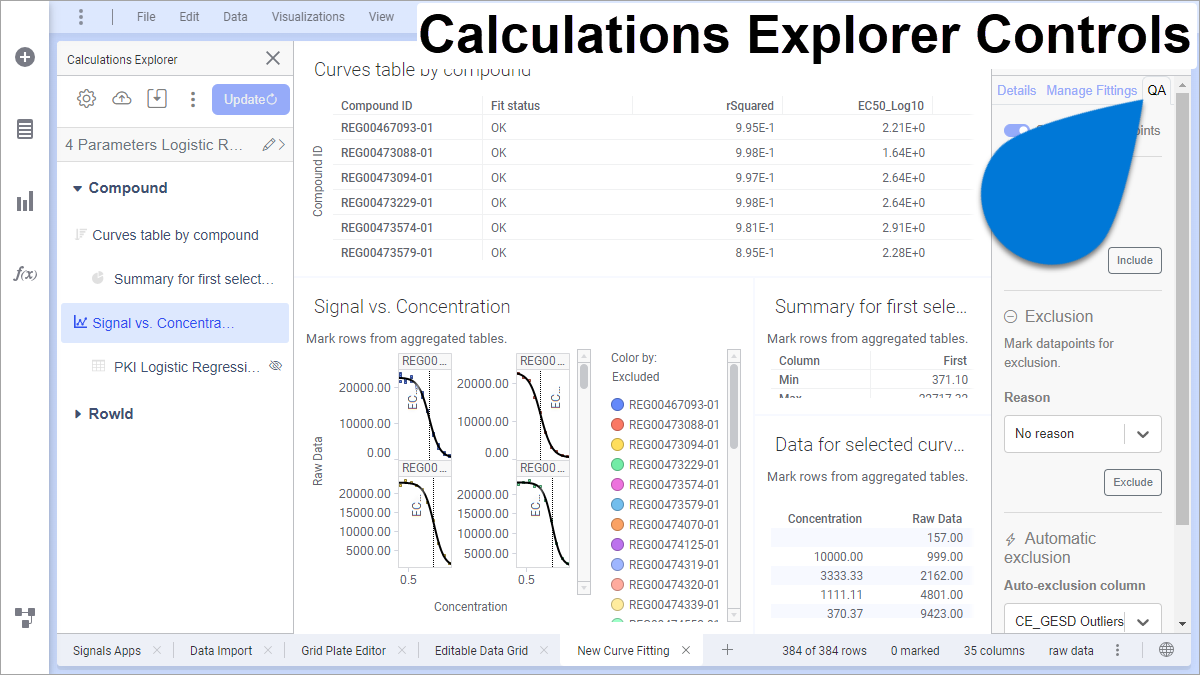

1️⃣ Calculations Explorer Controls panel ➡ select QA
2️⃣ Curve fit visualization(s) ➡ select point(s) to exclude

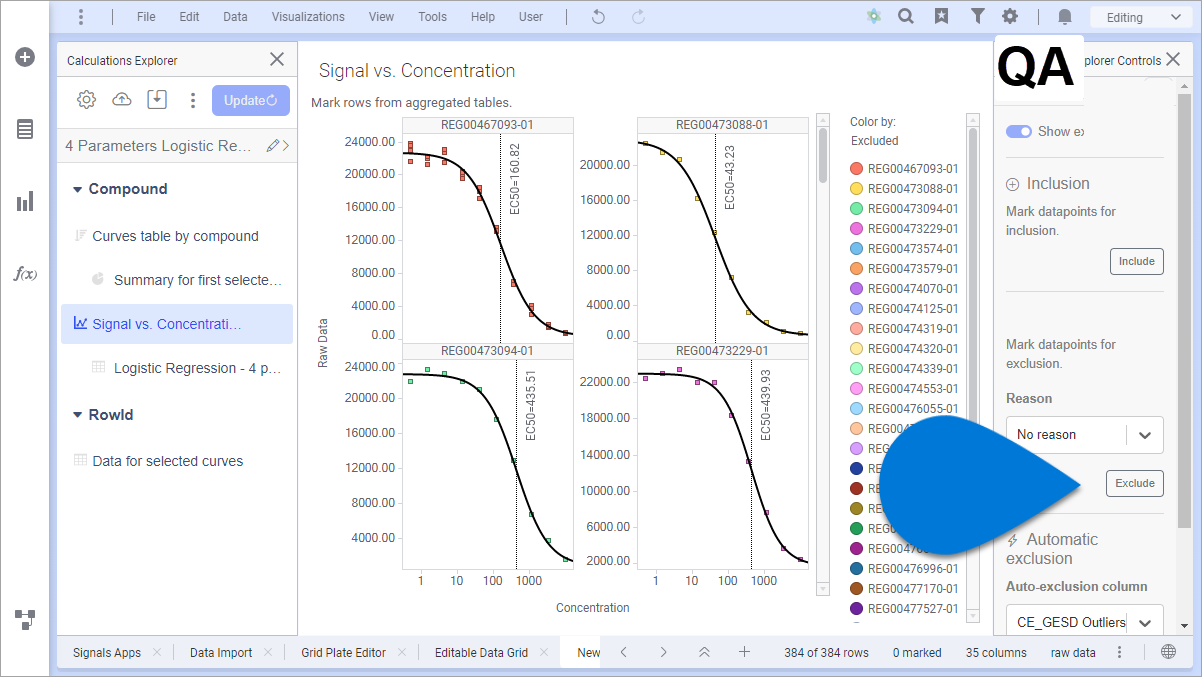

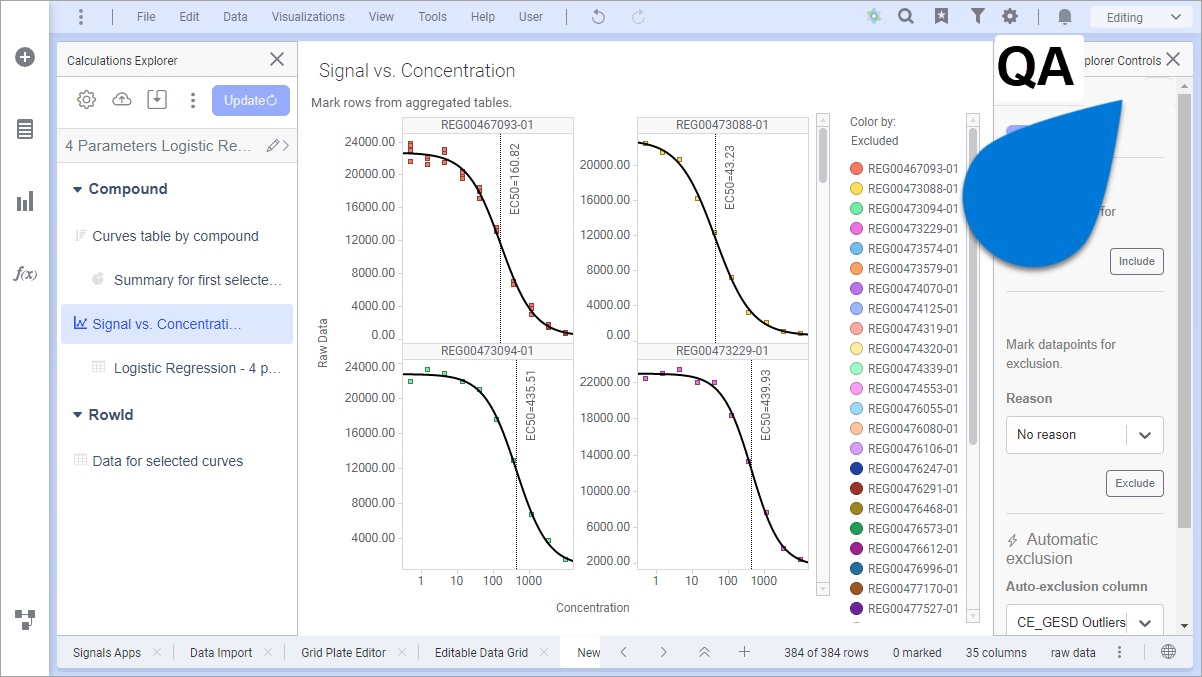

3️⃣ QA tab ➡ Exclusion ➡ select ["reason name"]  [Exclude] 4️⃣ QA tab ➡ select  [Update fitting results]

Supporting Knowledge

Note: In the curve fit visual representation, the excluded points are represented as a red "x."

Note: In the data table where the curve fit method was applied, the user can find the hc_User exclusion tag column, which displays the Manual excluded status of the points selected for exclusion. The user can also find the Exclusion Reason column, which displays the "reason name" selected when the exclusion was made.

Optionally, from the QA tab, select [Reset All], then select  [Update fitting results] to include all the points excluded.
