Signals VitroVivo: Manage a marked curve(s) from the Calculations Explorer Controls panel

Prior to this task:

✔ Calculations Explorer Controls panel must be opened.

✔ Curve fit must be created.

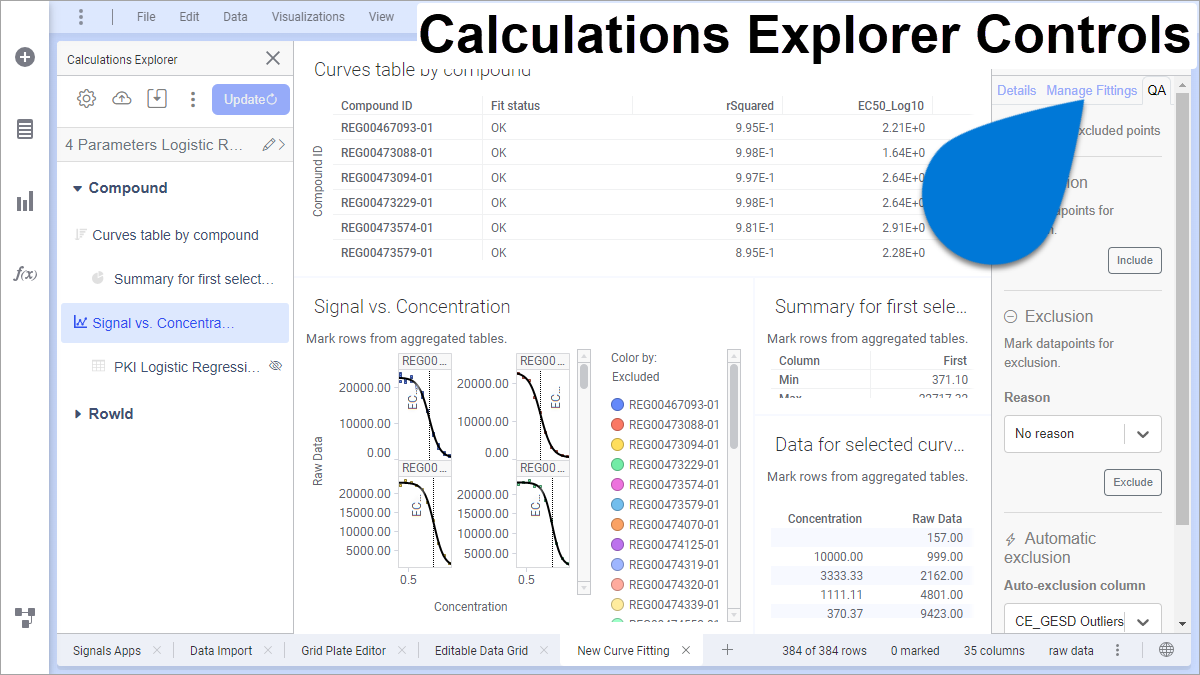

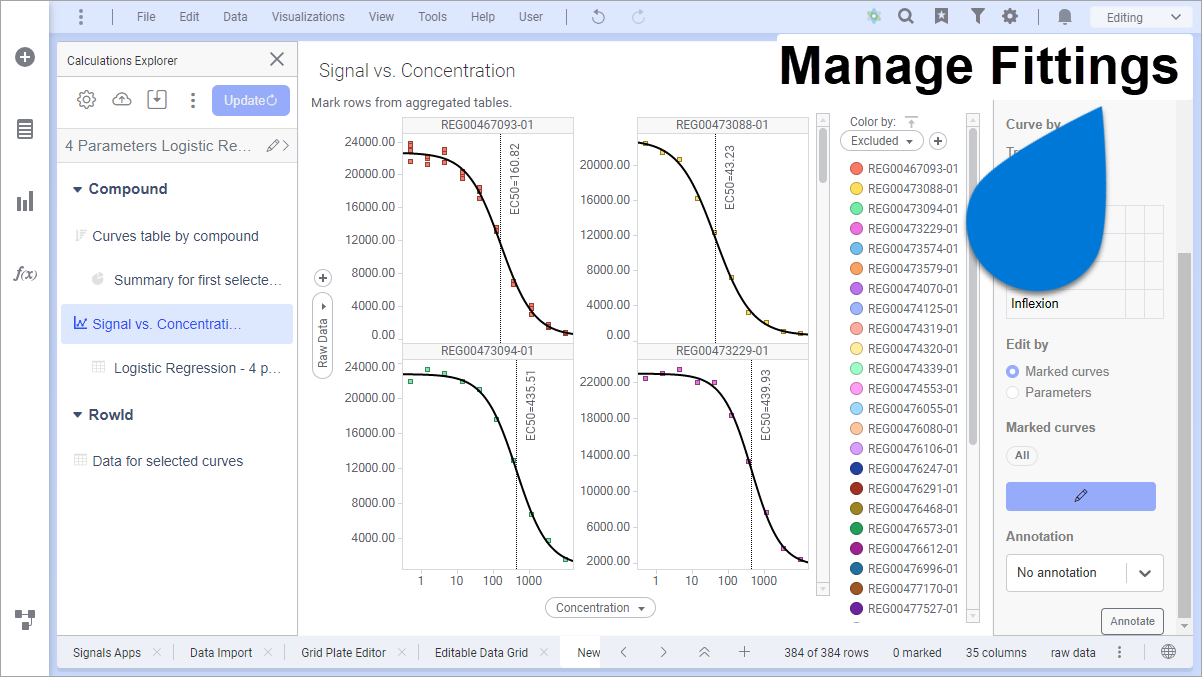

1️⃣ Calculations Explorer Controls panel ➡ select Manage Fittings

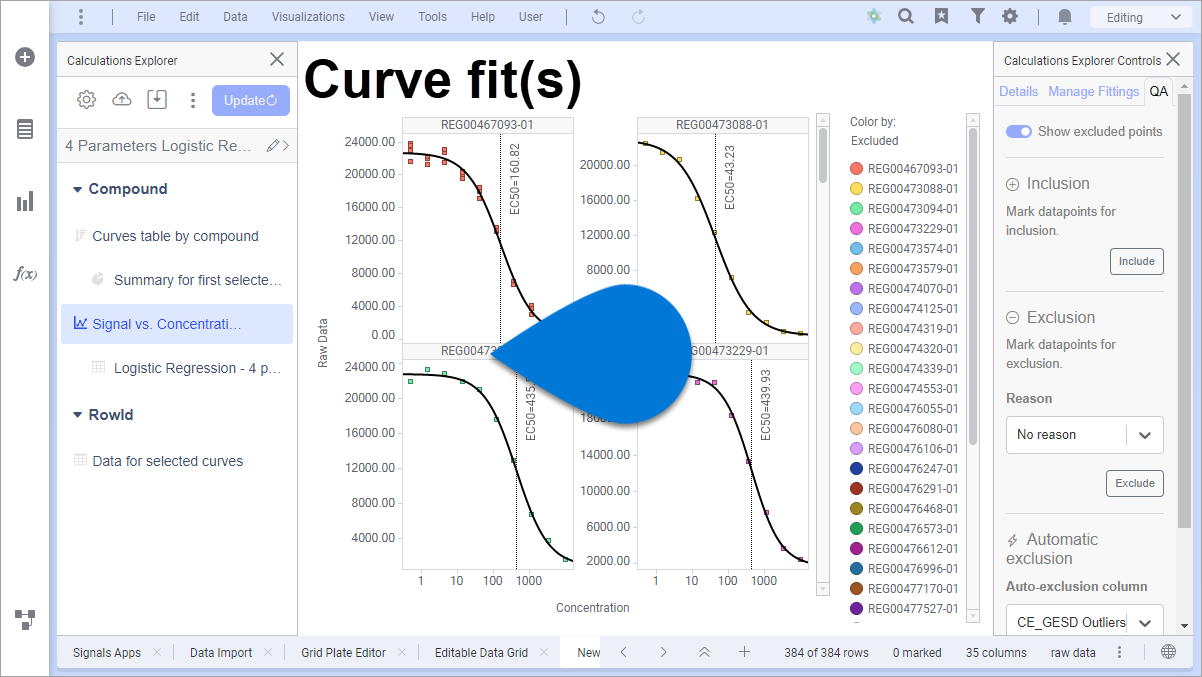

2️⃣ Curve fit visualization(s) ➡ select curve(s) to manage

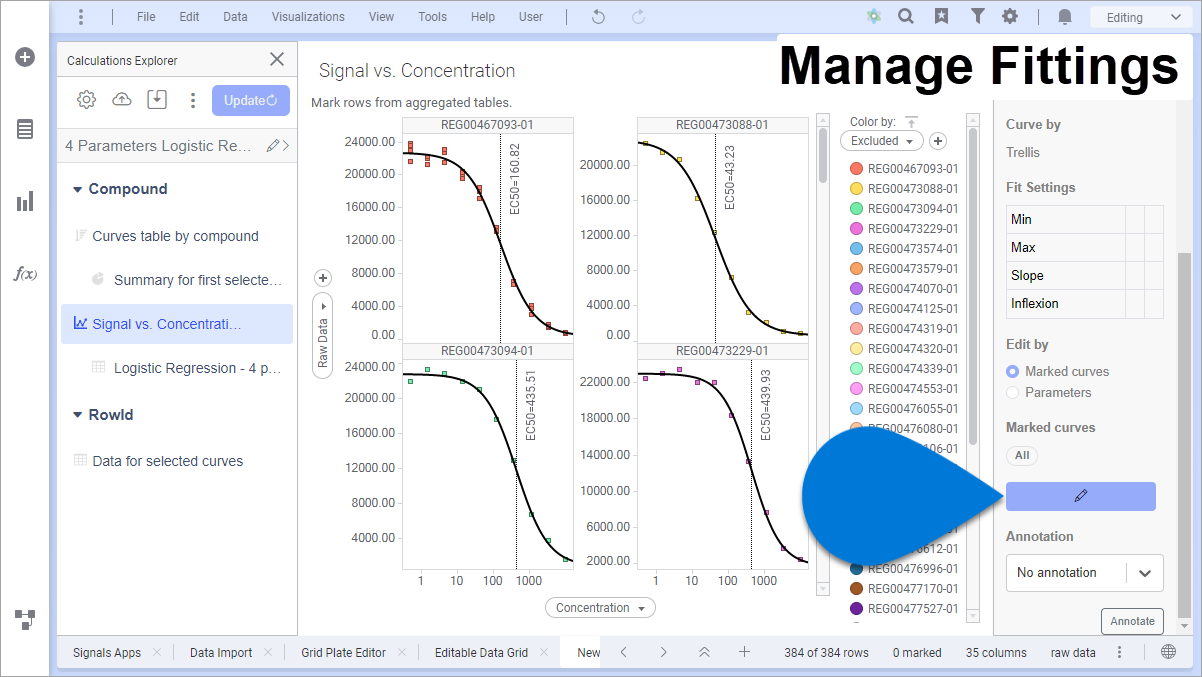

3️⃣ Manage Fittings tab ➡ Marked curves ➡ select [Manage marked curves]

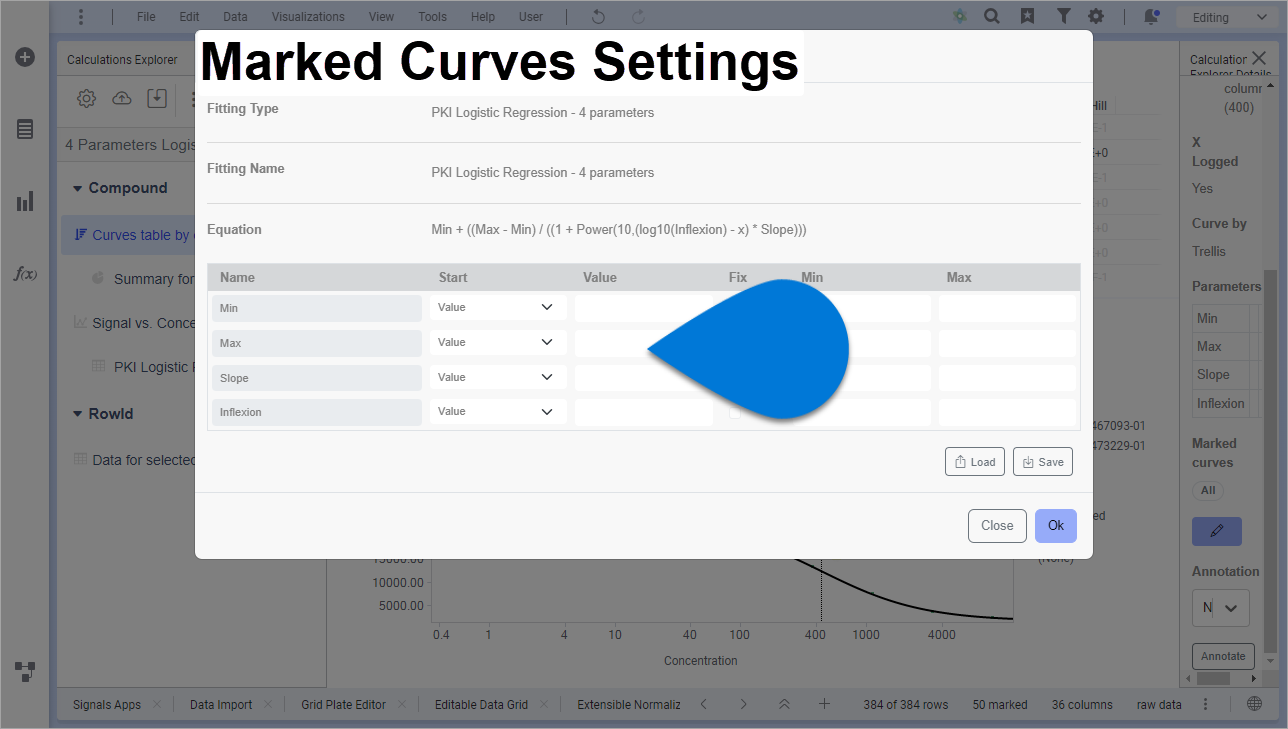

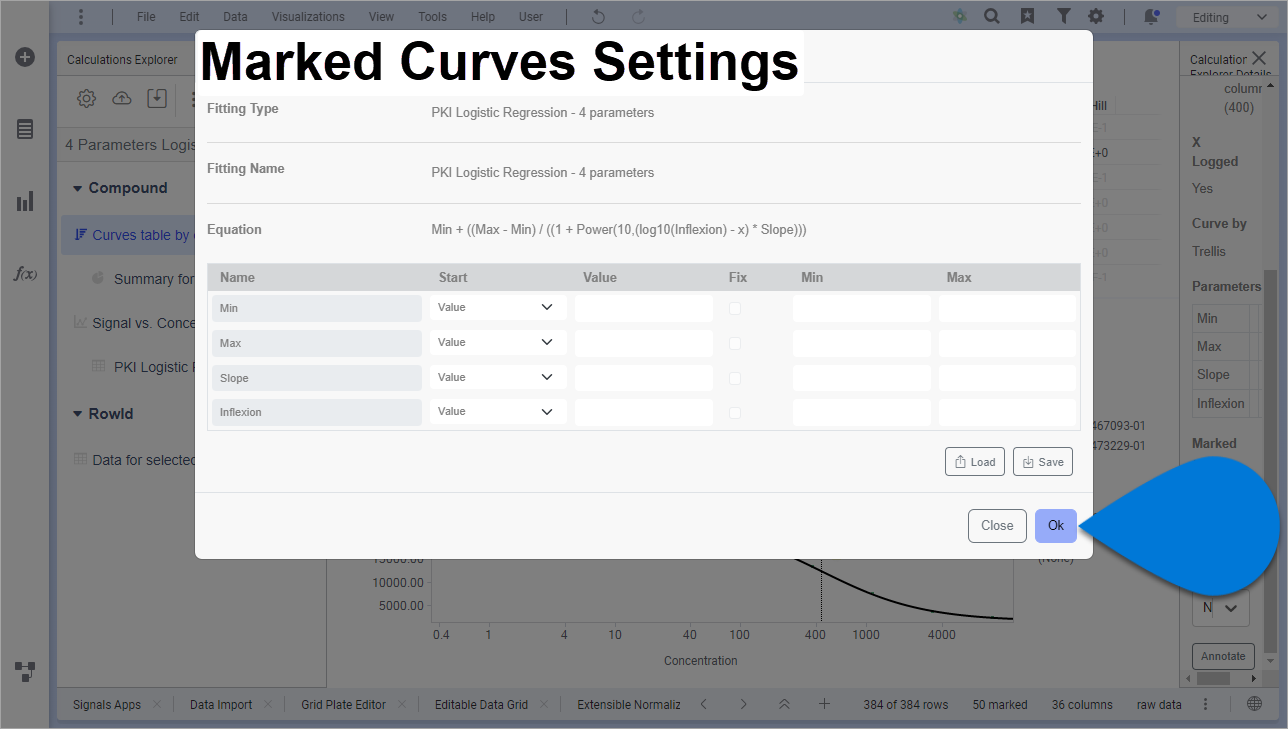

4️⃣ Marked Curves Settings window ➡ Equation ➡ modify parameters accordingly 5️⃣ Marked Curves Settings window ➡ select [Ok]
6️⃣ Manage Fittings tab ➡ select  [Update fitting results]

Supporting Knowledge

Optionally, from the Marked Curves Settings window, the user can also select the  [Apply fit settings] button to apply curve fit adjustments and quickly perform QA/QC; select the  [Save fit settings] button to save fit settings under the desired name.
