Signals Notebook: Create a Horizontal Summary view for a Variations Table in Signals

Prior to this task:

✔ Experiment must be created.

✔ Variations Table template must be created.

✔ Variations Table must be added to an experiment.

✔ Components Table and Variants Table must be filled in.

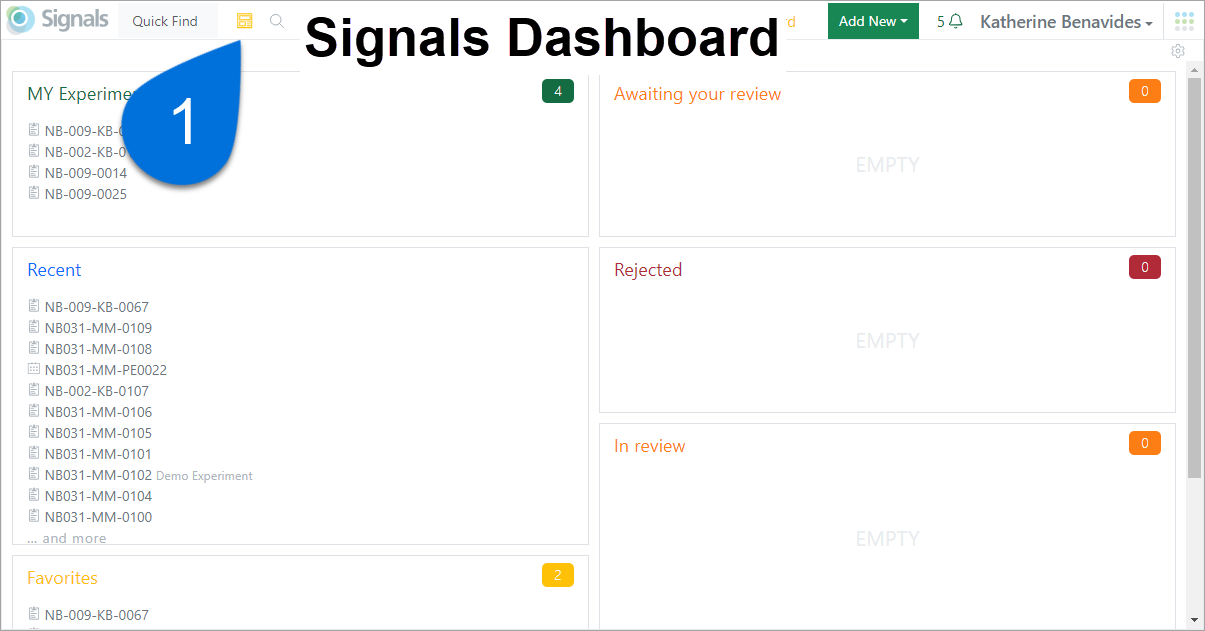

1️⃣ Signals Dashboard ➡ select [Experiments]

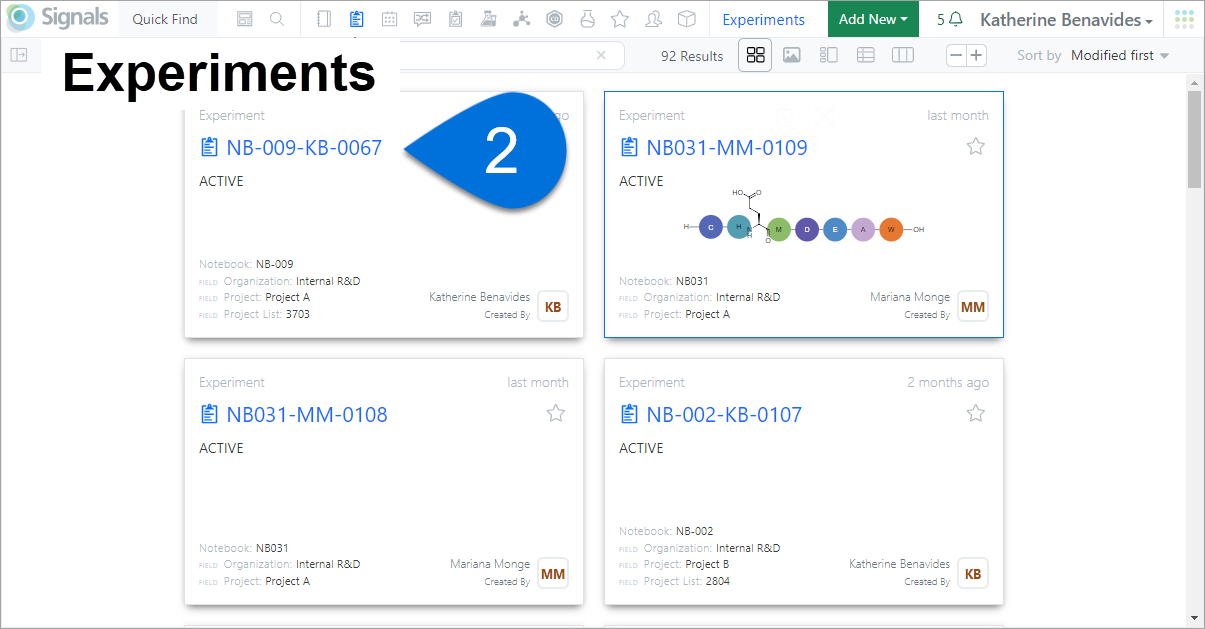

2️⃣ Experiments ➡ select experiment with variations table

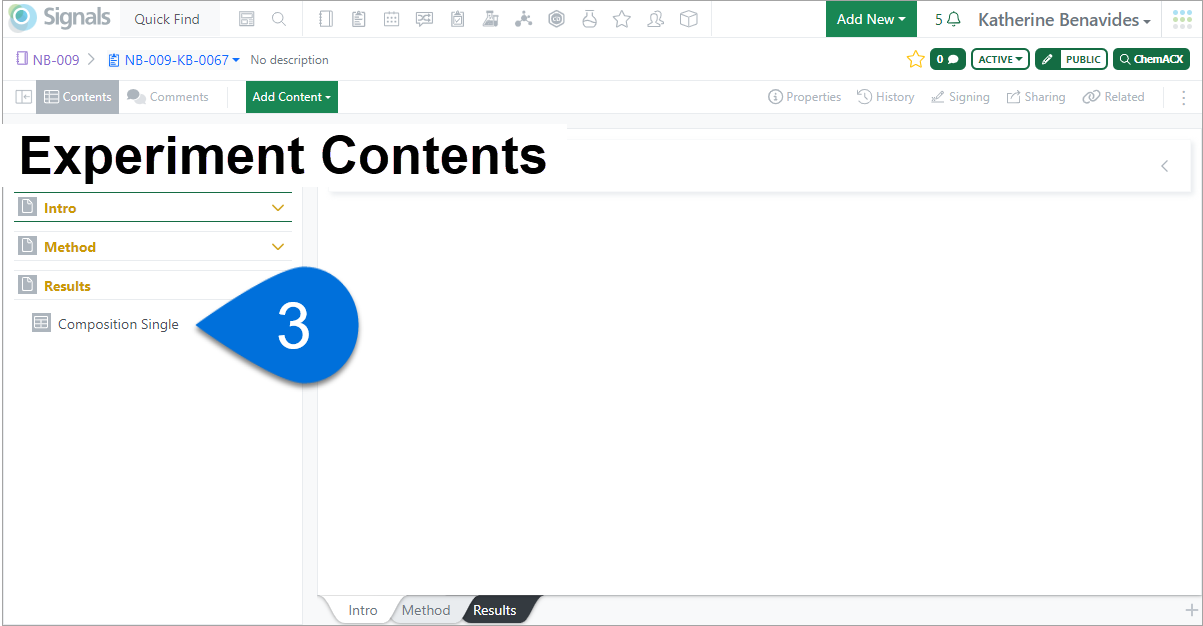

3️⃣ Experiment Contents pane ➡ select ["variations table name"]
4️⃣ Variations Table section ➡ select Horizontal Summary

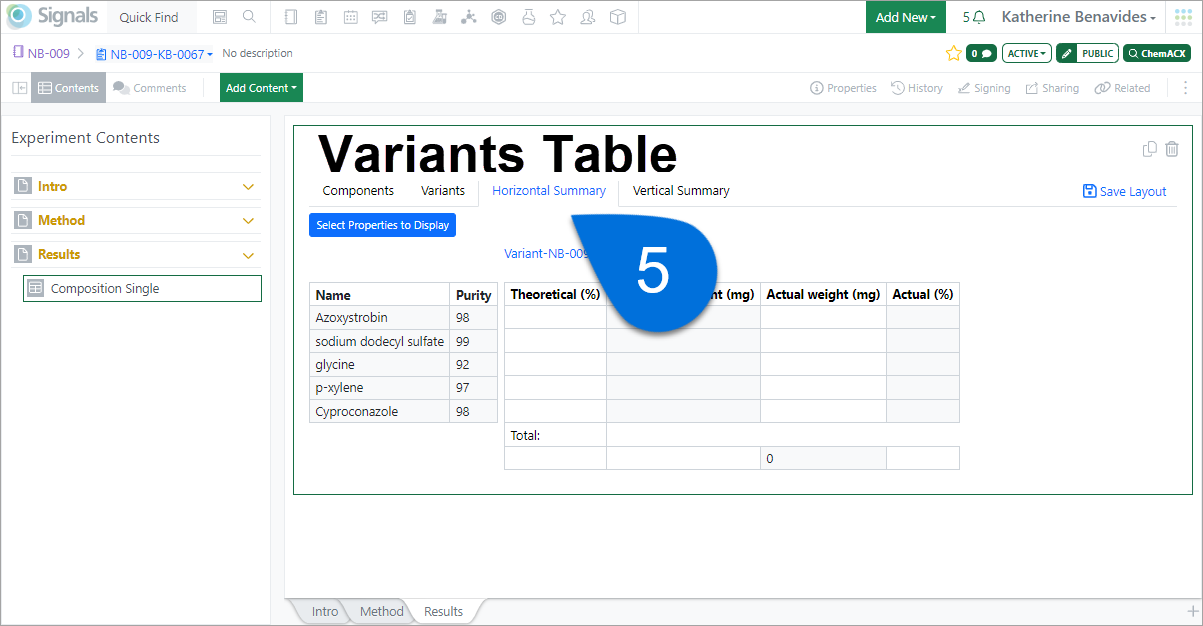

5️⃣ Horizontal Summary tab ➡ select [Select Properties to Display]

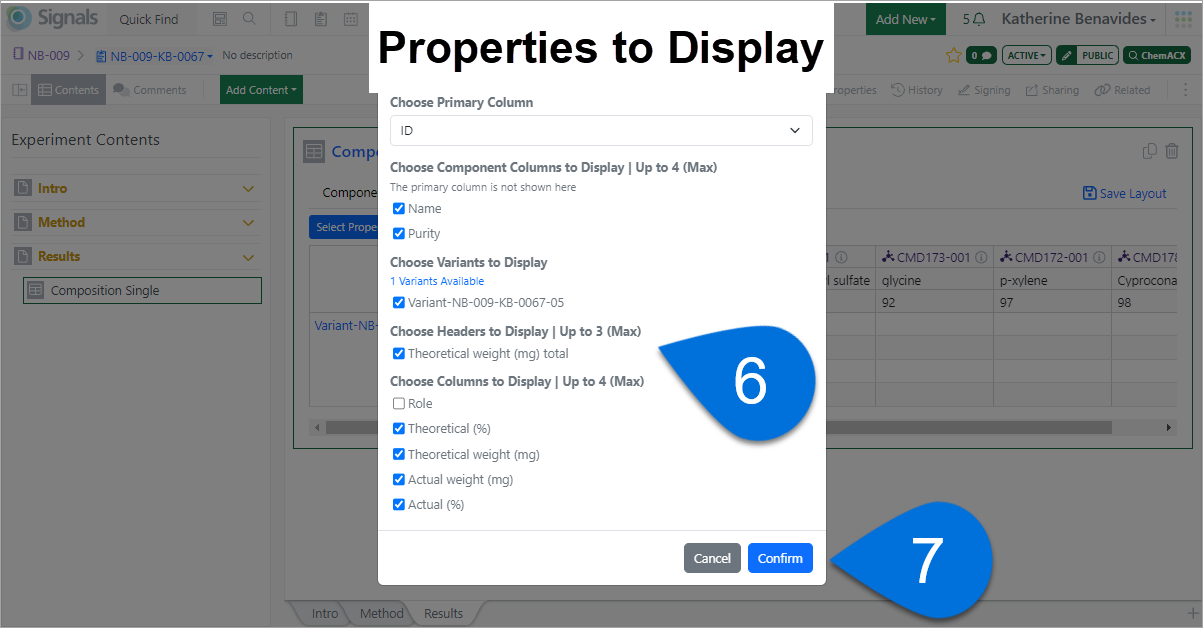

6️⃣ Select Properties to Display window ➡ select Component Columns to Display Variants to Display Headers to Display Columns to Display 7️⃣ Select Properties to Display window ➡ select [Confirm]

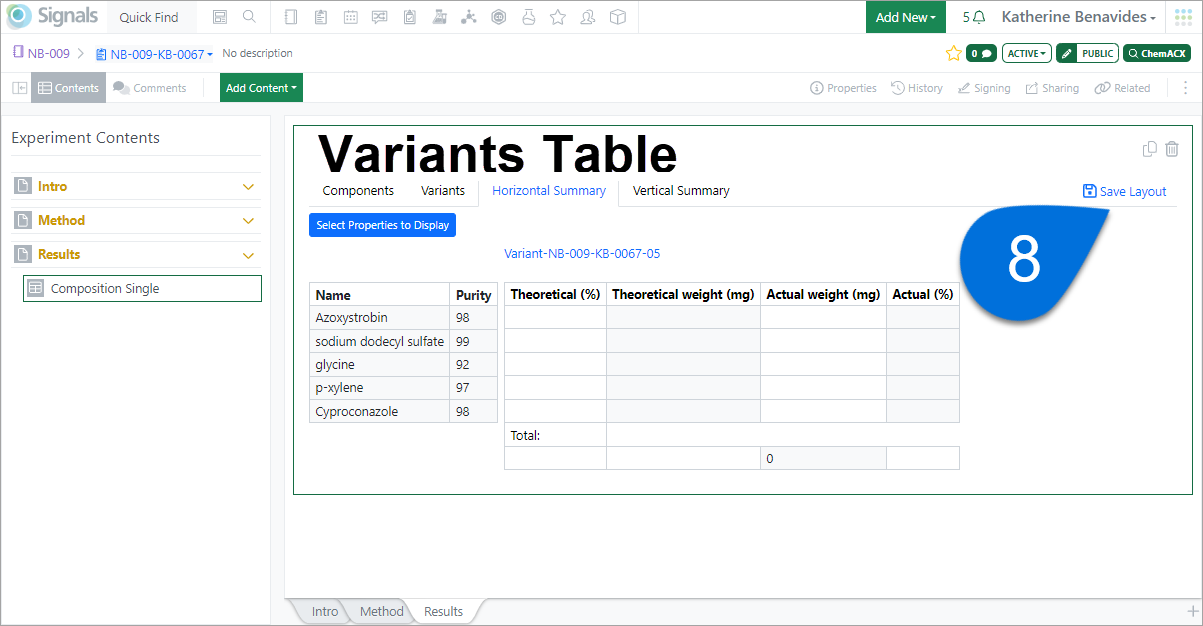

8️⃣ Horizontal Summary tab ➡ select [Save Layout]

Supporting Knowledge

• The Horizontal Summary view renders a comparison view to see all the Variants primarily to facilitate a weighing sheet.
• Limits of properties to display in the summary are:
  • Max 4 Component columns
  • Max 3 Headers
  • Max 4 Columns

Entering data into a Variations Table in the Horizontal Summary view

When the user enters data into a Variations Table, in the Horizontal Summary view, they are able to use the Tab/Shift Tab keys to switch between the editable cells. Therefore, if the cursor is in an editable cell:

• The user can press the Tab key to move the cursor to the same property in the next Variant in the same row. If the cursor is in the final editable cell in the row, it will move to the first editable cell in the next row.
• The user can press Shift+Tab keys to move the cursor to the same property in the previous Variant in the same row. If the cursor is in the first editable cell in the row, it will move to the final editable cell in the previous row.
