Signals Notebook: Insert a monomer(s) to a polymer from the Peptide tab of the HELM Editor in Signals

Prior to this task:

✔ HELM Editor must be opened.

✔ At least one HELM Monomer library must be available.

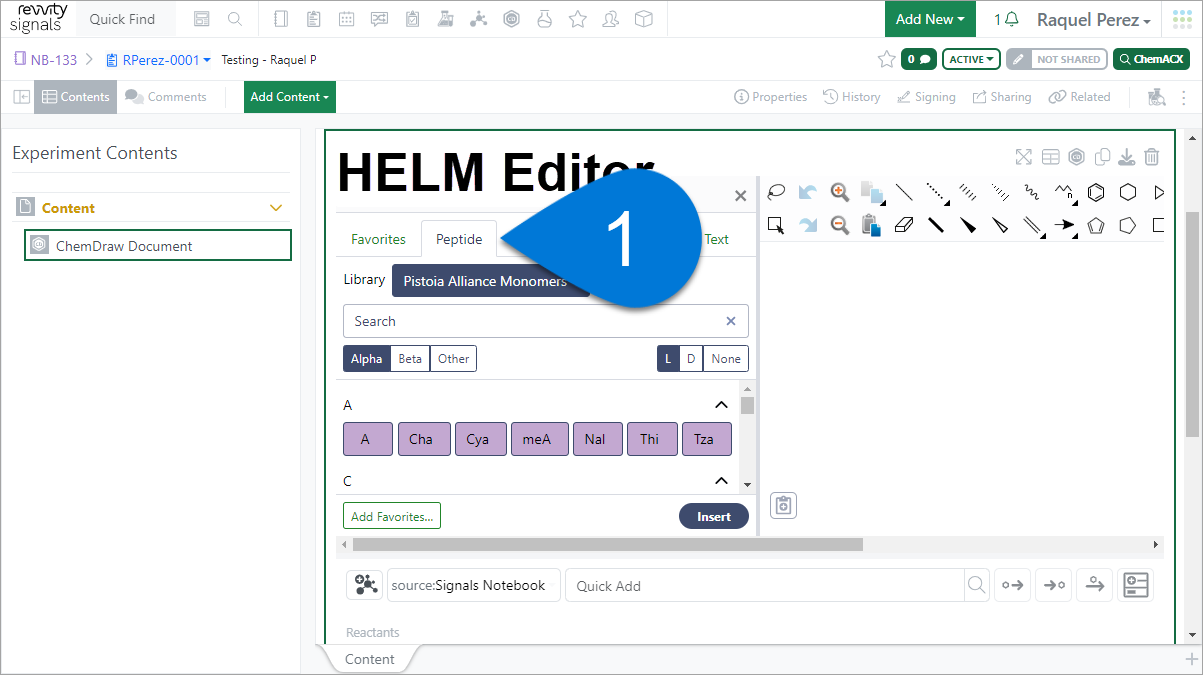

1️⃣ HELM Editor ➡ select Peptide
2️⃣ Peptide tab ➡ select [“HELM Monomer library name”] [“monomer symbol”]

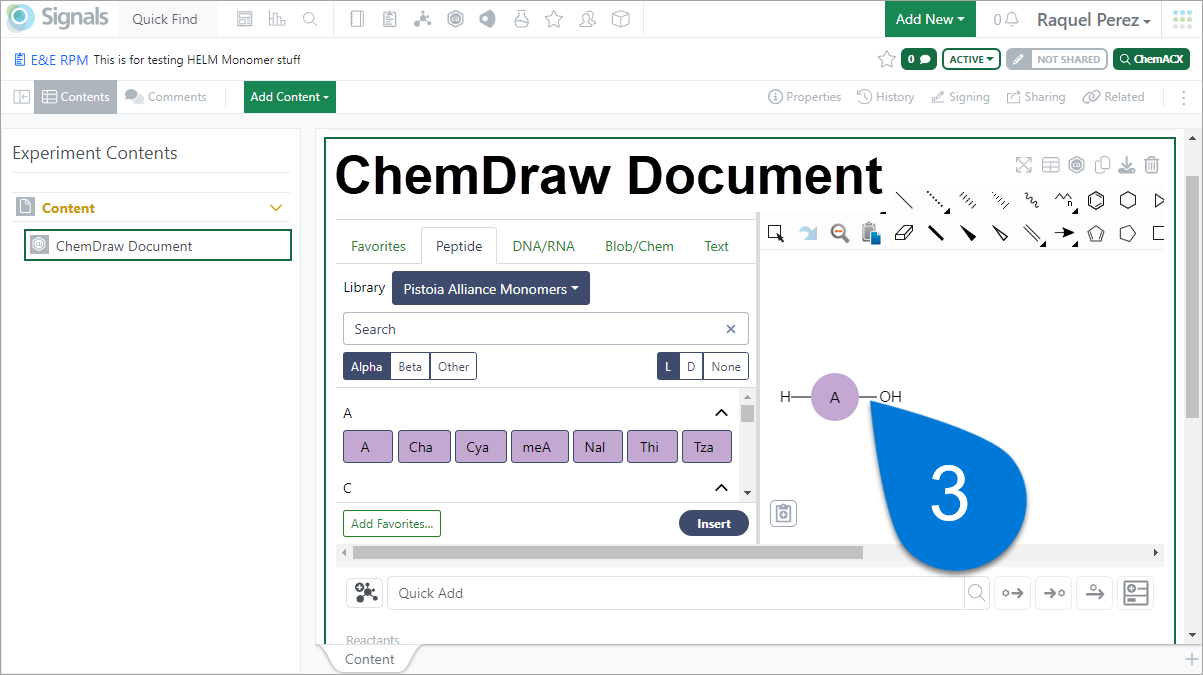

3️⃣ ChemDraw doc canvas ➡ select left/right bond

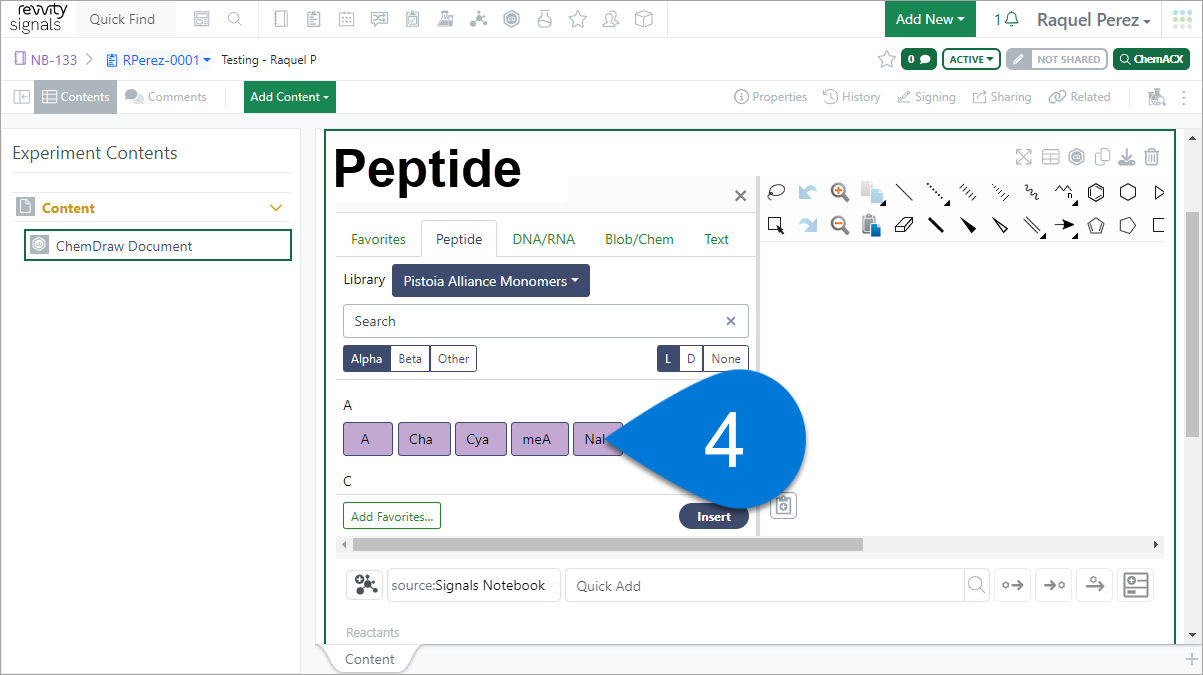

4️⃣Peptide tab ➡ select  [“monomer symbol”]

Supporting Knowledge

Note: The user can navigate through the monomers of a peptide using the keyboard arrow keys.
