Signals Notebook: Insert a monomer(s) to a DNA/RNA sequence from the DNA/RNA tab of the HELM Editor in Signals

Prior to this task:

✔ HELM Editor must be opened.

✔ At least one HELM Monomer library must be available.

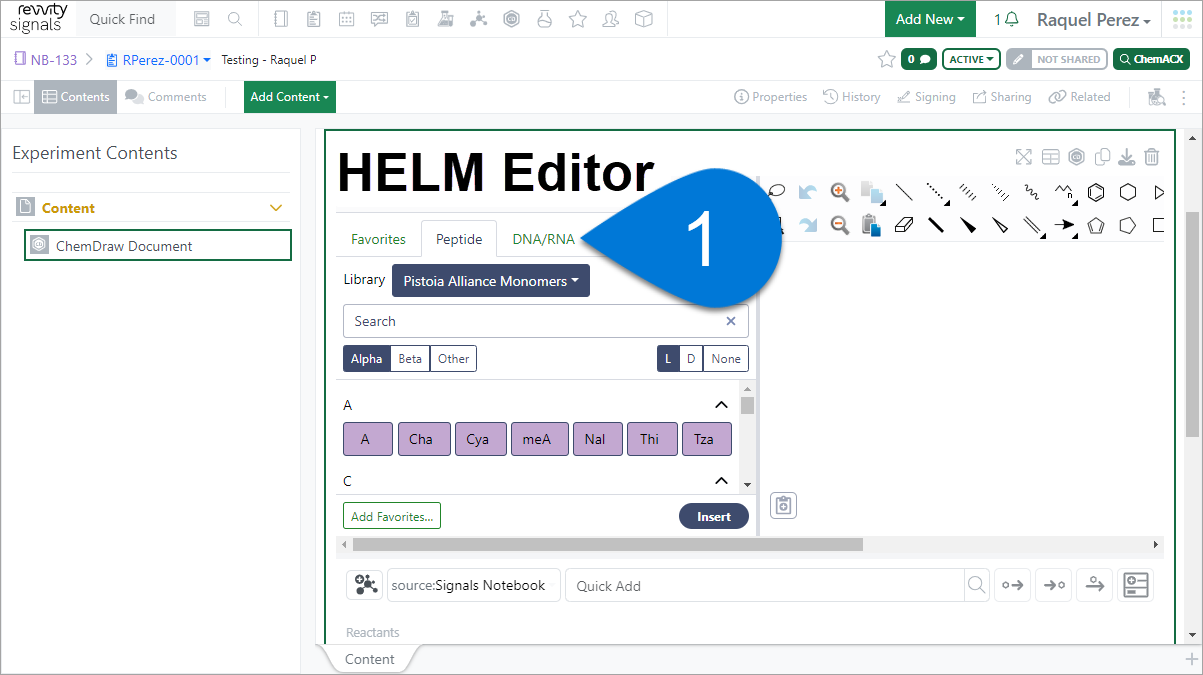

1️⃣ HELM Editor ➡ select DNA/RNA

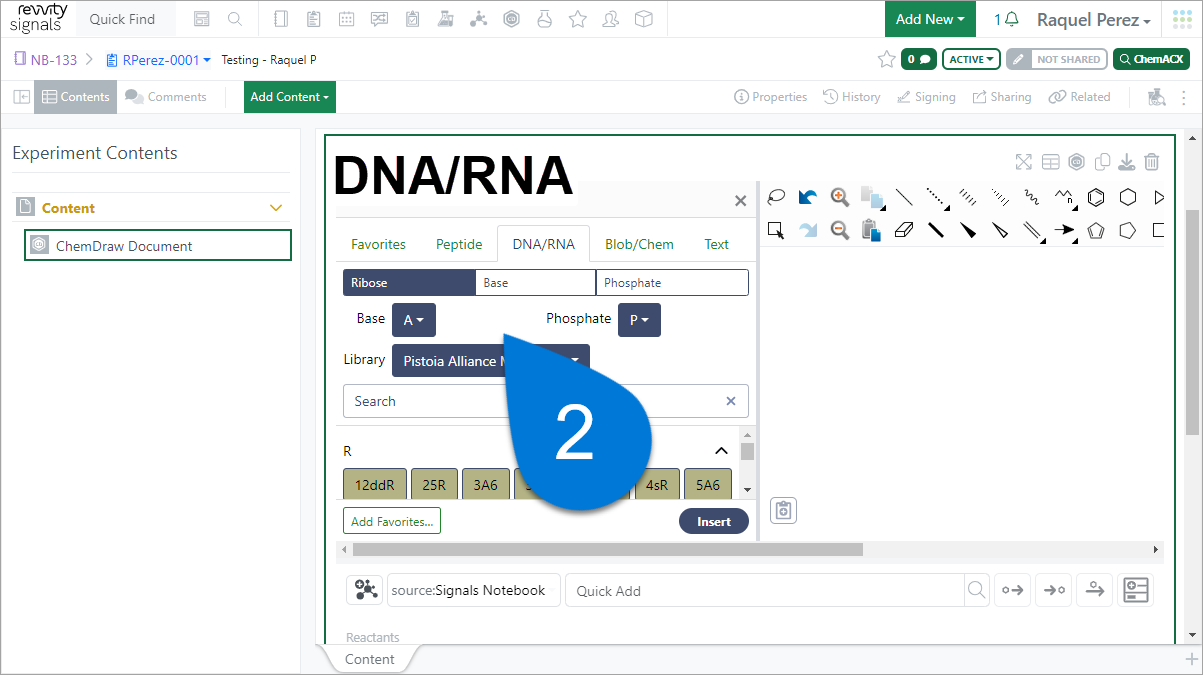

2️⃣ DNA/RNA tab ➡ select //  [Ribose/Base/Phosphate] ➡ select corresponding settings [“HELM Monomer library name”] [“monomer symbol”]

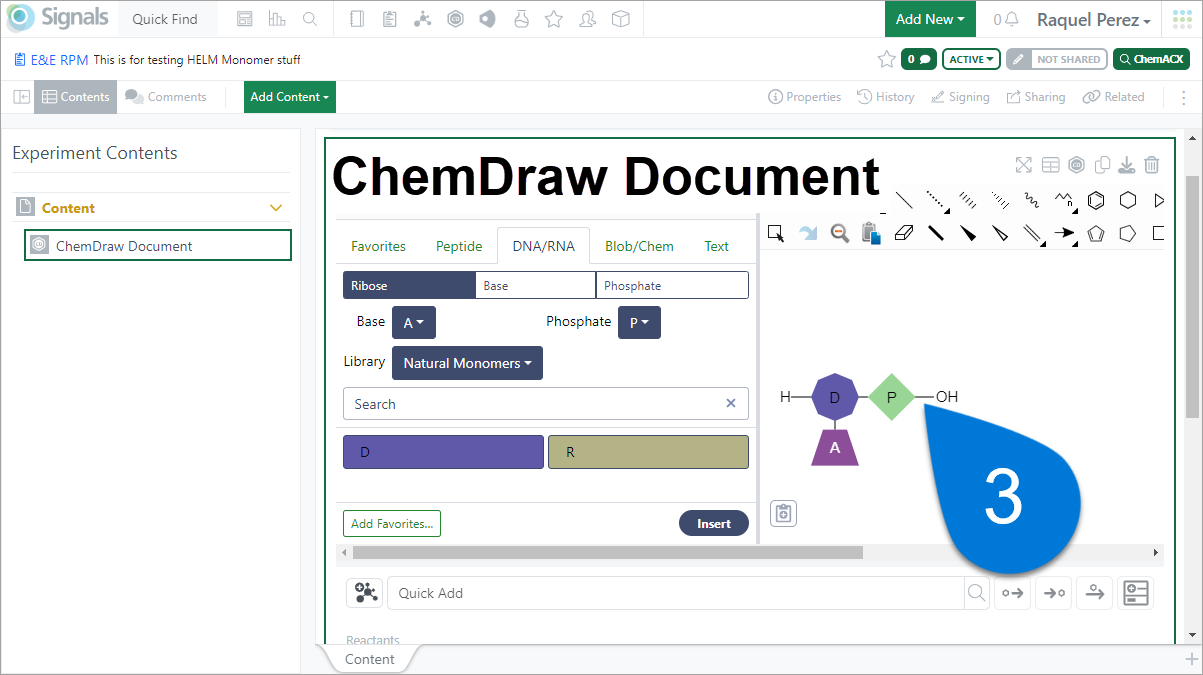

3️⃣ ChemDraw doc canvas ➡ select left/right bond

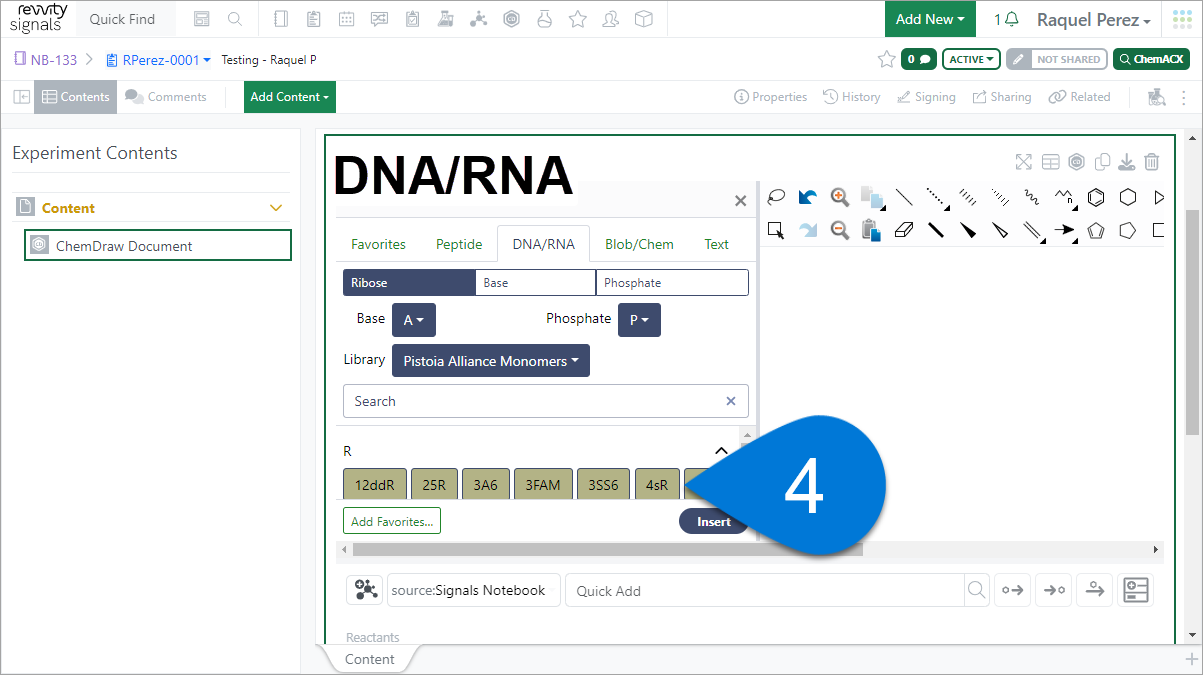

4️⃣ DNA/RNA tab ➡ select  [“monomer symbol”]

Supporting Knowledge

Note: The user can navigate through the monomers of a DNA/RNA sequence using the keyboard arrow keys.
