Signals Notebook: Define columns for a Material Table from the Signals Configuration

For Administrators only.

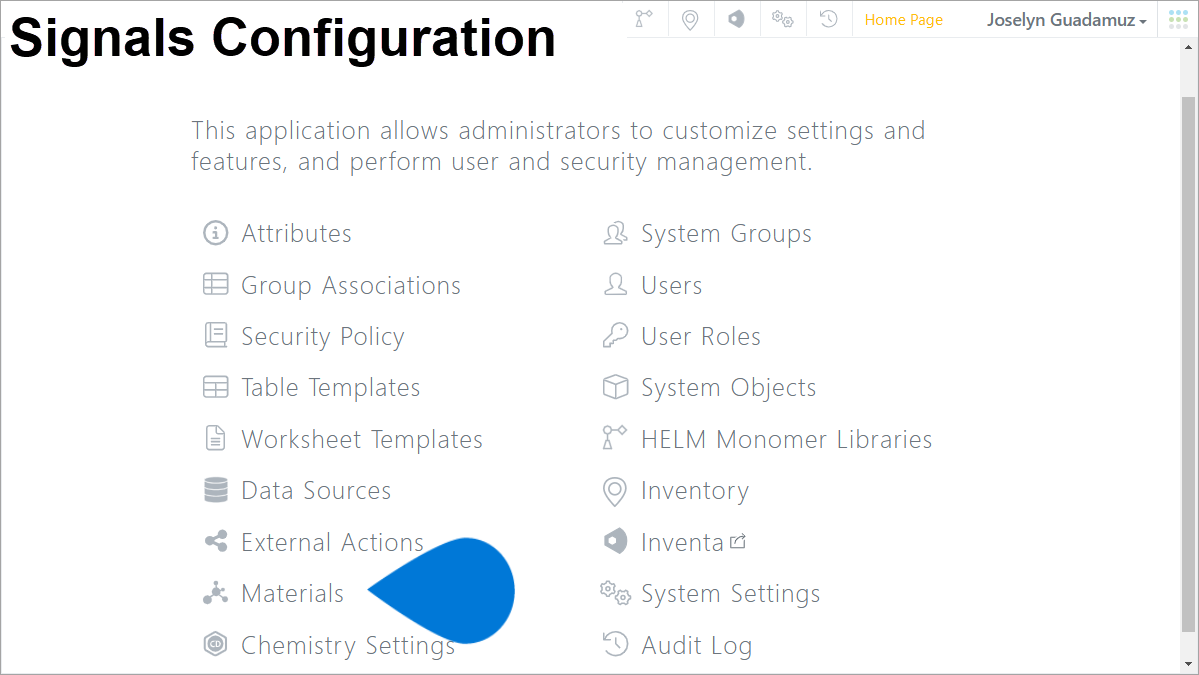

1️⃣ Signals Configuration ➡ select [Materials]

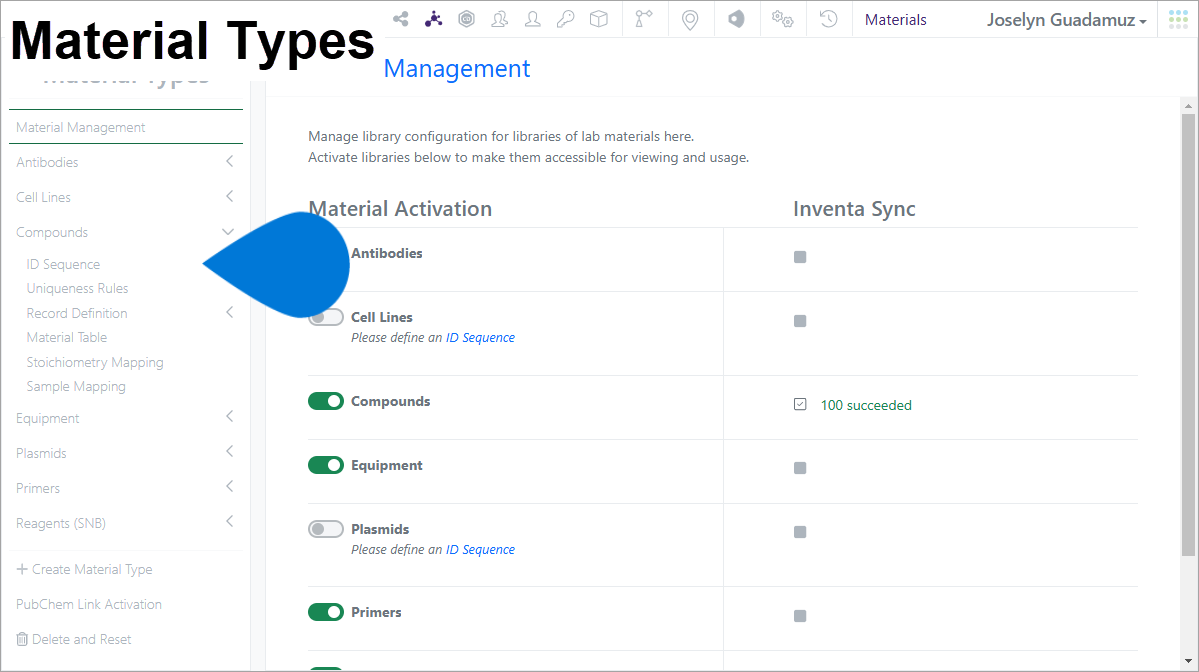

2️⃣ Material Types pane ➡ select Material library ➡ select Material Table

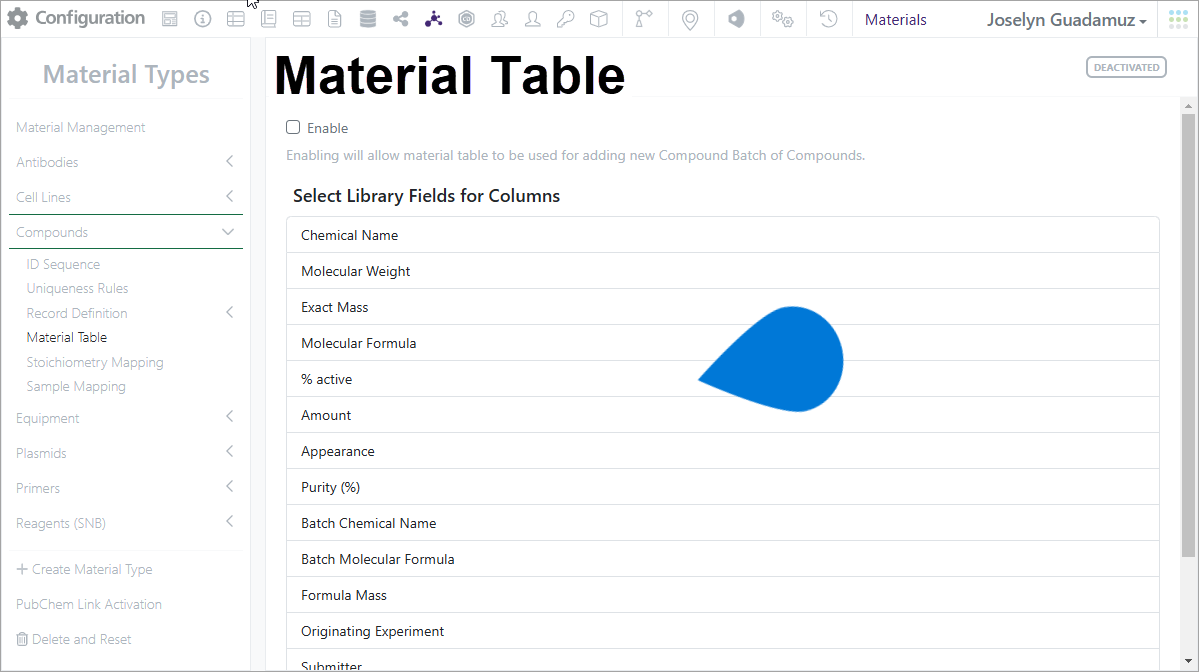

3️⃣ Material Table section ➡ Select Library Fields for Columns ➡ select column(s)

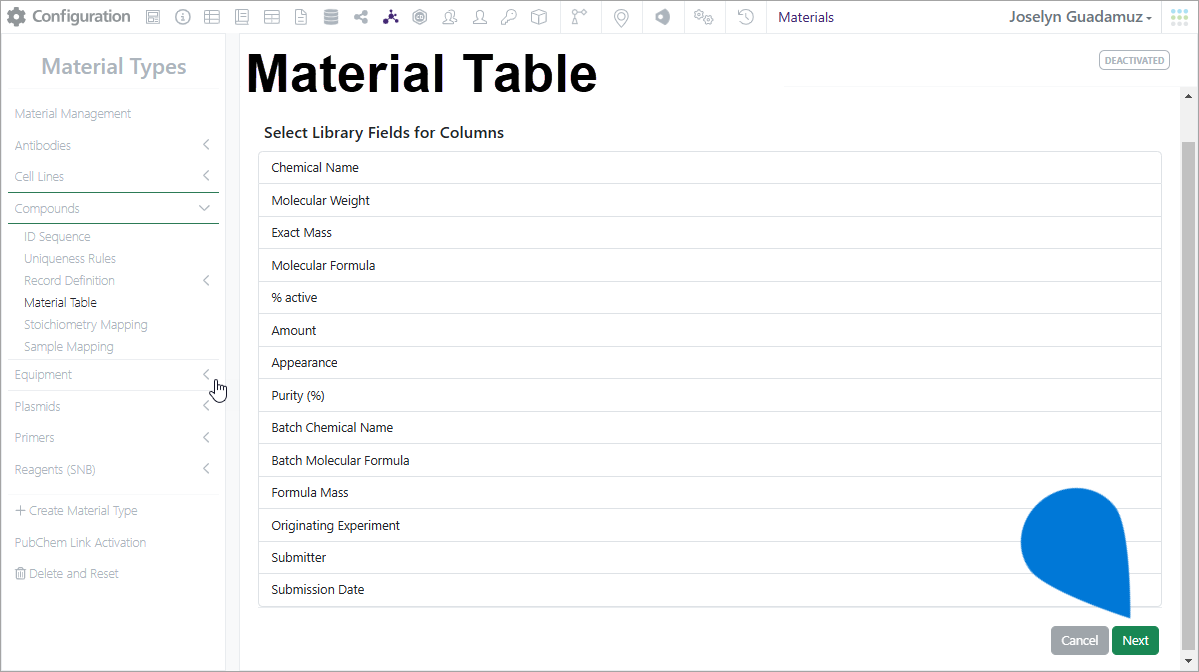

4️⃣ Material Table section ➡ select [Next]

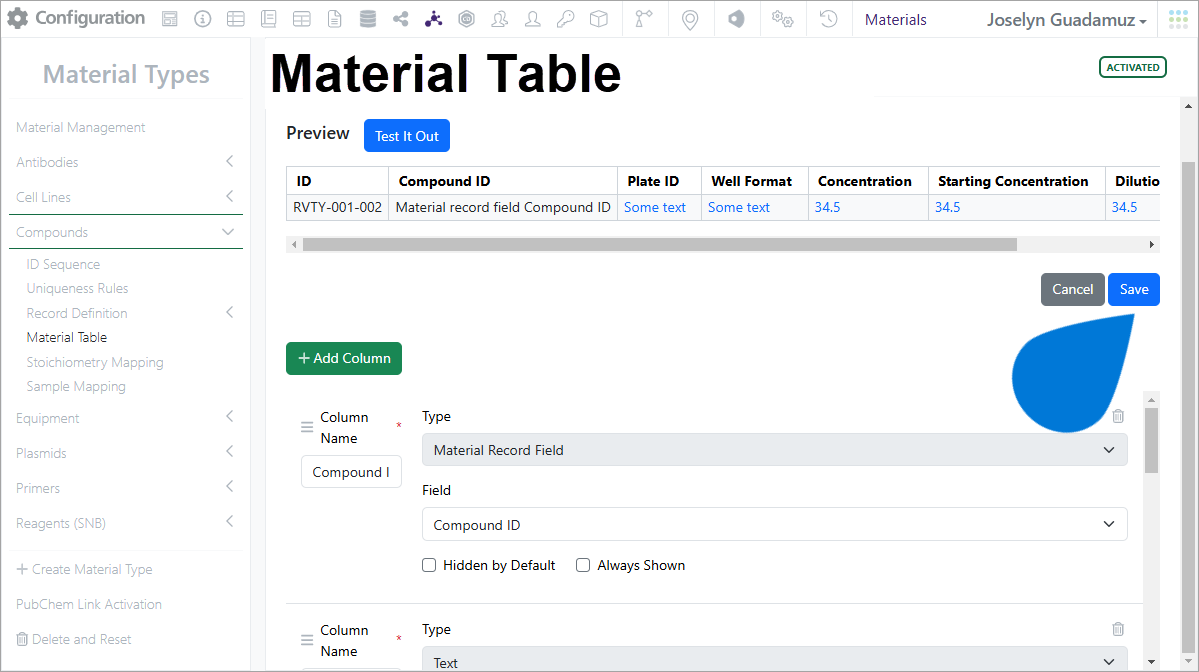

5️⃣ Material Table section ➡ select [Save]

Supporting Knowledge

• The columns of a Material Table can be defined only during initial configuration.
• Columns can be reordered by holding the [three-line icon], then dragging and dropping the column to the desired location.
