Signals Notebook: Add a new column to a Material Table from the Signals Configuration

For Administrators only.

*Required.

1️⃣ Signals Configuration ➡ select [Materials]

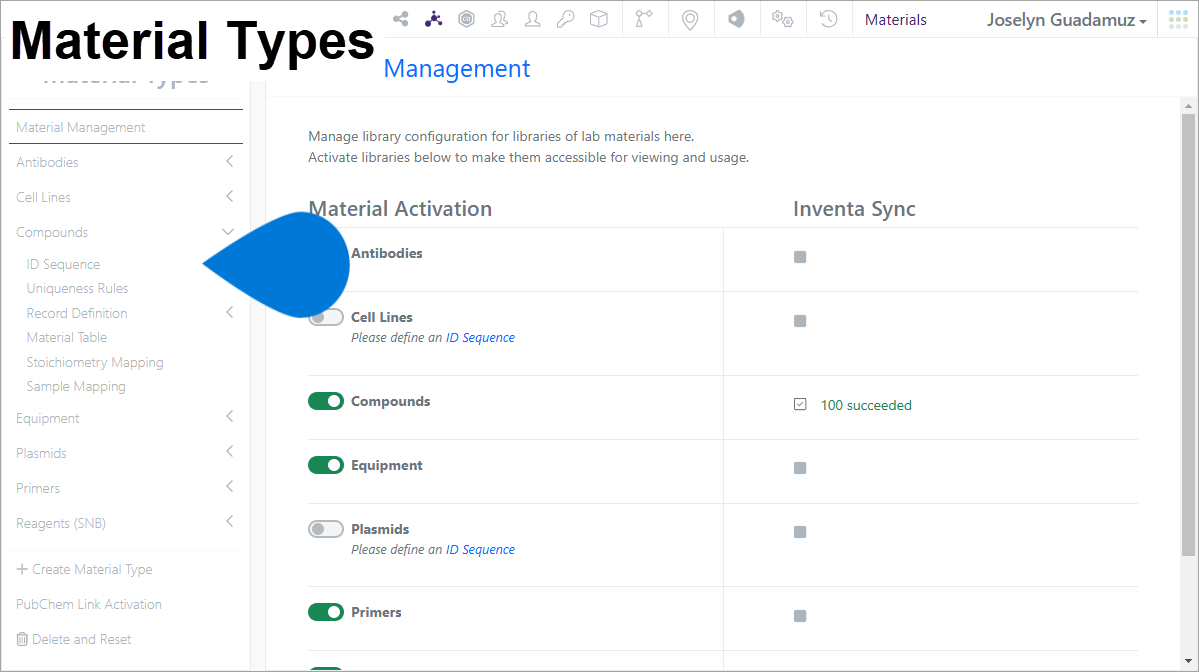

2️⃣ Material Types pane ➡ select Material library ➡ select Material Table

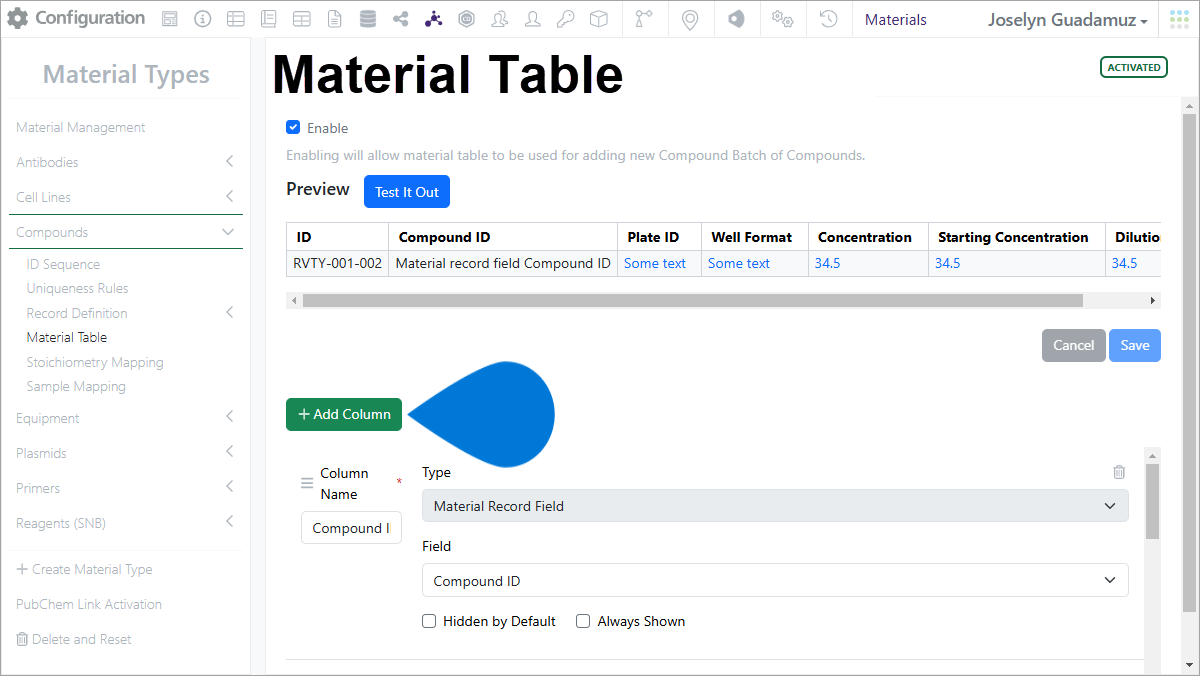

3️⃣ Material Table section ➡ select [Add Column]

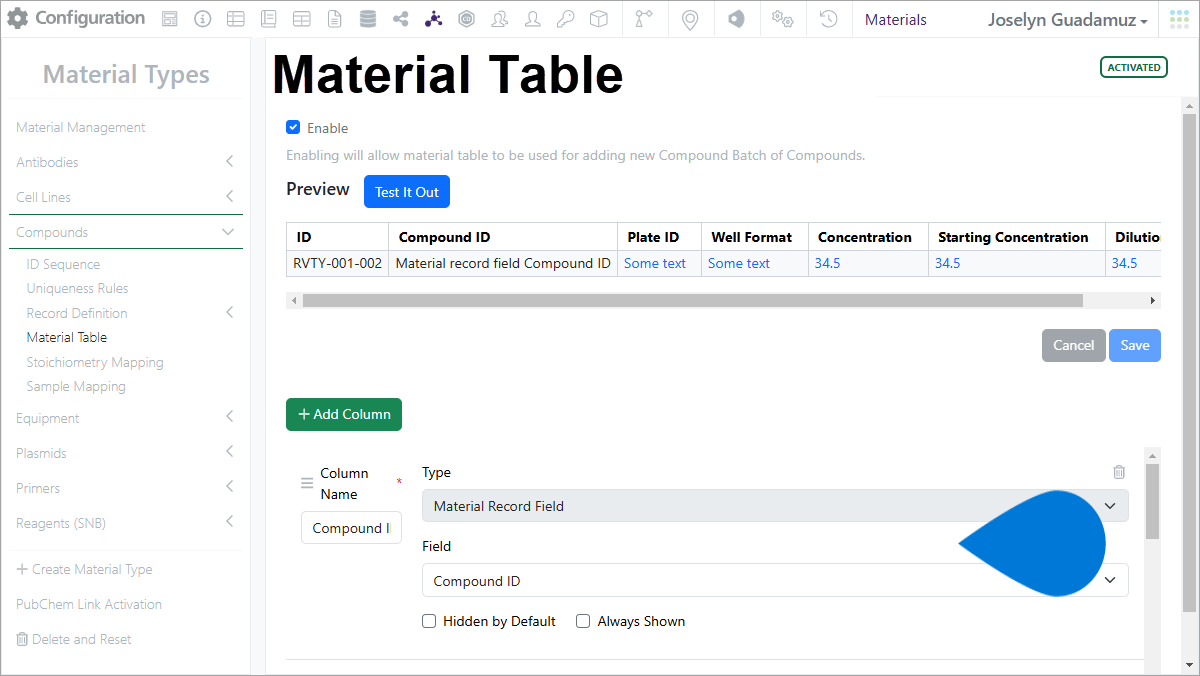

4️⃣ Material Table section ➡ type/select Column Name* Type* Hidden by Default Always Shown Clear value when element is copy-pasted

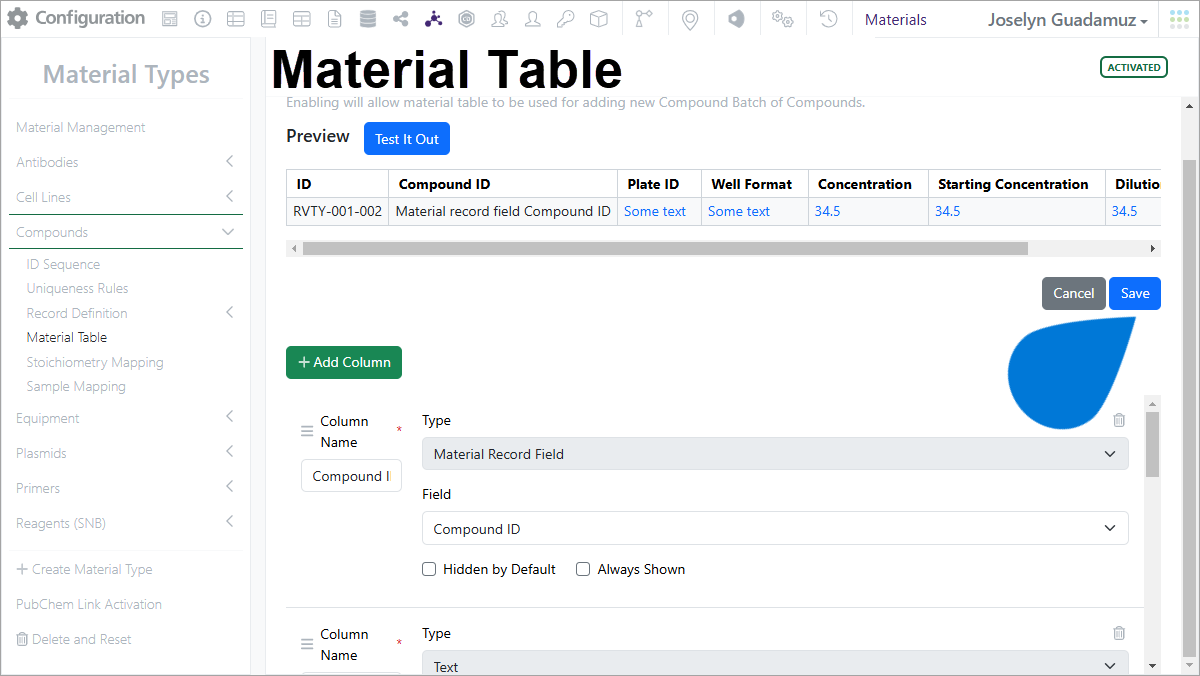

5️⃣ Material Table section ➡ select [Save]

Supporting Knowledge

• The Material Table must be configured before a new column can be added.
• To add columns related to existing Material Fields, select the type Material Record Field.
• If users select Hidden by Default for a column, that column will be hidden when the user adds a Materials Table to an Experiment, but the user can unhide the column.
• If Always Shown is checked, the column will always be shown, and the user will not be able to hide the column.
• When a Material Table definition is modified, changes will not be reflected in existing Material Tables added to Experiments; users must delete the existing table and add it again to see new added columns.
