Signals Notebook: Enable Stoichiometry Mapping for a Material from the Signals Configuration

For Administrators only.

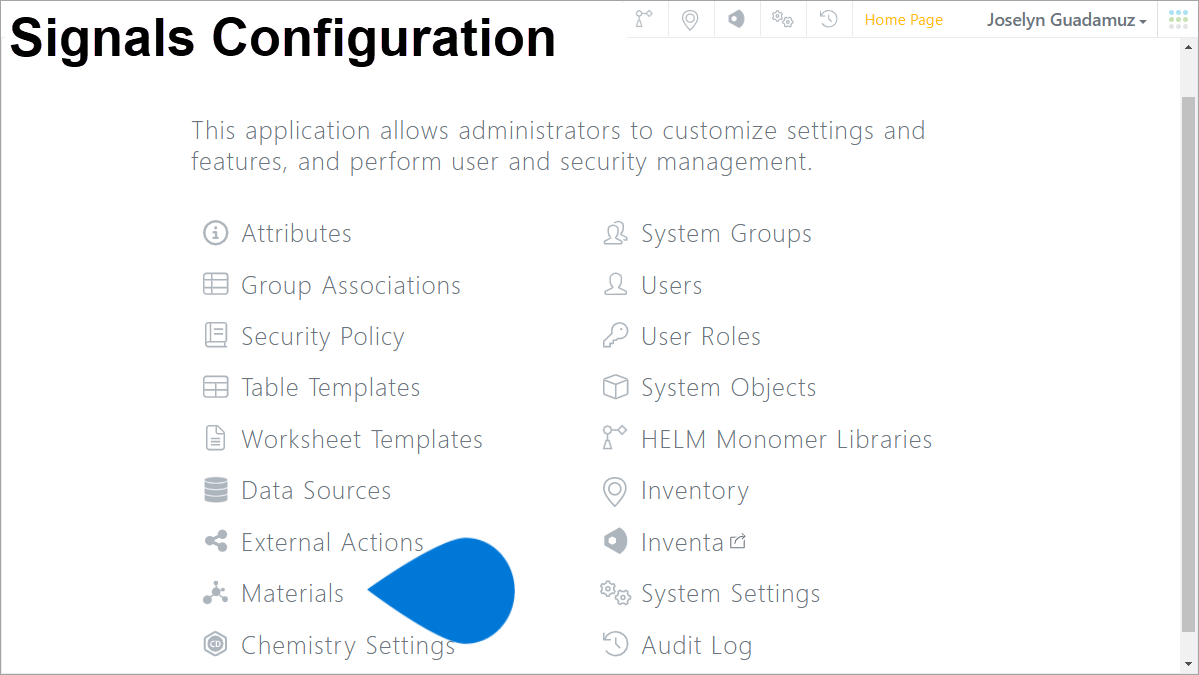

1️⃣ Signals Configuration ➡ select [Materials]

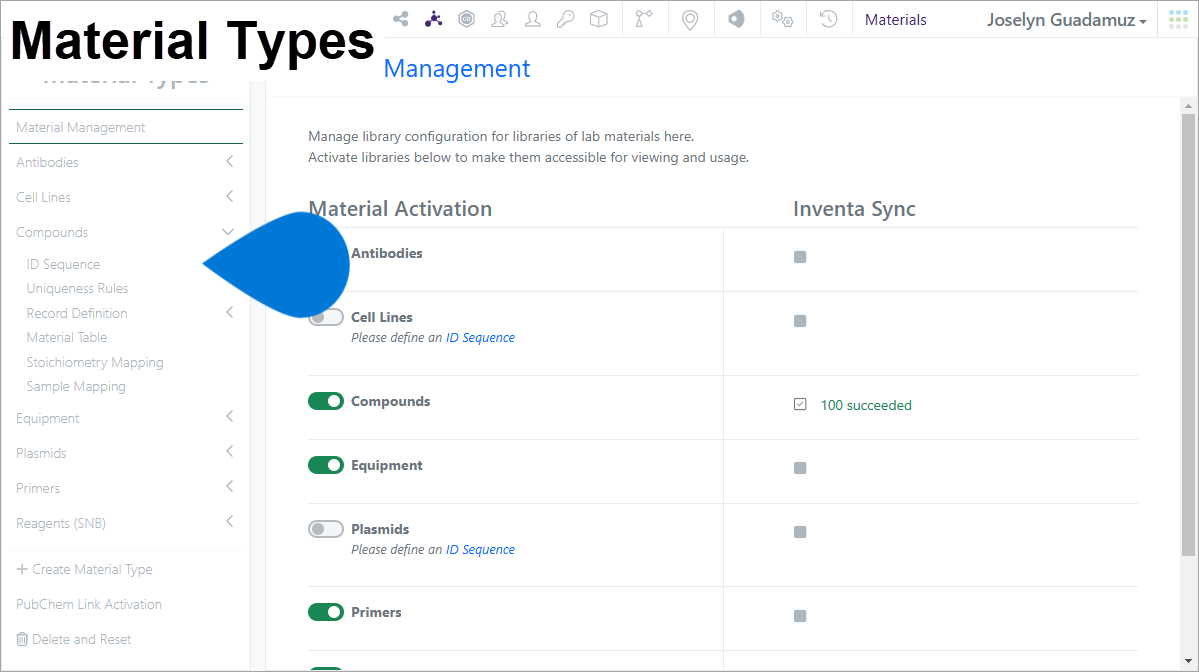

2️⃣ Material Types pane ➡ select Material library ➡ select Stoichiometry Mapping

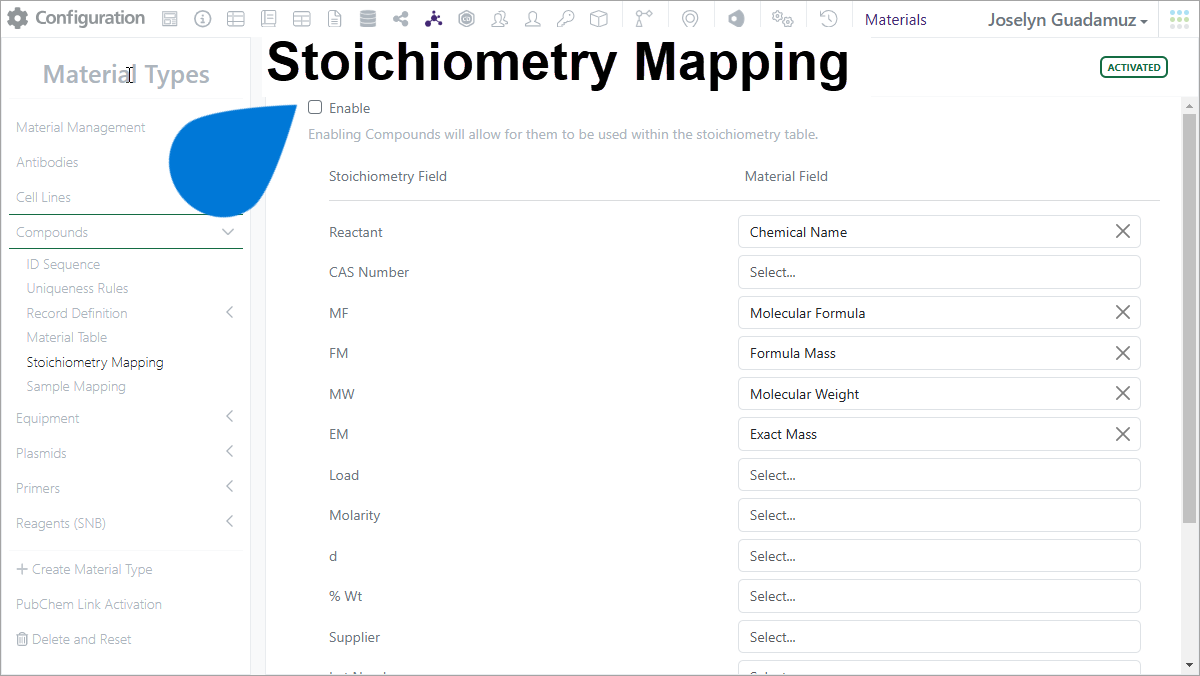

3️⃣ Stoichiometry Mapping section ➡ select [Enable]

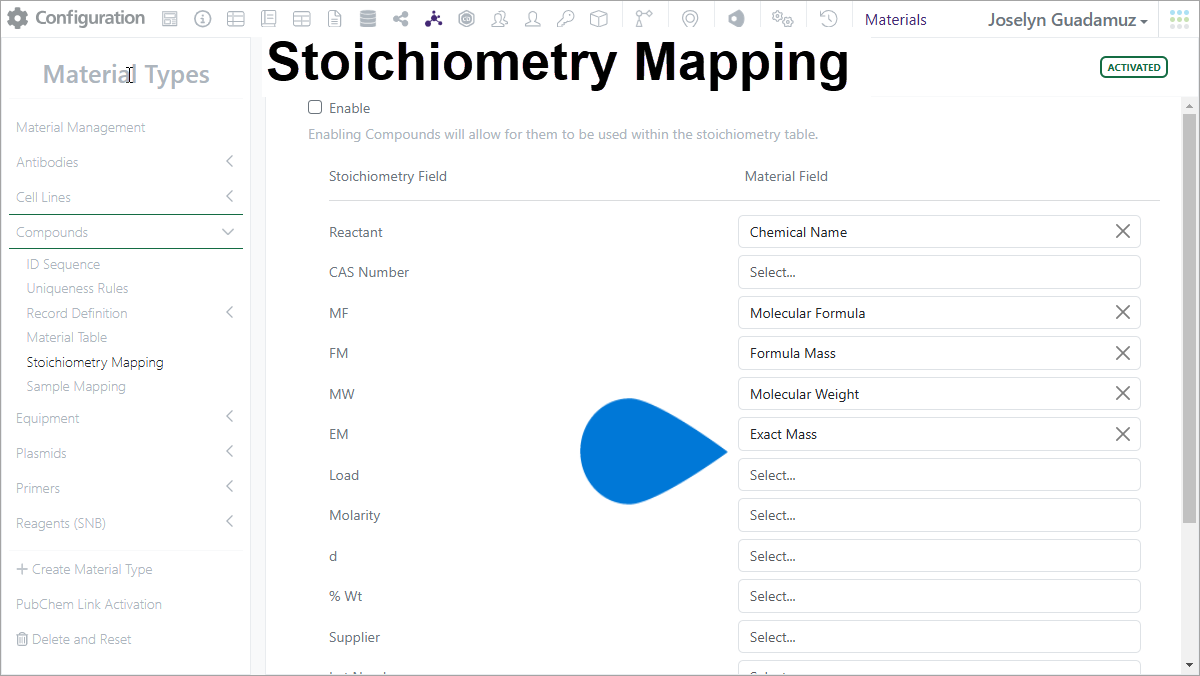

4️⃣ Stoichiometry Mapping section ➡ select Material Fields to map

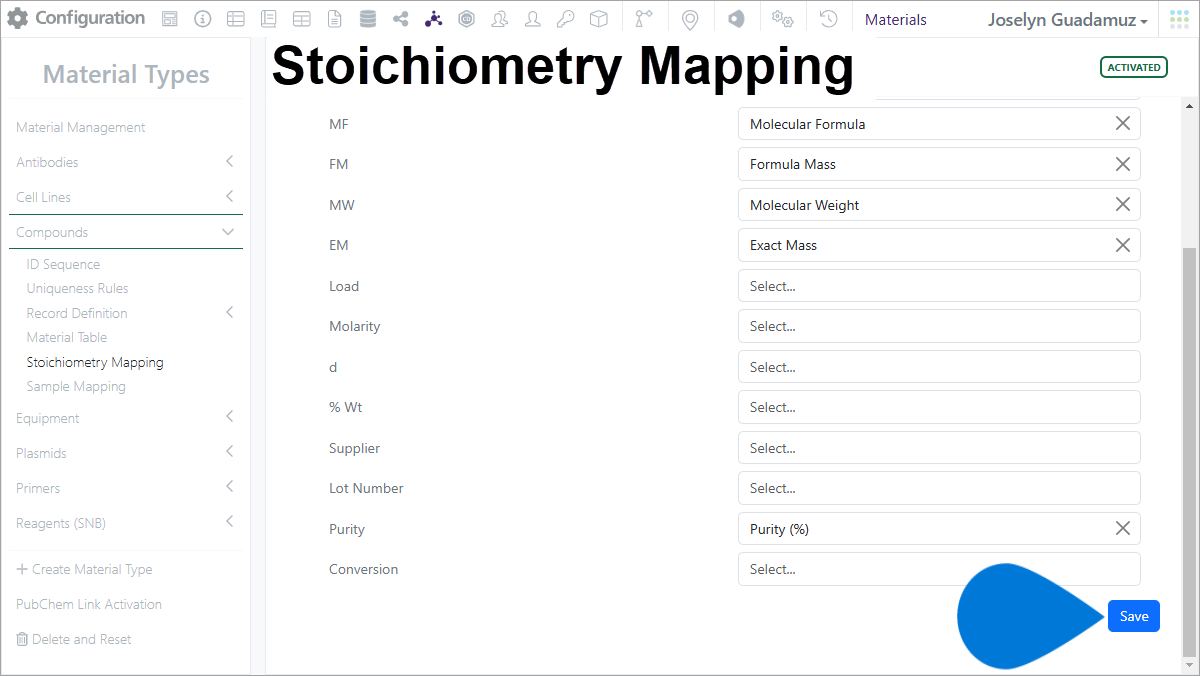

5️⃣ Stoichiometry Mapping section ➡ select [Save]

Supporting Knowledge

Stoichiometry mapping is available only for Compounds and Reagents libraries.

• Stoichiometry mapping allows for Compounds or Reagents to be used within the stoichiometry table in a chemical drawing.
• Field mapping enables auto-populating data from the Material record to the stoichiometry tables.
• The available Stoichiometry Fields are based on the columns configured in the Chemistry Settings for Reactants and Products tables.
• Material Fields can be mapped to Stoichiometry Fields of the same field type (text, number, number w/unit, etc.).
