Signals Inventa: Configure a measurement type as details of another measurement type in Signals Data Factory

For Administrators only.

Prior to this task:

✔ Measurement attributes and tags must be defined.

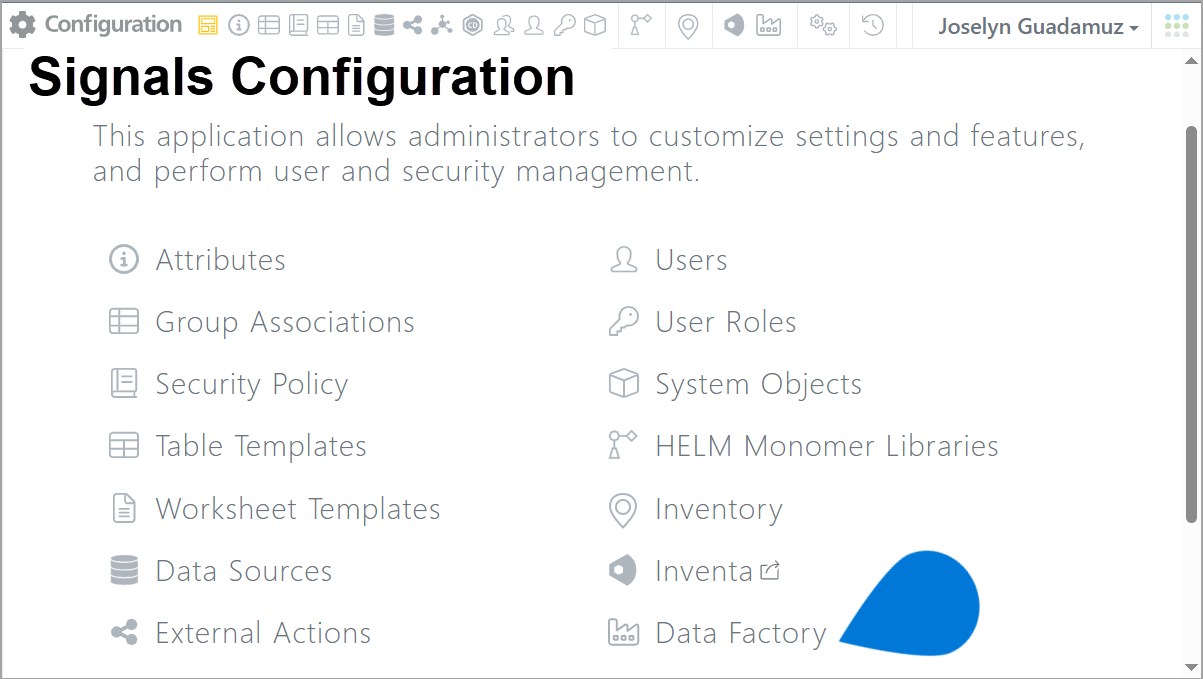

1️⃣ Signals Configuration ➡ select [Data Factory]

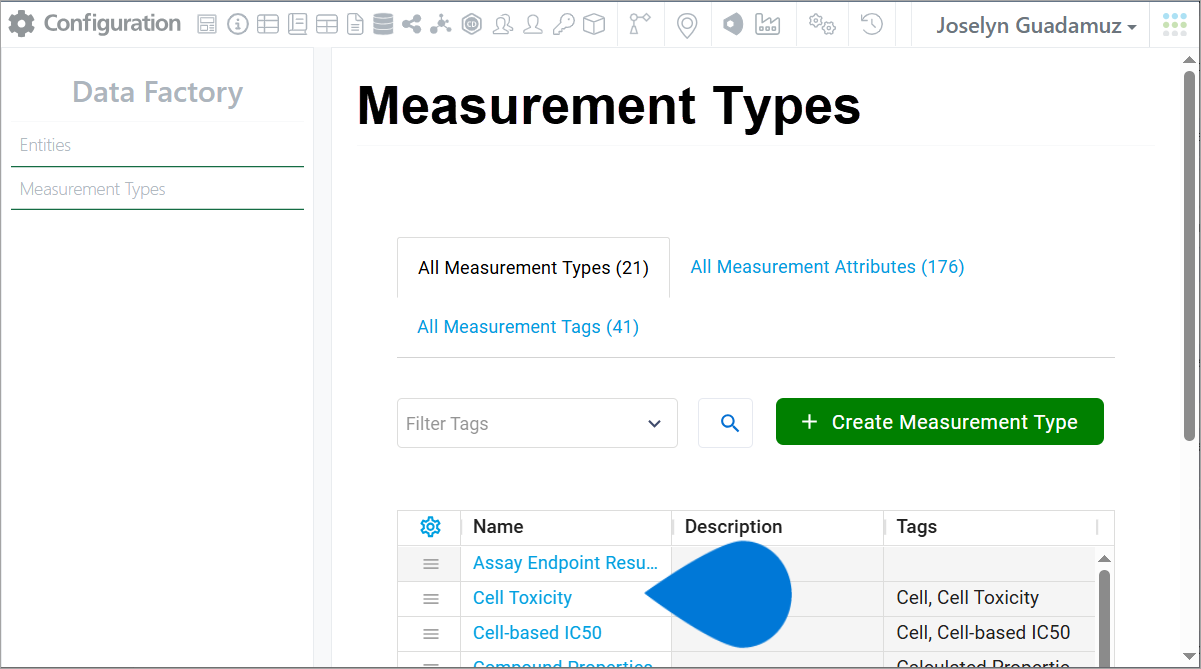

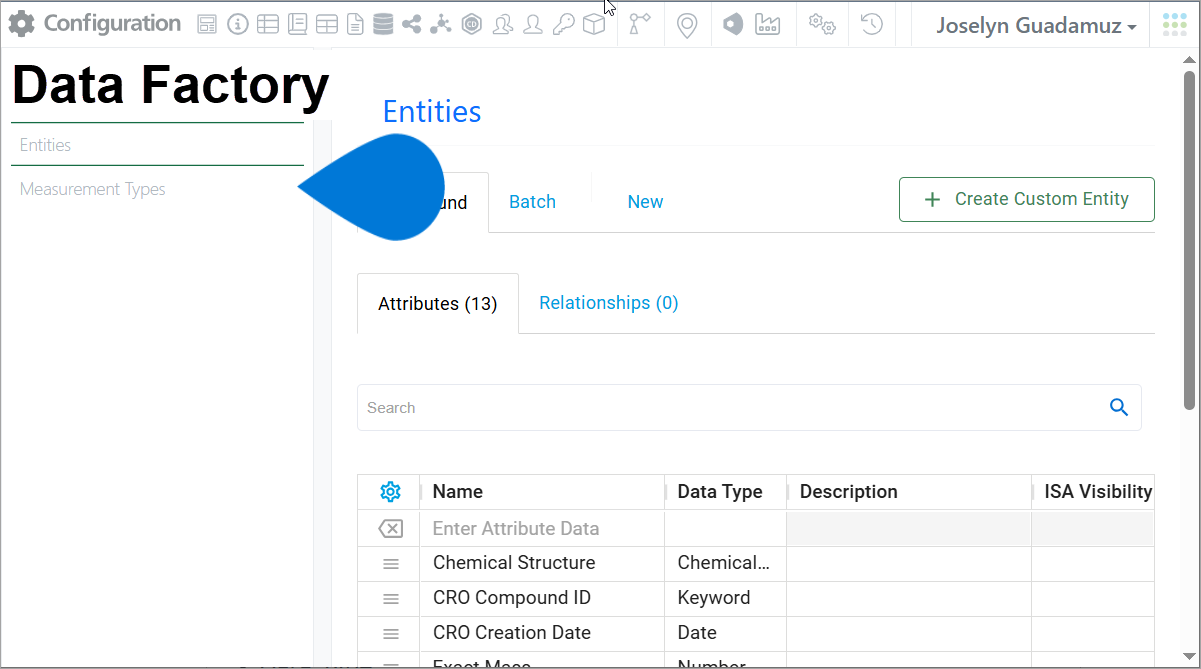

2️⃣ Data Factory pane ➡ select Measurement Types
2️⃣ Measurement Types ➡ All Measurement Types tab ➡ select measurement type

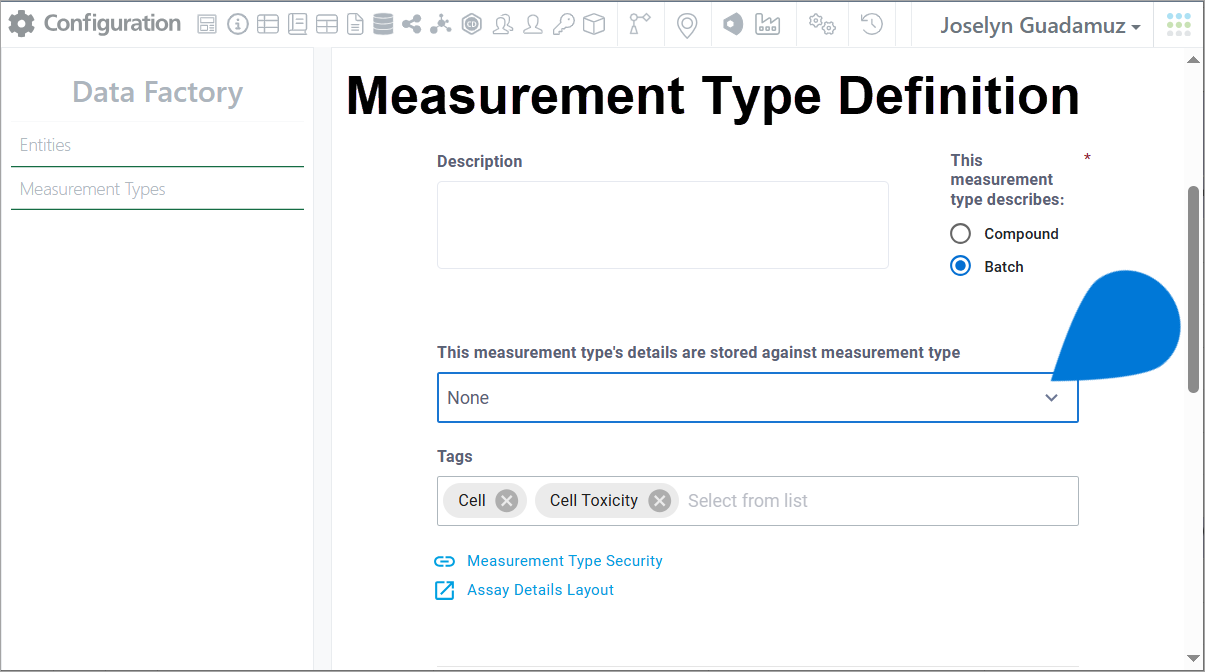

3️⃣ Measurement Type Definition ➡ Measurement Type area ➡ select This measurement type's details are stored against measurement type dropdown ➡ select measurement type

Supporting knowledge

Notes:

• Detail measurements capture the component inputs that contribute to a final result (e.g., wells of an IC50). For example, the “Well-level % inhibition” assay can be designated as a detail of the “IC50” assay. In the Publish Measurements app, users can publish both the detail results to the detail Measurement Type (e.g., well-level % inhibition) and the main assay results (e.g., IC50 assay).
• For step 3, any changes made are automatically applied to the measurement type.
