Signals Notebook: Add a new Data Factory map to a Table template and enable publication to Signals Inventa from the Signals Configuration

Raquel Perez

For Administrators only.

Prior to this task:

✔ Table template must be created.

✔ At least one project must be available.

✔ A Measurement Type must be defined.

*Required.

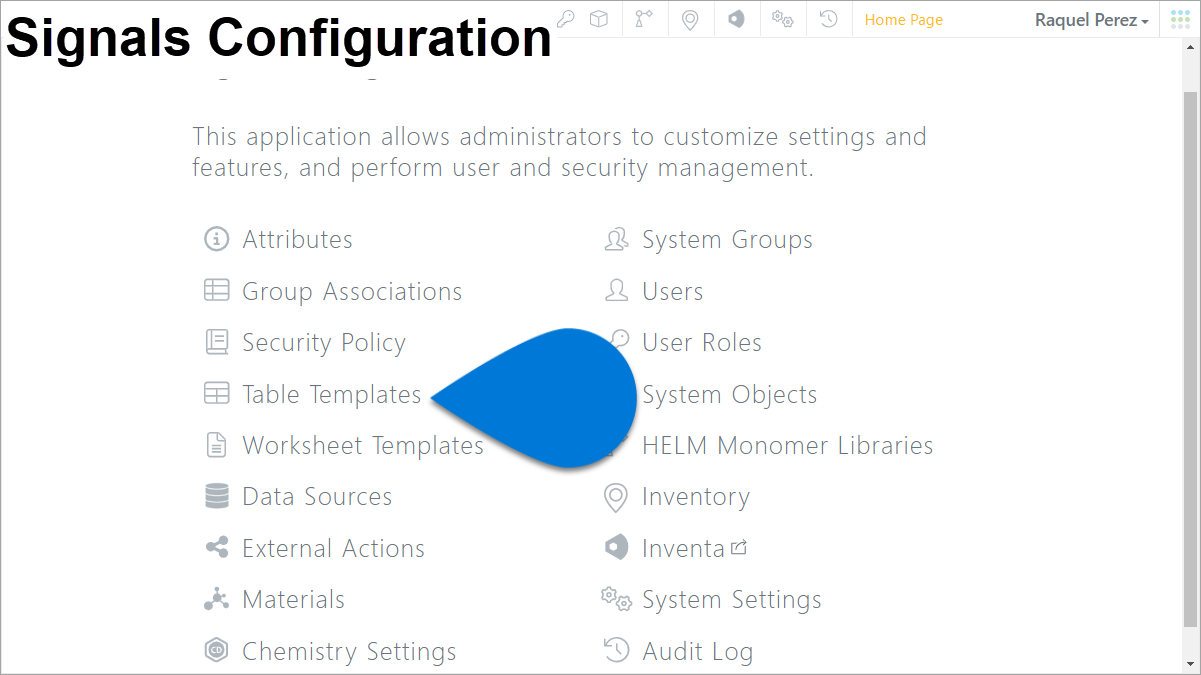

1️⃣ Signals Configuration ➡ select [Table Templates]
2️⃣ Table Templates ➡ select table template

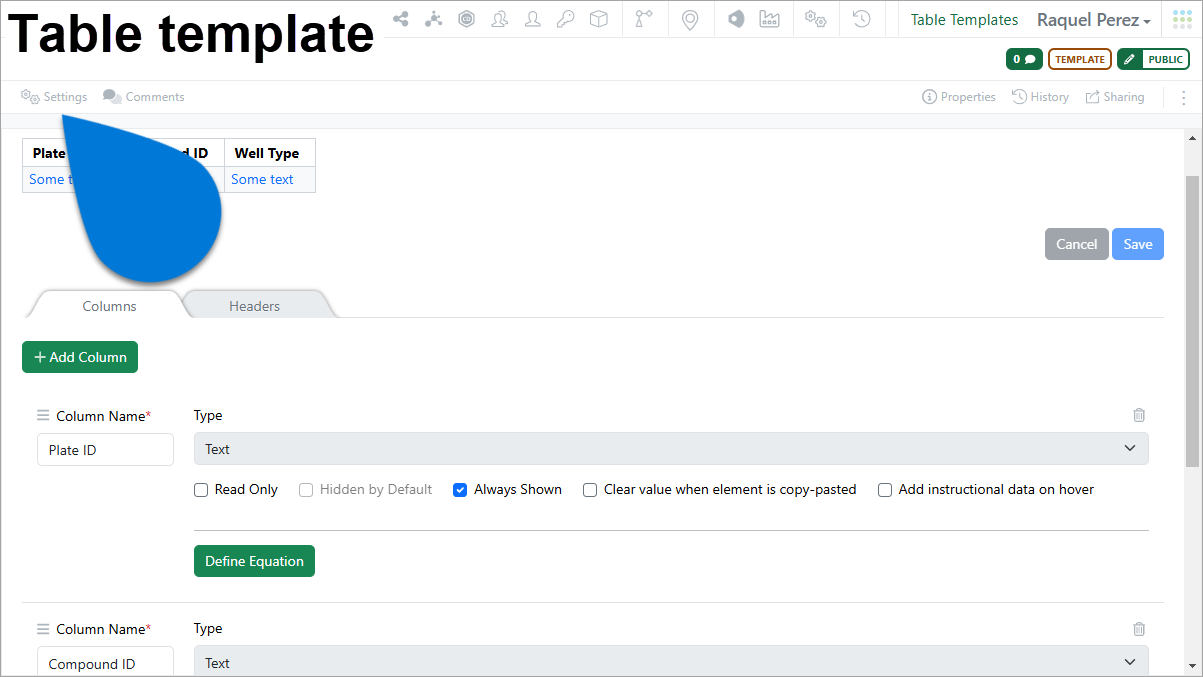

3️⃣ Table template ➡ select [Settings]

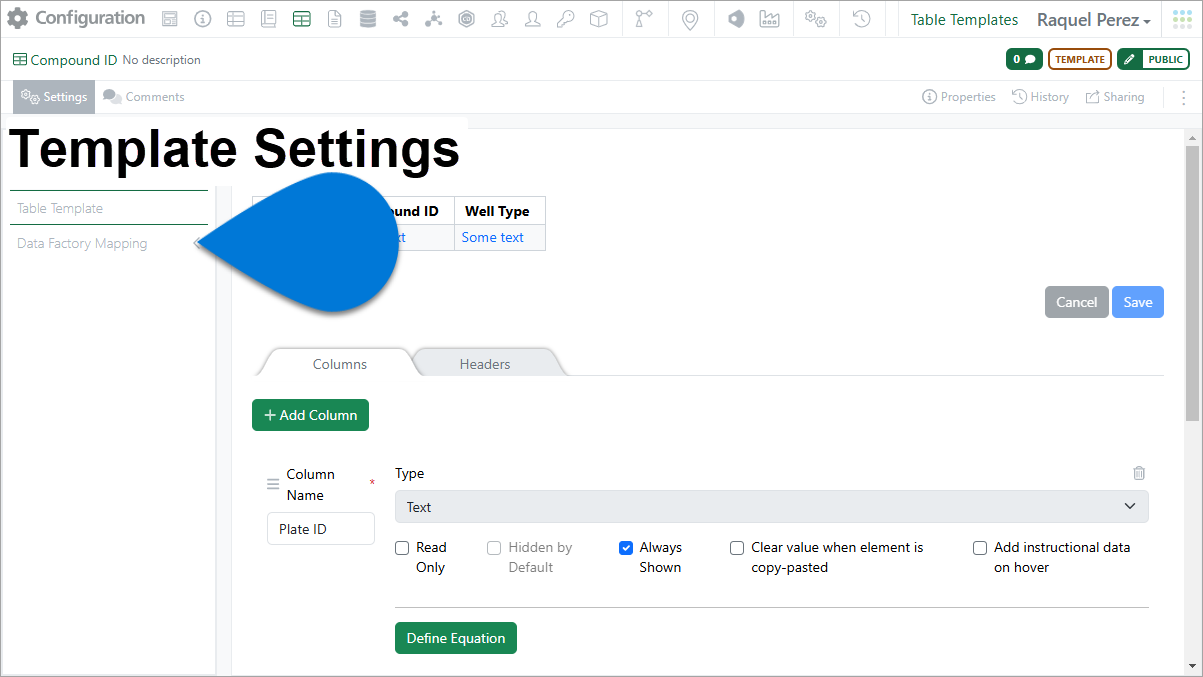

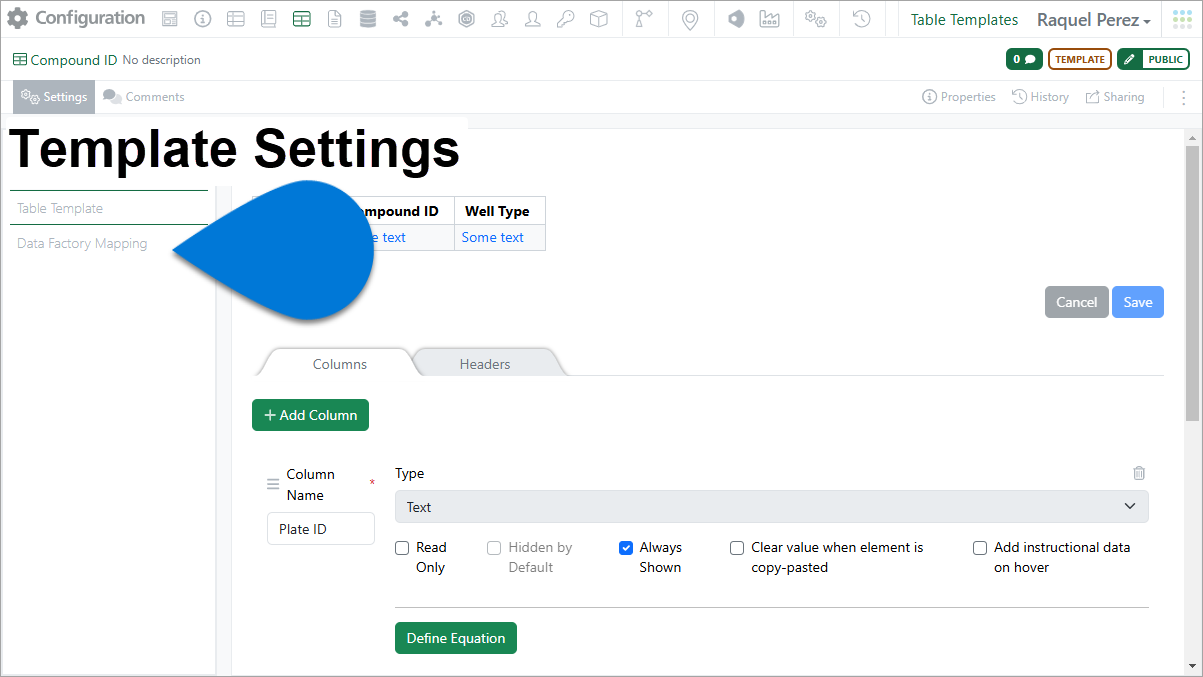

4️⃣ Template Settings pane ➡ select Data Factory Mapping ➡ select Add New Mapping

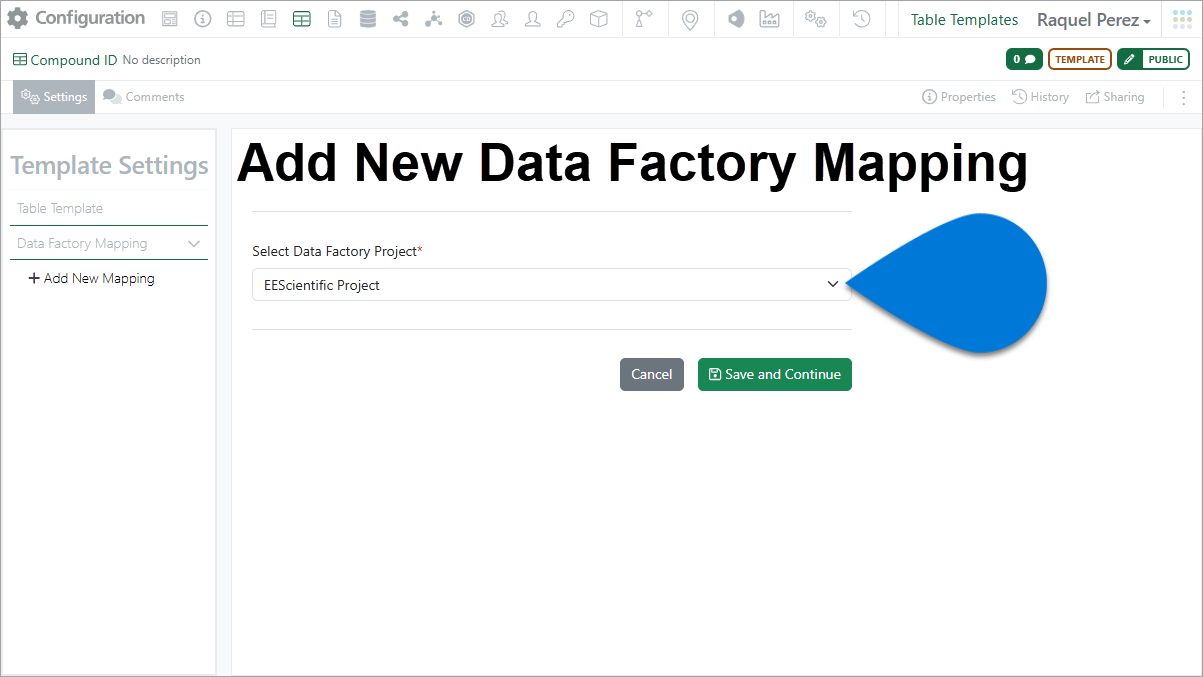

5️⃣ Add New Data Factory Mapping section ➡ select Data Factory project

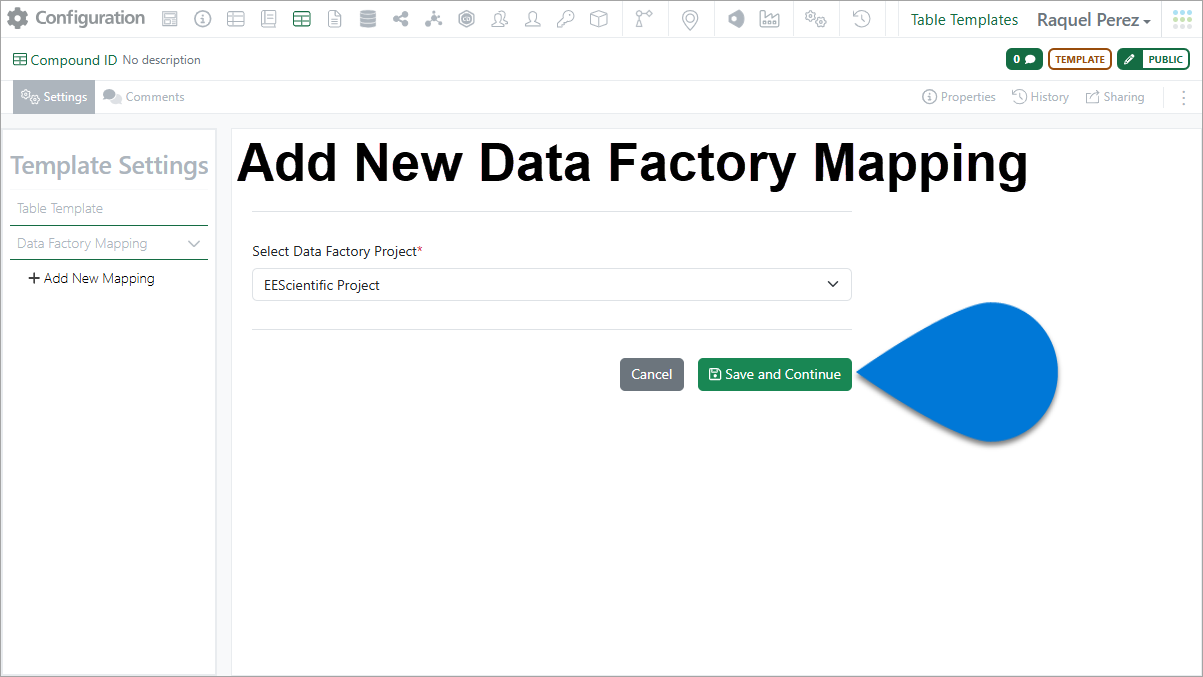

6️⃣ Add New Data Factory Mapping section ➡ select [Save and Continue]
7️⃣ Data Factory Project Mapping section ➡ select Data Factory Measurement Type*

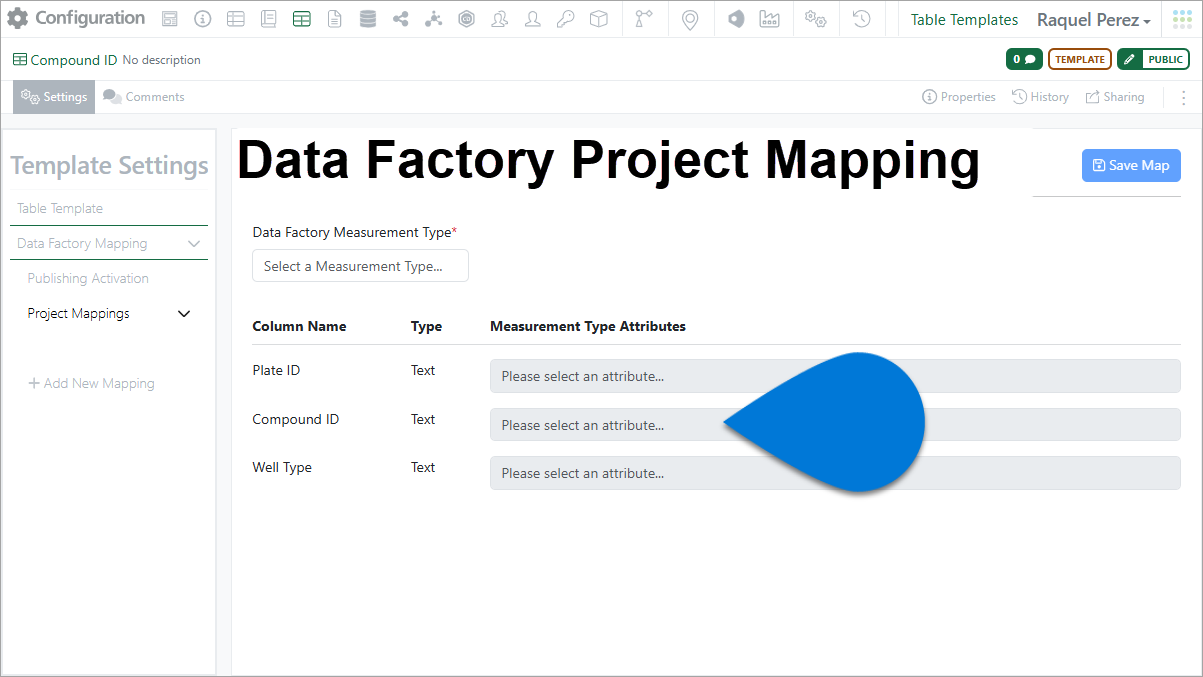

8️⃣ Data Factory Project Mapping section ➡ select Measurement Type Attributes

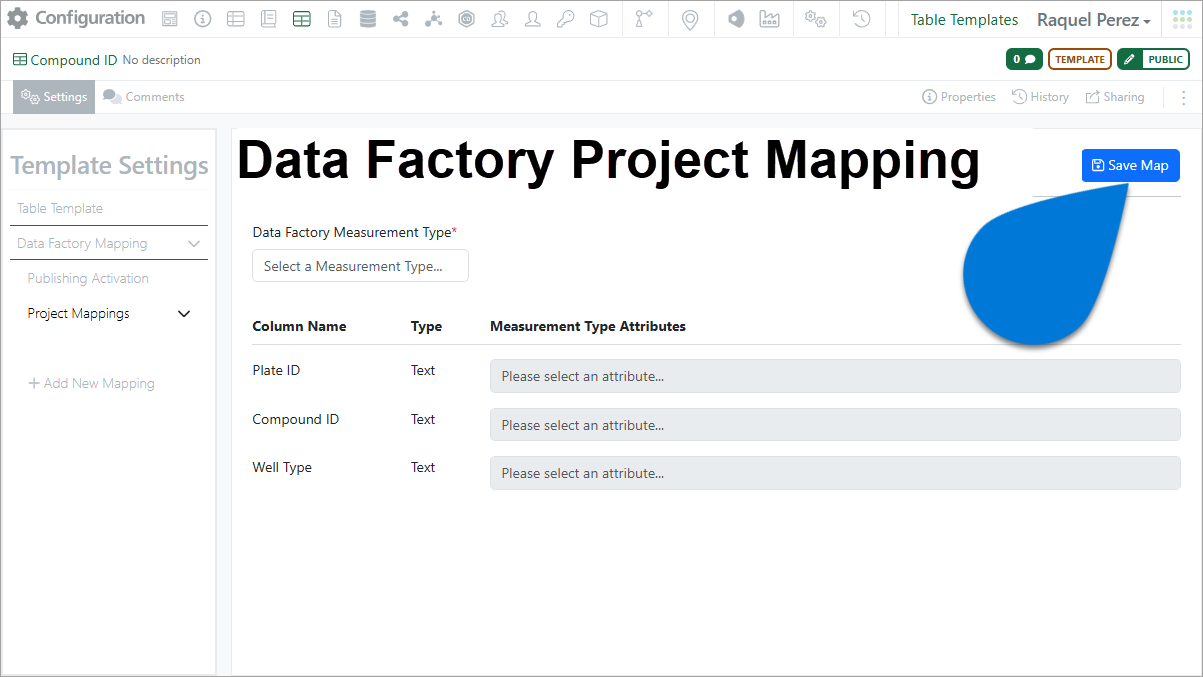

9️⃣ Data Factory Project Mapping section ➡ select [Save Map]
🔟 Template Settings pane ➡ Data Factory Mapping ➡ select Publishing Activation

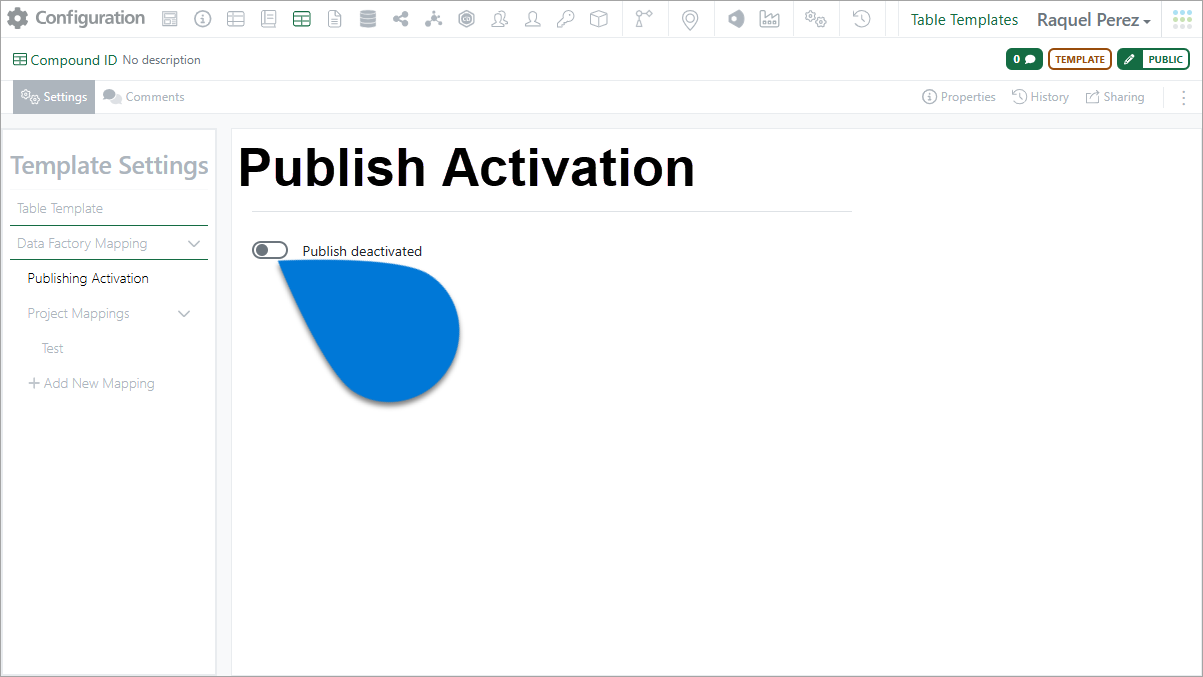

1️⃣1️⃣ Publish Activation section ➡ select [Publish deactivated]

Supporting Knowledge

Notes:

Multiple maps can be created for a Table template; however, only one map can be assigned to an SDF project. As a result, an SDF project that has already been selected will not be available in the list when creating new maps.
To copy a map from an existing mapping, ensure that at least one project mapping is added to the Table template. Then, select the [Copy Map From] button and the Measurement Type, and mapping will be populated automatically.
