Signals Inventa: Attach a measurement attribute(s) to a measurement type in Signals Data Factory

For Administrators only.

Prior to this task:

✔ Measurement type must be created.

✔ Measurement attribute(s) must be available.

*Required.

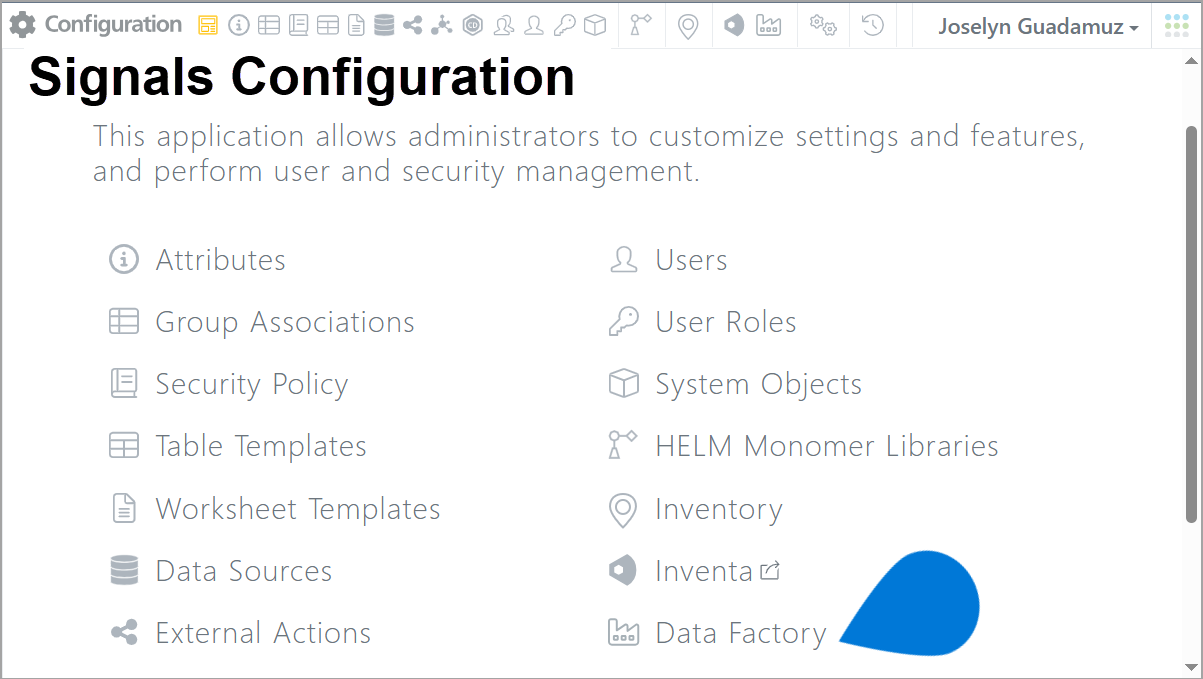

1️⃣ Signals Configuration ➡ select [Data Factory]

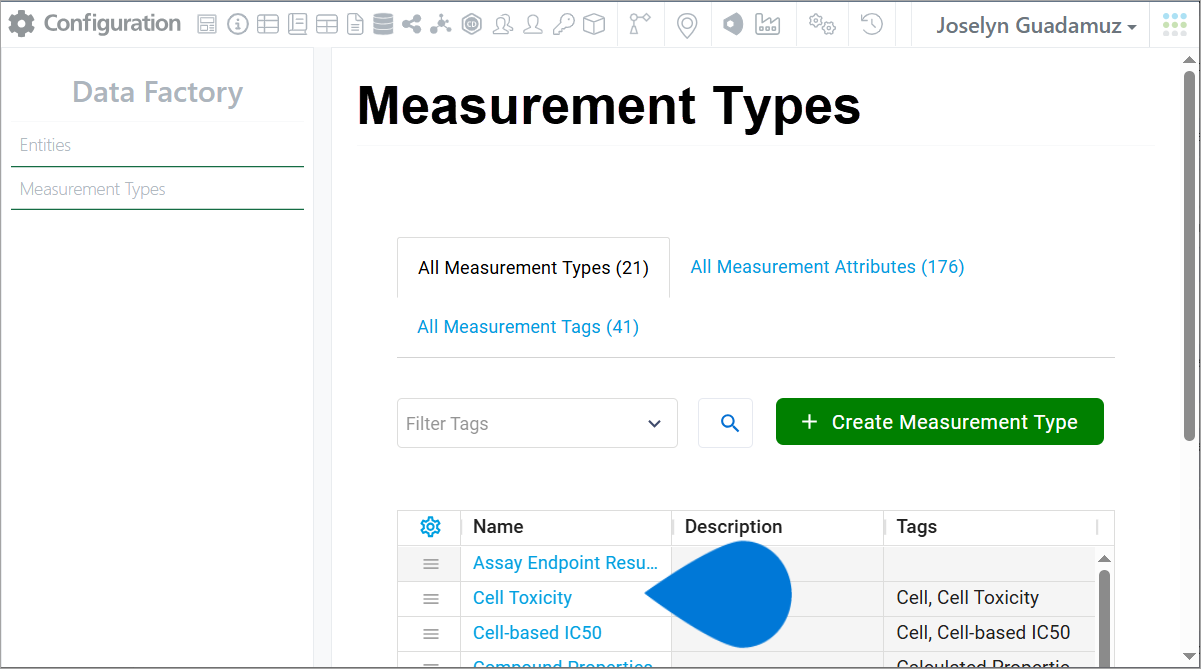

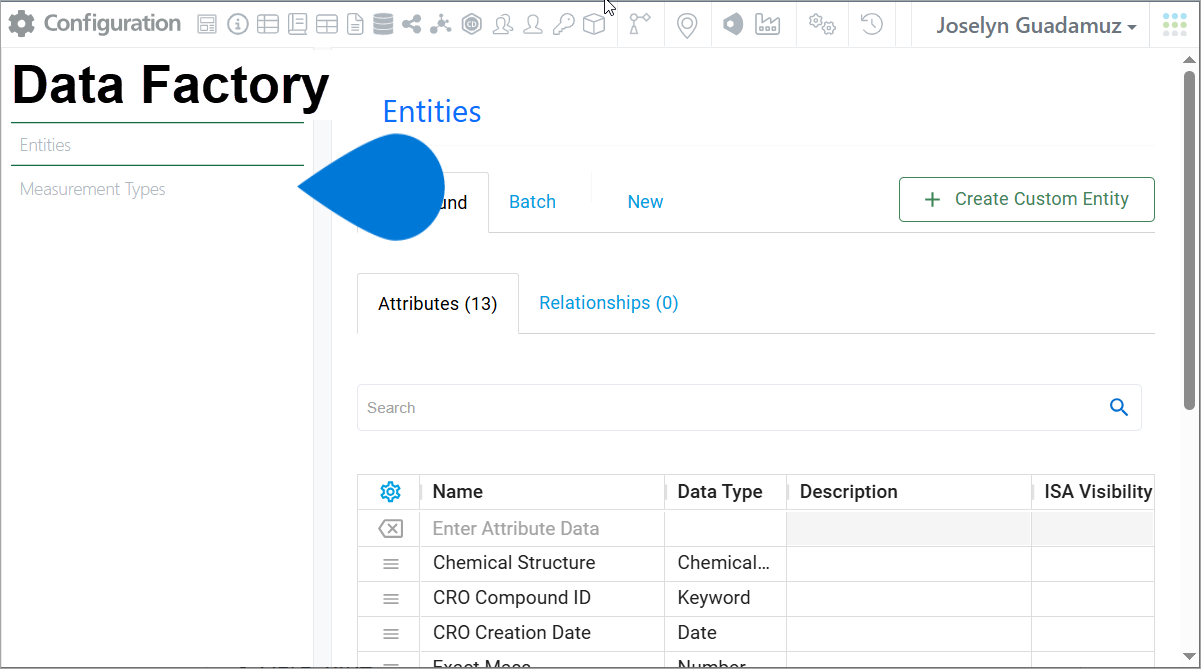

2️⃣ Data Factory pane ➡ select Measurement Types
3️⃣ Measurement Types section ➡ select measurement type

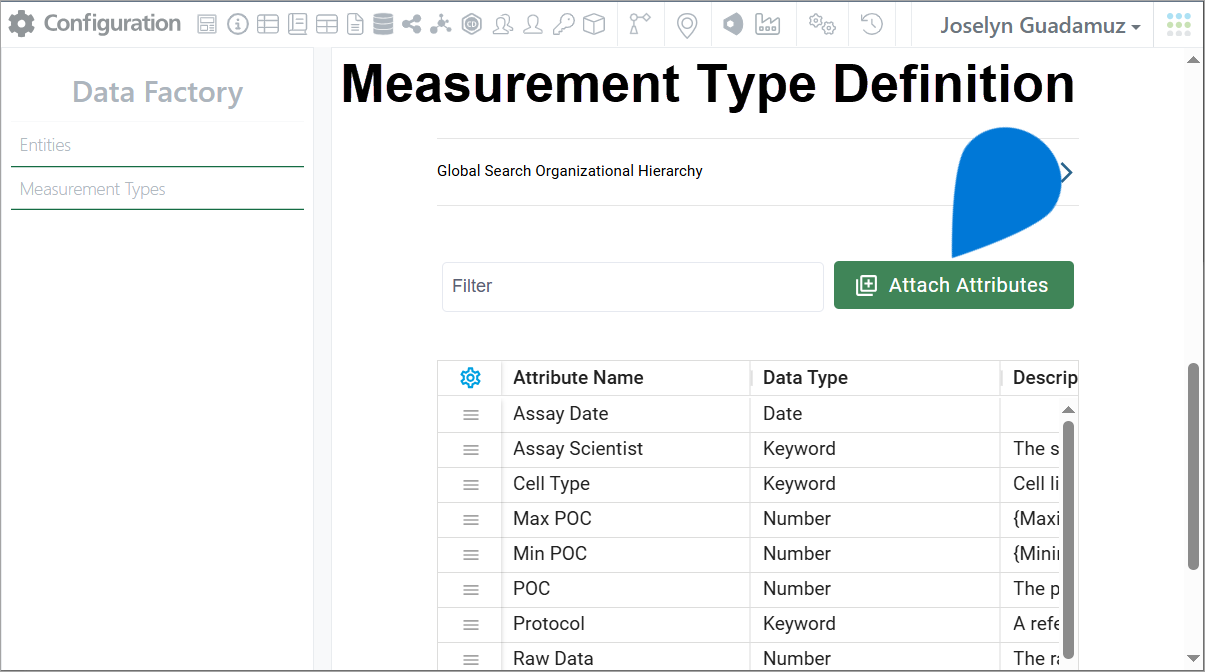

4️⃣ Measurement Type Definition area ➡ select [Attach Attributes]

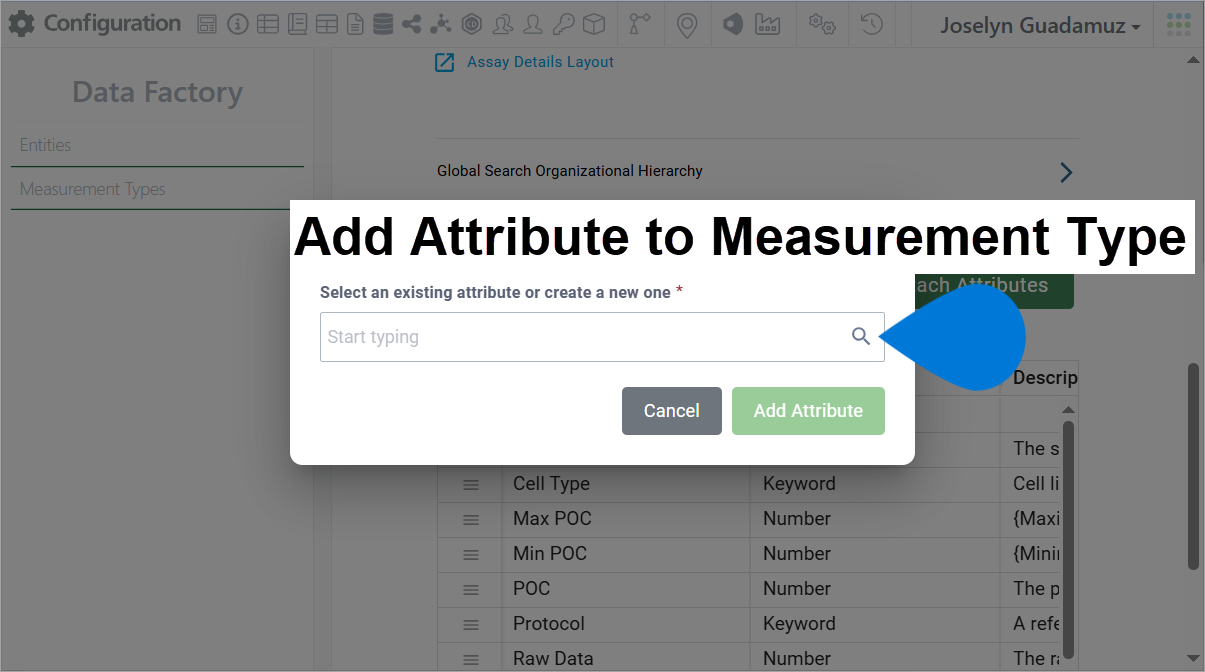

5️⃣ Add Attribute to Measurement Type window ➡ Select an existing attribute or create a new one*

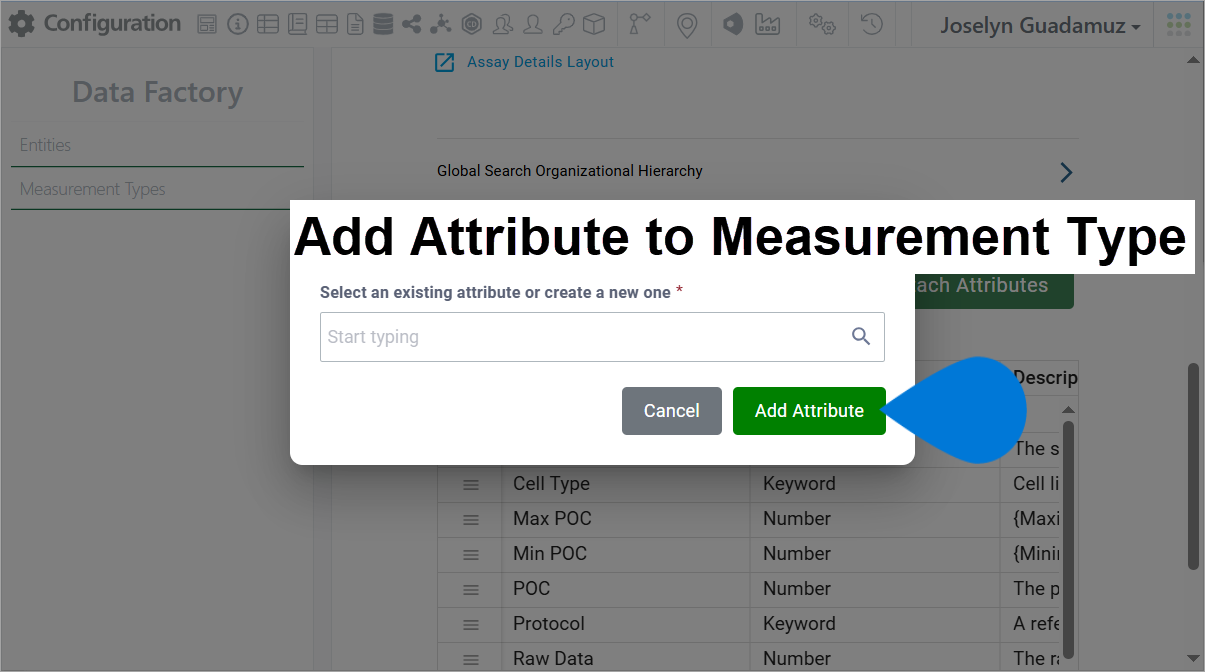

6️⃣ Add Attribute to Measurement Type window ➡ select [Add Attribute]
