Signals Inventa: Define an endpoint definition for a measurement attribute of a measurement type in Signals Data Factory

For Administrators only.

Prior to this task:

✔ Measurement type must be created.

✔ Measurement attribute must be attached to a measurement type.

*Required.

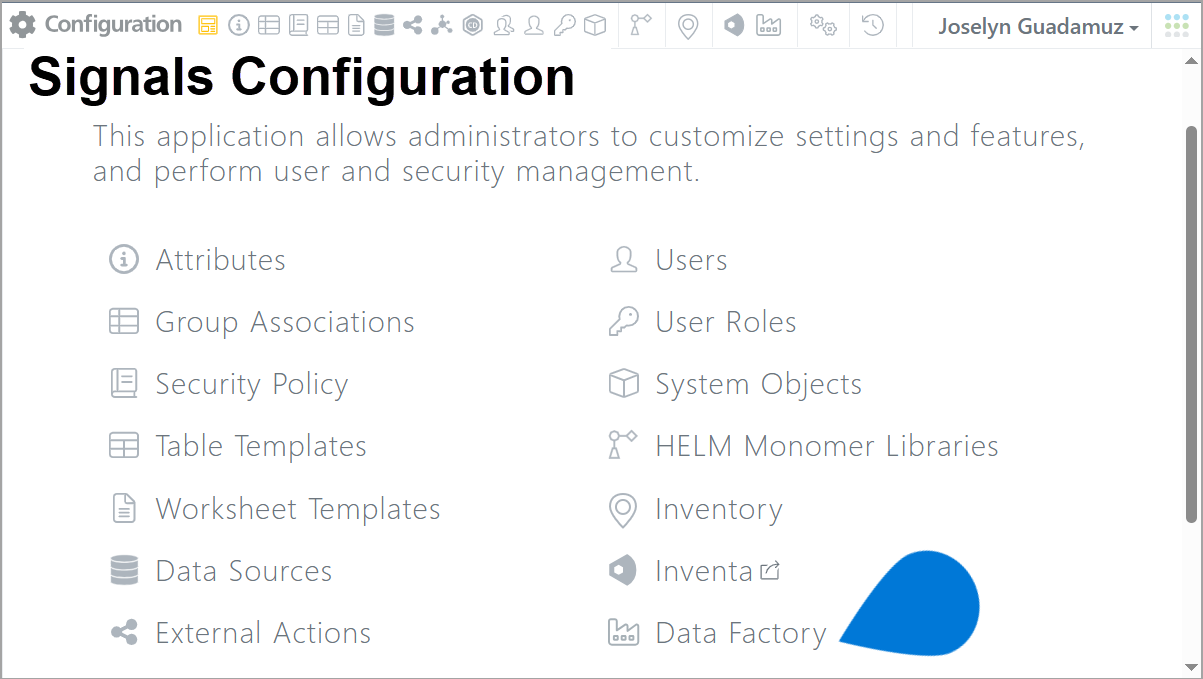

1️⃣ Signals Configuration ➡ select [Data Factory]

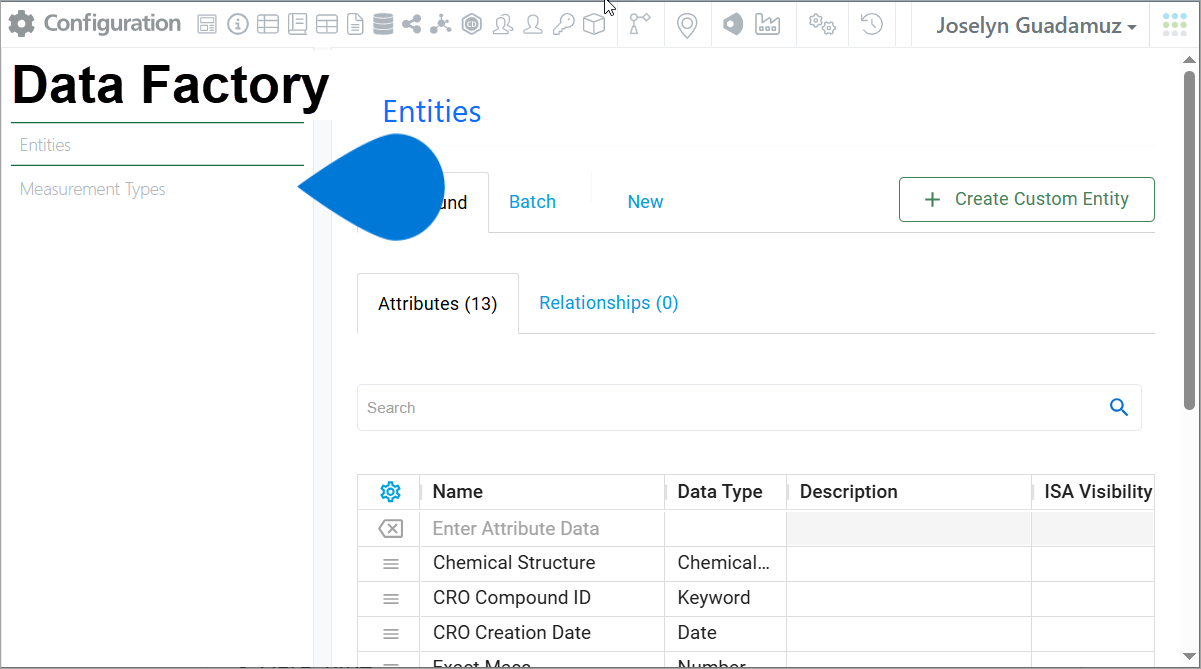

2️⃣ Data Factory pane ➡ select Measurement Types

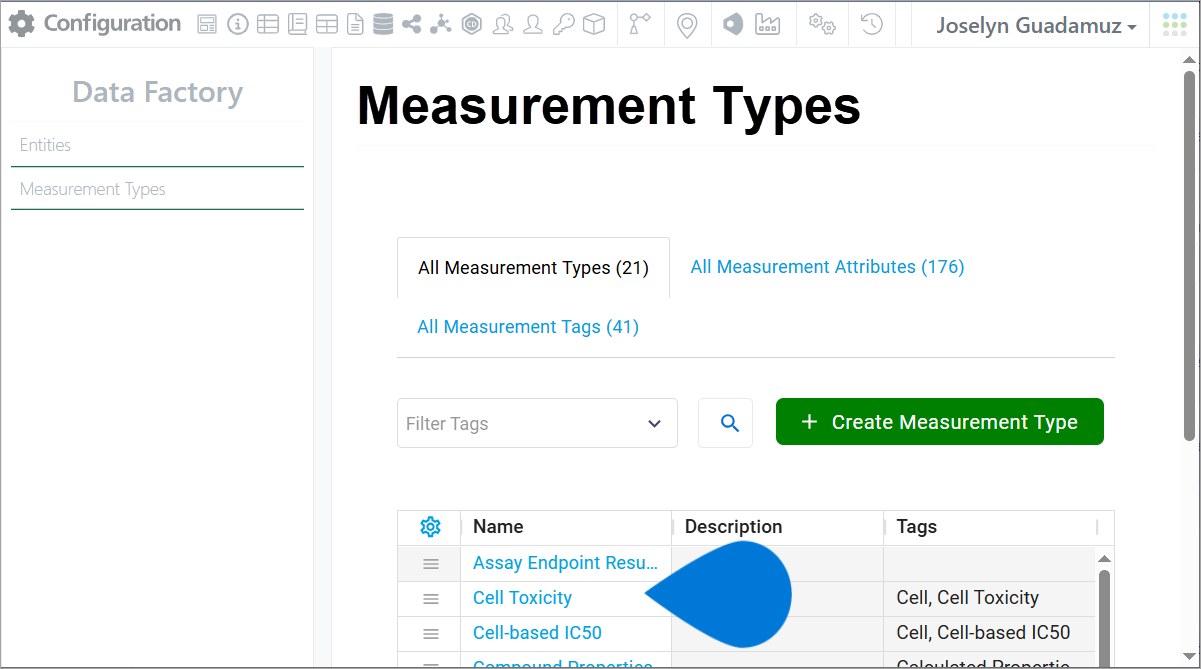

3️⃣ Measurement Types section ➡ select measurement type

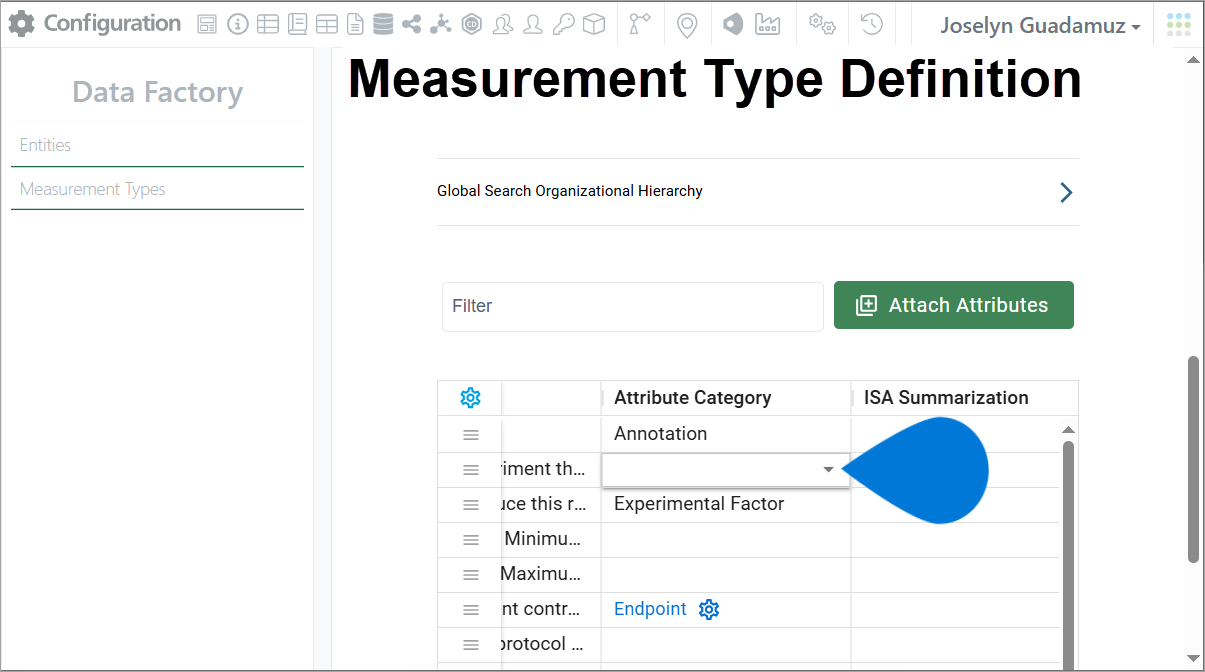

4️⃣ Measurement Type Definition area ➡ measurement attribute (e.g., IC50) ➡ Attribute Category ➡ select [Endpoint]

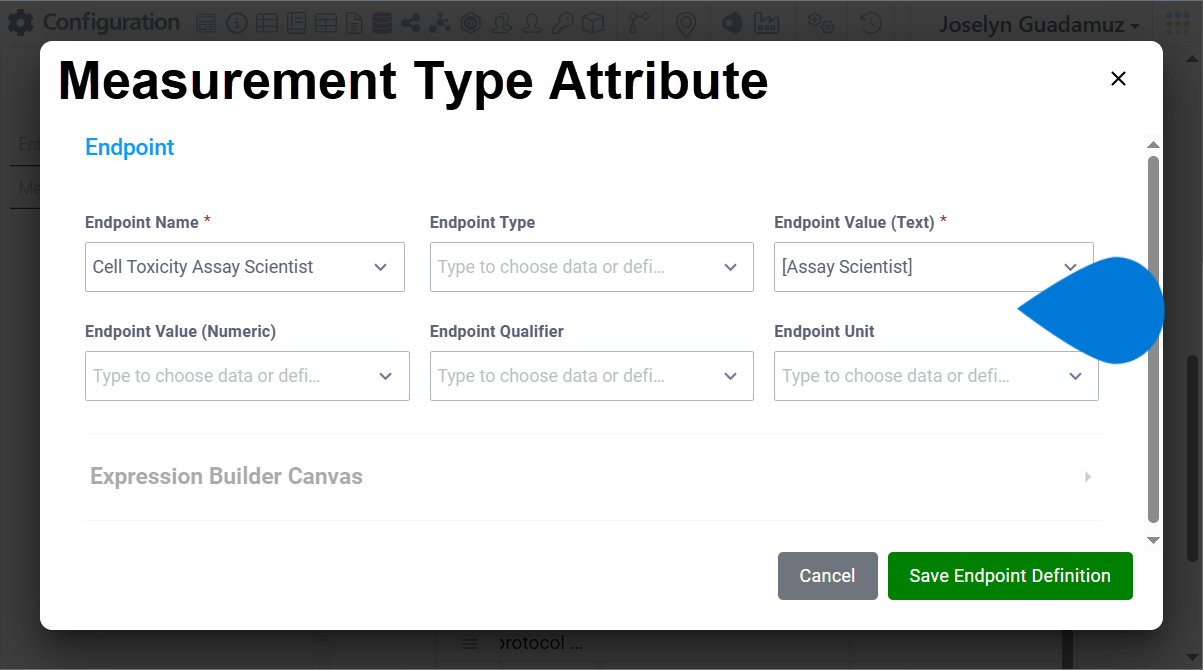

5️⃣ Measurement Type Attribute window ➡ Endpoint ➡ select/type Endpoint Name* Endpoint Type Endpoint Value (Text)* Endpoint Value (Numeric) Endpoint Qualifier Endpoint Unit
6️⃣ Measurement Type Attribute window ➡ Endpoint ➡ select [Save Endpoint Definition]
