Spotfire: Change the axis of a visualization

Prior to this task:

✔ Visualization must be added.

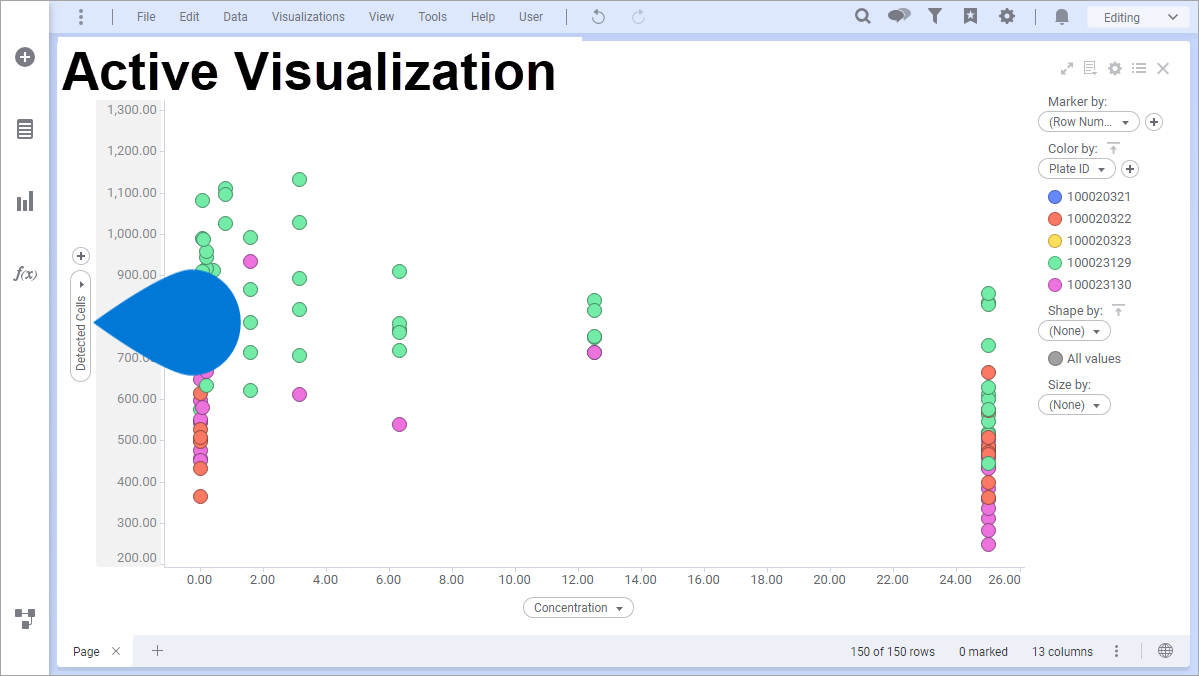

1️⃣ Active visualization ➡ select ["column name"]

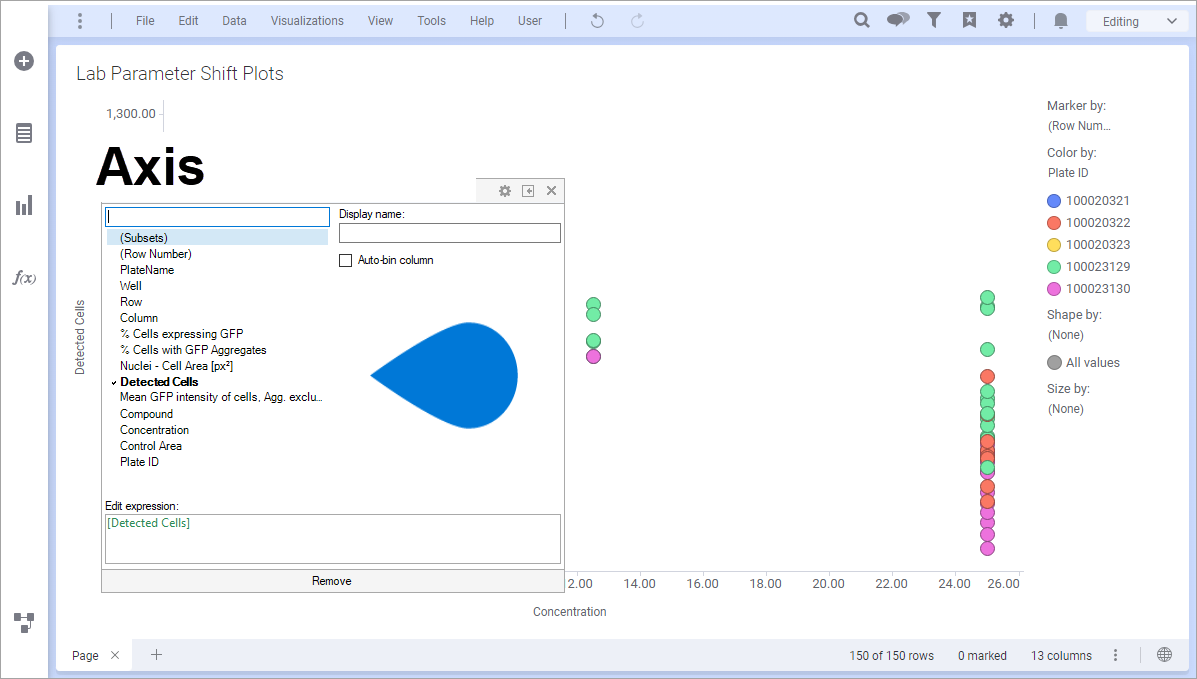

2️⃣ Axis window ➡ select column Aggregation* Display name Auto-bin column* Edit expression

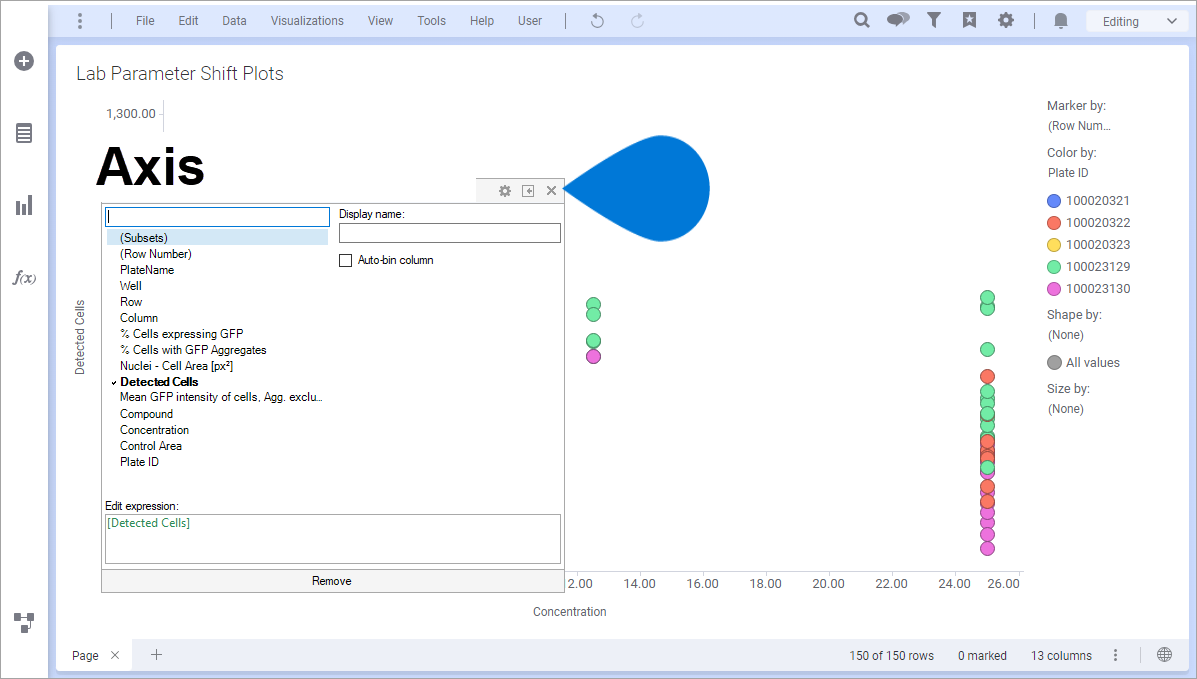

3️⃣ Axis window ➡ select  [Close]

Supporting Knowledge

Aggregation*: This refers to the grouping of data using statistical measures or other calculations. The data table must contain at least one numeric column for this to appear as an option, and the visualization type must support aggregation.

Auto-bin column*: Binning is a way to group continuous values into a smaller number of bins. When using a numeric column on any axis in a visualization, the user may want to bin the values to compare segments of the data to each other.

Alternatively, the user can change the axis of a visualization from the Properties window.
