Spotfire: Change the formatting of a column from the Details on selected column panel

Prior to this task:

✔ Data must be loaded.

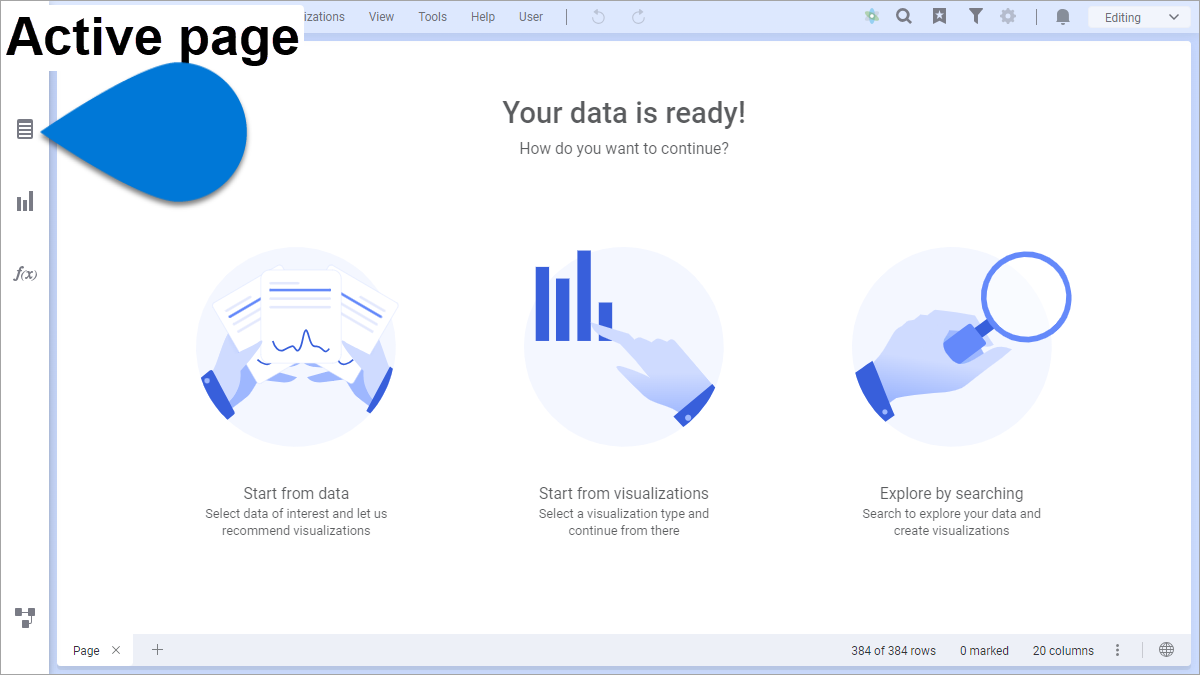

1️⃣ Active page ➡ select  [Data in analysis]

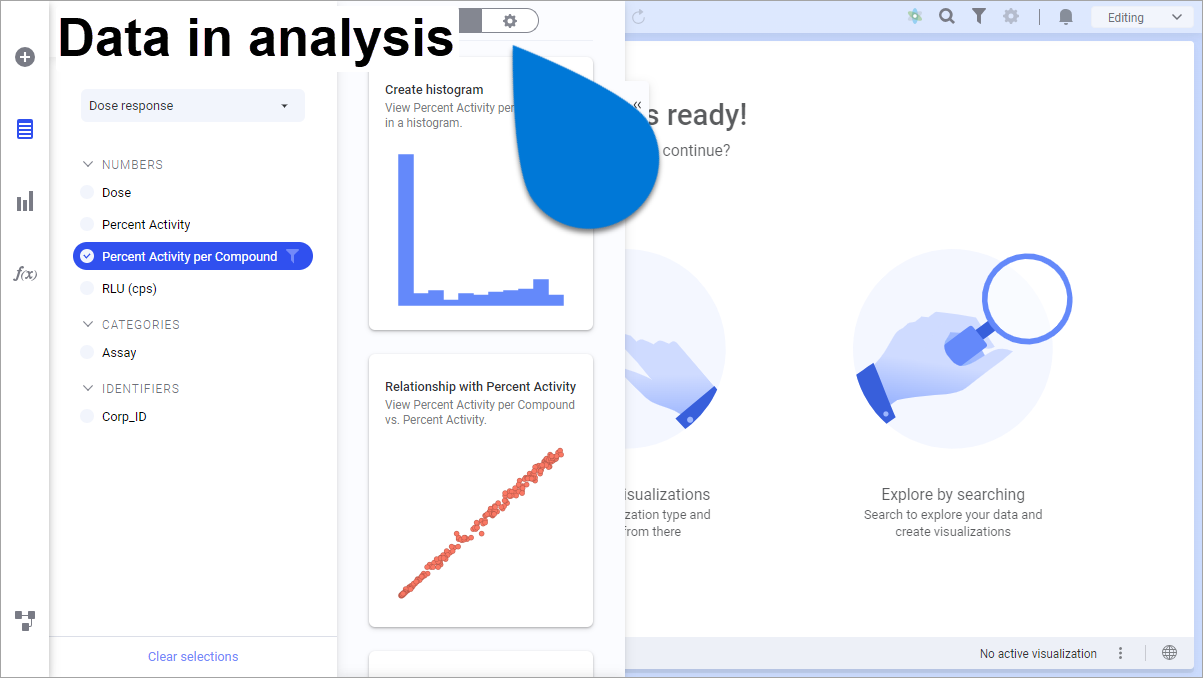

2️⃣ Data in analysis flyout ➡ select column

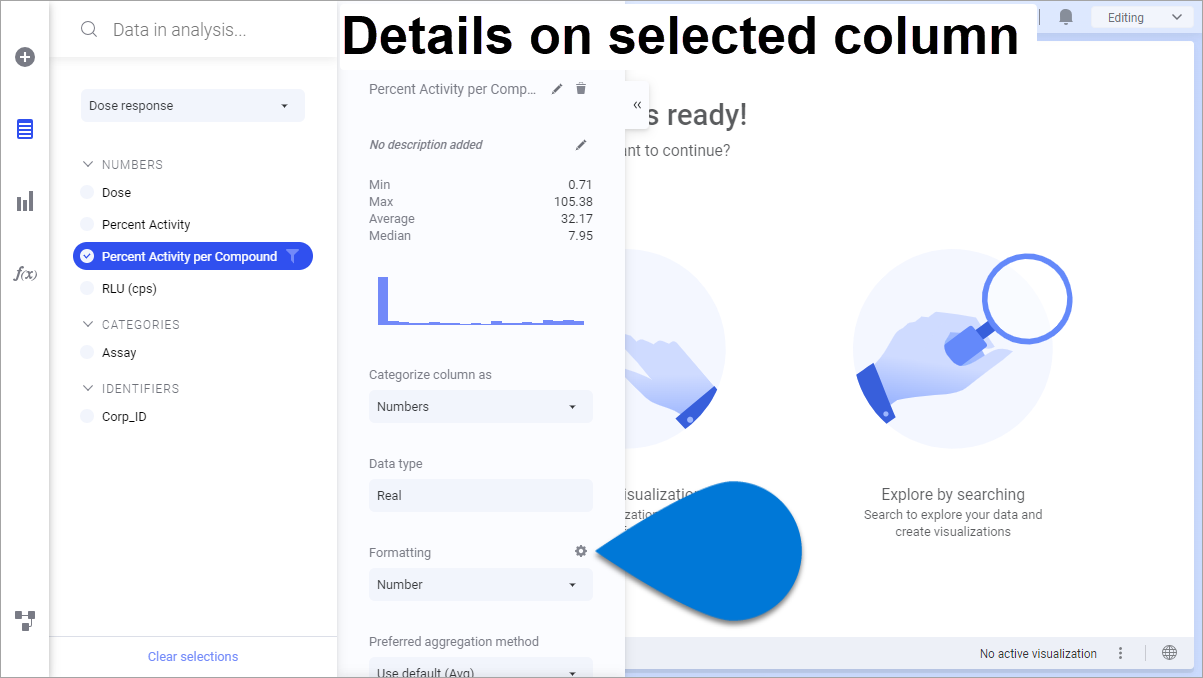

3️⃣ Expanded data in analysis flyout ➡ select [Details on selected column]
4️⃣ Details on selected column panel ➡ Formatting ➡ select  [Settings]

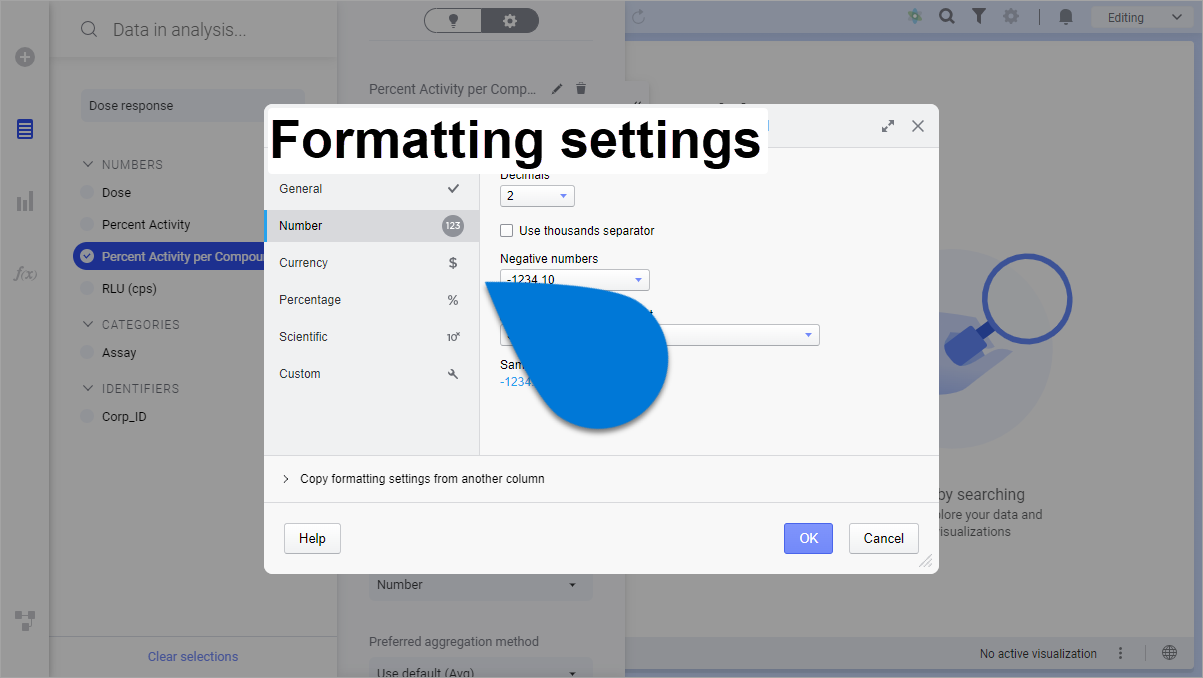

5️⃣ Formatting settings window ➡ select Category settings according to Category

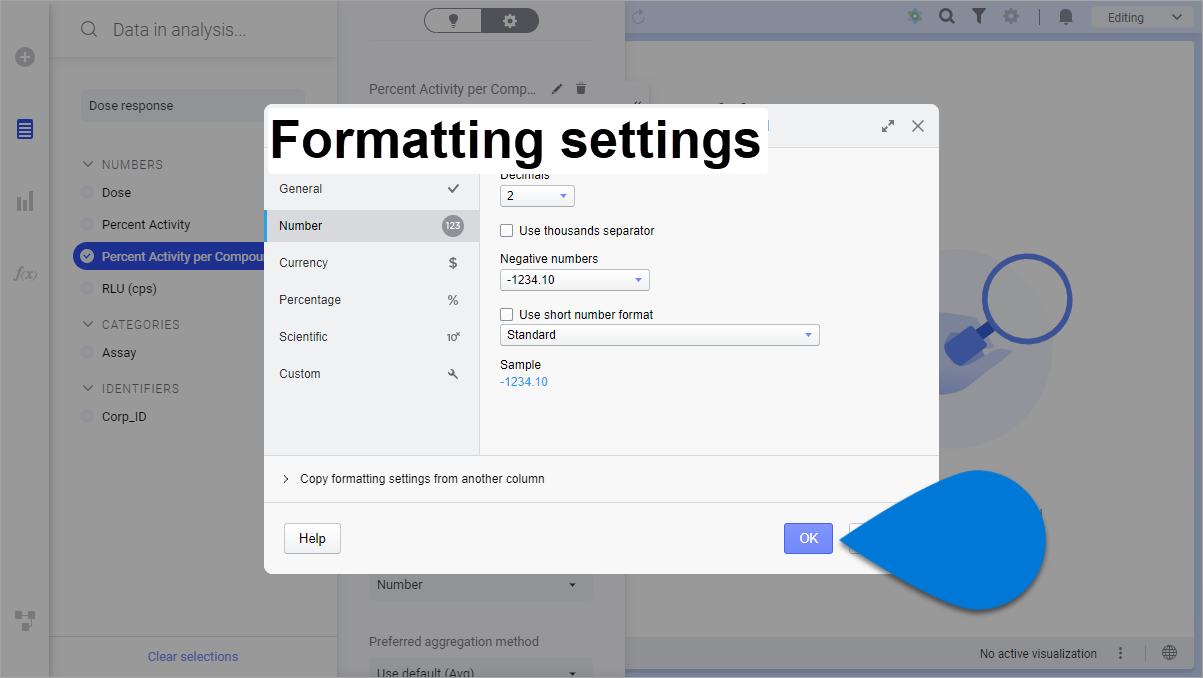

6️⃣ Formatting settings window ➡ select [OK]

Supporting Knowledge

Formatting refers to giving a value meaning by adding units of measurements, thousands and decimal separators, and other information. Formatting can be applied to the data on different levels.

Category options include: [General], [Number], [Currency], [Percentage], [Scientific], and [Custom].

Formatting does not include visual properties, such as color, font, or size.

Which formatting options are available depends on the data type of the value. For example, text cannot be formatted at all, while an integer has several different possibilities. An integer can, among other things, be formatted as a number, as currency, and as a percentage.

Optionally, the formatting of a selected column can be modified by copying the formatting of a different column. From the Formatting settings window, select Copy formatting settings from another column. Under Copy formatting settings from another column, select ["data table name"] and ["column name"], then select [Copy]. Finally, from the Formatting settings window, select [OK].
