Spotfire: Apply a panels trellis to a visualization from the Properties window

Prior to this task:

✔ Visualization must be added.

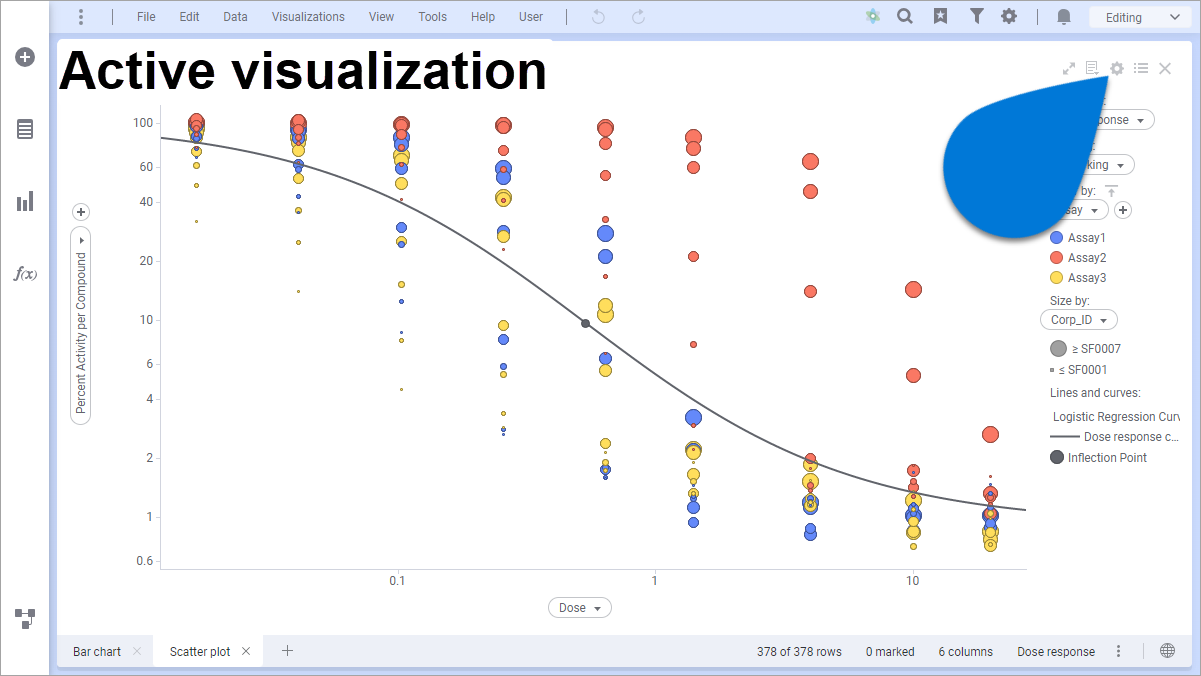

1️⃣ Active visualization ➡ hover over and select  [Properties]

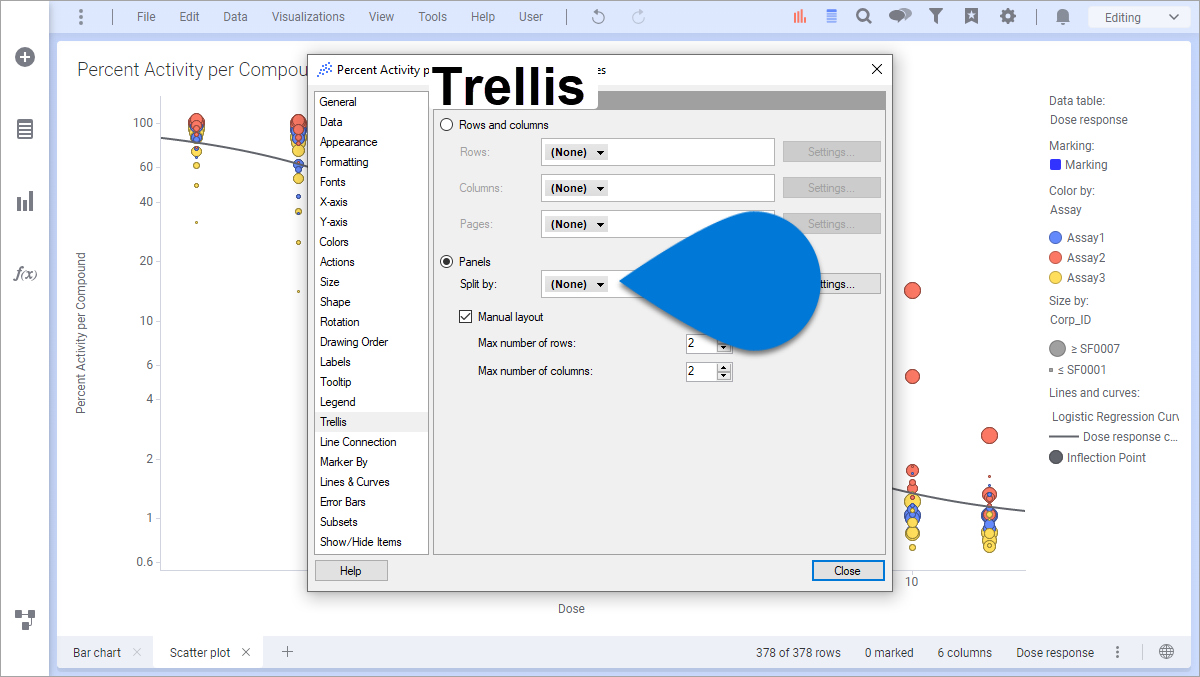

2️⃣ Properties window ➡ select Trellis
3️⃣ Trellis options ➡ select Panels
4️⃣ Trellis options ➡ Split by ➡ select column(s)

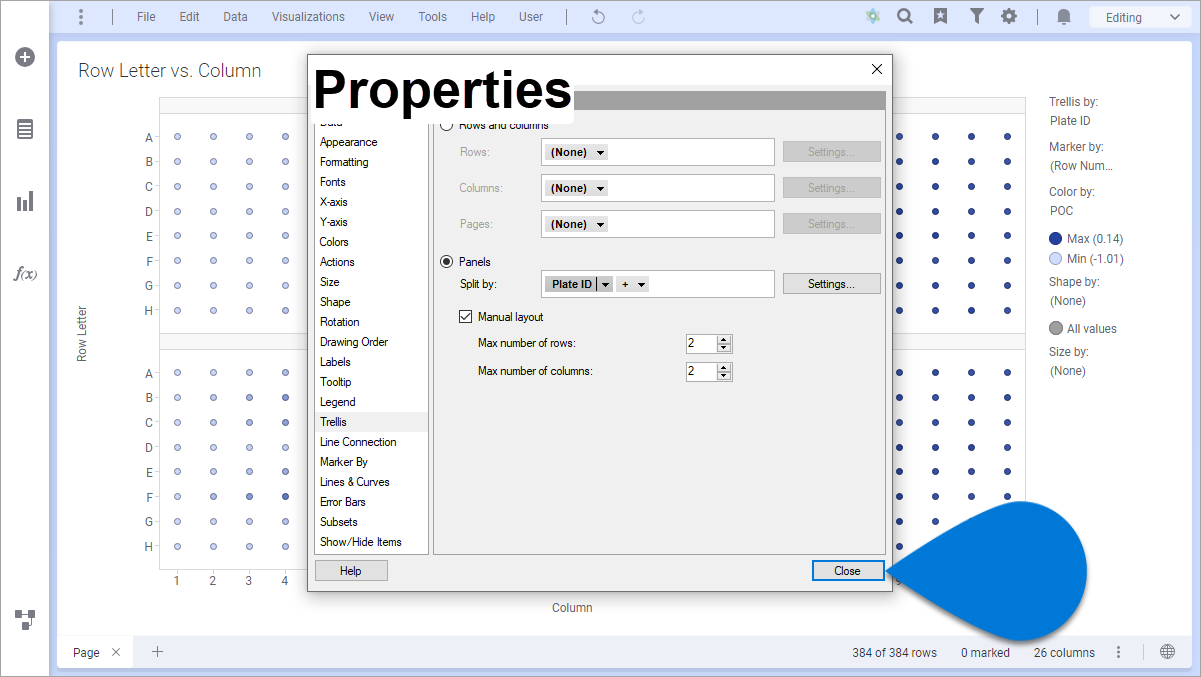

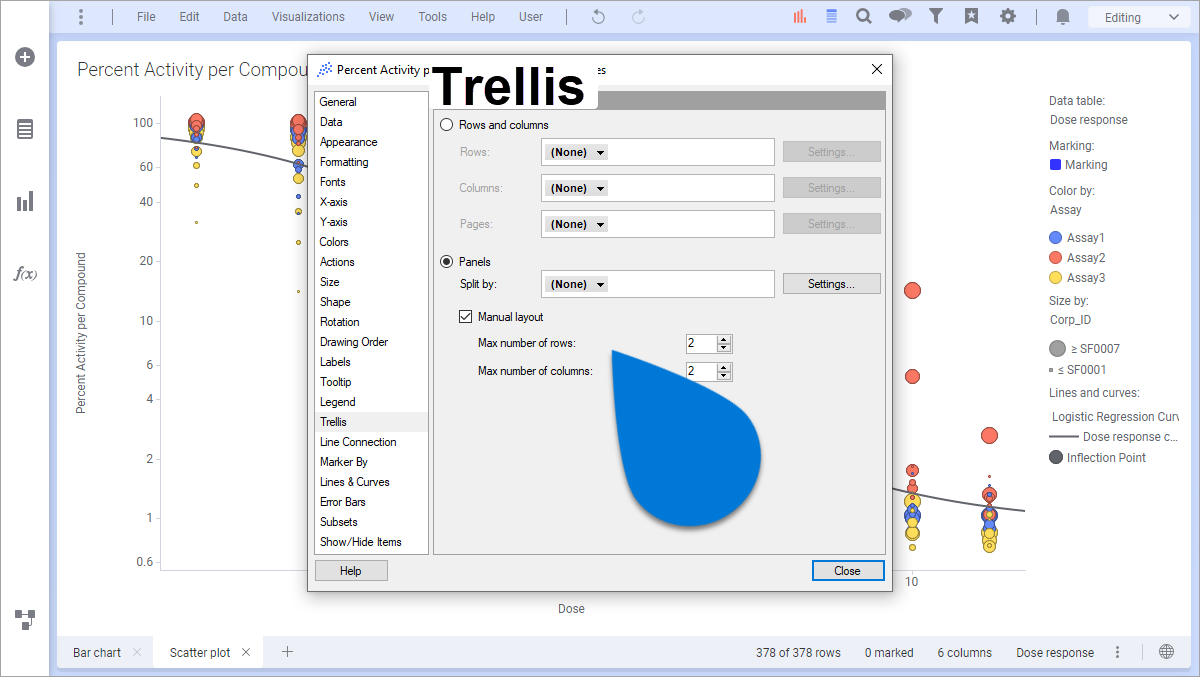

5️⃣ Trellis options ➡ select Manual layout ➡ select Max number of rows Max number of columns
6️⃣ Properties window ➡ select [Close]

Supporting Knowledge

The Panels option allows the user to divide the visualization into different panels for all categories in the column of interest. In this case, the number of actual values in the column being split does not control the number of shown rows or columns in any way.
