Spotfire: Apply a rows and columns trellis to a visualization from the Properties window

Prior to this task:

✓ Visualization must be added.

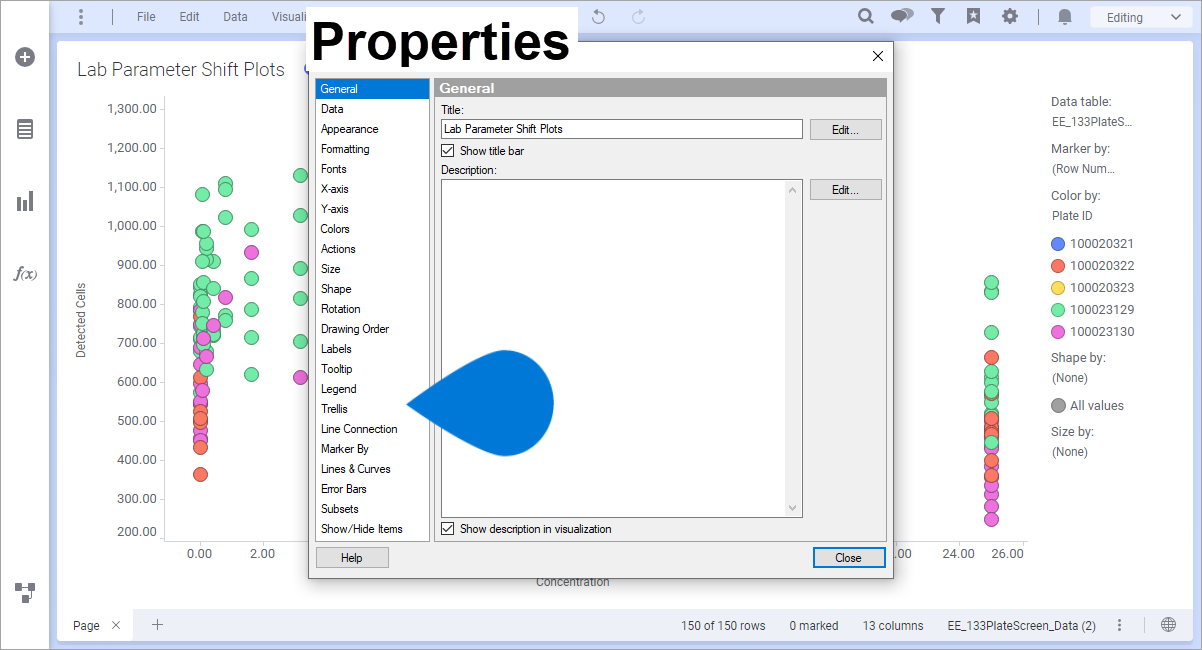

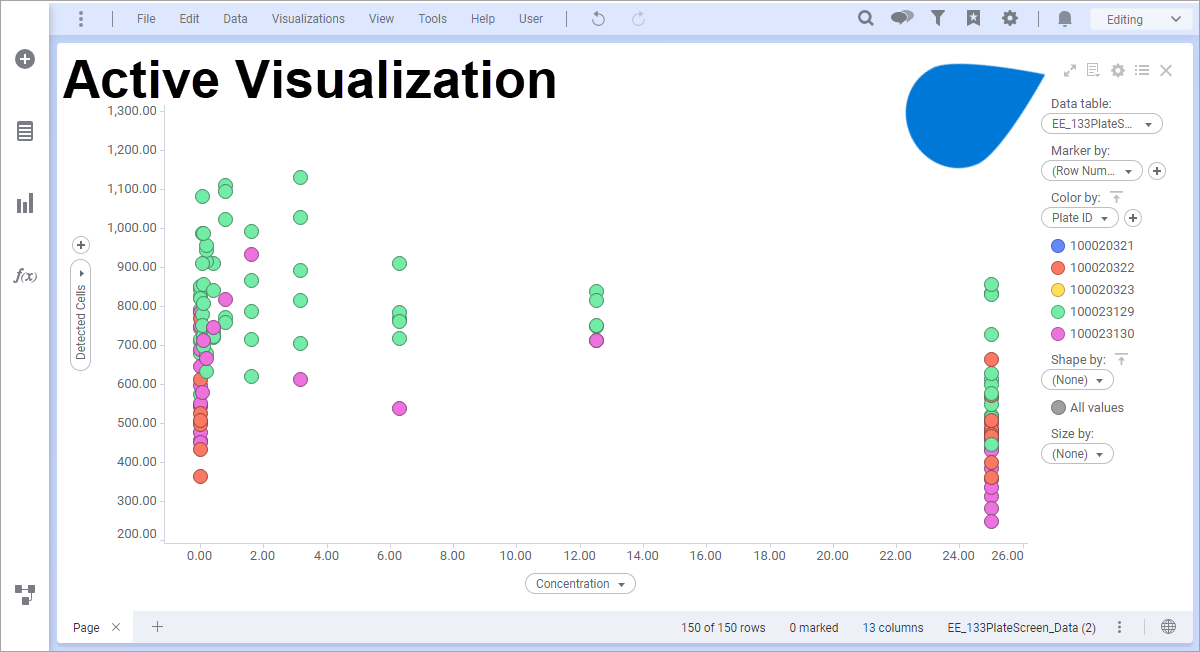

1️⃣ Active visualization ➡ hover over and select  [Properties]
2️⃣ Properties window ➡ select Trellis

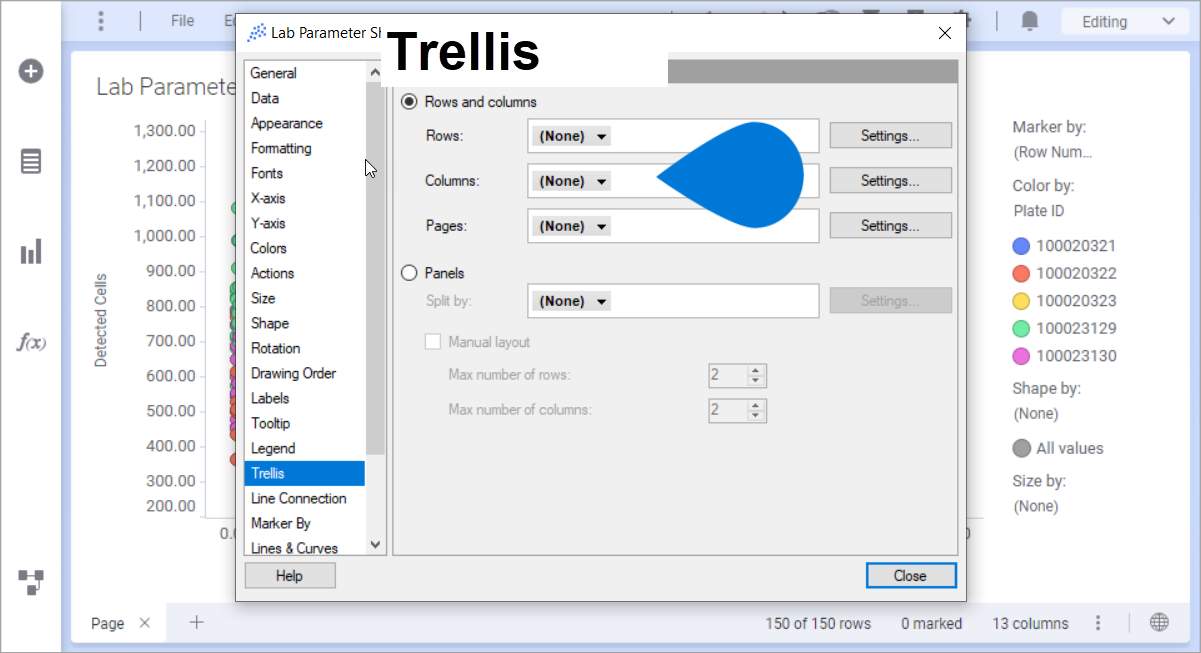

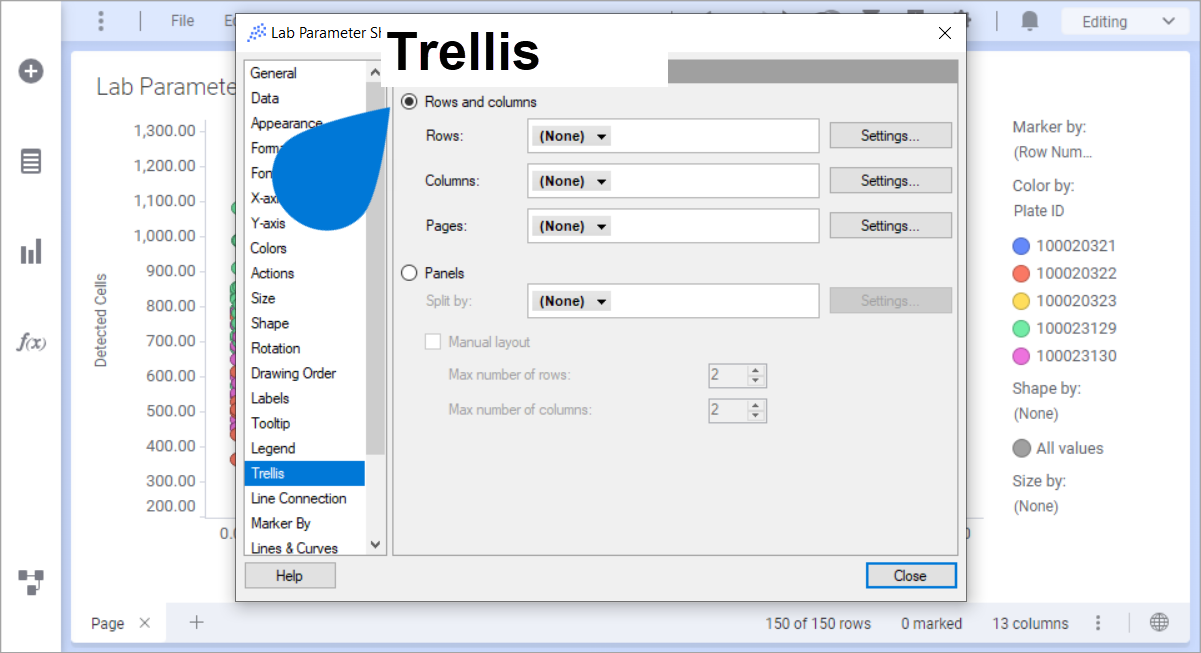

3️⃣ Trellis options ➡ select Rows and columns
4️⃣ Trellis options ➡ Rows ➡ select column(s) Columns ➡ select column(s) Pages ➡ select column(s)

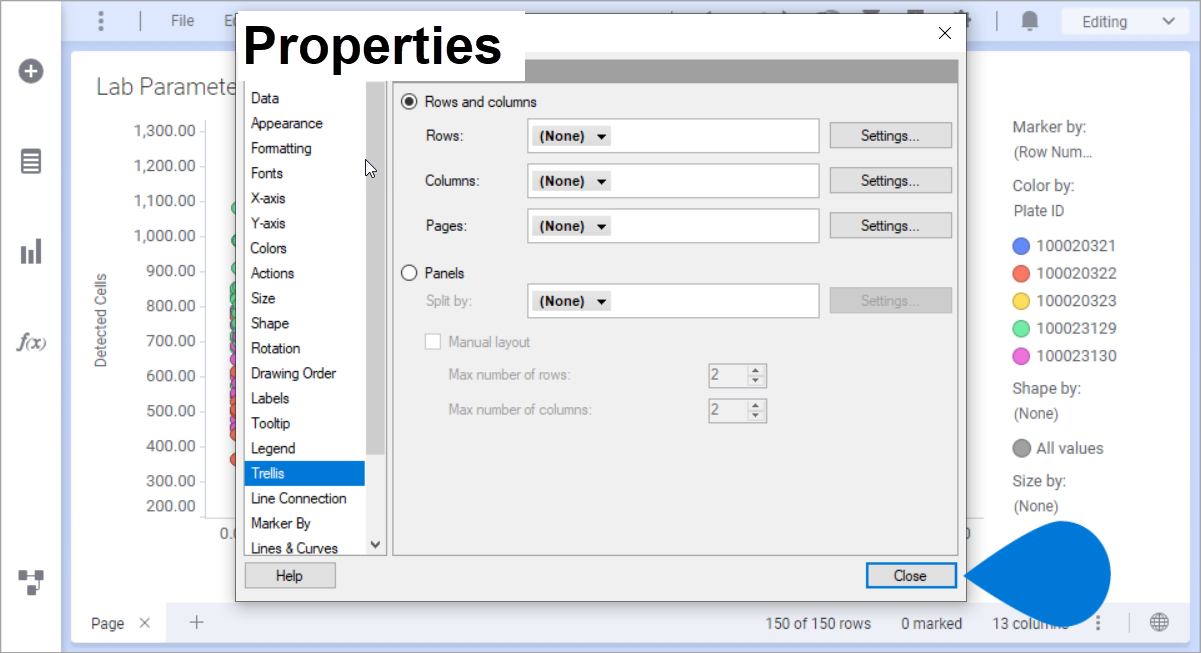

5️⃣Properties window ➡ select [Close]

Supporting Knowledge

The Rows and columns option allows the user to divide the visualization into different panels for all categories in the column of interest. In this case, the number of values in the selected column controls the number of panels to be displayed in each row, column, or page, respectively.
