Modify the lines & curves settings of a visualization in an analysis from the Properties window

Raquel Perez

Prior to this task:

✔ Spotfire for Signals (item) must be opened.

✔ Visualization must be added.

✔ Line/curve must be available.

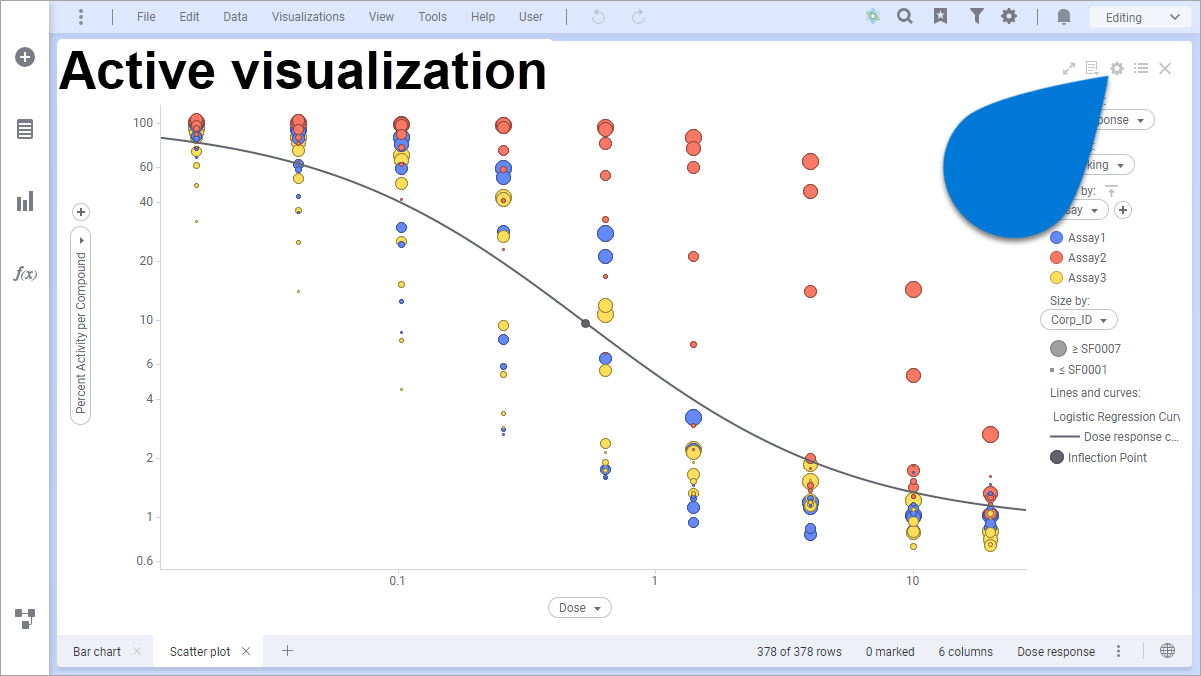

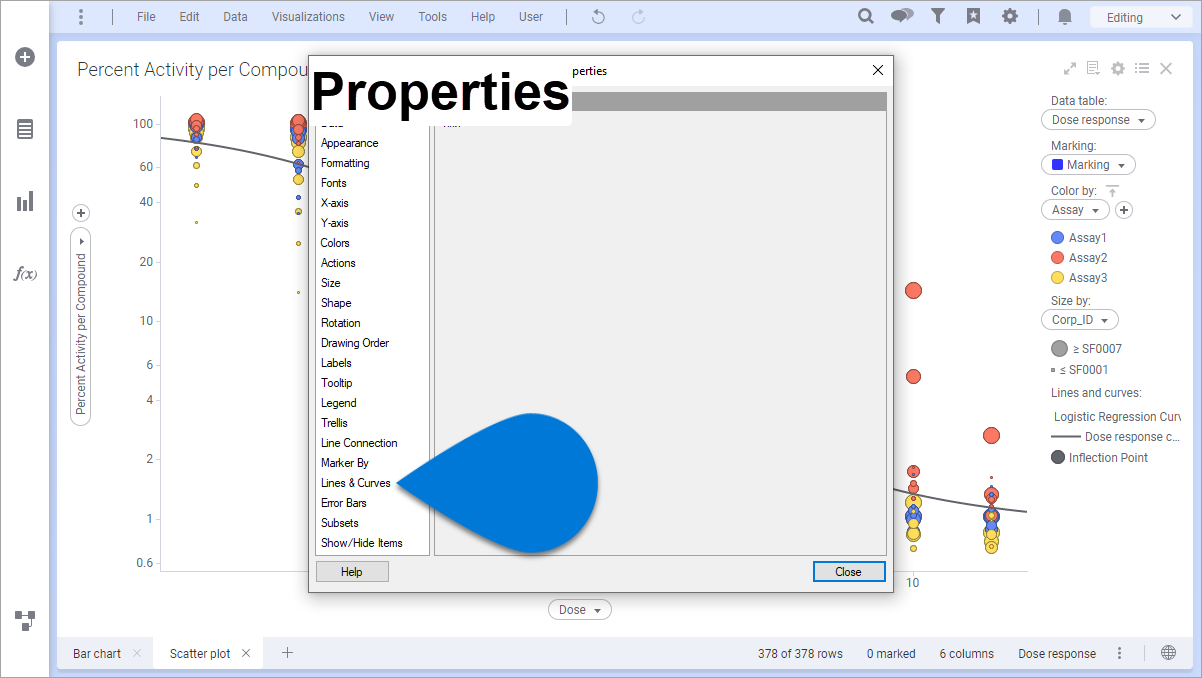

1️⃣ Active visualization ➡ hover over and select [Properties]

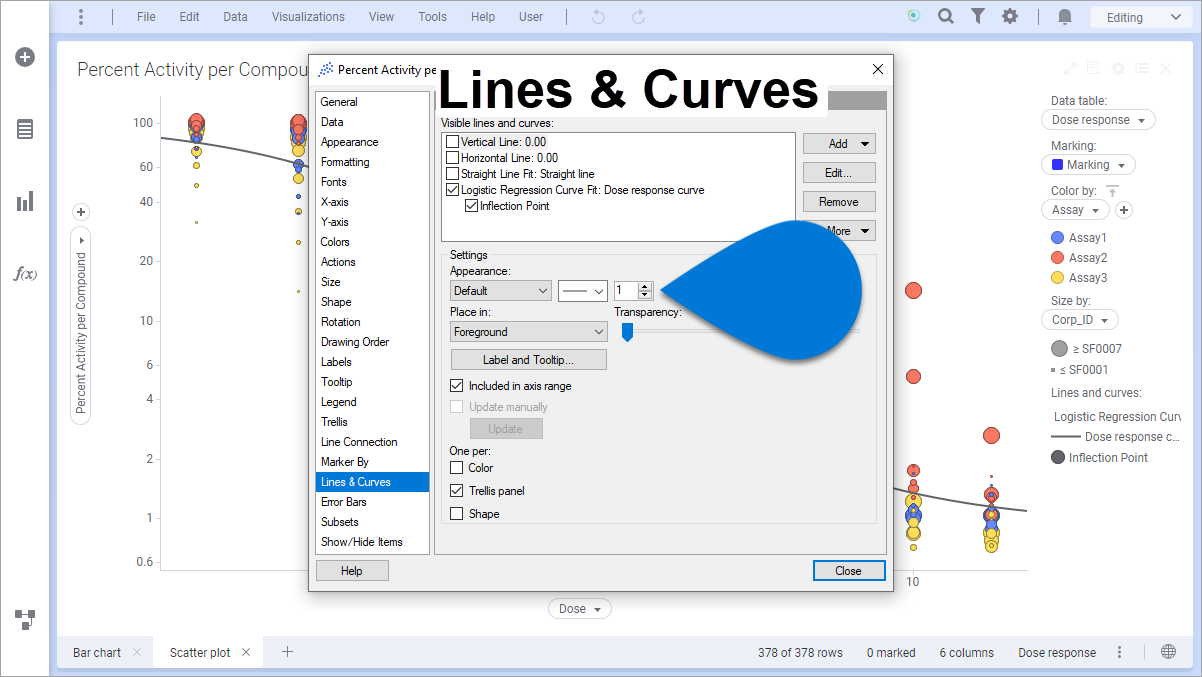

2️⃣ Properties window ➡ select Lines & Curves
3️⃣ Lines & Curves options ➡ Settings ➡ Appearance ➡ select color line style line width

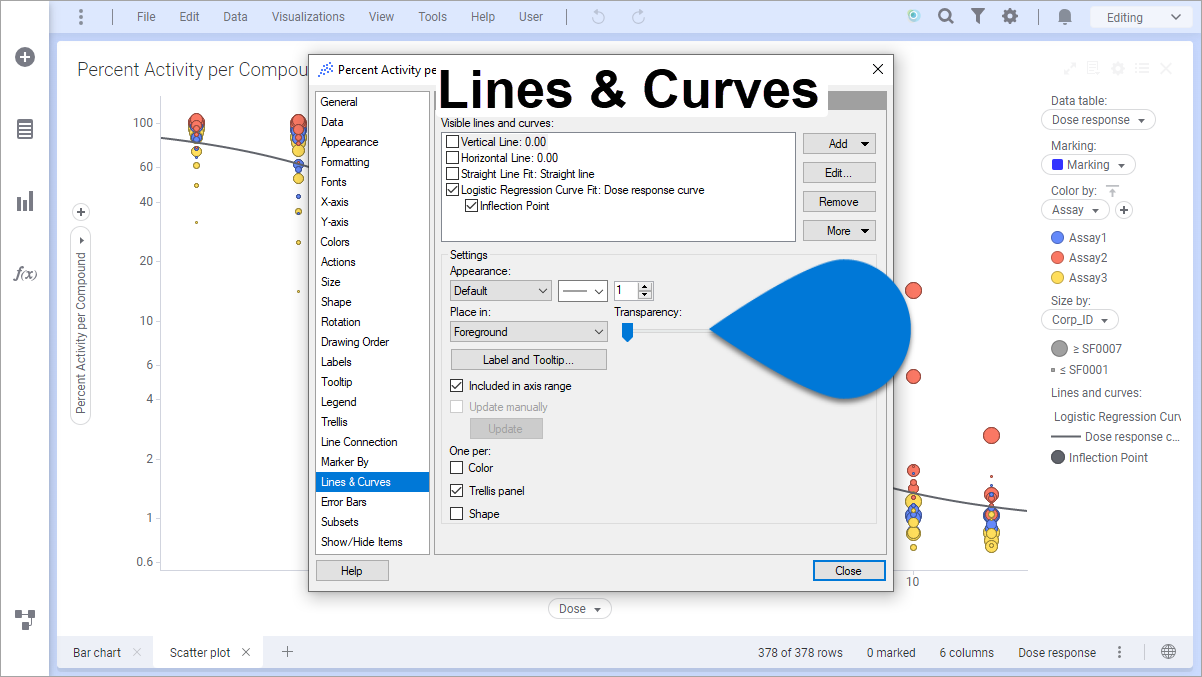

4️⃣ Lines & Curves options ➡ Settings ➡ select Place in Transparency

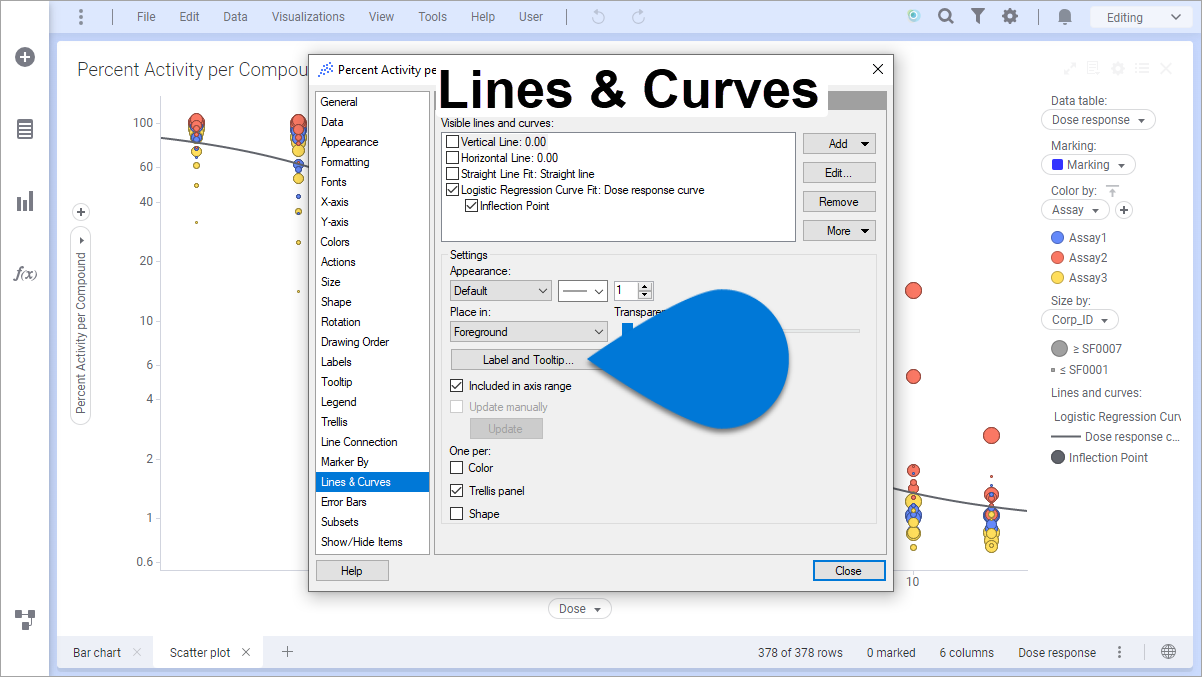

5️⃣ Lines & Curves options ➡ Settings ➡ select [Label and Tooltip...]

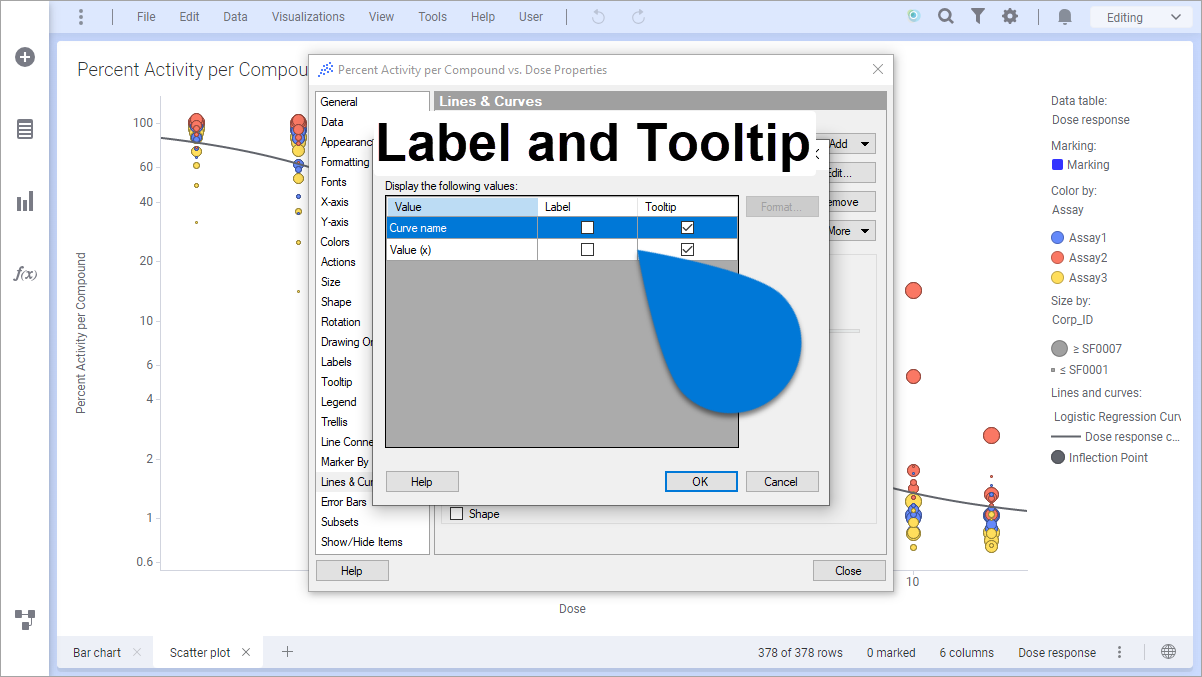

6️⃣ Label and Tooltip window ➡ select label/tooltip for values

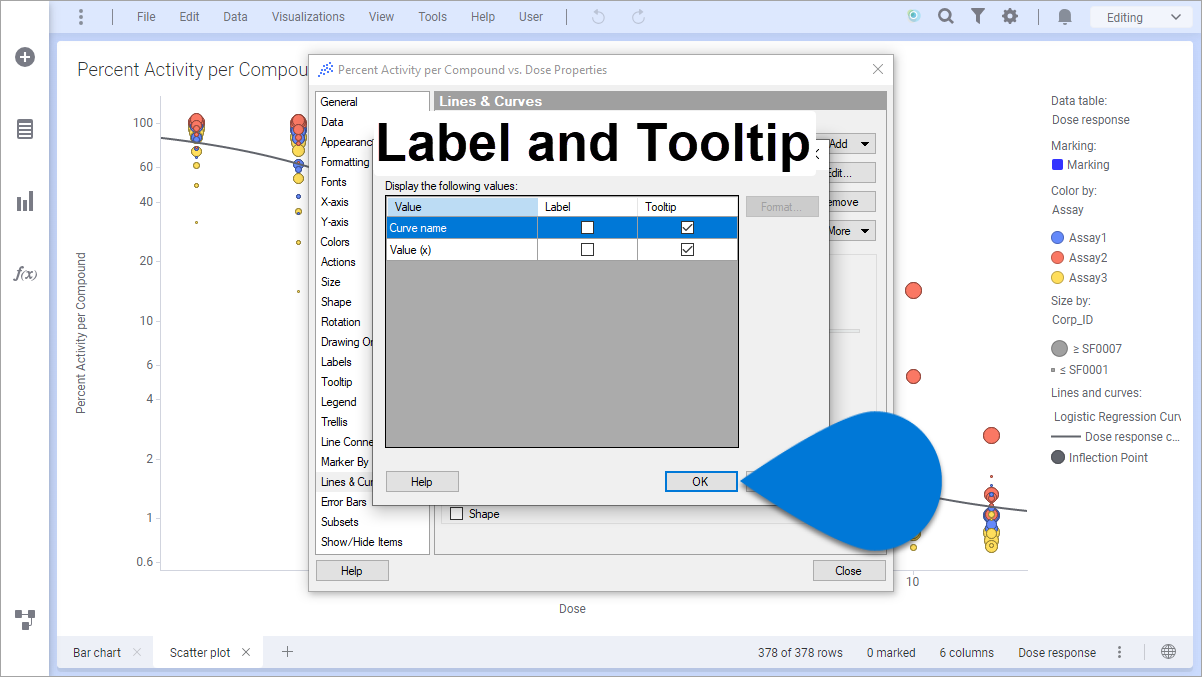

7️⃣ Label and Tooltip window ➡ select [OK]

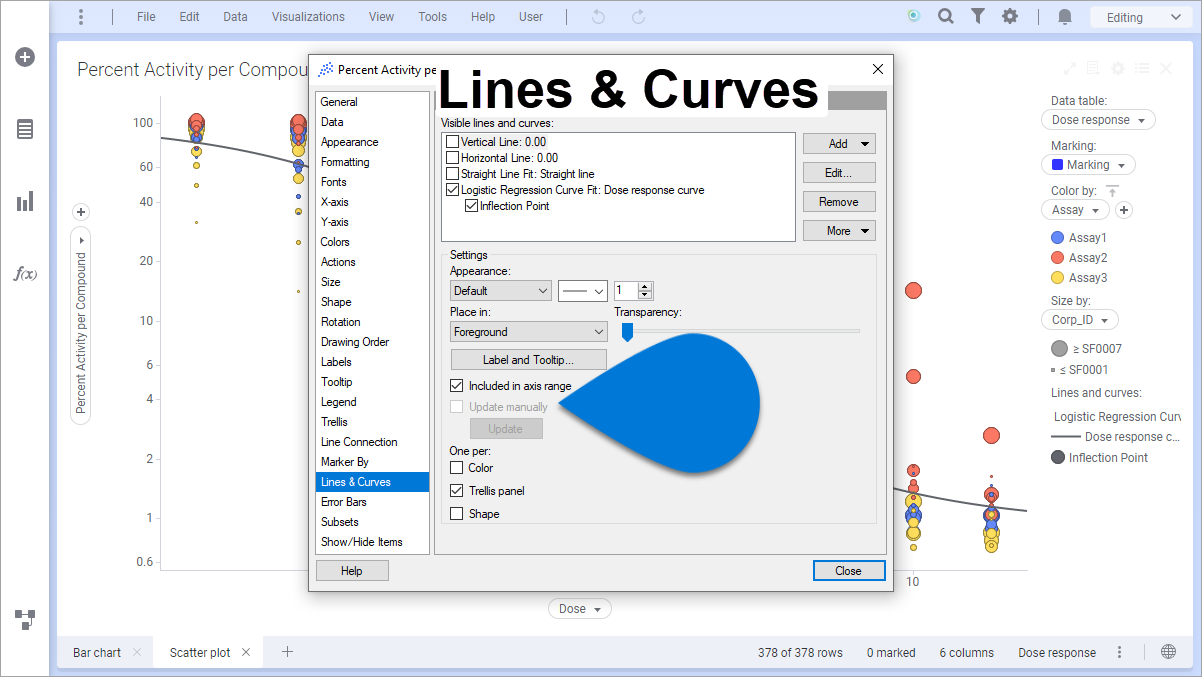

8️⃣ Lines & Curves options ➡ Settings ➡ select Included in axis range Update manually*

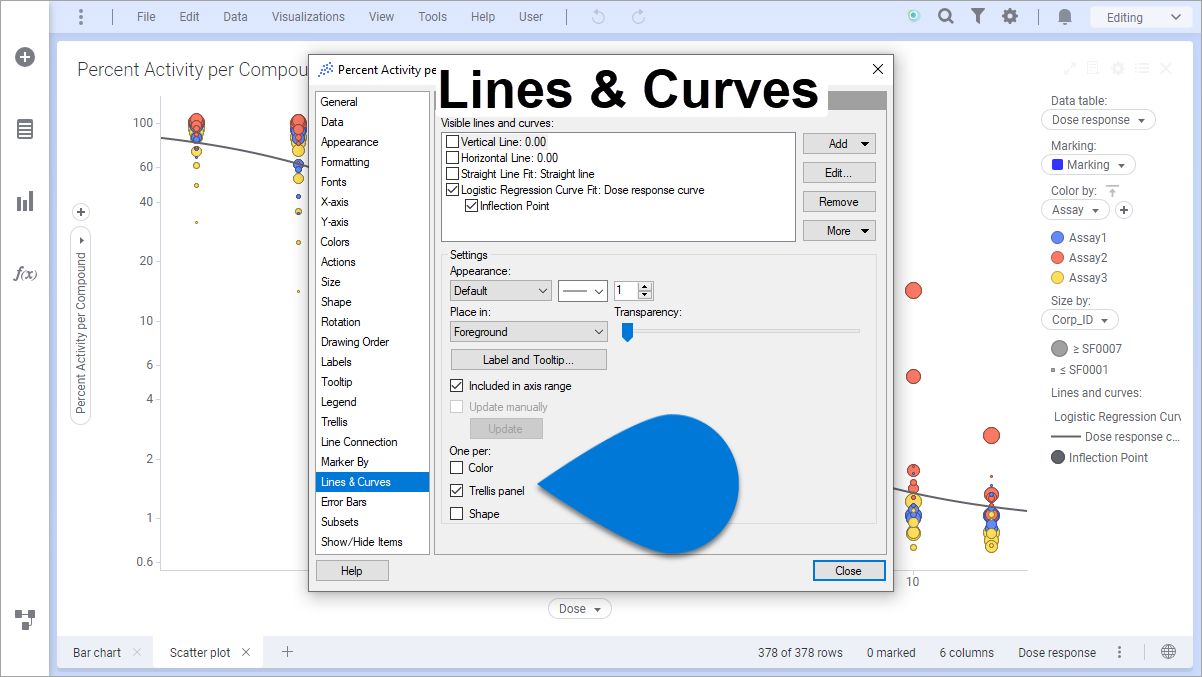

9️⃣ Lines & Curves options ➡ Settings ➡ One per ➡ select option(s)
🔟 Properties window ➡ select [Close]
