Export a curve fit result from an analysis using the Properties window

Raquel Perez

✔ Spotfire for Signals (item) must be opened.

✔ Visualization must be added.

✔ Line/curve must be added and selected.

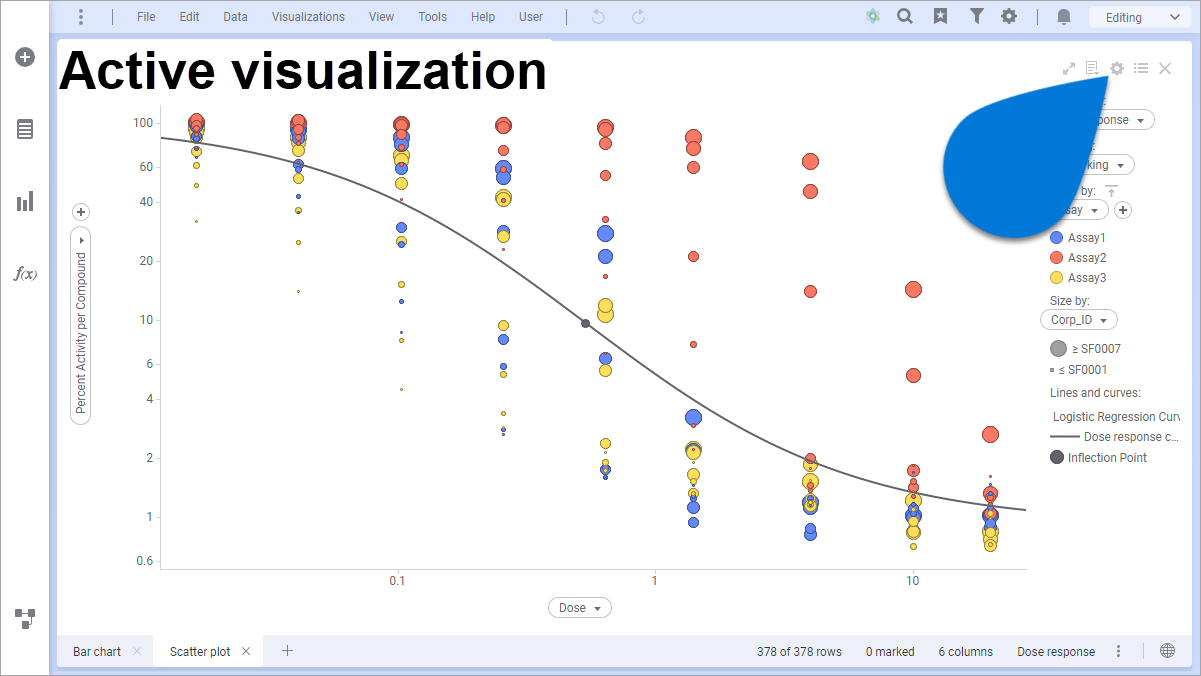

1️⃣ Active visualization ➡ hover over and select [Properties]
2️⃣ Properties window ➡ select Lines & Curves

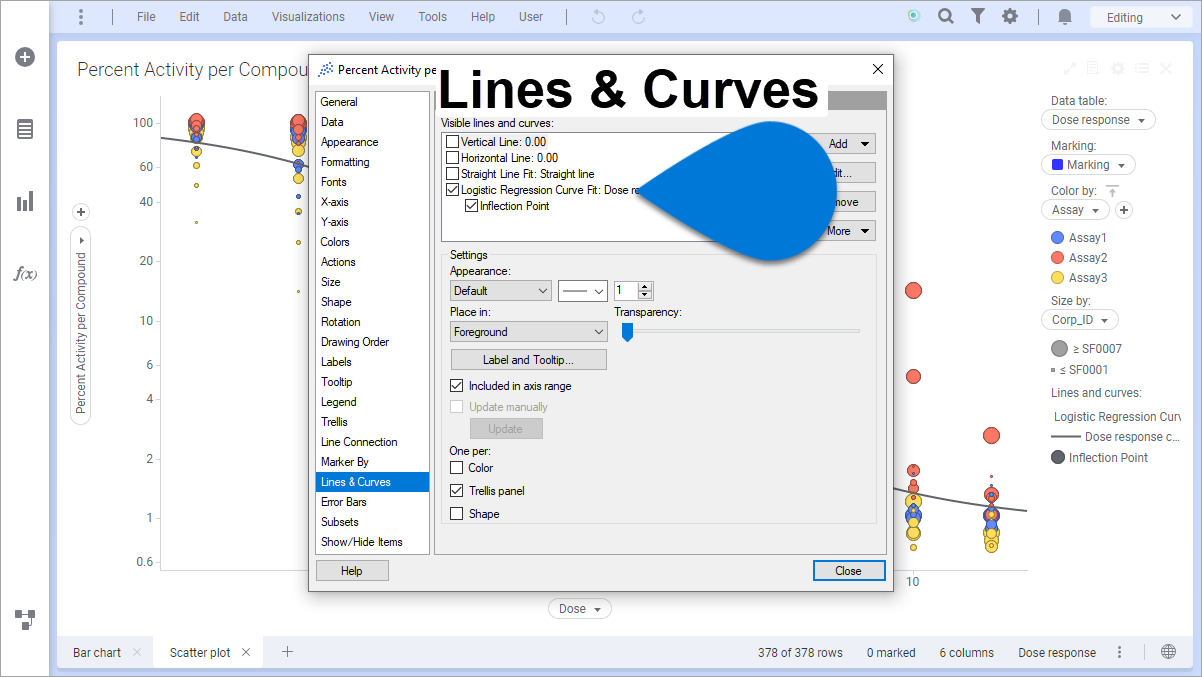

3️⃣ Lines & Curves options ➡ select line/curve

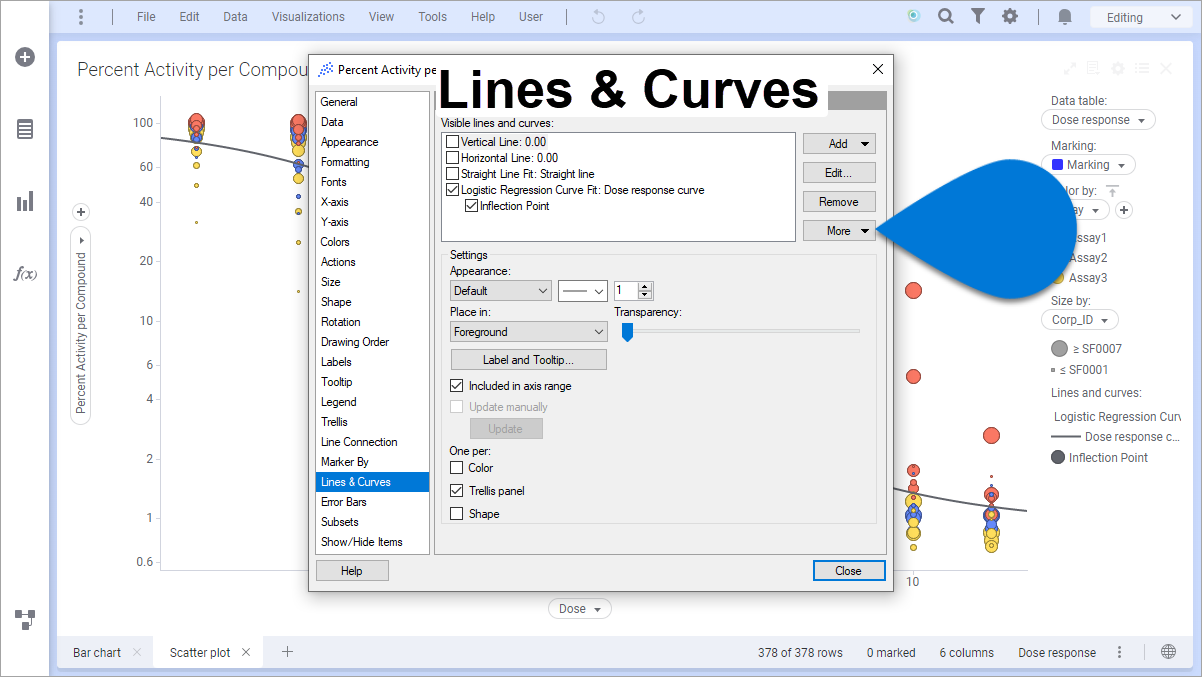

4️⃣ Lines & Curves options ➡ select [More] ➡ select Export Curve Fit Result...

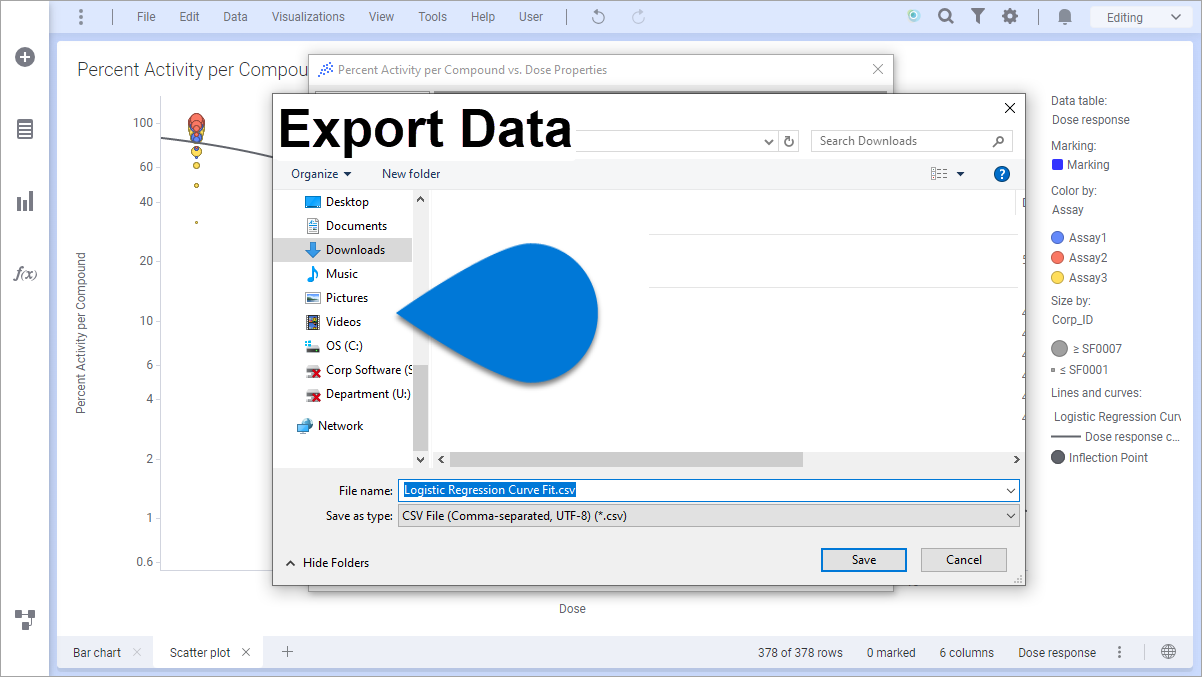

5️⃣ Export Data window ➡ browse location on computer

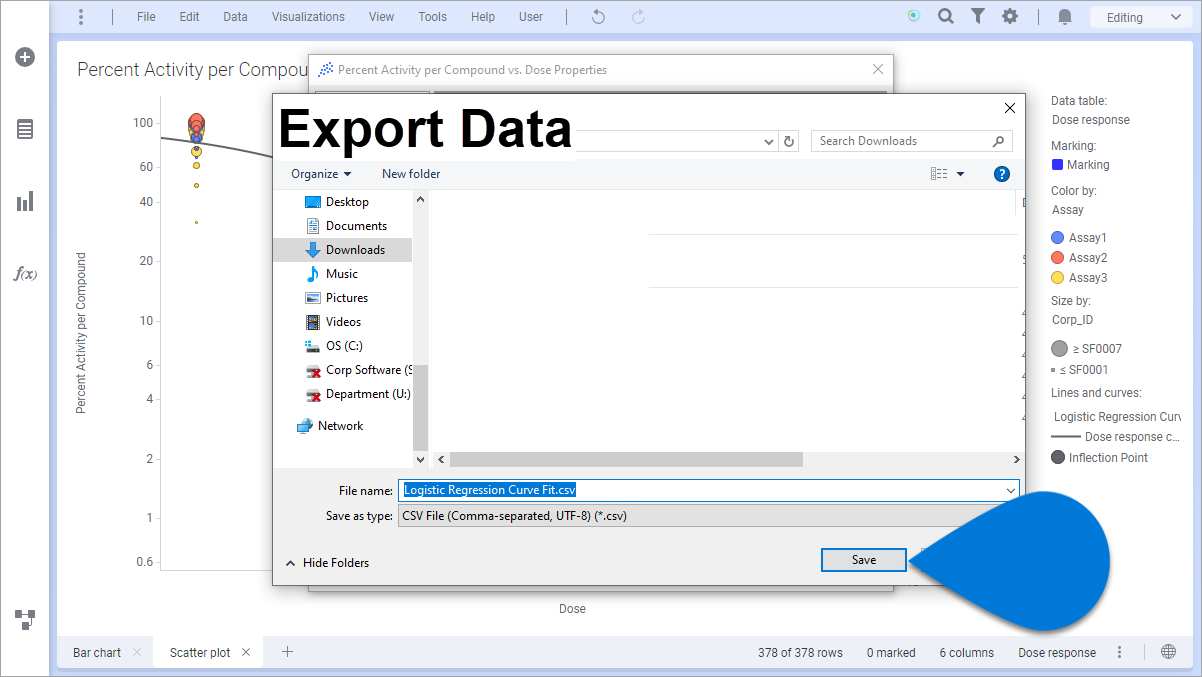

6️⃣ Export Data window ➡ select [Save]
7️⃣ Properties window ➡ select [Close]
