Modify the appearance of a Table visualization in an analysis from the Properties window

Prior to this task:

✔ Spotfire for Signals (item) must be opened.

✔ Table visualization must be added.

1️⃣ Active visualization ➡ hover over and select  [Properties]

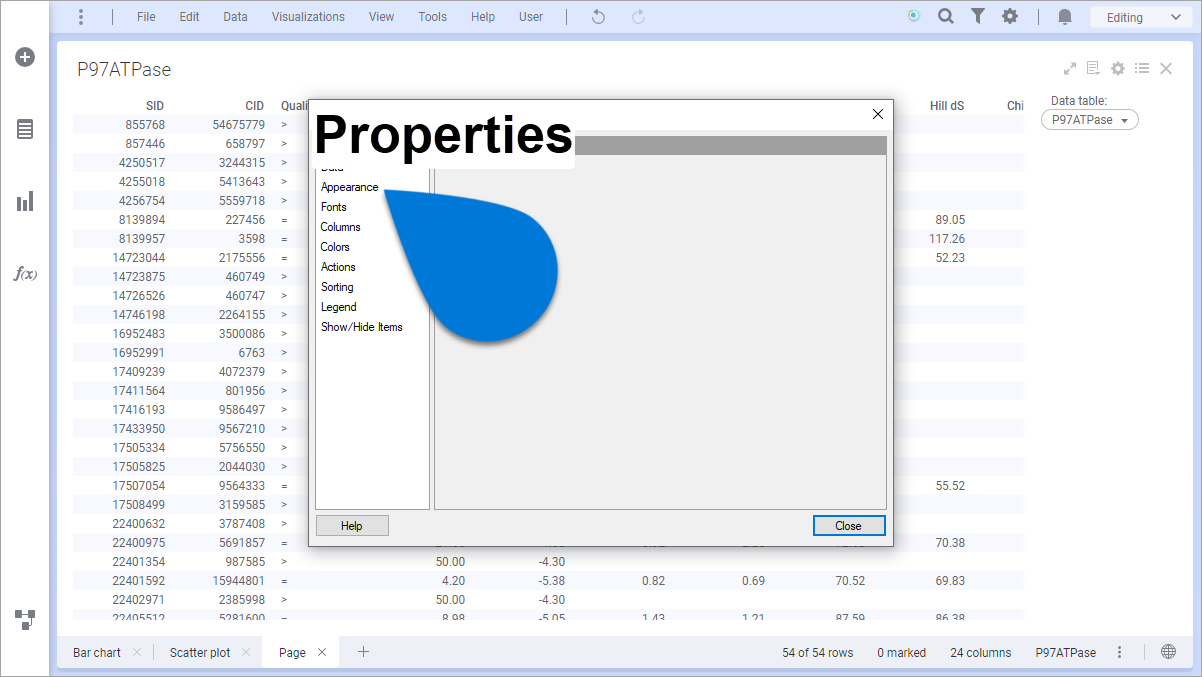

2️⃣ Properties window ➡ select Appearance

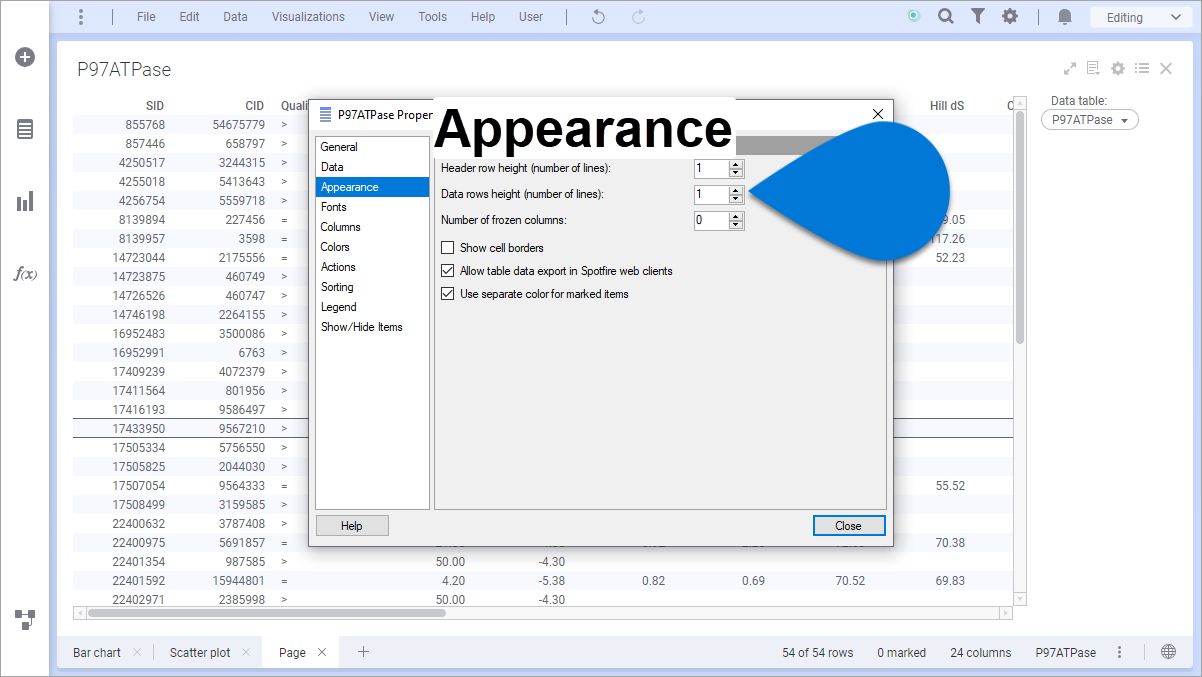

3️⃣ Appearance options ➡ select Header row height Data rows height Number of frozen columns*

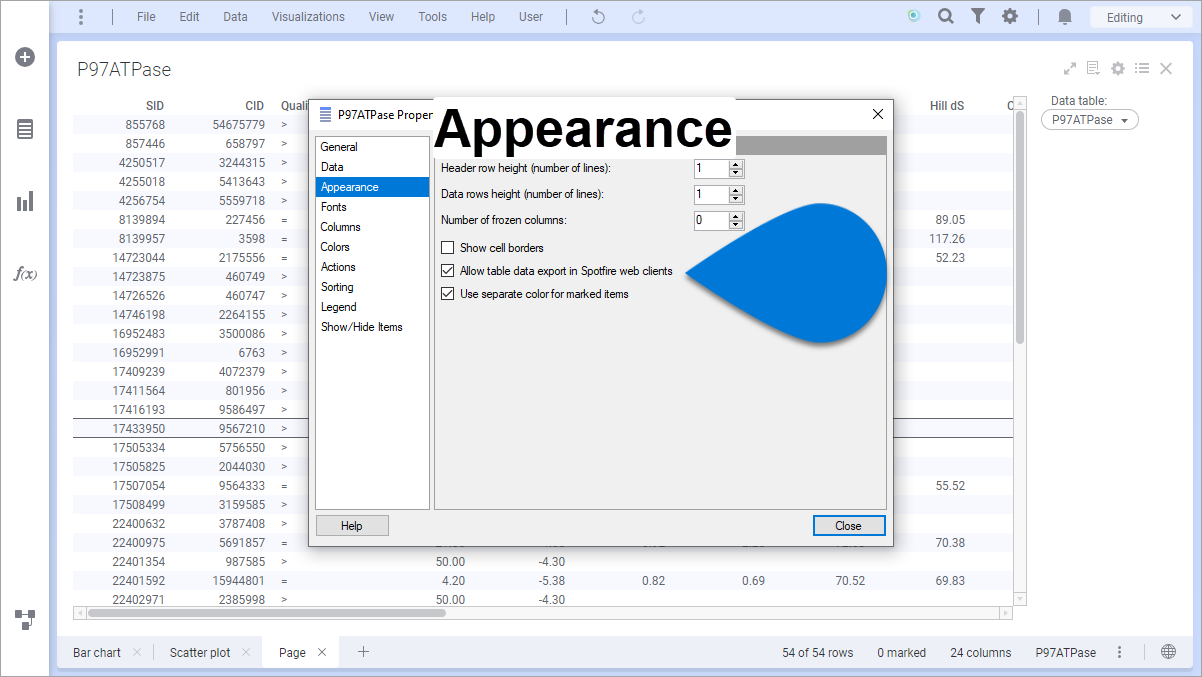

4️⃣ Appearance options ➡ select  Show cell borders Allow table data export in Spotfire web clients Use separate color for marked items

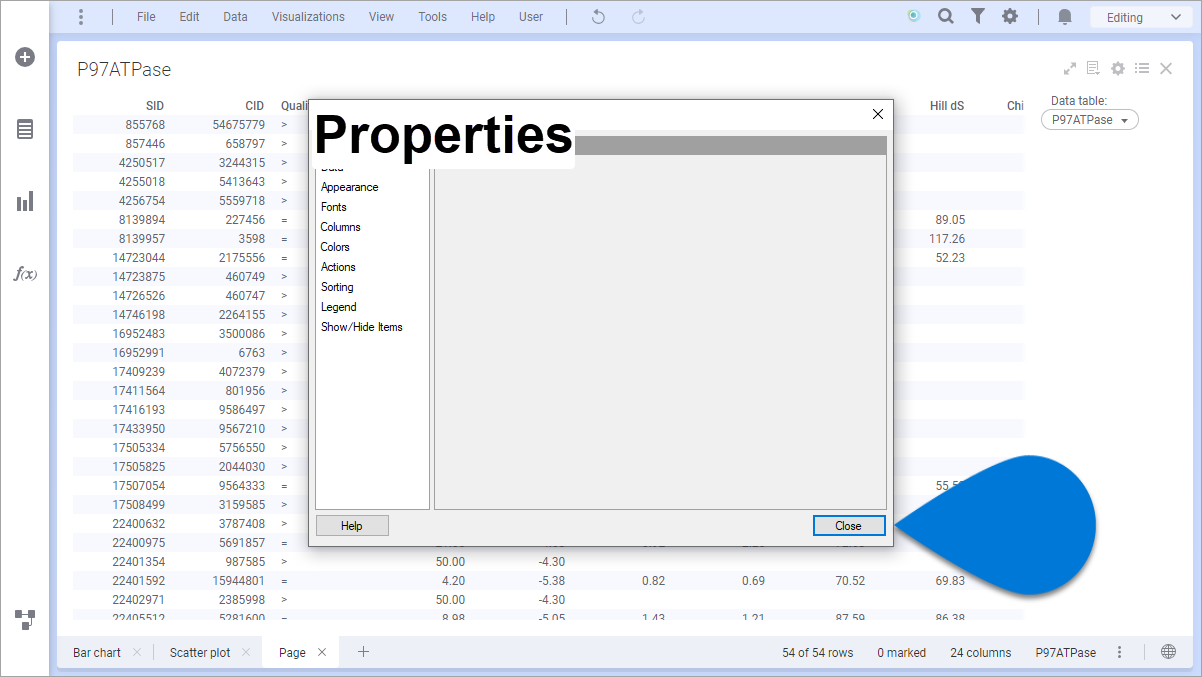

5️⃣ Properties window ➡ select [Close]

Supporting Knowledge

Alternatively, to change the header and data rows height, click and drag the corresponding lower divider to the height of interest on the Table visual.

Frozen columns* refers to the number of columns that can be fixed to the lefthand side of the Table when scrolling to the right.
