Add column(s) to a Table visualization in an analysis from the Properties window

Prior to this task:

✔ Spotfire for Signals (item) must be opened.

✔ Table visualization must be added.

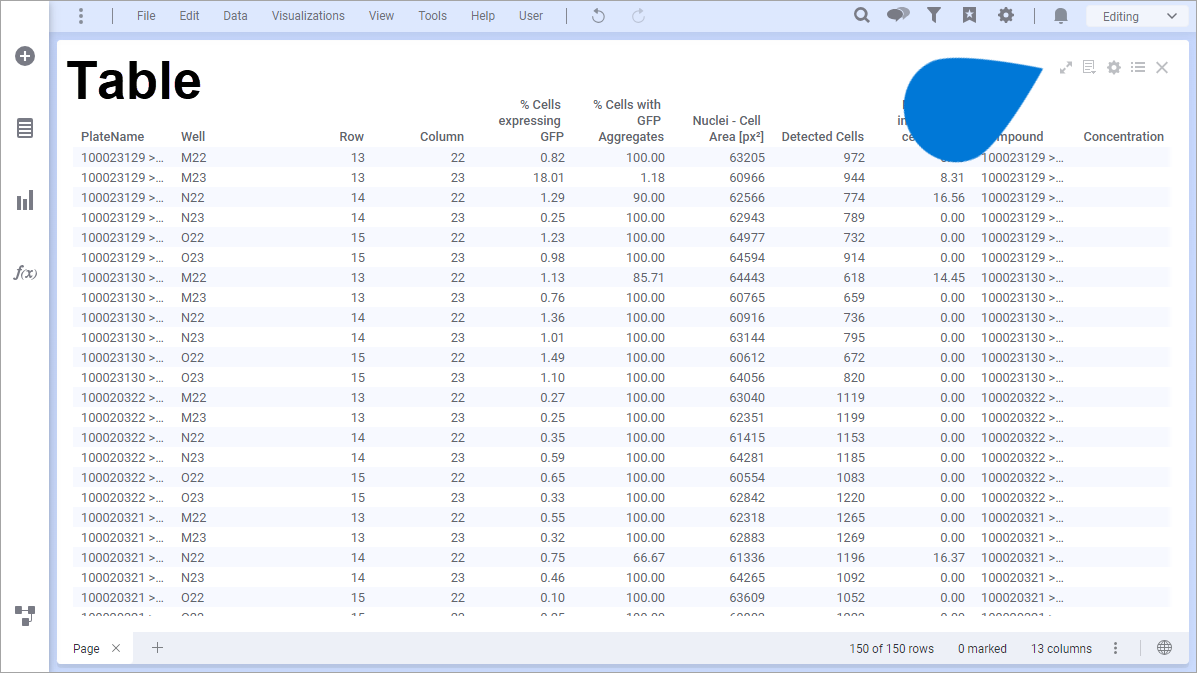

1️⃣ Table visualization ➡ hover over and select  [Properties]

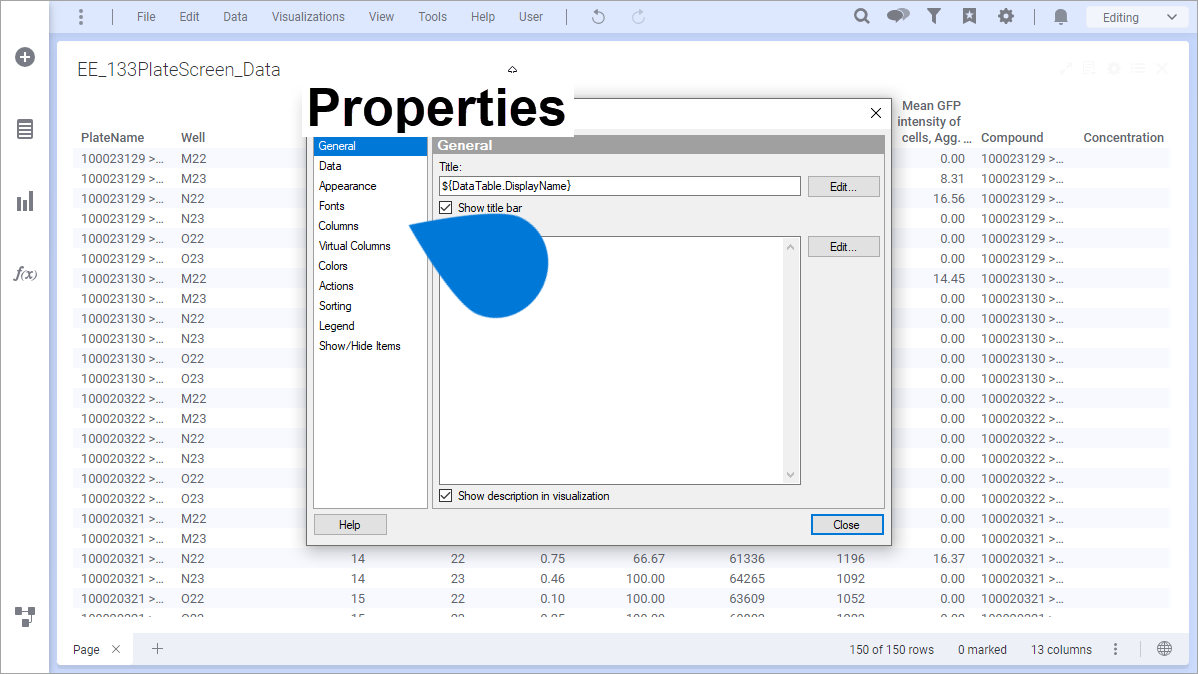

2️⃣ Properties window ➡ select Columns

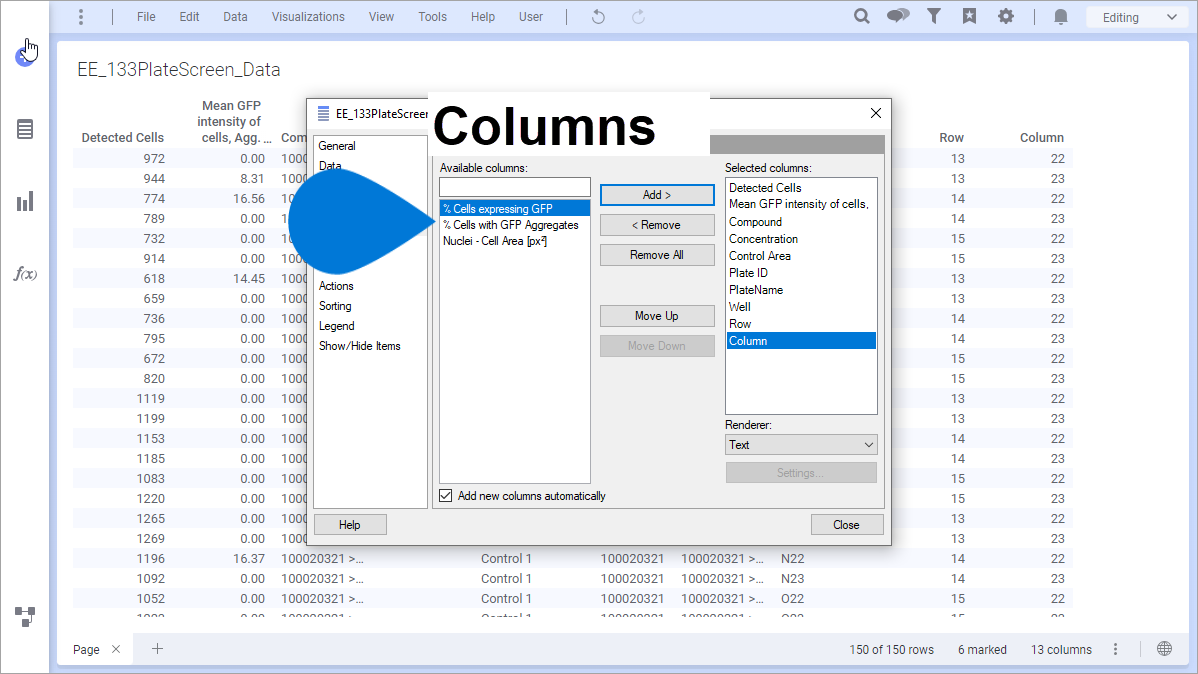

3️⃣ Columns options ➡ Available columns ➡ select column(s)

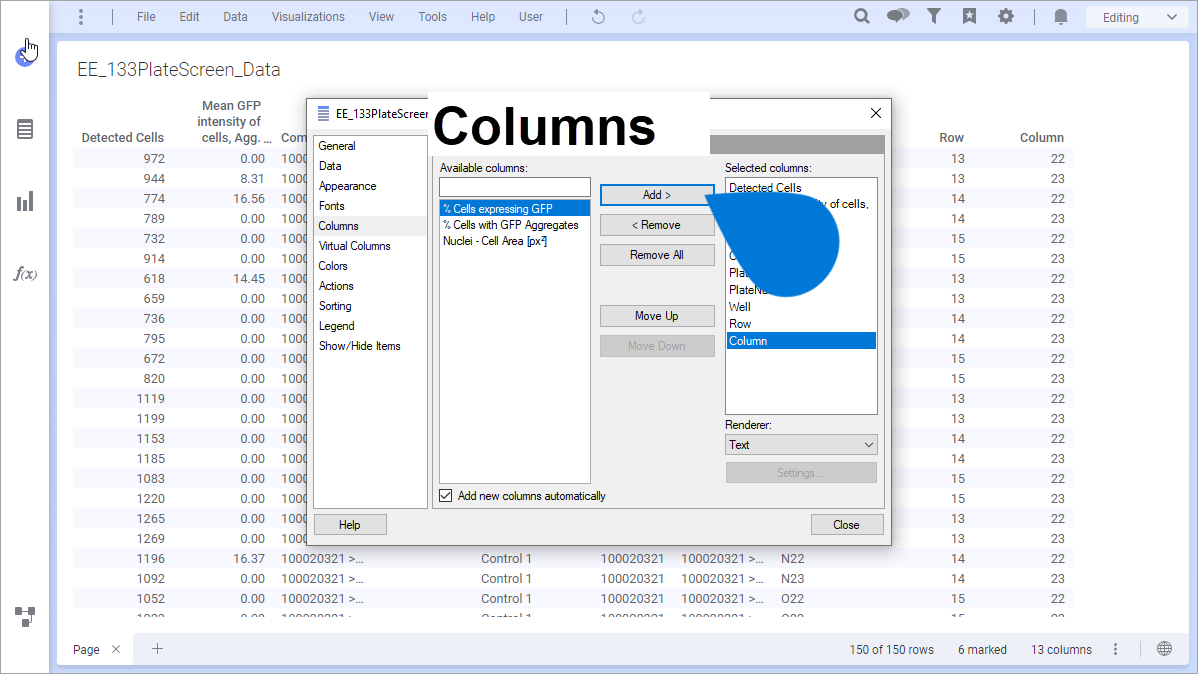

4️⃣ Columns options ➡ select [Add]

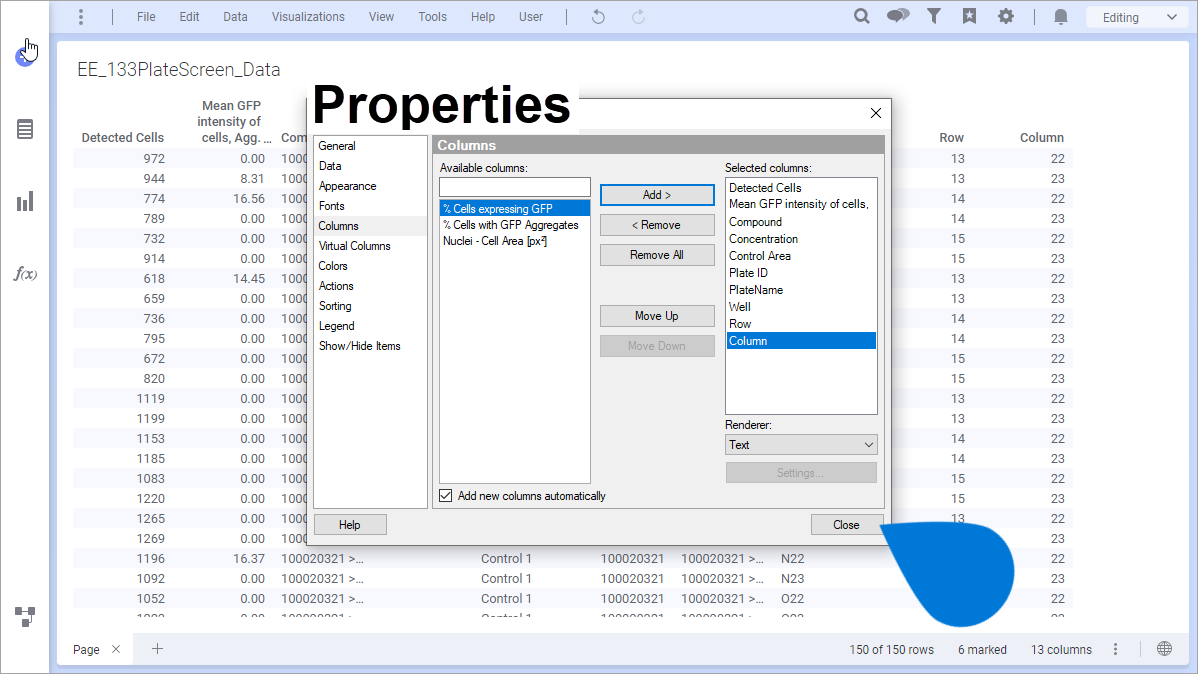

5️⃣ Properties window ➡ select [Close]

Supporting Knowledge

Optionally, from the Columns options, select the Add new columns automatically option to ensure any new columns added to the selected data table are automatically added to the Table visual.

Optionally, from the Columns options, under the Selected columns area, the user can move columns up or down to determine their order in the Table by selecting the [Move Up] or  [Move Down] buttons, respectively.

Note: Under the Selected columns area, the Renderer option lists the available renderers for the selected column. Which renderers are available is defined by the content type of the column.
