Change the size of the data points in a Scatter plot within an analysis from the Properties window

Prior to this task:

✔ Spotfire for Signals (item) must be opened.

✔ Scatter plot visualization must be added.

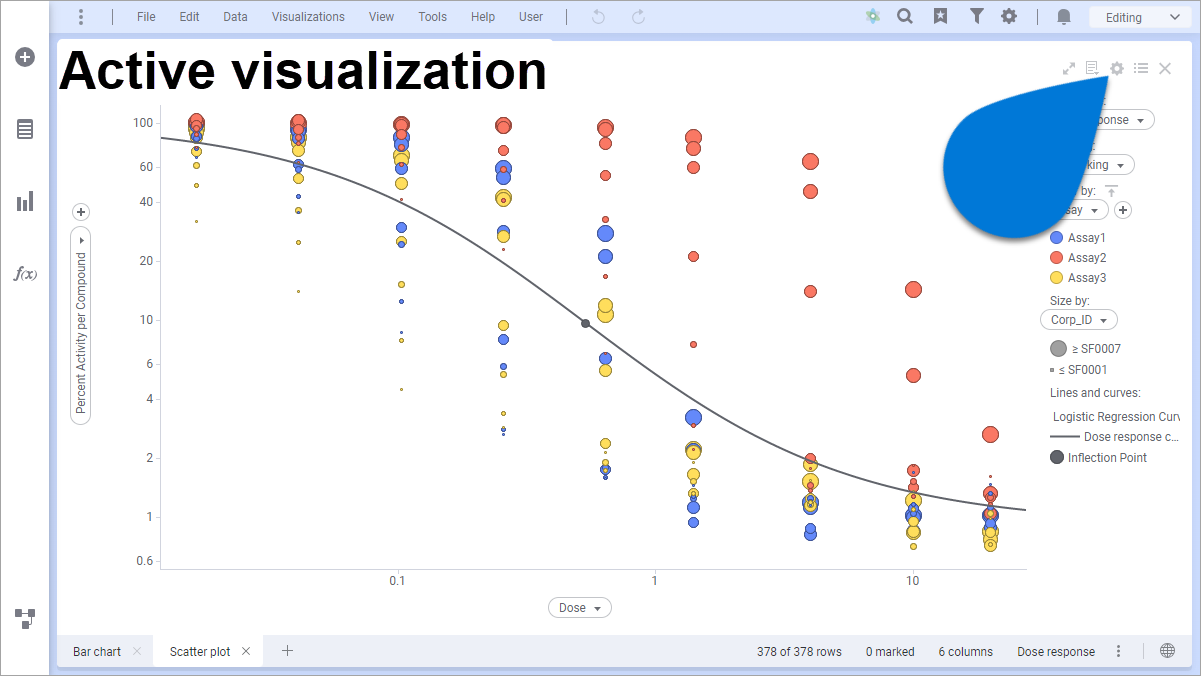

1️⃣ Active visualization ➡ hover over and select  [Properties]

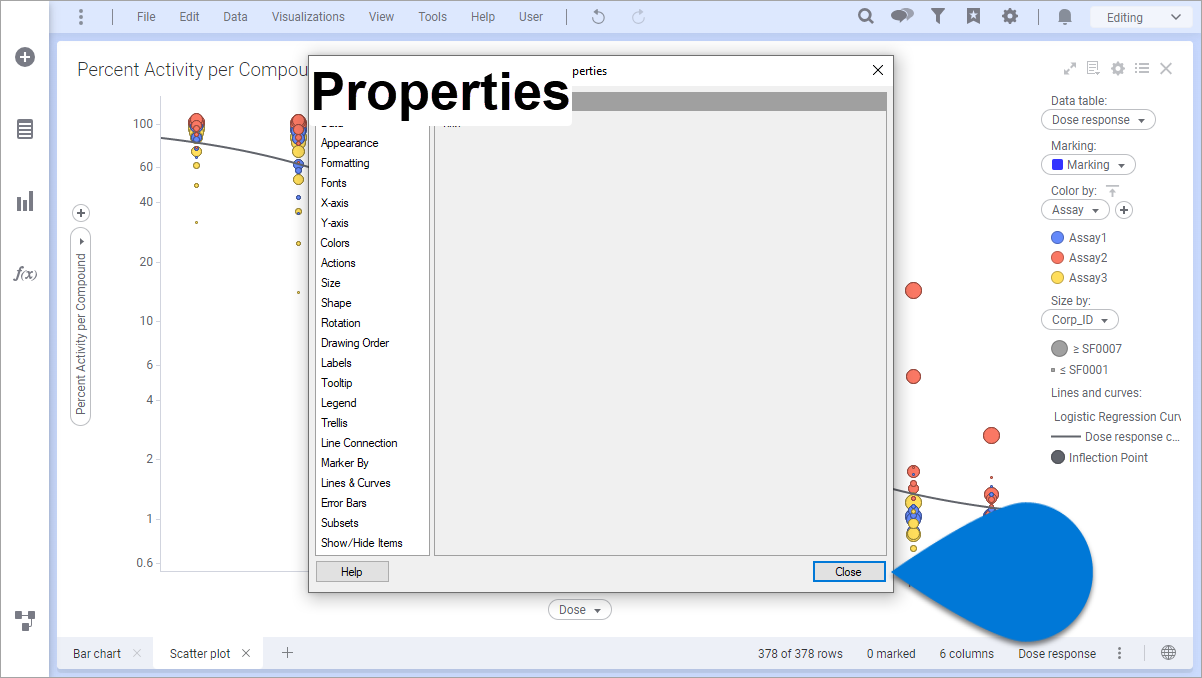

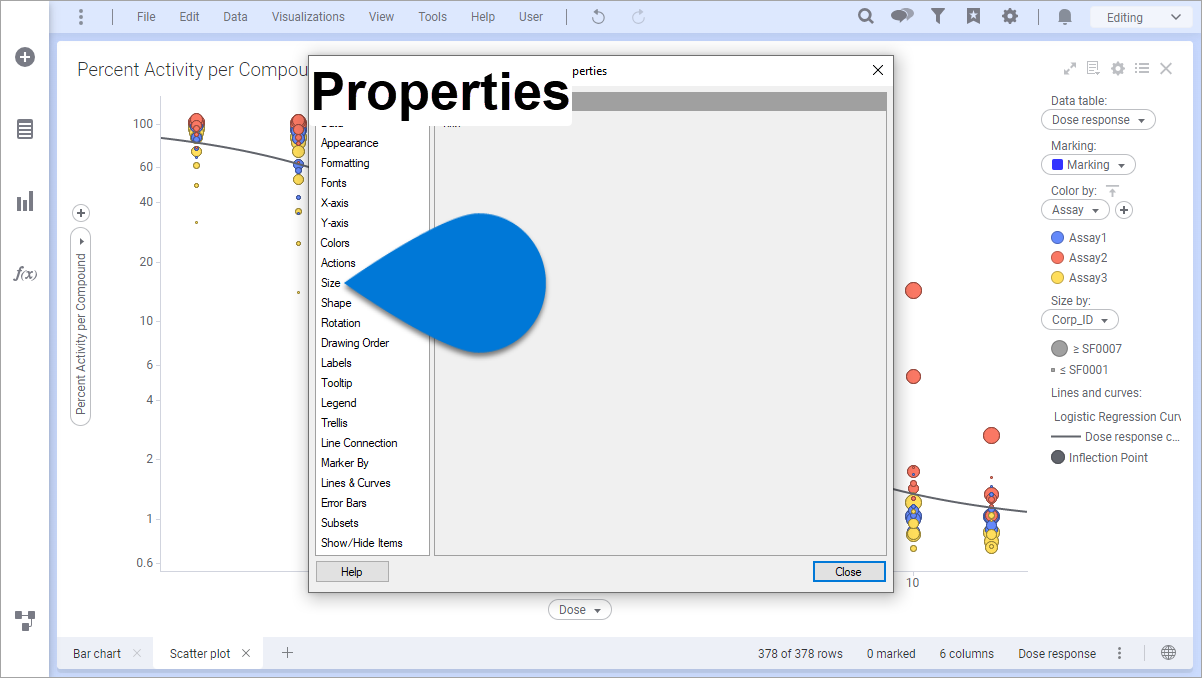

2️⃣ Properties window ➡ select Size

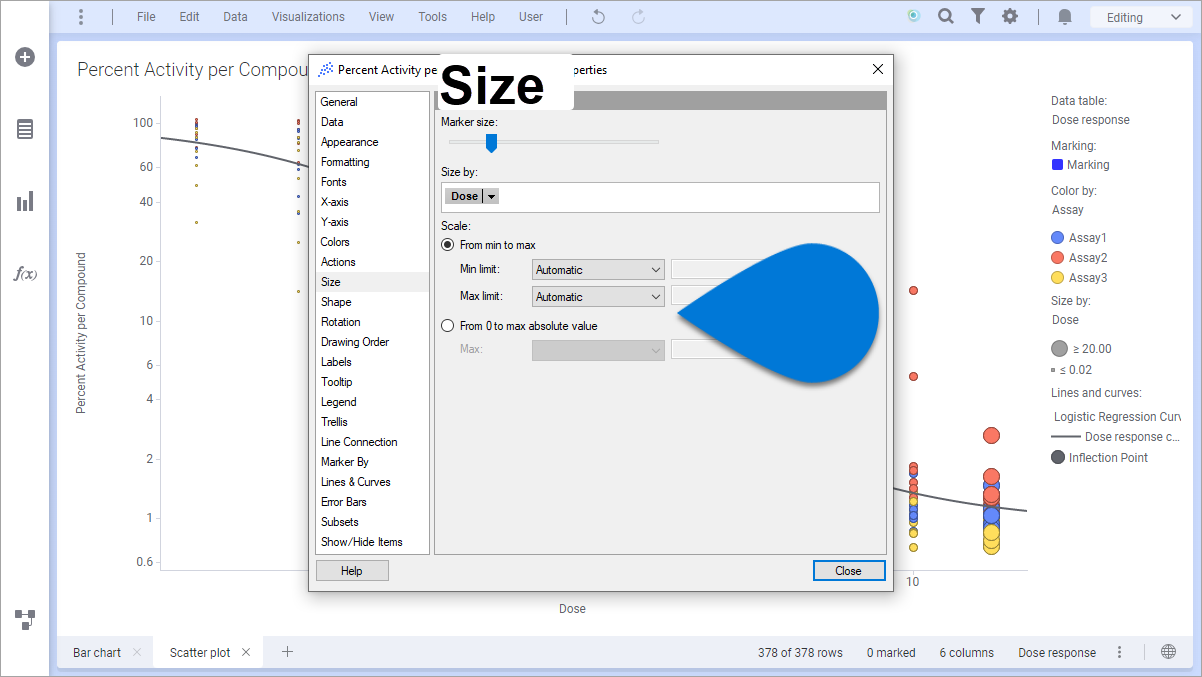

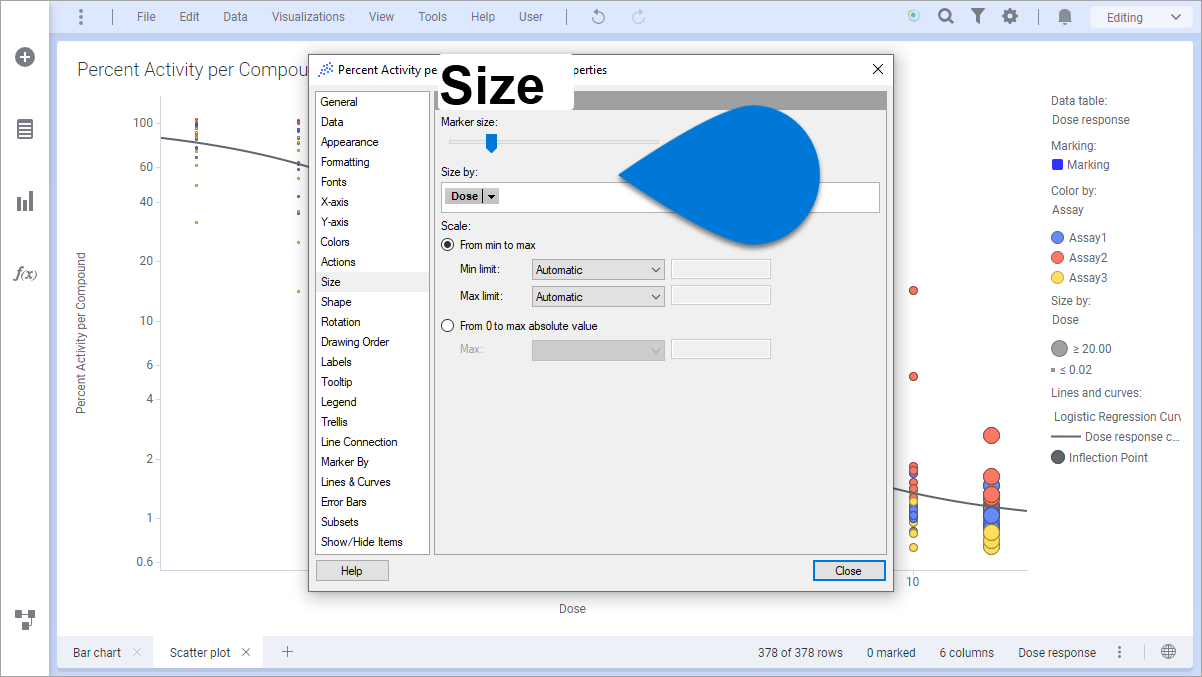

3️⃣ Size options ➡ select Marker size Size by ➡ select column
4️⃣ Size options ➡ Scale* ➡ select options accordingly
5️⃣ Properties window ➡ select  [Close]

Supporting Knowledge

Scale* defines what scale to use for the markers size.

Note: The Size settings are not available when the Scatter plot is configured with tiled markers.
