Change the rotation of the data points in a Scatter plot within an analysis from the Properties window

Prior to this task:

✔ Spotfire for Signals (item) must be opened.

✔ Scatter plot visualization must be added.

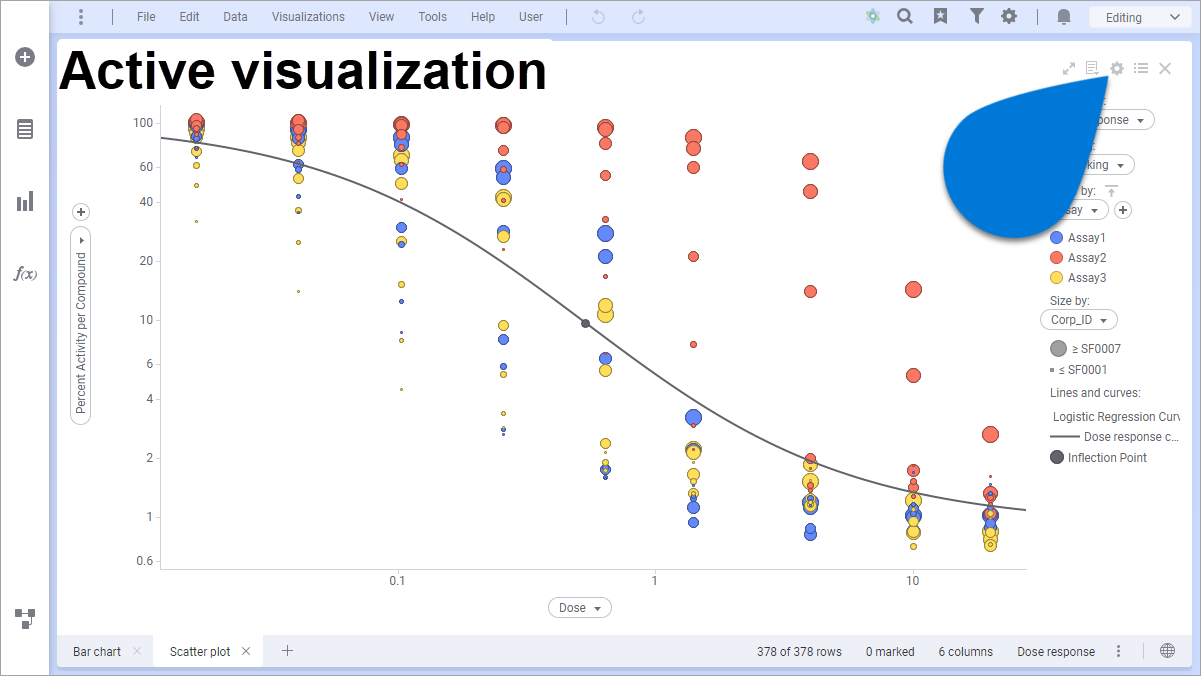

1️⃣ Active visualization ➡ hover over and select  [Properties]

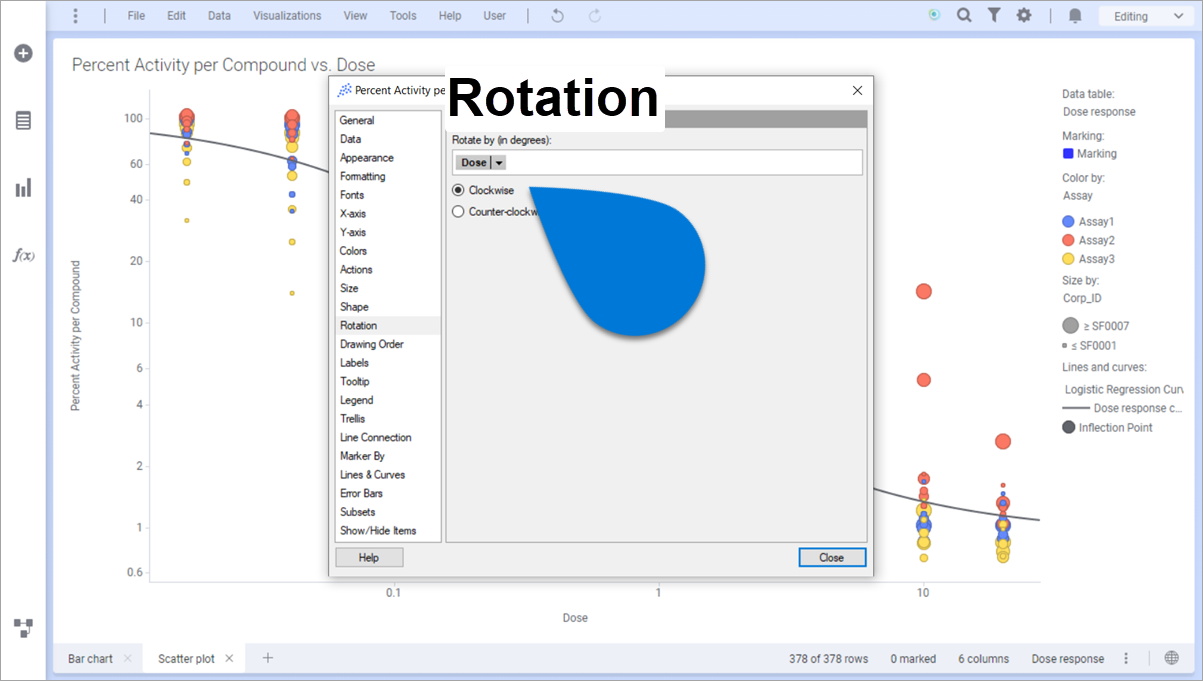

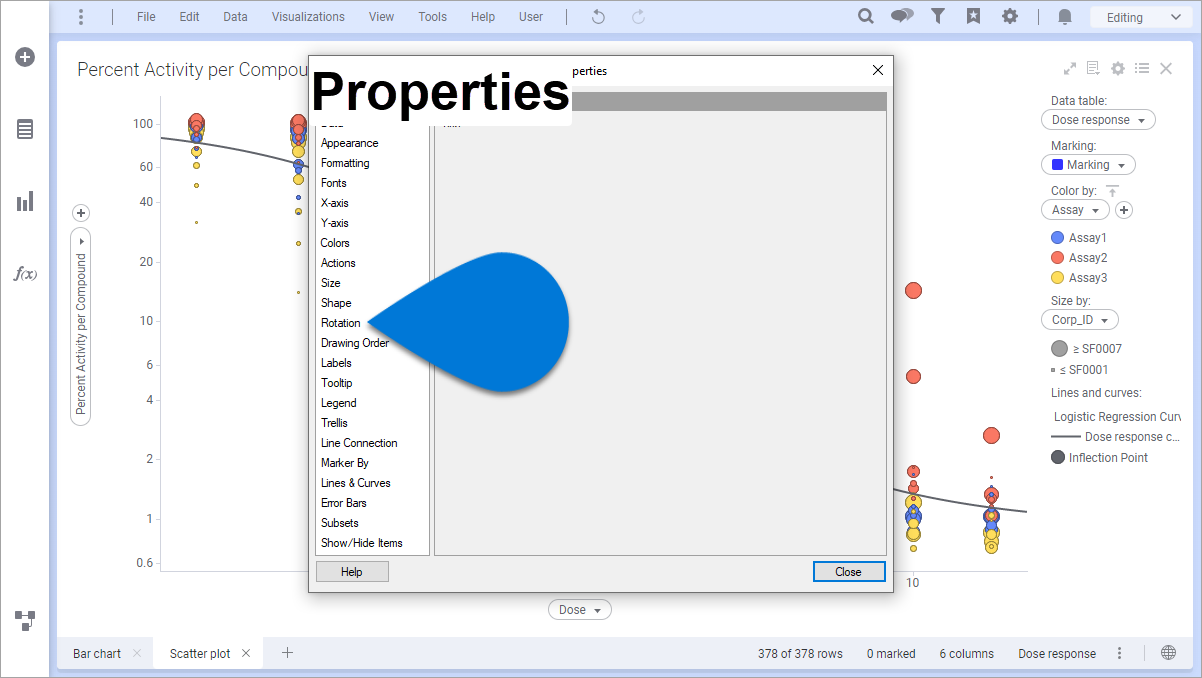

2️⃣ Properties window ➡ select Rotation
3️⃣ Rotation options ➡ Rotate by (in degrees) ➡ select column rotation type
4️⃣ Properties window ➡ select [Close]

Supporting Knowledge

Note: The rotation utilizes a column to define how many degrees the markers should be positioned. The rotation can be clockwise or counterclockwise.
