Change the drawing order of the data points in a Scatter plot within an analysis from the Properties window

Prior to this task:

✔ Spotfire for Signals (item) must be opened.

✔ Scatter plot visualization must be added.

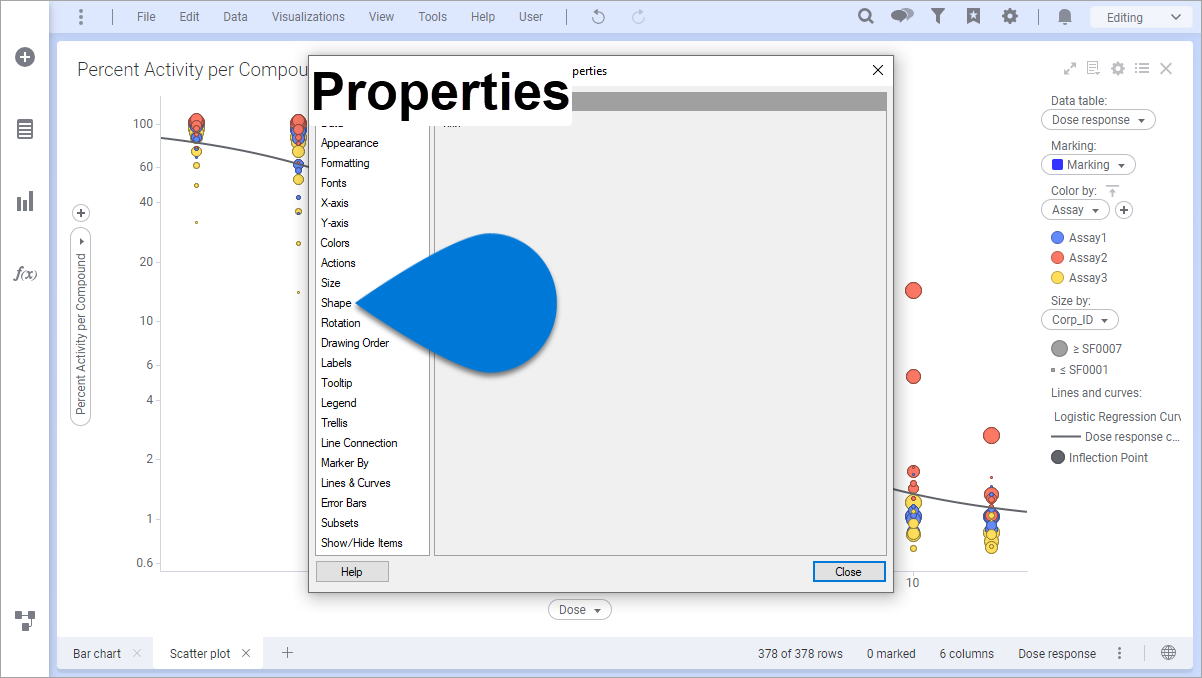

1️⃣ Active visualization ➡ hover over and select  [Properties]
2️⃣ Properties window ➡ select Drawing Order
3️⃣ Drawing Order options ➡ Columns ➡ select  column(s) Reverse drawing order of markers

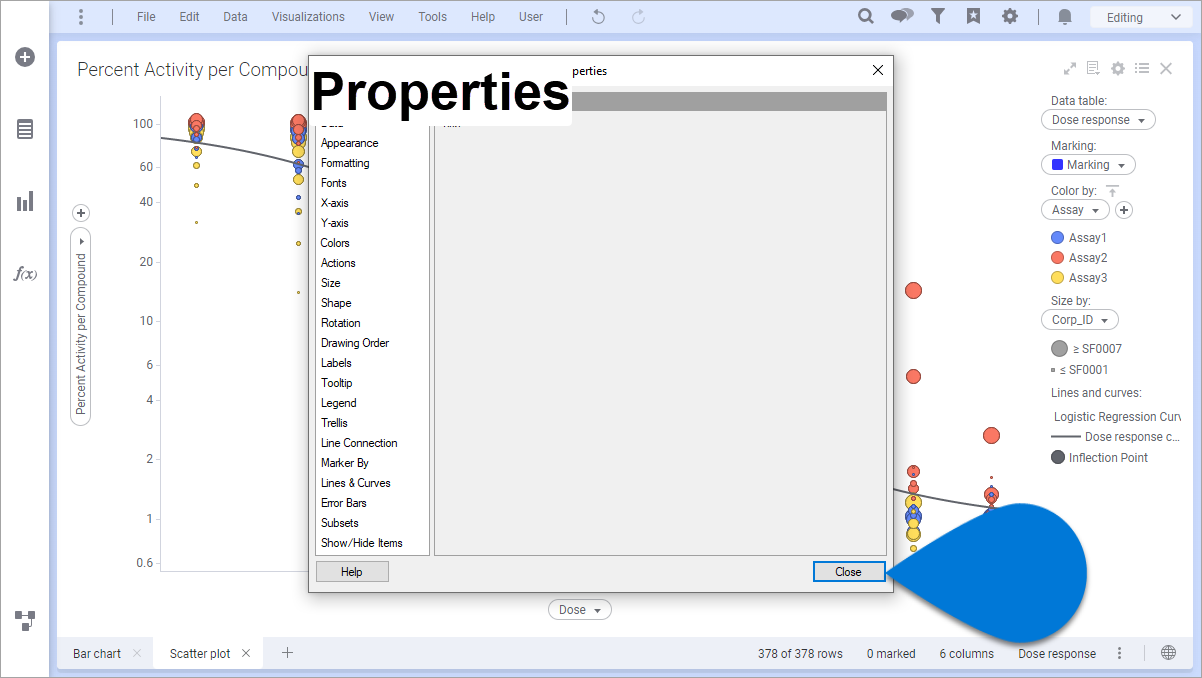

4️⃣ Properties window ➡ select [Close]

Supporting Knowledge

Note: The drawing order is useful when markers are on top of each other, so the user can define the order in which markers are drawn. In addition, markers of interest can be brought forward in the Scatter plot visual with the Reverse drawing order of markers option.
