Add measure(s) to the statistics table of a Box plot in an analysis from the Properties window

Prior to this task:

✔ Spotfire for Signals (item) must be opened.

✔ Box plot visualization must be added.

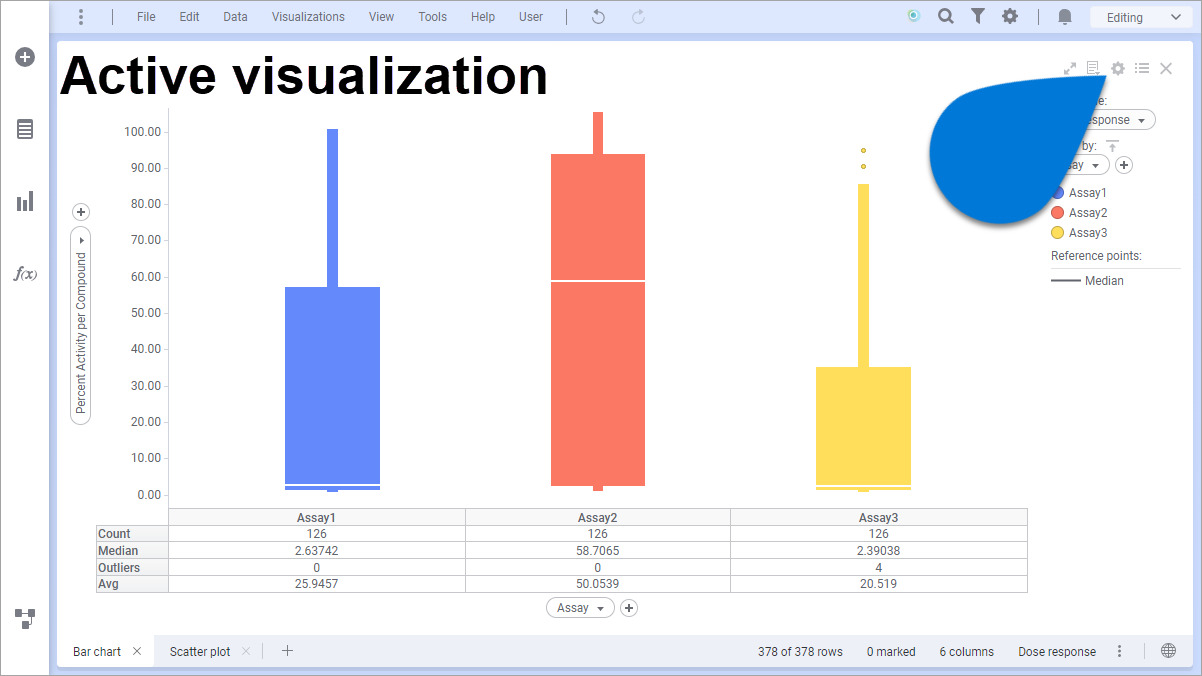

1️⃣ Active visualization ➡ hover over and select  [Properties]

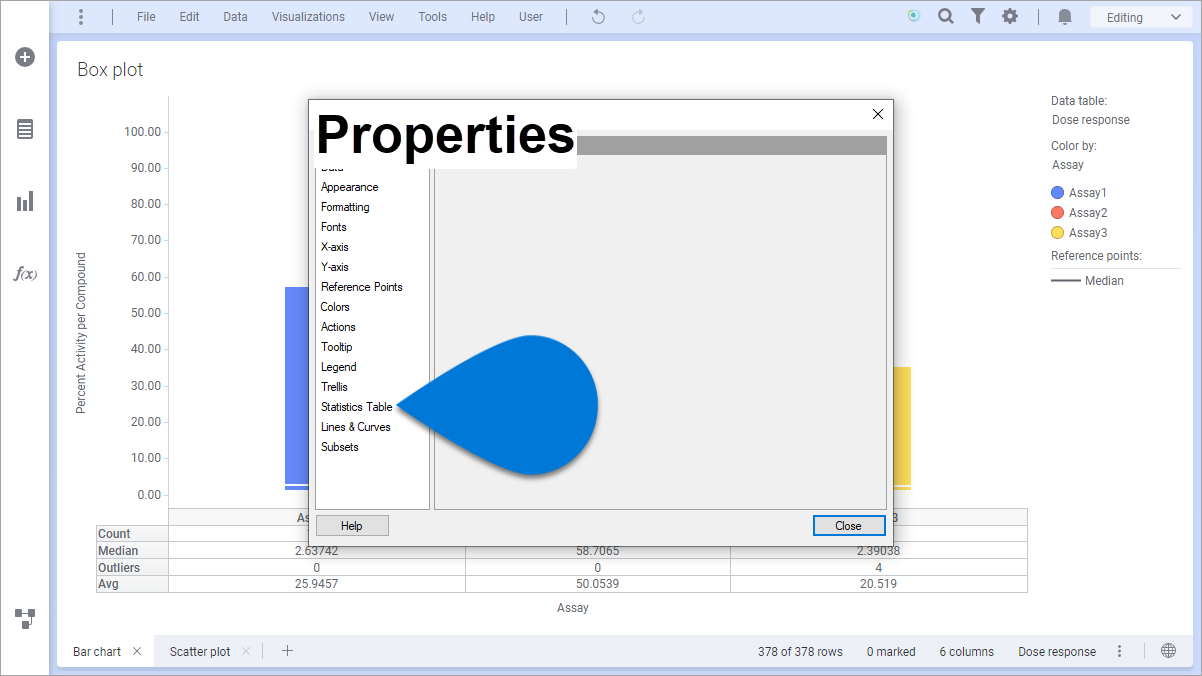

2️⃣ Properties window ➡ select Statistics Table

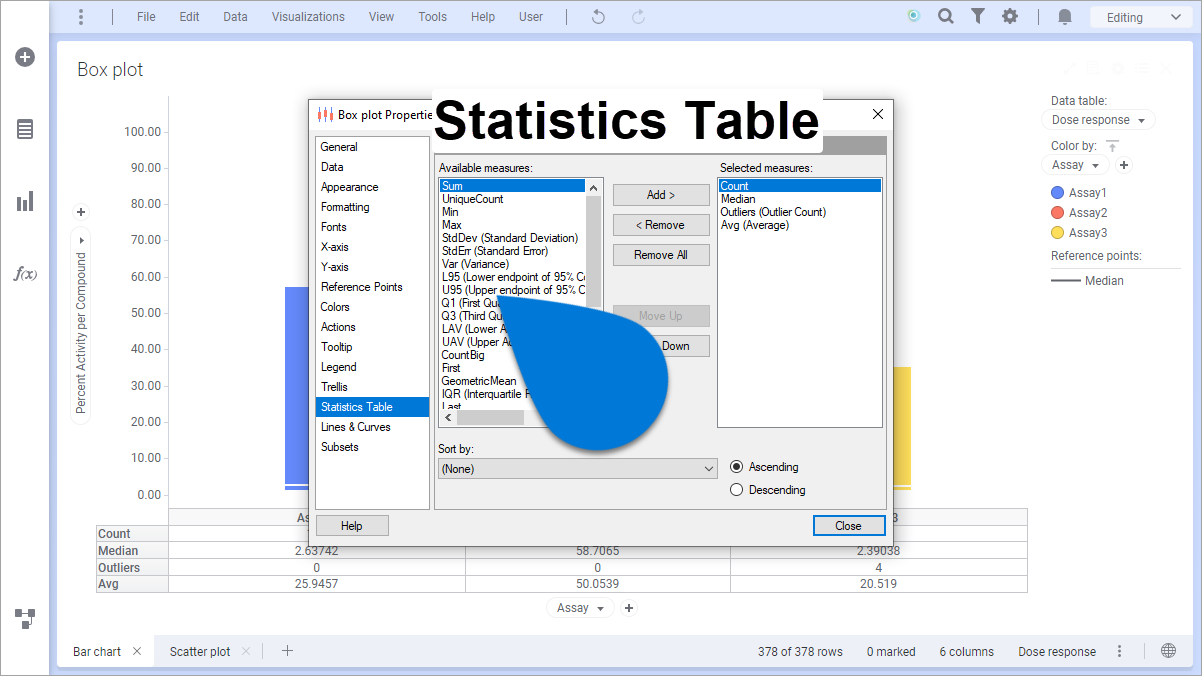

3️⃣ Statistics Table options ➡ Available measures ➡ select measure(s)

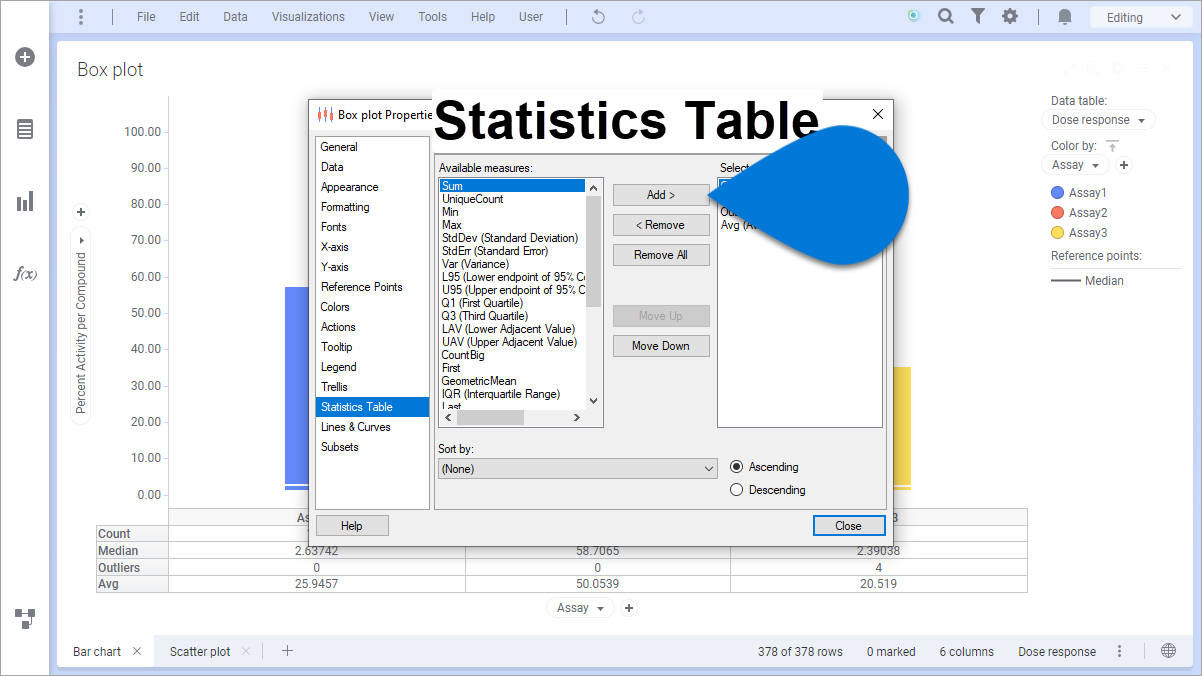

4️⃣ Statistics Table options ➡ select [Add]

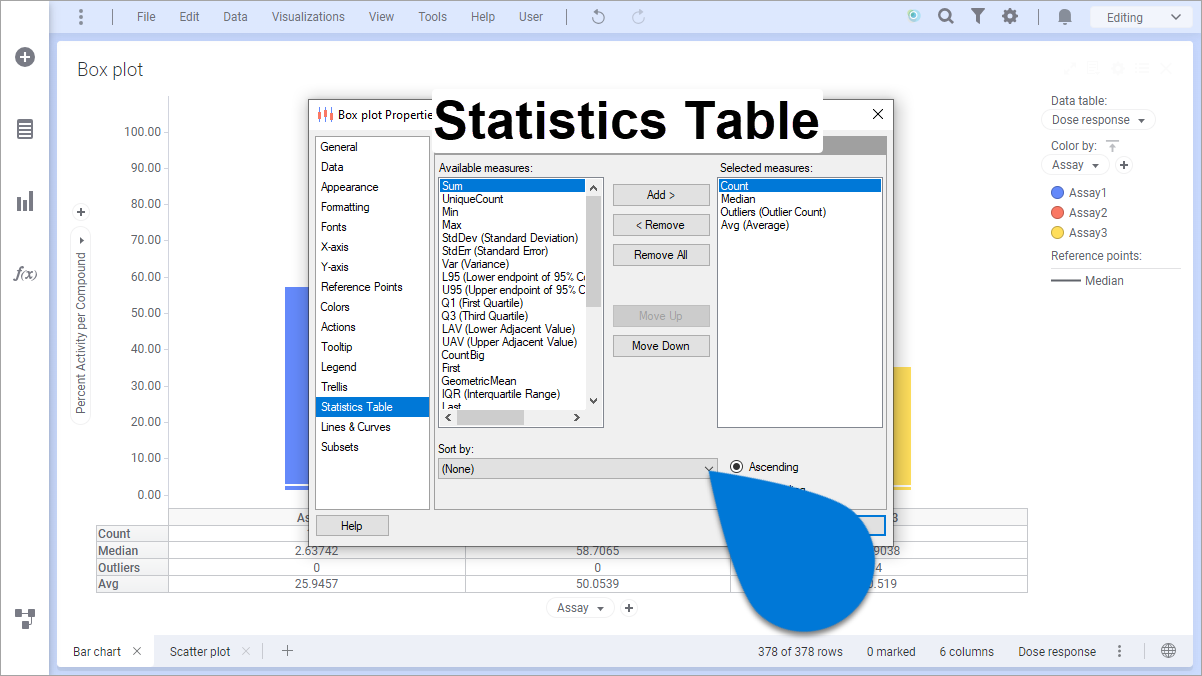

5️⃣ Statistics Table options ➡ select Sort by

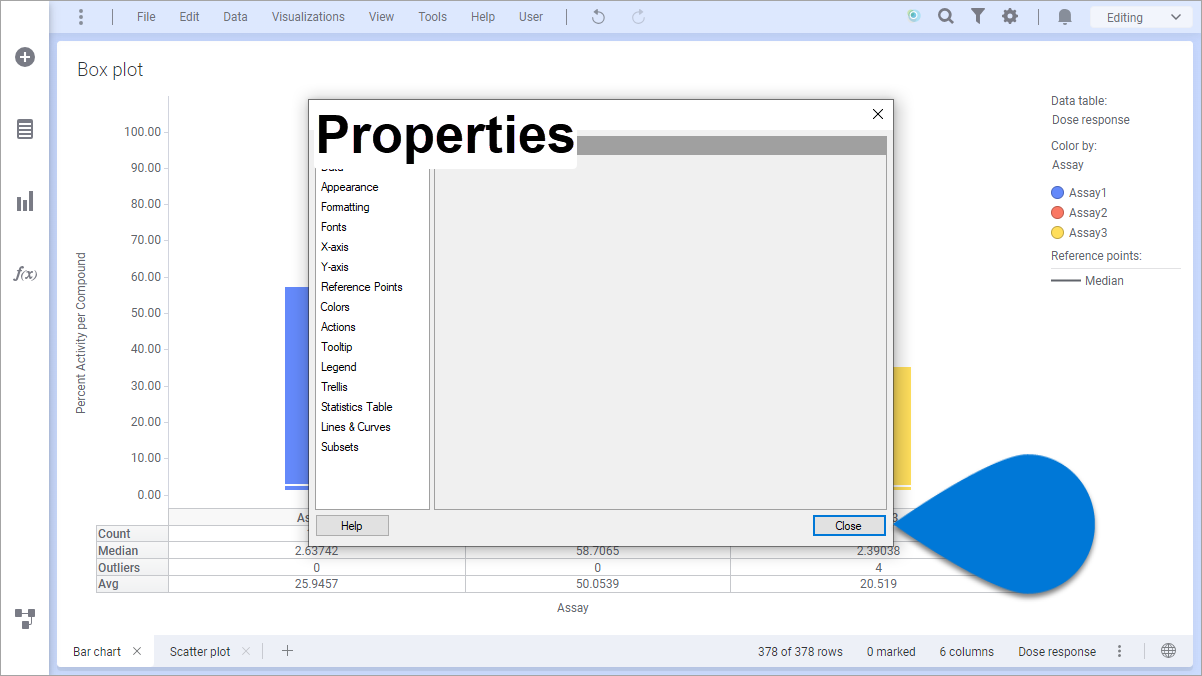

6️⃣ Properties window ➡ select [Close]

Supporting Knowledge

Optionally, from the Selected measures area, the user can move measures up or down to determine their order in the Box plot by selecting the [Move Up] or  [Move Down] buttons, respectively.

Note: For the Sort by option, when trellising is applied, the sorting is ignored, since it is not possible to sort the measures for trellised categories.
