Remove measure(s) from the statistics table of a Box plot from the Properties window in Spotfire

Prior to this task:

✔ Spotfire for Signals (item) must be opened.

✔ Box plot visualization must be added.

1️⃣ Active visualization ➡ hover over and select  [Properties]
2️⃣ Properties window ➡ select Statistics Table

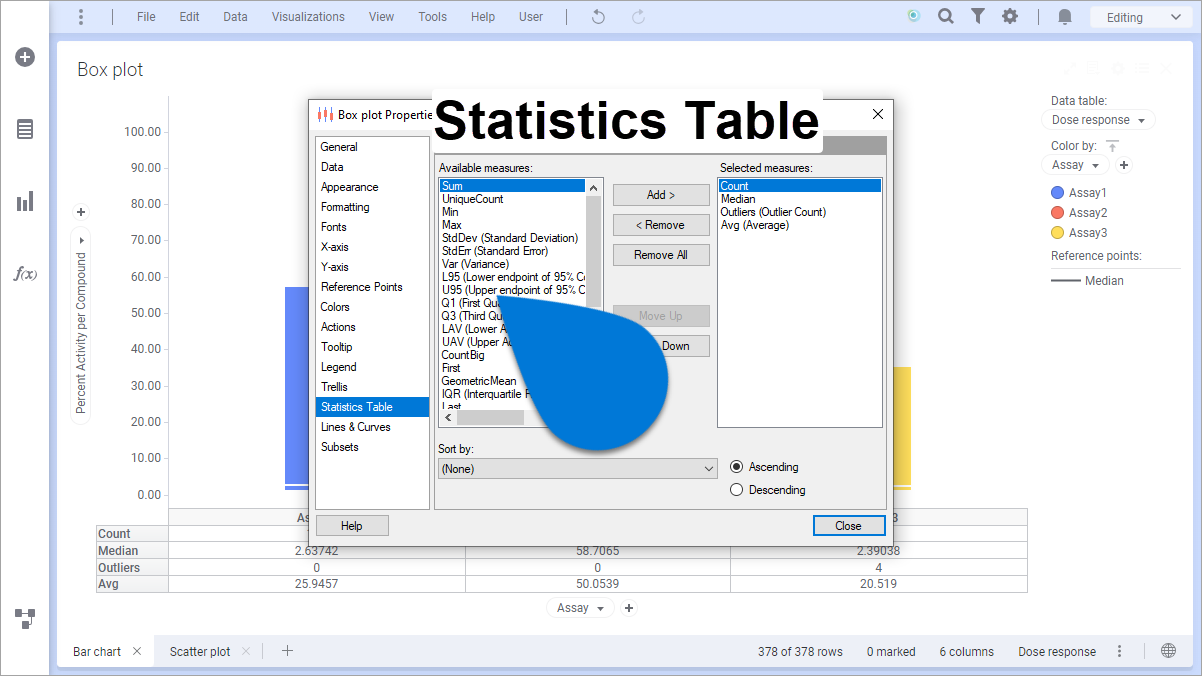

3️⃣ Statistics Table options ➡ Selected measures ➡ select measure(s) to remove

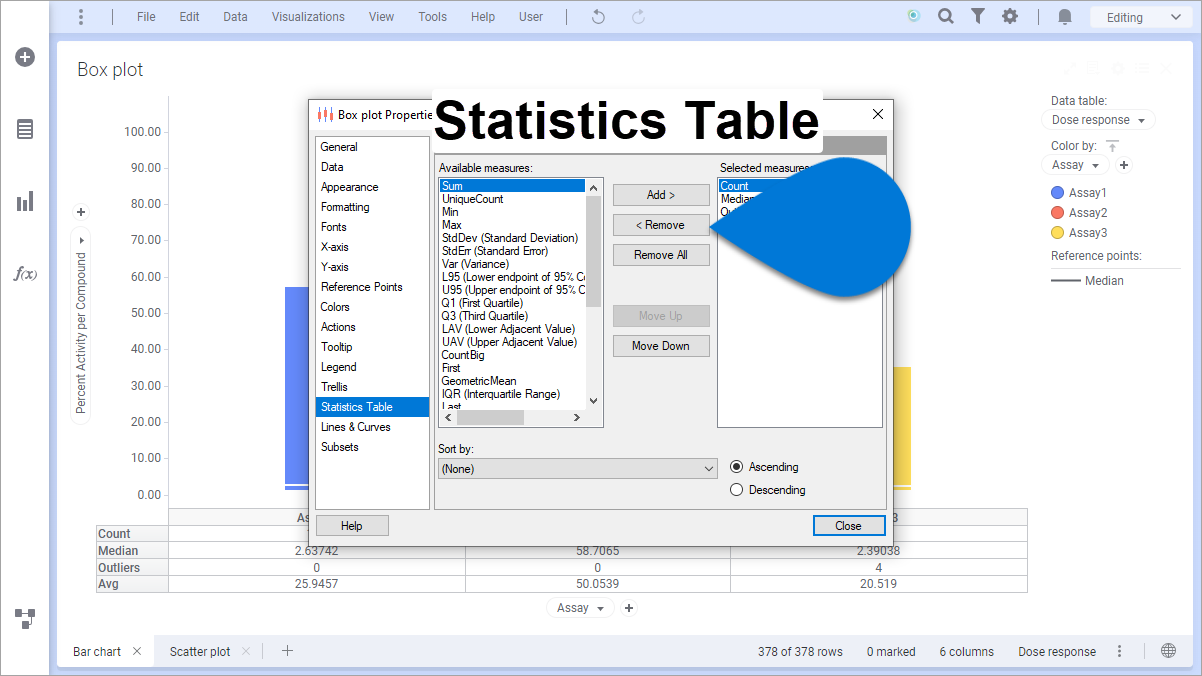

4️⃣ Statistics Table options ➡ select [Remove]
5️⃣ Properties window ➡ select [Close]

Supporting Knowledge

Alternatively, from the Selected measures area, the user can select the [Remove All] button to remove all measures from the list and the Box plot visual.
