Modify the X-axis settings of a visualization in an analysis from the Properties window

Prior to this task:

✔ Spotfire for Signals (item) must be opened.

✔ Visualization must be added.

1️⃣ Active visualization ➡ hover over and select  [Properties]

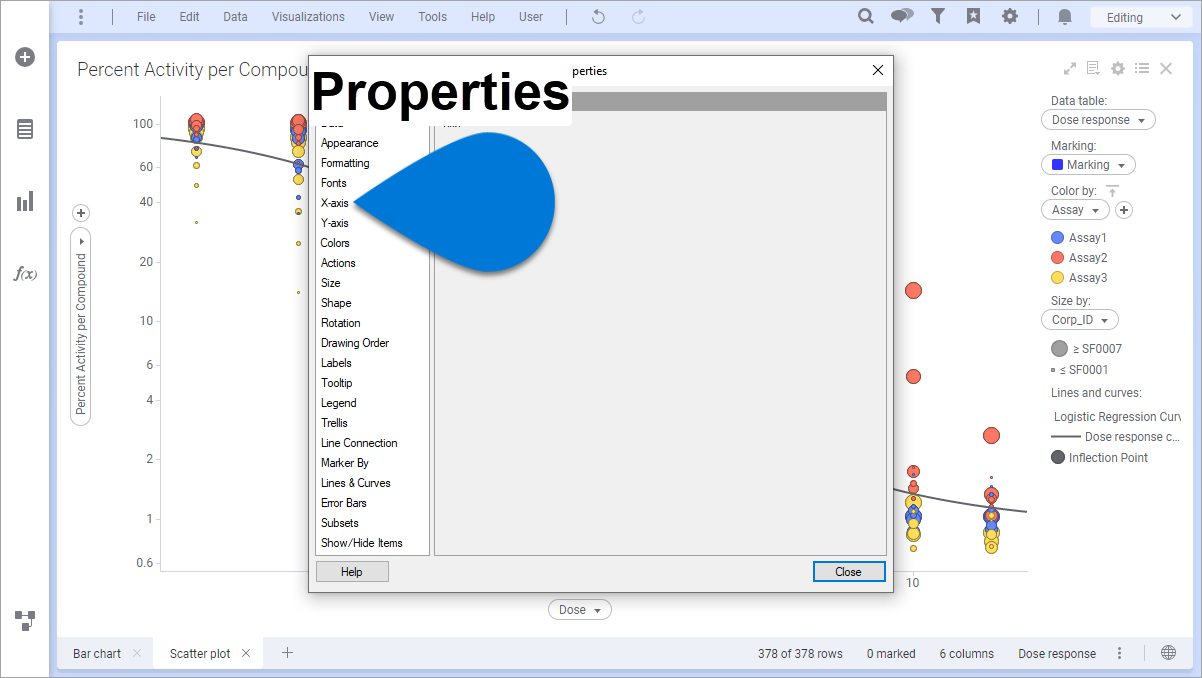

2️⃣ Properties window ➡ select X-axis
3️⃣ X-axis options ➡ Columns ➡ select column(s)

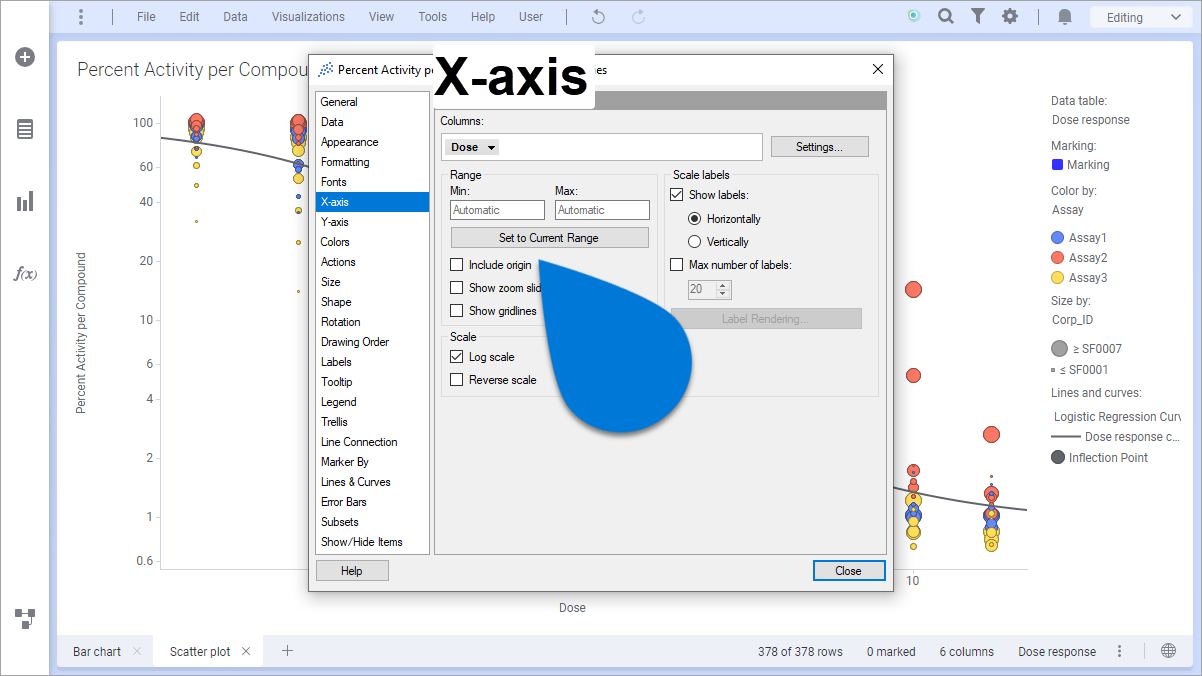

4️⃣ X-axis options ➡ Range ➡ select Min and Max Include origin Show zoom slider Show gridlines

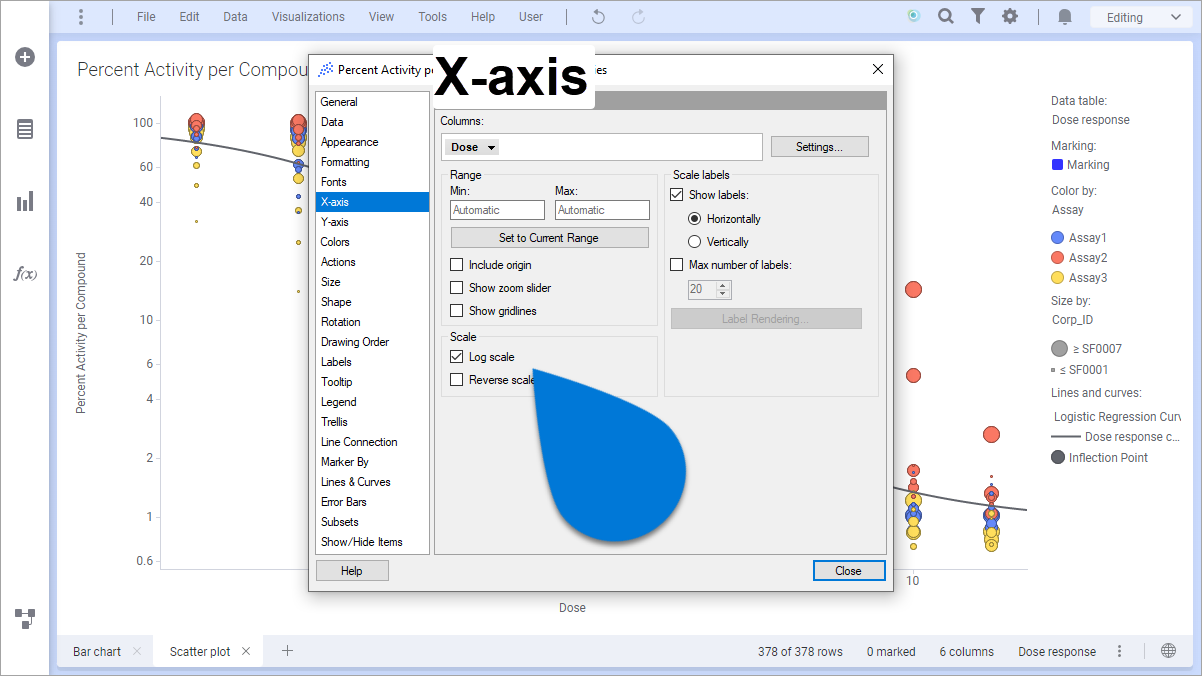

5️⃣ X-axis options ➡ Scale ➡ select Log scale Reverse scale

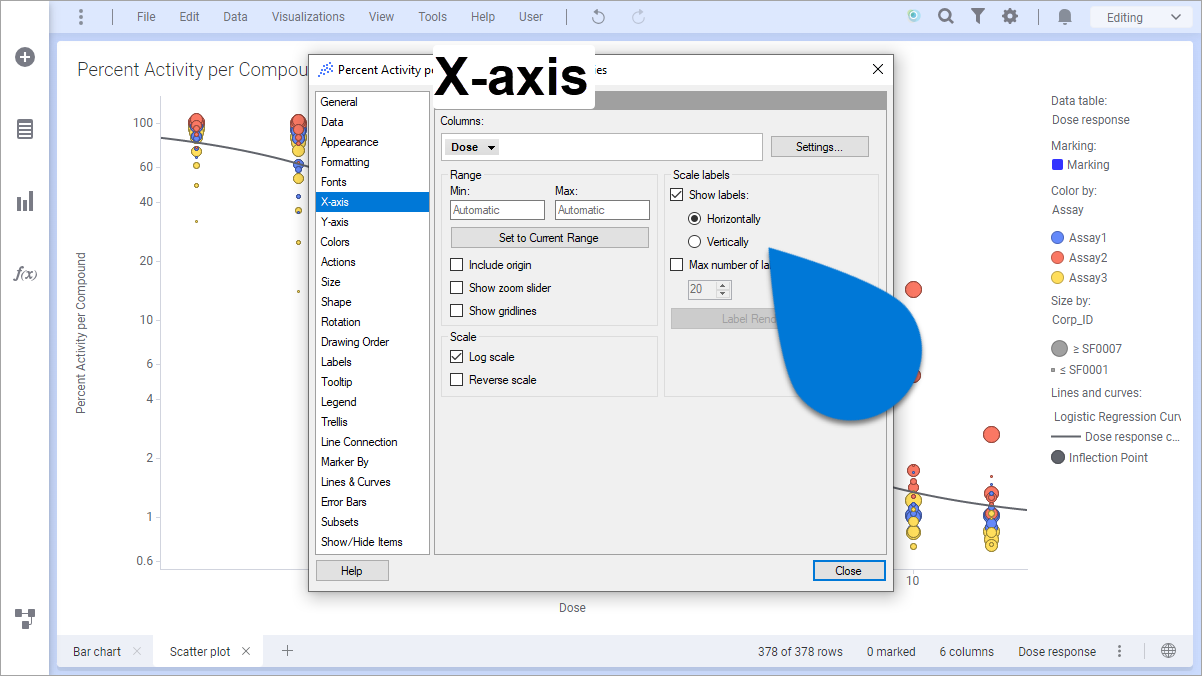

6️⃣ X-axis options ➡ Scale labels ➡ select Show labels Max number of labels
7️⃣ Properties window ➡ select [Close]

Supporting Knowledge

Alternatively, the user can right-click on the X-axis of the visualization to modify several of the previous settings (zoom slider, gridlines, show labels, reverse scale, log scale, include origin, horizontal/vertical labels).
