Add a ChemCharts Table visualization

Prior to this task:

✔ Data must be loaded.

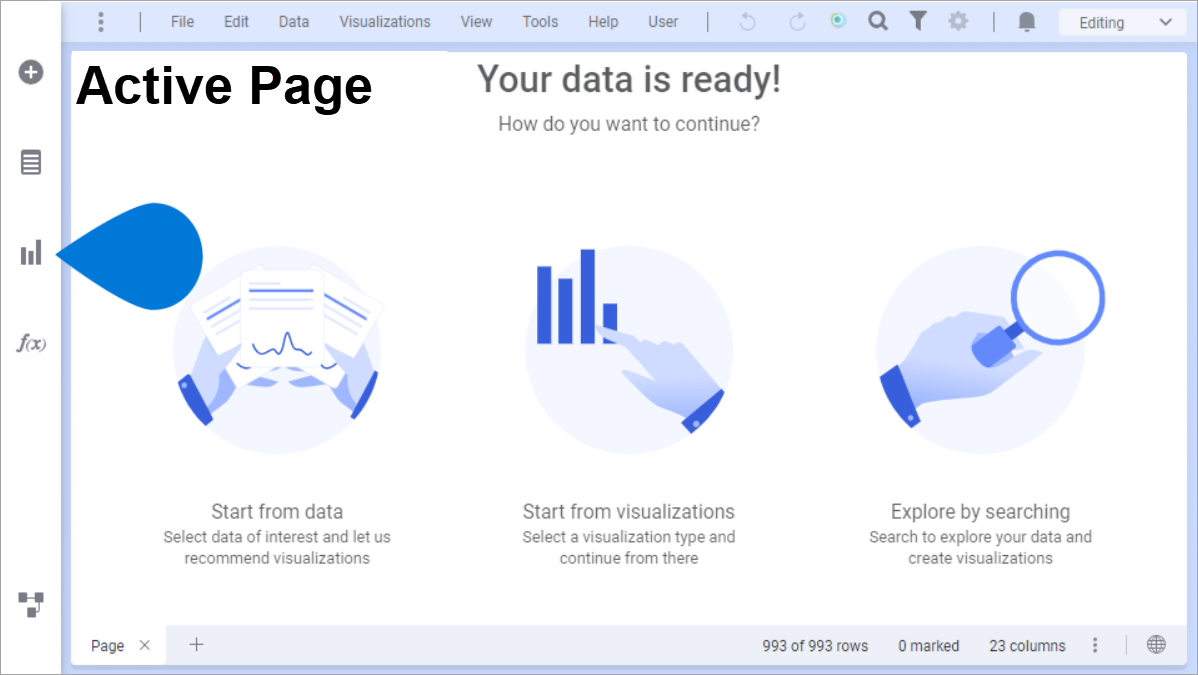

1️⃣ Active page ➡ select [Visualization types]

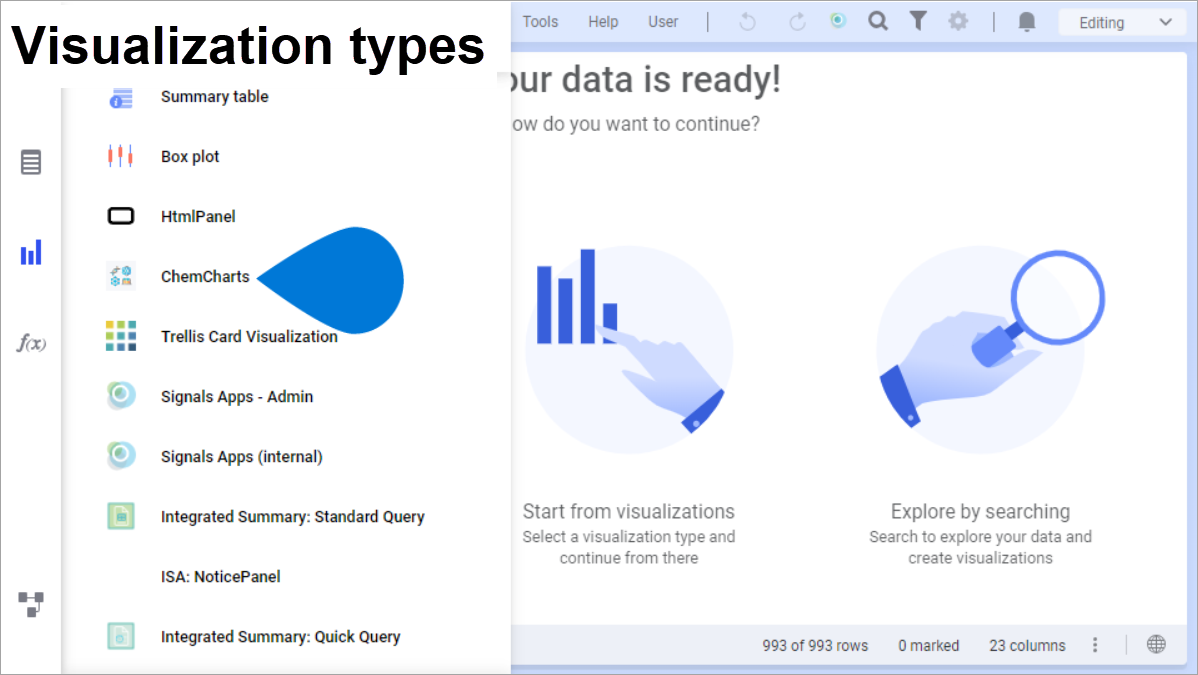

2️⃣ Visualization types flyout ➡ select   [ChemCharts]
3️⃣ ChemCharts Visualization ➡ select Data table Chart: Table [GO]

Supporting Knowledge

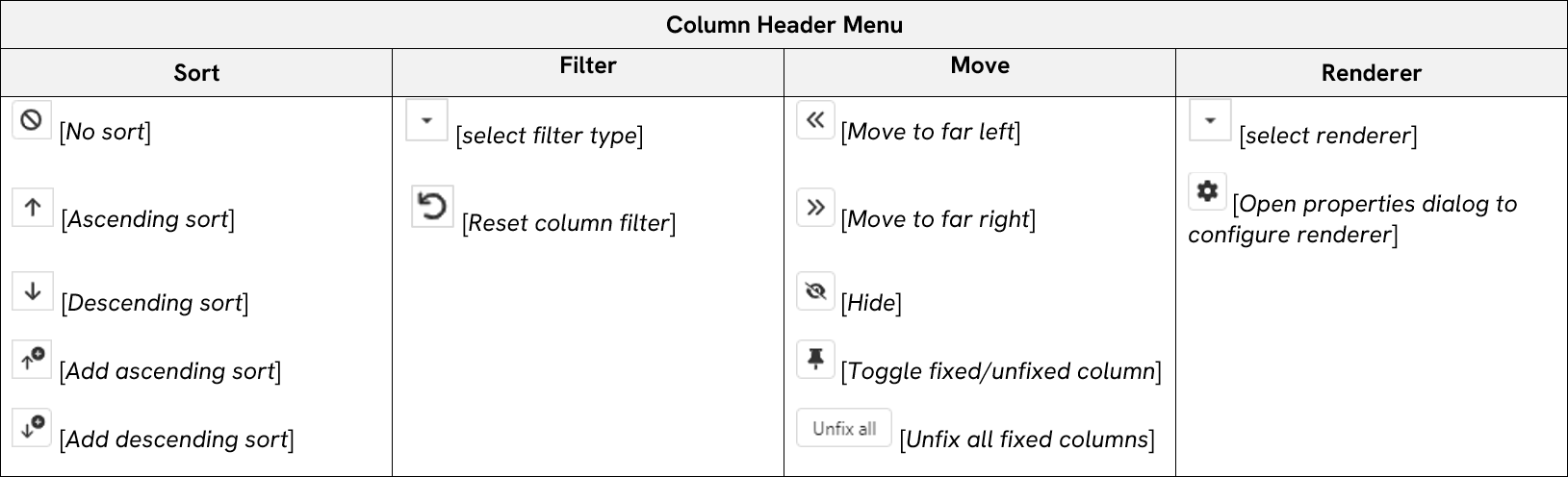

• Column Header Options: Optionally, users can utilize the column header menu to modify a specific colum. From the ChemCharts table, right-click in a column header to access Sort, Filter, Move, and Renderer options. These options can vary according to column type. The table below shows the available column header options.

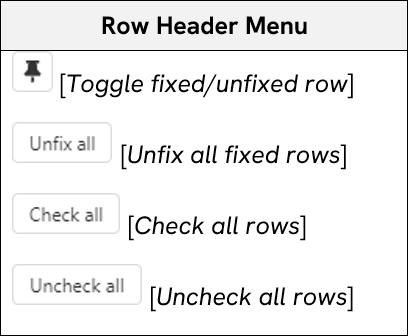

• Row Header Options: Optionally, users can utilize the row header menu to modify a specific row. From the ChemCharts table, right-click in a row header to access fixed/unfixed, as well as check all/uncheck all options. The available row header options are shown in the table below.

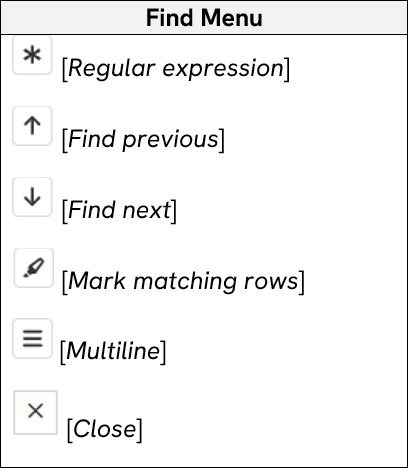

• Find Functionality: Optionally, users can find values/elements within column(s). From the ChemCharts table, right-click and select [Find], then enter an expression to find specific values/elements. The available find options are presented in the table below.

• Transpose Functionality: Optionally, users can utilize the transpose option to switch rows and columns, which can provide a different perspective on the data. From the ChemCharts table, right-click and select [Transpose].
