Signals Inventa: Search for compounds/batches/measurements by structure from the Global Search app

Prior to this task:

✔ Global Search app must be opened.

✔ Data column of type “structure” must be configured for the selected Inventa project.

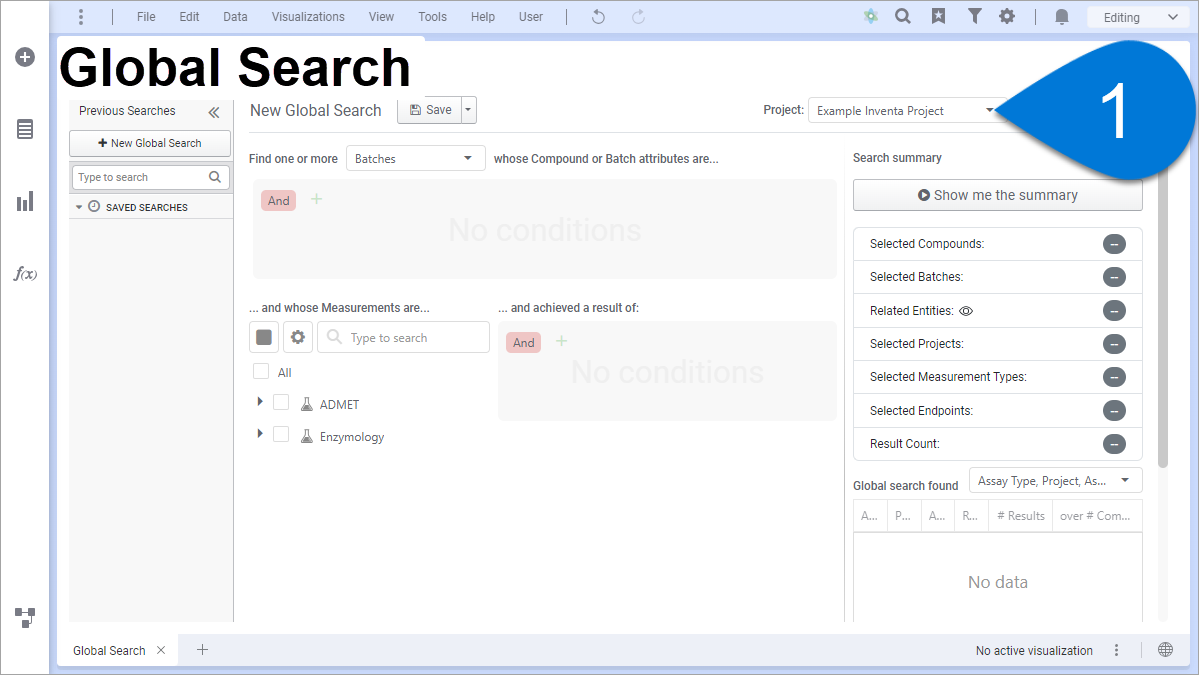

1️⃣ Global Search page ➡ Project ➡ select  [“project name”]

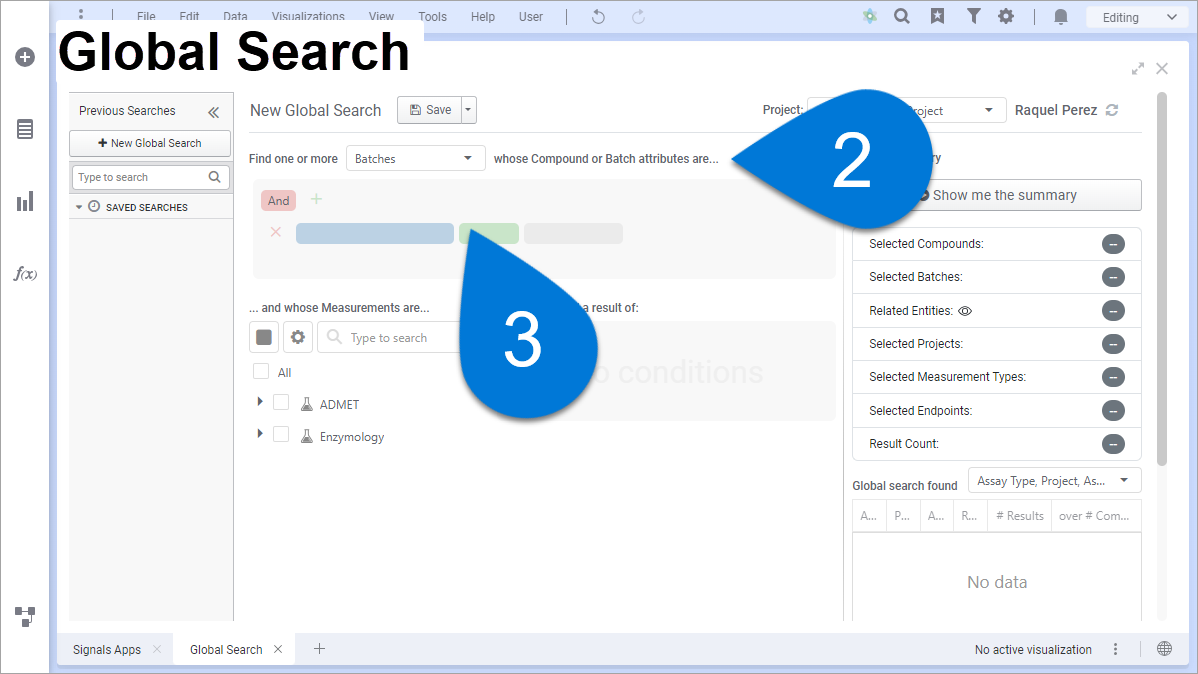

2️⃣ Global Search page ➡ Find one or more ➡ select [Compounds/Batches/Measurements] ➡ whose Compound or Batch attributes are... ➡ select entity (e.g., Compounds) 3️⃣ Global Search page ➡ Filter builder widget ➡ select  [add icon] ➡ select Add Condition ➡ select/enter [Compound] Structure]  [contains/equals/similar to] [“value”]

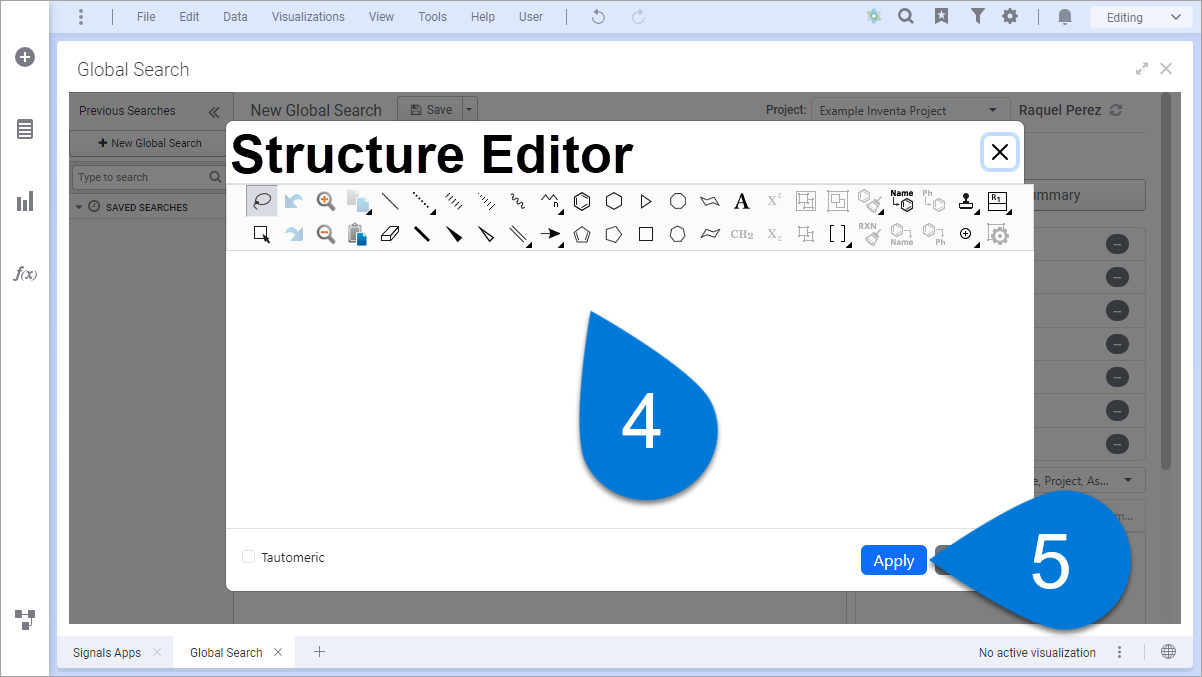

4️⃣ Structure Editor window ➡ draw a structure/substructure 5️⃣ Structure Editor window ➡ select  [Apply]

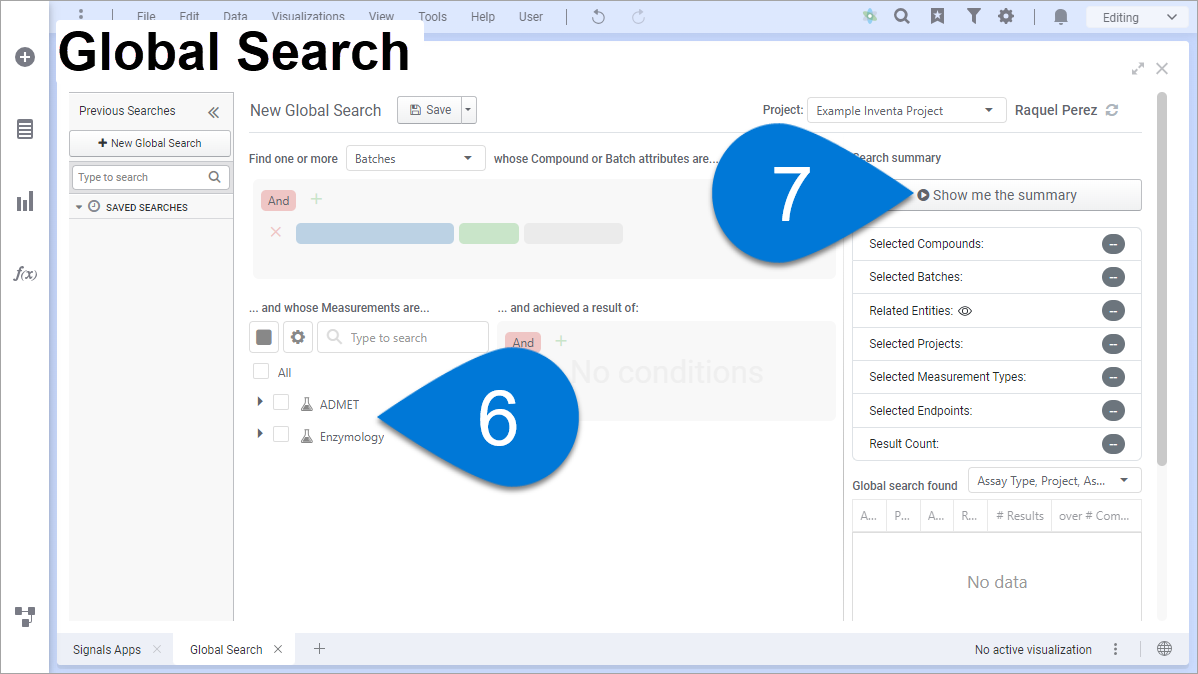

6️⃣ Global Search page ➡ ... and whose Measurements are... ➡ select measurement data sets (e.g., All) 7️⃣ Global Search page ➡ Search summary ➡ select  [Show me the summary]

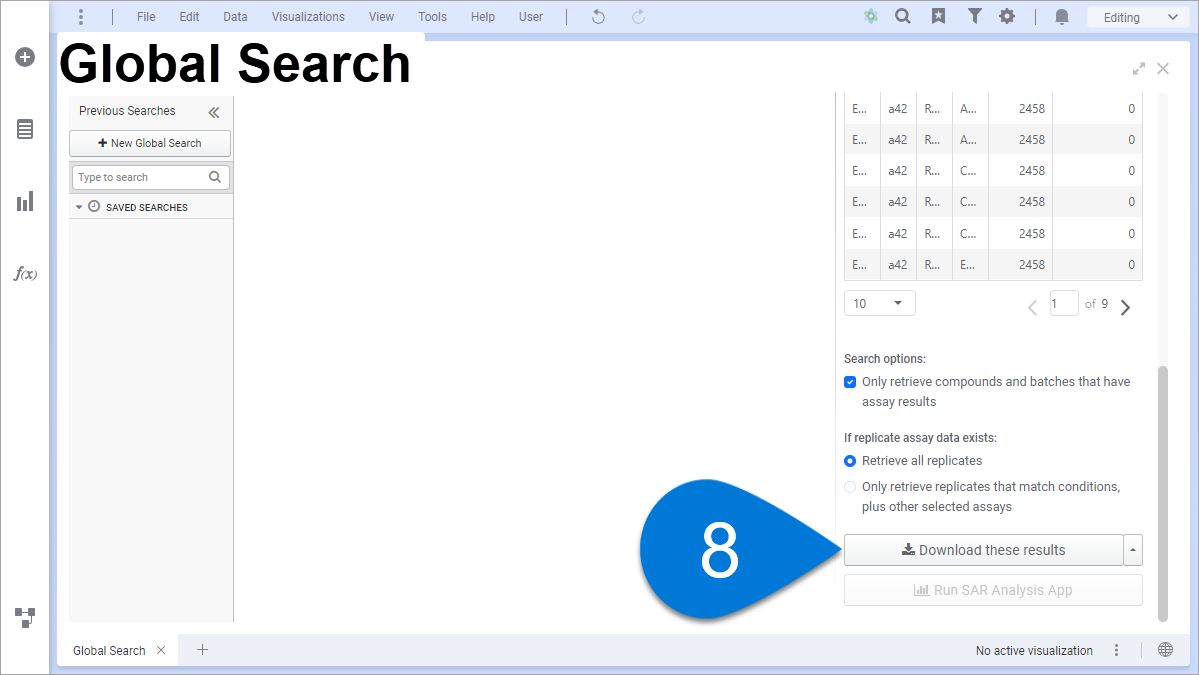

8️⃣ Global Search page ➡ select  [Download these results]

Supporting Knowledge

Notes:

• If no measurement types or data are selected, only data directly associated with Compounds or Batches is downloaded (i.e., no measurement results).
• The options available in the bottom of the Structure Editor window will change depending on which operation field ("contains," "equals," or "similar to") is selected.

Optionally, under ...and achieved a result of:, the user can apply additional filters on measurement attributes.

Optionally, beneath the summary, under Search options, the user can select empty result exclusion and replicate options.
