Signals Inventa: Add a group(s) of compounds to the Venn diagram visualization from the SAR Analysis app

Prior to this task:

✔ SAR Analysis app must be opened from Global Search.

✔ At least two groups of compounds must be created.

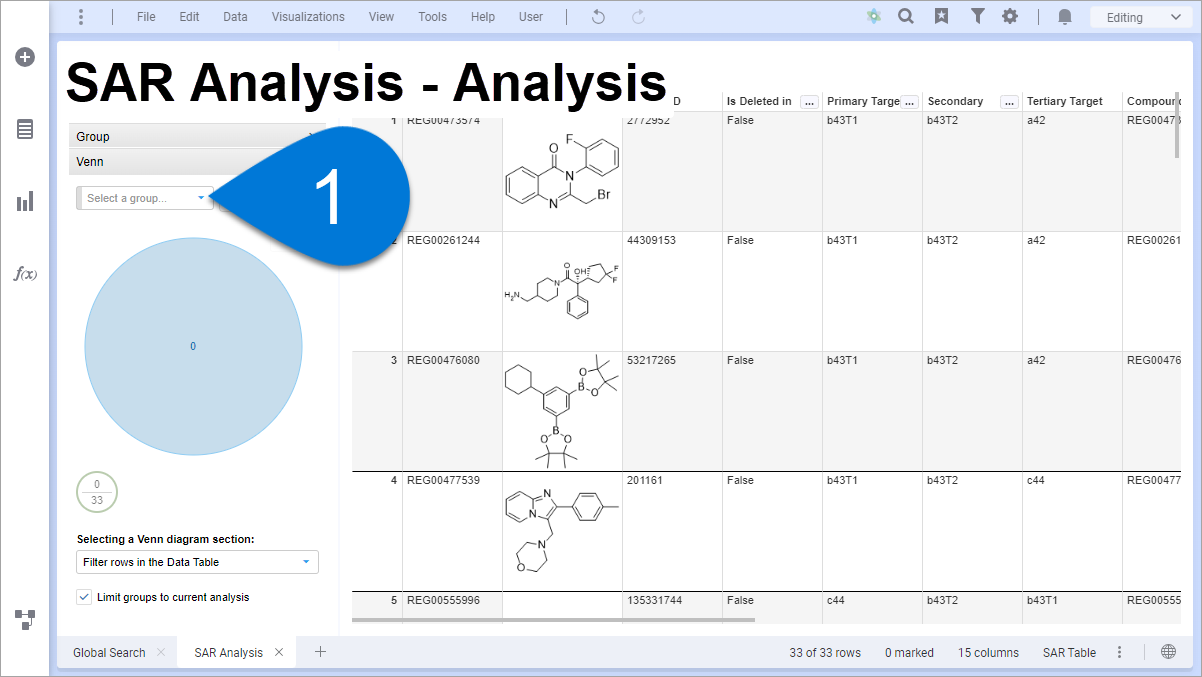

1️⃣ SAR Analysis – Analysis tab ➡ Venn ➡ select  [Select a group...] ➡ select group

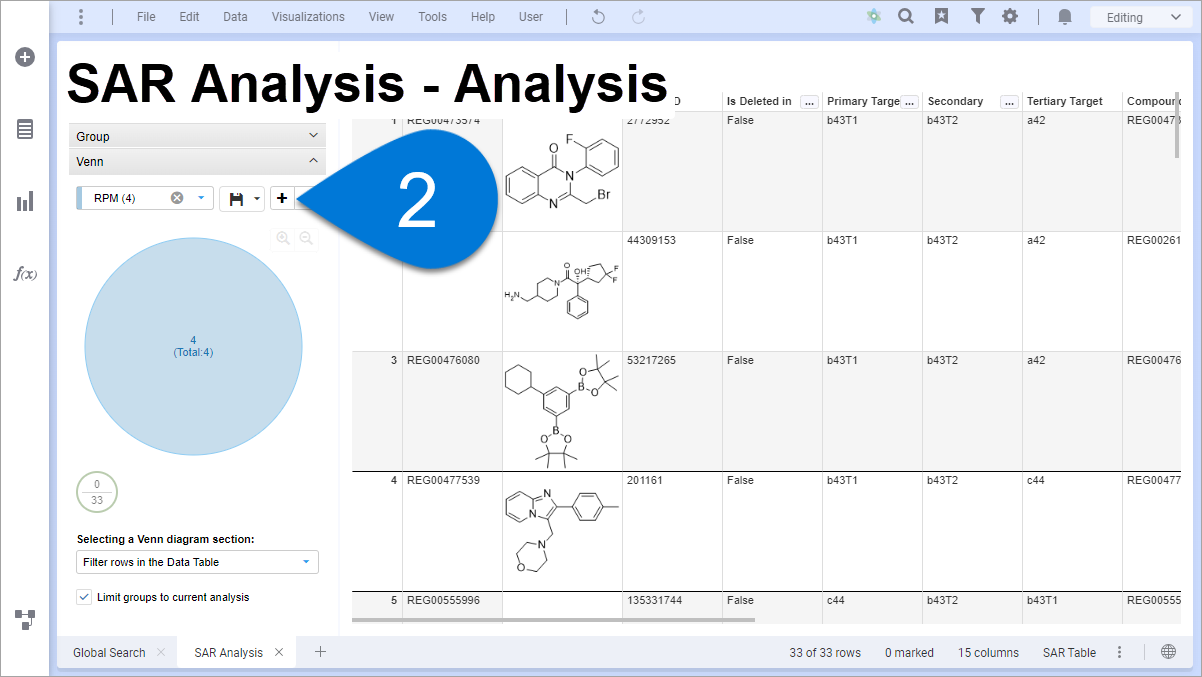

2️⃣ SAR Analysis – Analysis tab ➡ Venn ➡ select  [Add a new group select item]

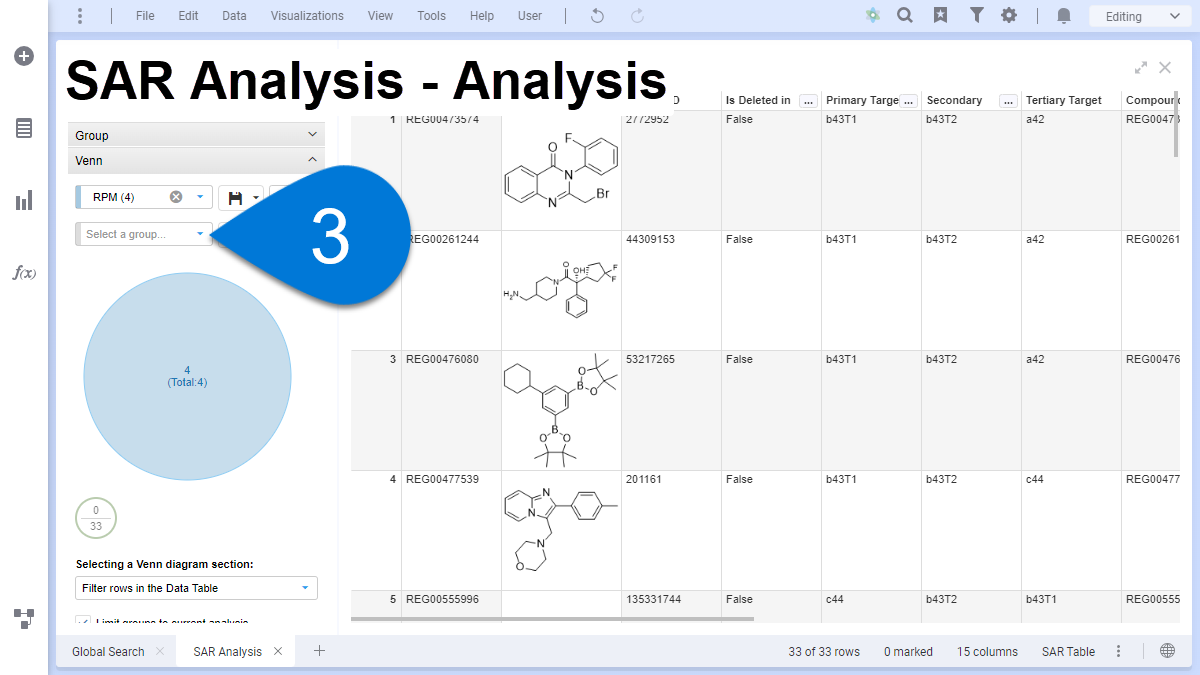

3️⃣ SAR Analysis – Analysis tab ➡ Venn ➡ select  [Select a group...] ➡ select group

Supporting Knowledge

Note: A maximum of 5 groups can be added to the Venn diagram.

Optionally, to choose how to visualize the compounds in the data table, go to the SAR Analysis – Analysis tab, then go to the Venn section and select from the options under Selecting a Venn diagram.

Optionally, the user can limit the group in the Venn diagram to display only the items in the current data set by enabling the Limit groups to current analysis checkbox in the Venn section of the SAR Analysis – Analysis tab.

Optionally, when using the sections in the Venn diagram, a right click menu is available for several actions:  [Add marked items into area],  [Remove marked items from area], and [Save marked items as new Group]. In addition, the user can save a selected area in the Venn diagram as a new group by selecting [Save area as new Group].
