Modify the properties of a region in the ChemCharts Biomolecule viewer

Prior to this task:

✔ ChemCharts Biomolecule viewer visualization must be added.

✔ At least one region must be added in the sequence viewer.

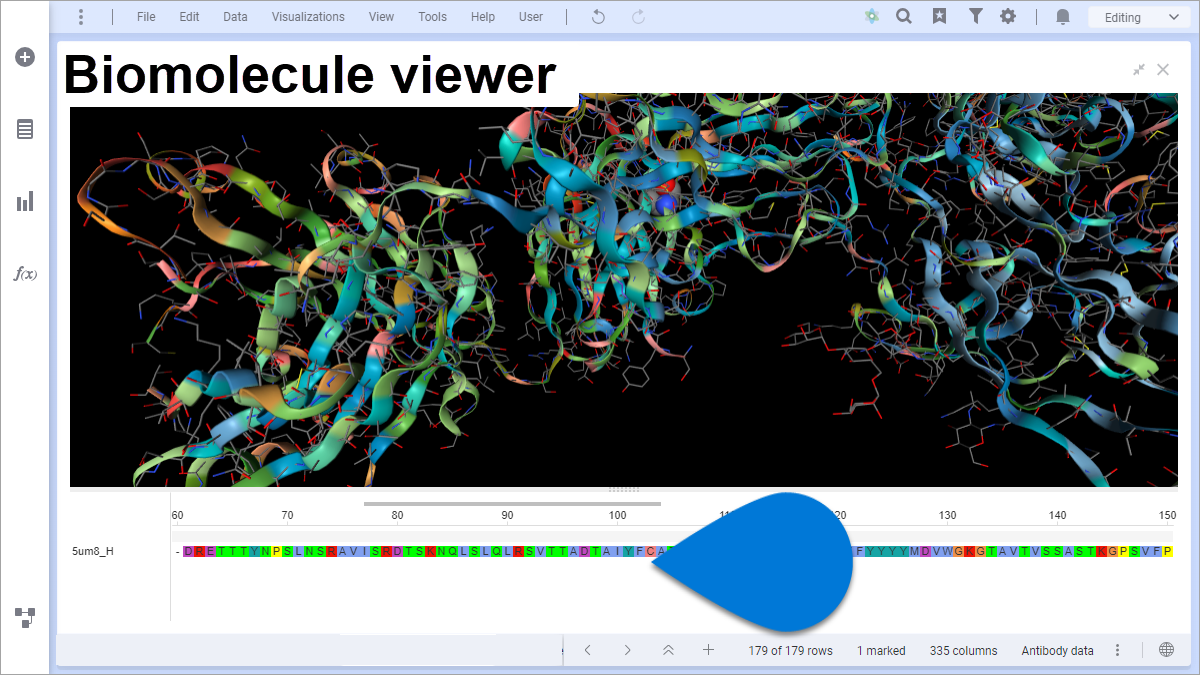

1️⃣ ChemCharts Biomolecule viewer ➡ right-click and select Region ➡ select Properties

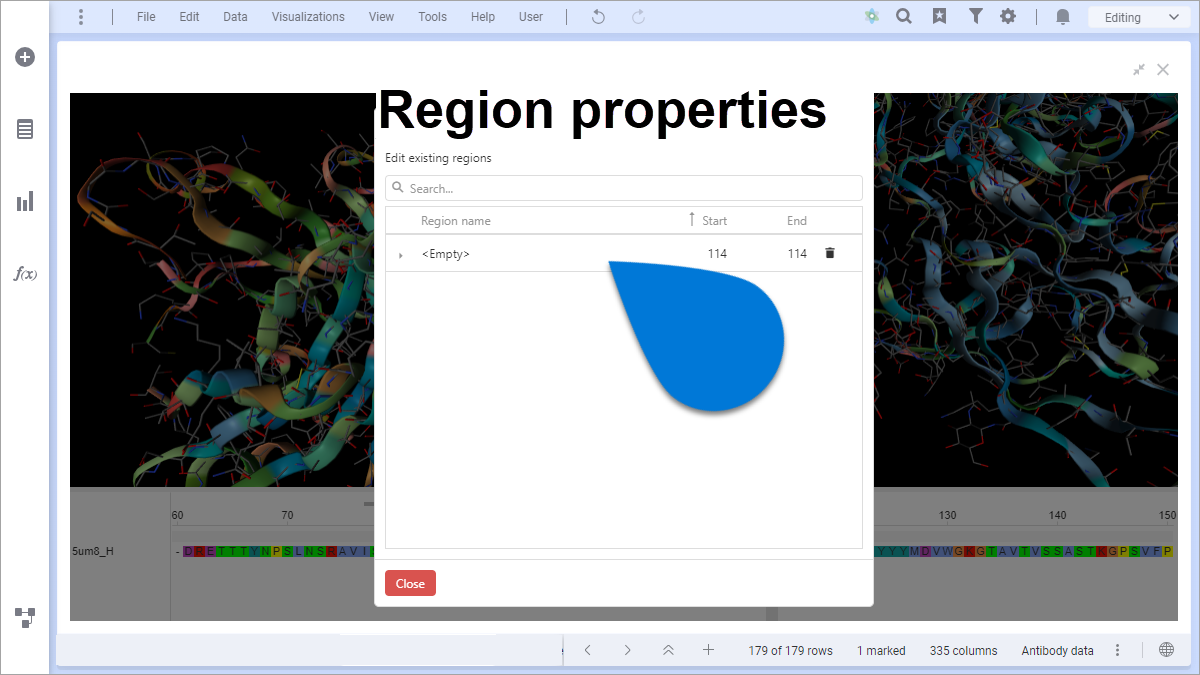

2️⃣ Region properties window ➡ Edit existing regions ➡ select region ➡ modify Region name Start End

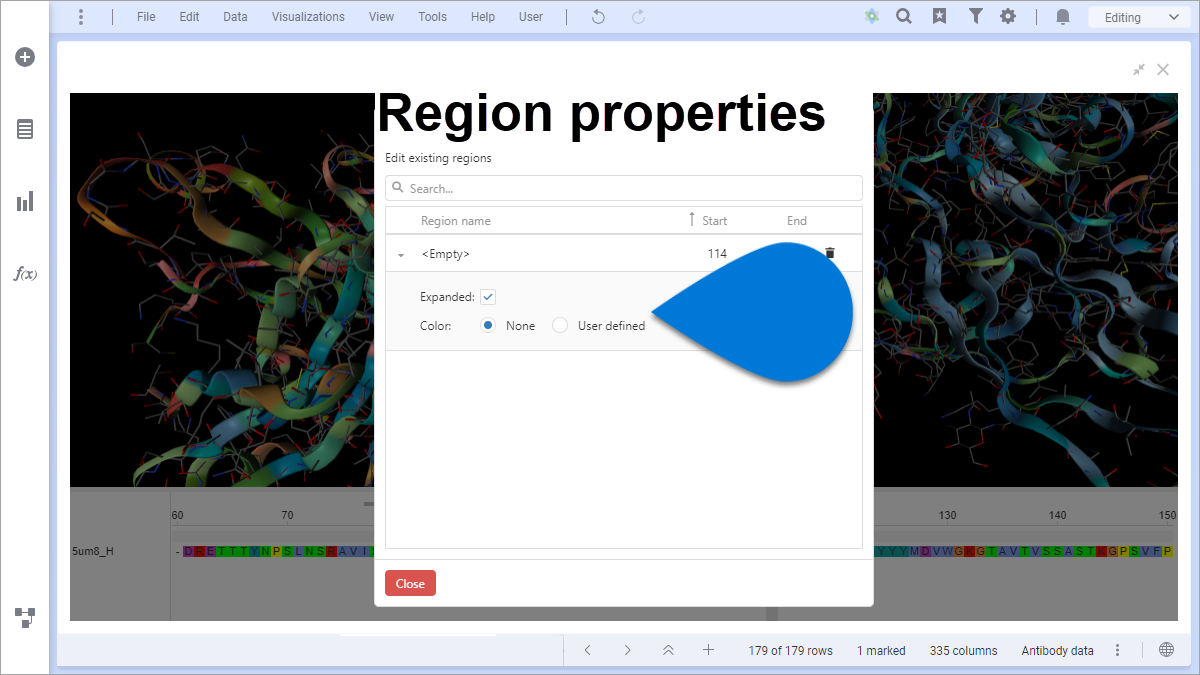

3️⃣ Region properties window ➡ select [expand icon] ➡ select Expanded Color ➡ modify color

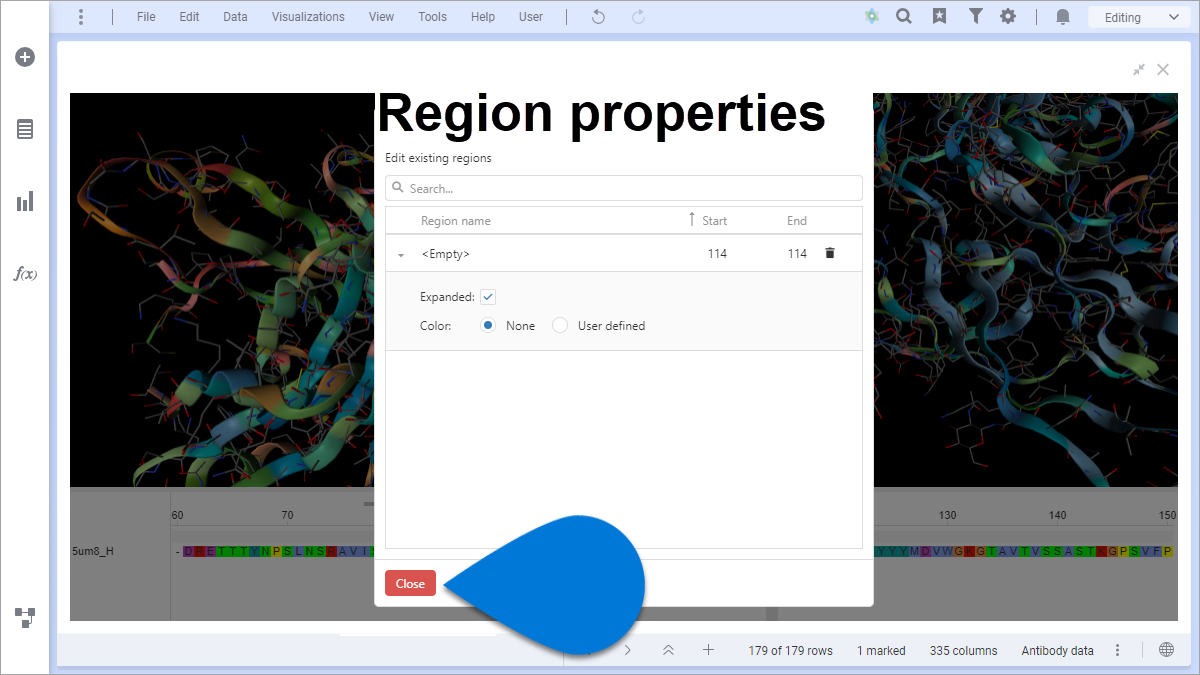

4️⃣ Region properties ➡ select [Close]

Supporting knowledge

Optionally, the user can delete a region. From the Region properties window, select the [Remove region] icon.
