Lead Discovery Premium: Result of R-Group decomposition is not visible in Spotfire filter panels

Problem:

After a successful run of R-Group decomposition (ChemChart > Chemistry > R-Group decomposition), the generated R-group columns do not appear in Spotfire's filter panel.

Resolution:

By default, R-group columns are generated in Molfile format, which is assigned a binary data type in Spotfire. Columns with a binary data type do not appear in the filter panel. As a workaround, you can change the output format of R-Group columns to SMILES.

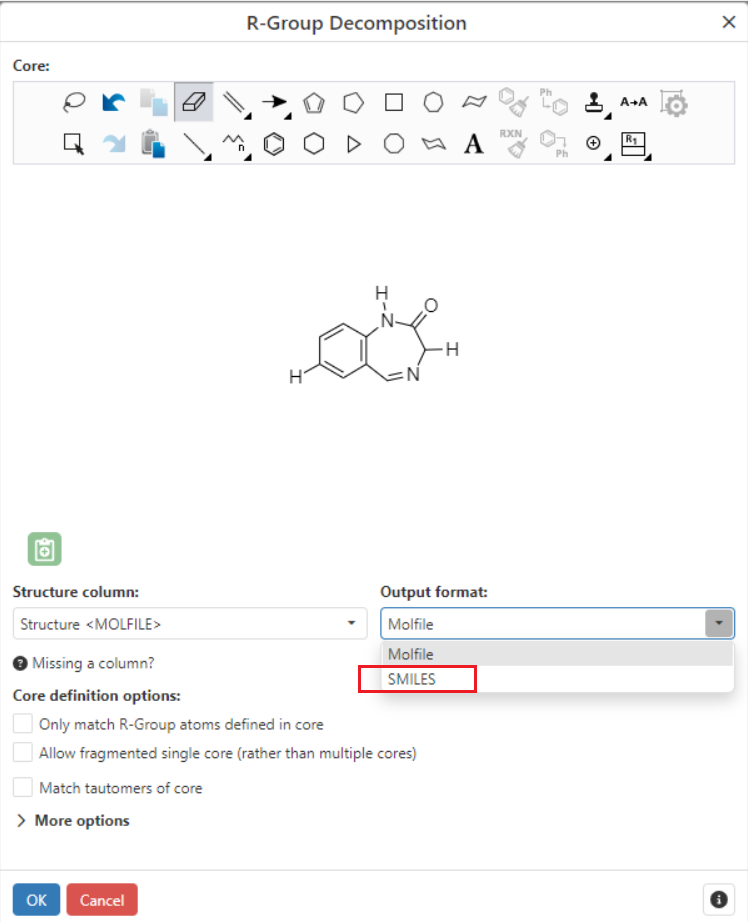

Fig1: Switch output format to SMILES

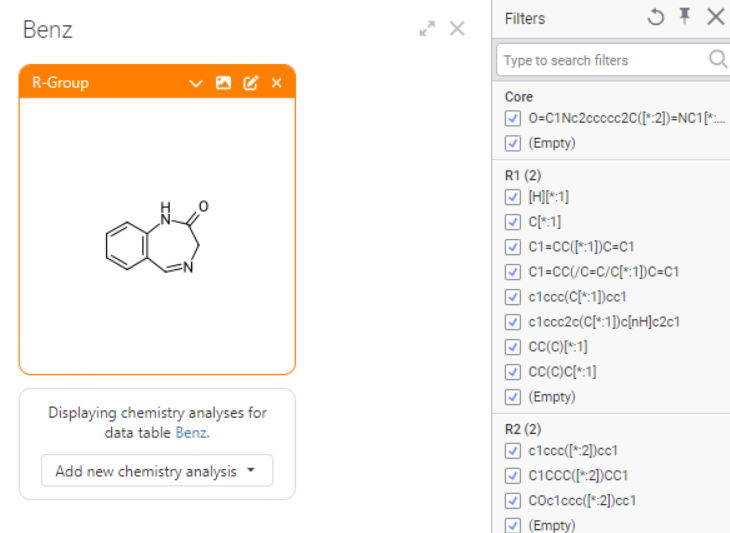

Fig2: Result of R-Group decomposition is now visible in Spotfire filter panel
