Modify ChemCharts Distributions settings from the Properties window

Raquel Perez

Prior to this task:

✔ ChemCharts Distributions visualization must be added.

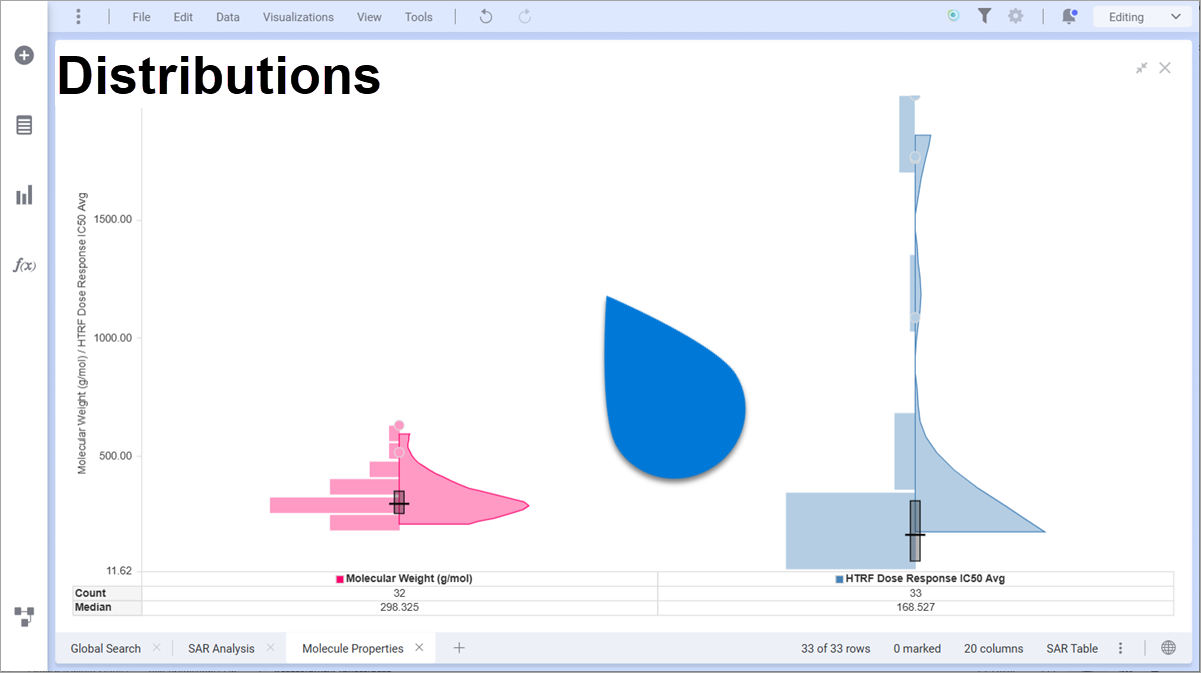

1️⃣ ChemCharts Distributions ➡ right-click and select [Property dialog]

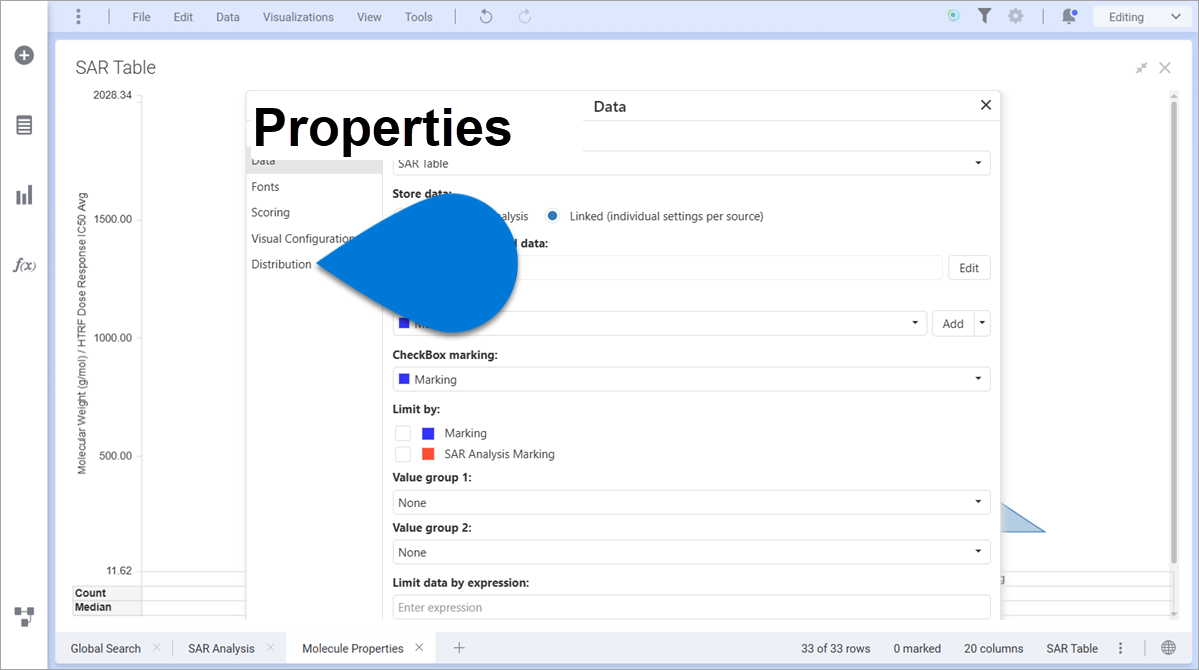

2️⃣ Properties window ➡ select Distribution

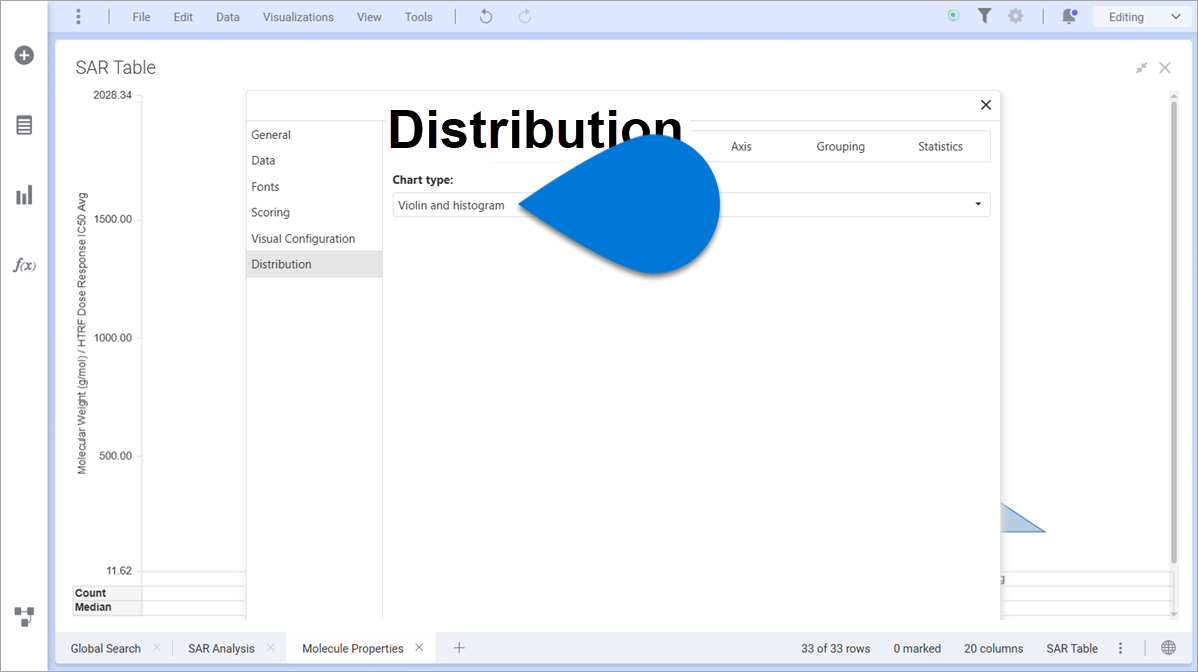

3️⃣ Distribution options ➡ General ➡ select Chart type

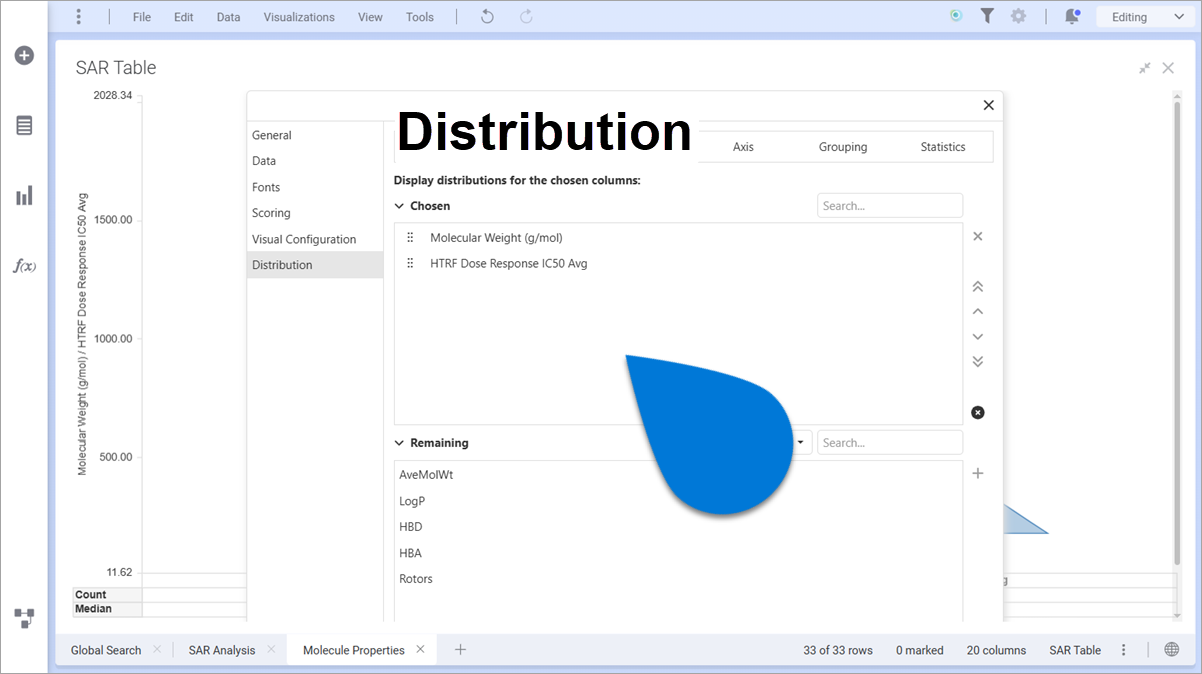

4️⃣ Distribution options ➡ select Distributions ➡ Chosen ➡ remove columns as needed ➡ Remaining ➡ select column(s)

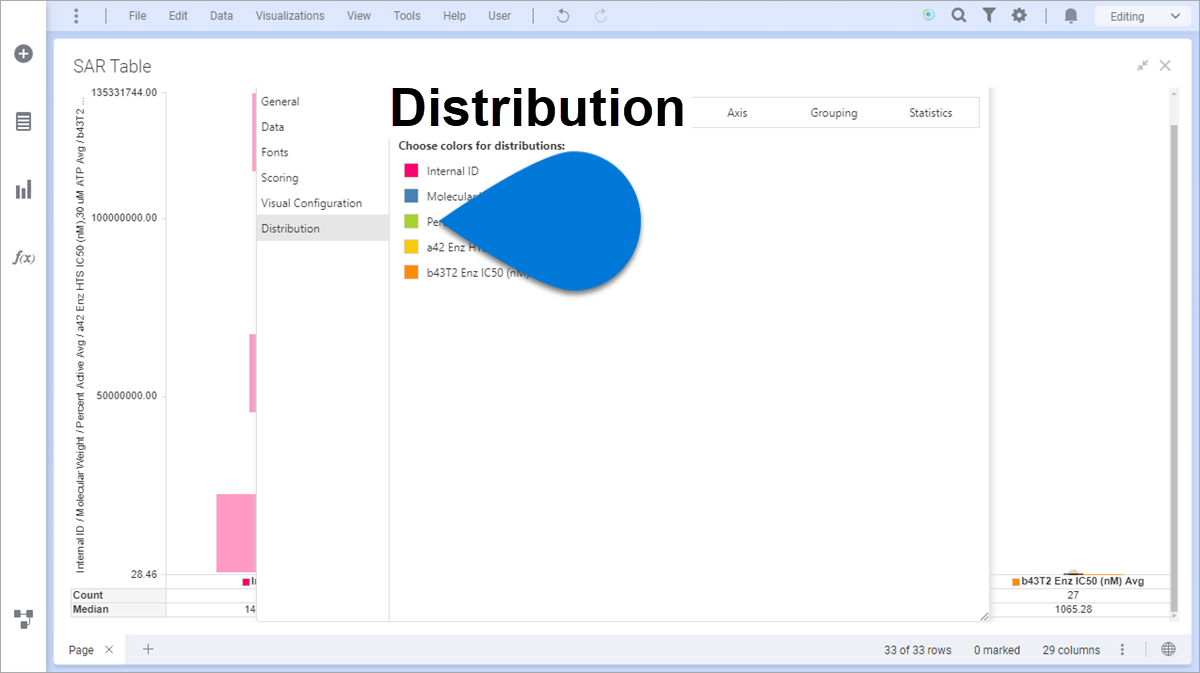

5️⃣ Distribution options ➡ select Color ➡ Choose colors for distributions ➡ select column color

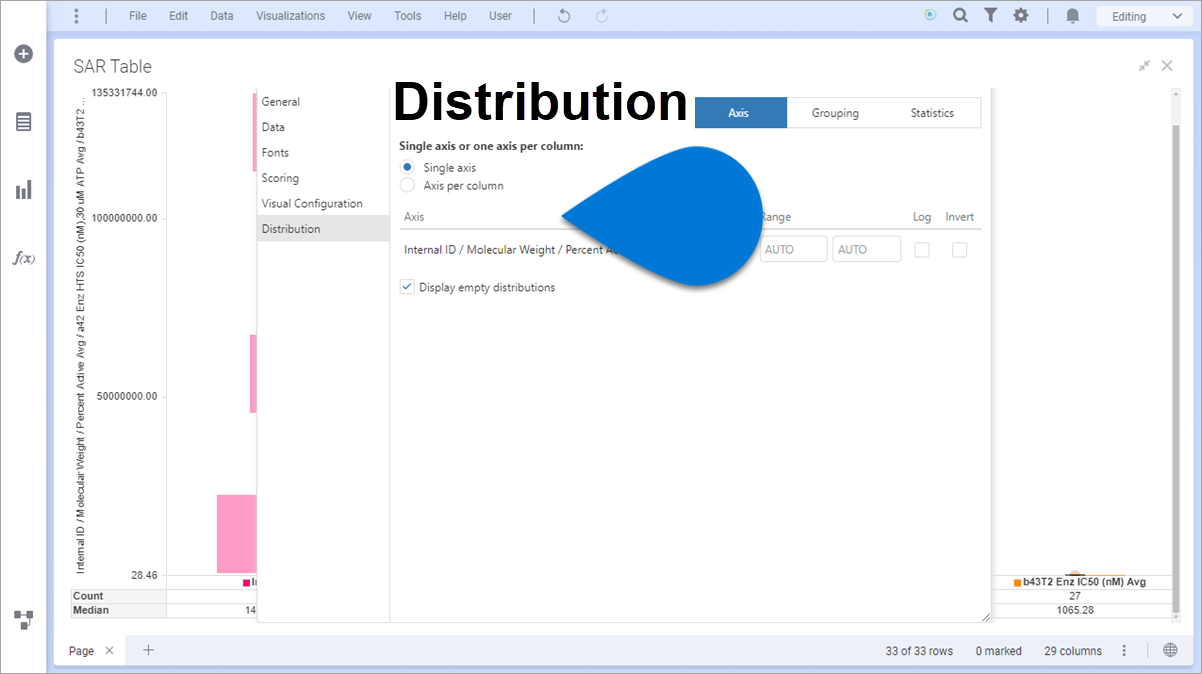

6️⃣ Distribution options ➡ select Axis ➡ Single axis or one axis per column ➡ select option

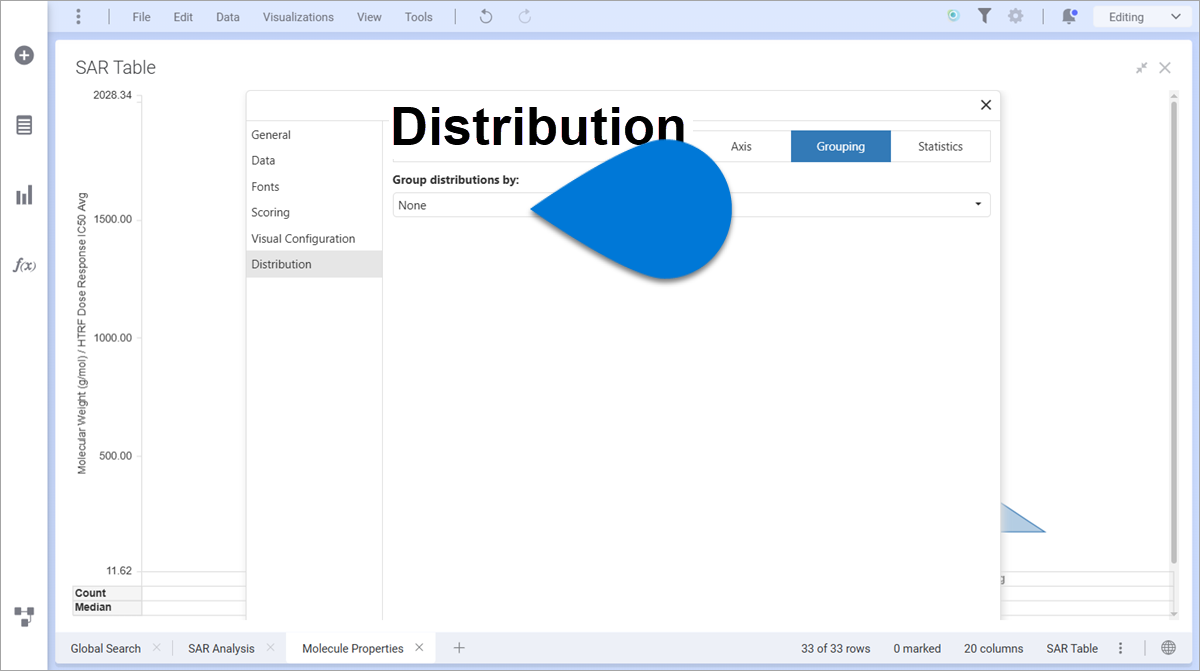

7️⃣ Distribution options ➡ select Grouping ➡ Grouping distributions by ➡ select column

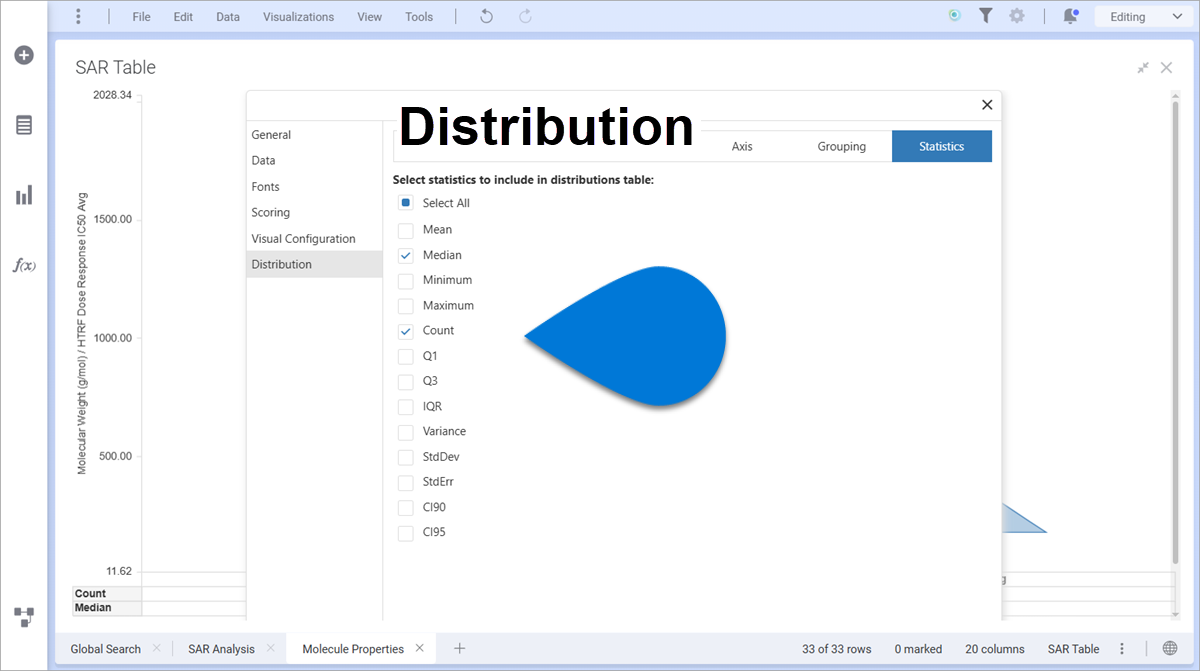

8️⃣ Distribution options ➡ select Statistics ➡ Select statistics to include in distributions table ➡ select statistics option(s)

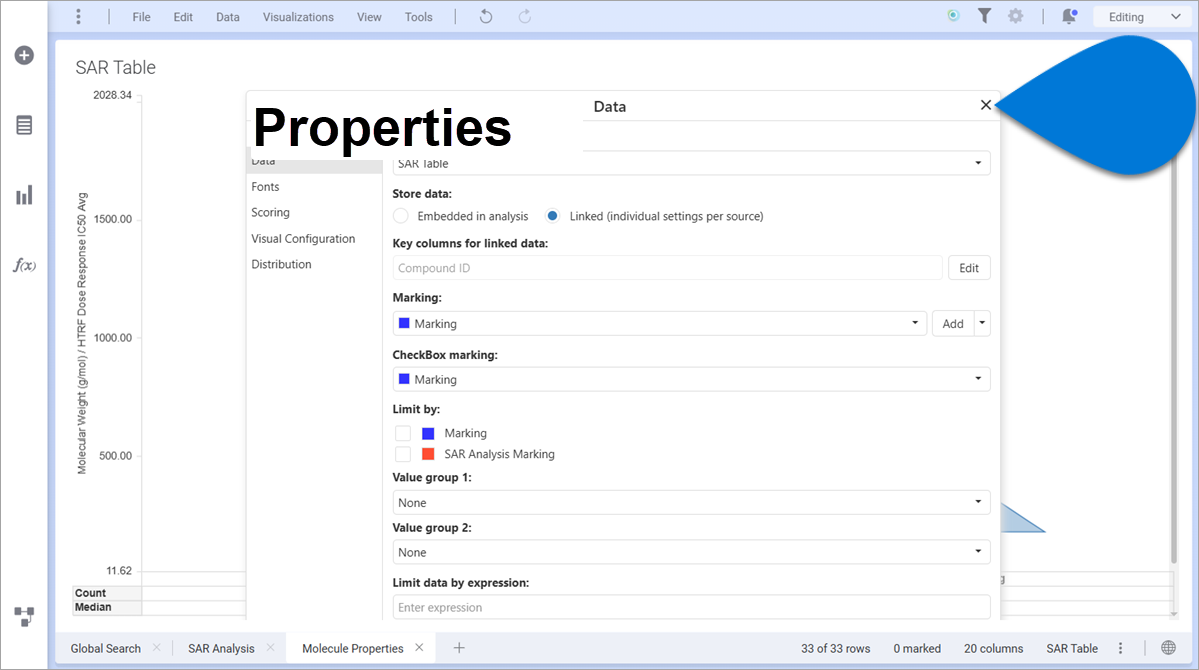

9️⃣ Properties window ➡ select [Close property modal]
