Signals Synergy: Set up ID Sequences for Designs of a Material from Synergy Configuration

For Administrators only.

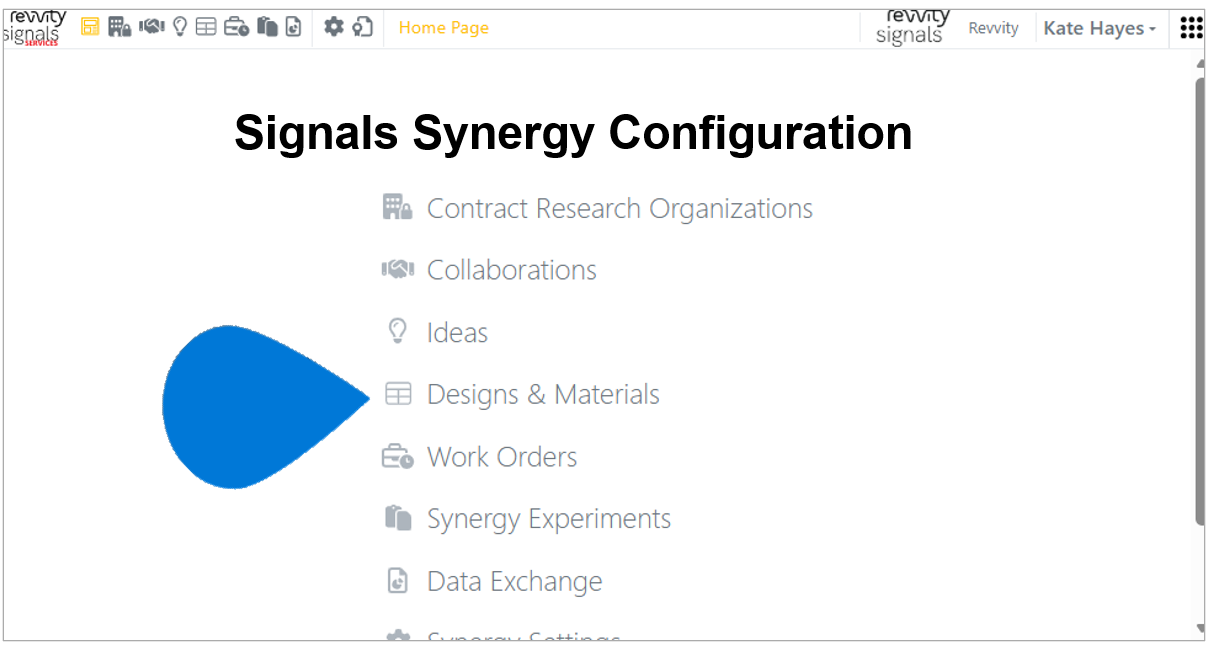

1️⃣ Signals Synergy Configuration ➡ select  [Designs & Materials]

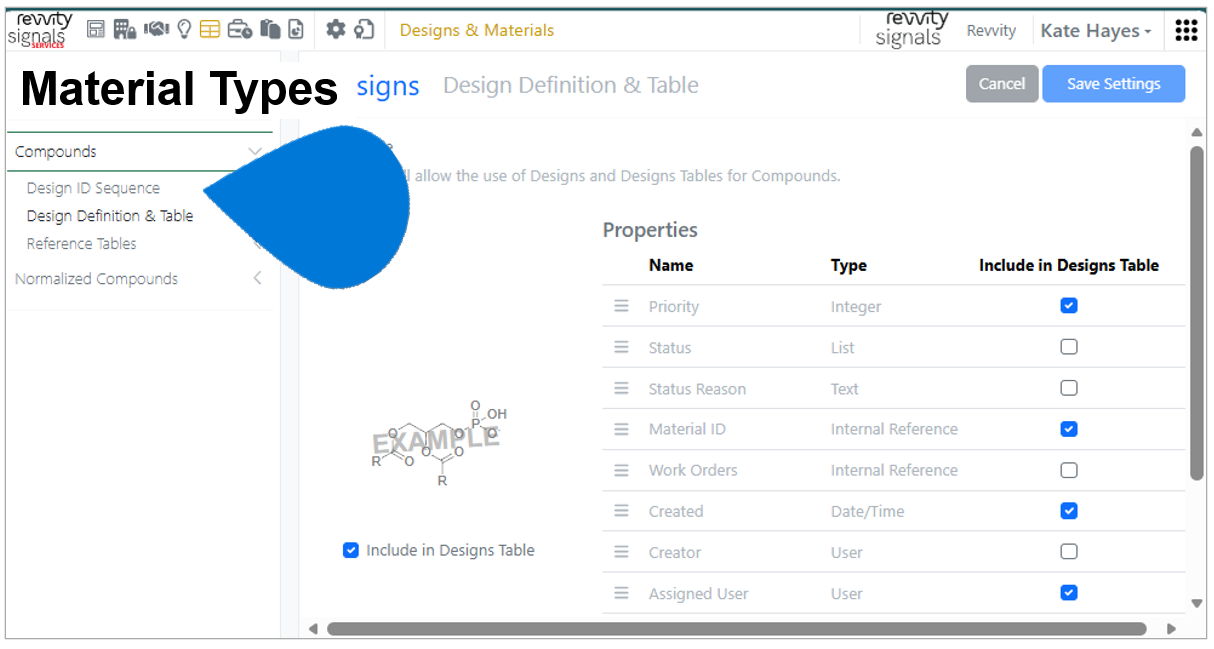

2️⃣ Material Types pane ➡ select Design ID Sequence

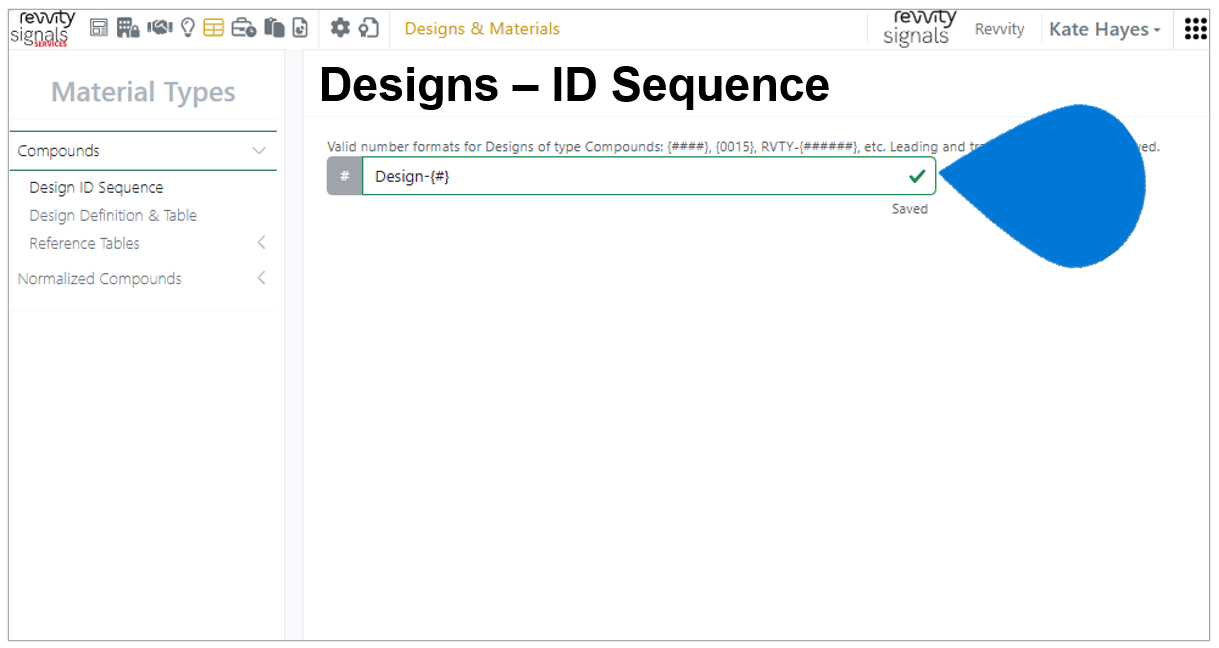

3️⃣ Designs – ID Sequence section ➡ select Include in Design Table

Supporting Knowledge

• Valid number formats for Designs of type Compounds: {####}, {0015}, RVTY-{######}, etc. Leading and trailing spaces are not allowed.
• Leading and trailing spaces are not permitted and will result in validation errors during data entry or import.

Note: The above steps can be applied to both the Compounds and Normalized Compounds Material types. The instructions are identical; however, the same subsection should be selected under Normalized Compounds in the Material Type side setting pane, rather than the Compounds subsection pictured above.
