Signals Notebook: How to add columns from chemical reactions in Parallel sub experiment

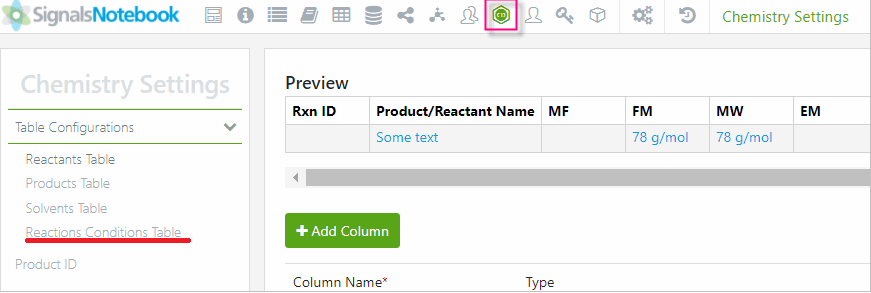

1: Click on Chemistry Settings smart folder or click on Chemistry Settings link in the Signals Notebook System Configuration home page and navigate to Reactions Conditions tables

2: Add new column , define a name for the new column and Select the field type from the Type dropdown list.

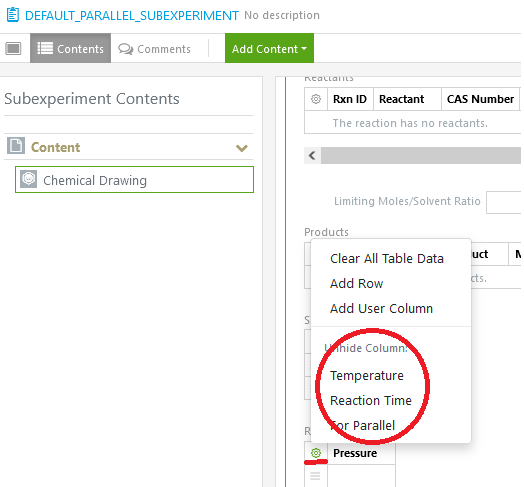

3: Please go to DEFAULT_PARALLEL_SUBEXPERIMENT > Reaction Conditions and click on the table action icon and unhide the column created in step 2.
