Signals Notebook: How to auto populate the CAS number when a Reagent from Materials Library is added as a reactant in Chemical Drawing

Details:

We need to enable Stoichiometry Mapping for Reagents to auto populate CAS number and other fields from Reagent Materials Library. To enable Stoichiometry Mapping please follow the steps given below:

1. Log in to Signals Configuration
2. Click on Materials smart folder and then click on your Reagents library type > Stoichiometry Mapping
3. In the Stoichiometry Mapping page, check the Enable checkbox.

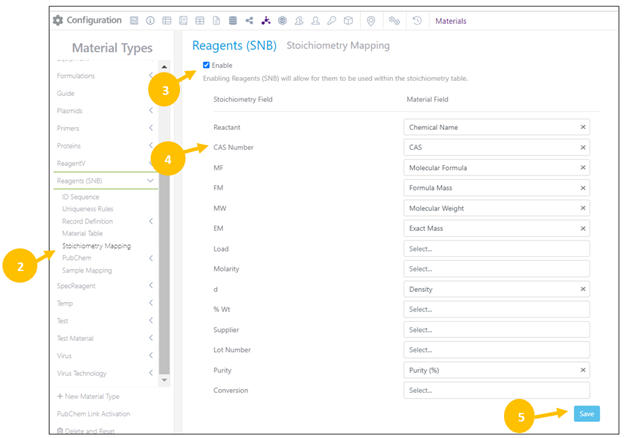

4. Map the Stoichiometry fields (e.g.: CAS Number) to the corresponding Material fields (e.g.: CAS) as shown below.
   Note: Only fields having the same units can be mapped.


5. Click Save

This is detailed under Materials > Configuring Reagents (SNB)> Stoichiometry Mapping in the System Configuration Guide.
