Signals Notebook: Add a material(s) to a Materials Table of an experiment in Signals

Prior to this task:

✔ Experiment must be created.

✔ Material library must be created and activated.

✔ Materials table must be added to an experiment.

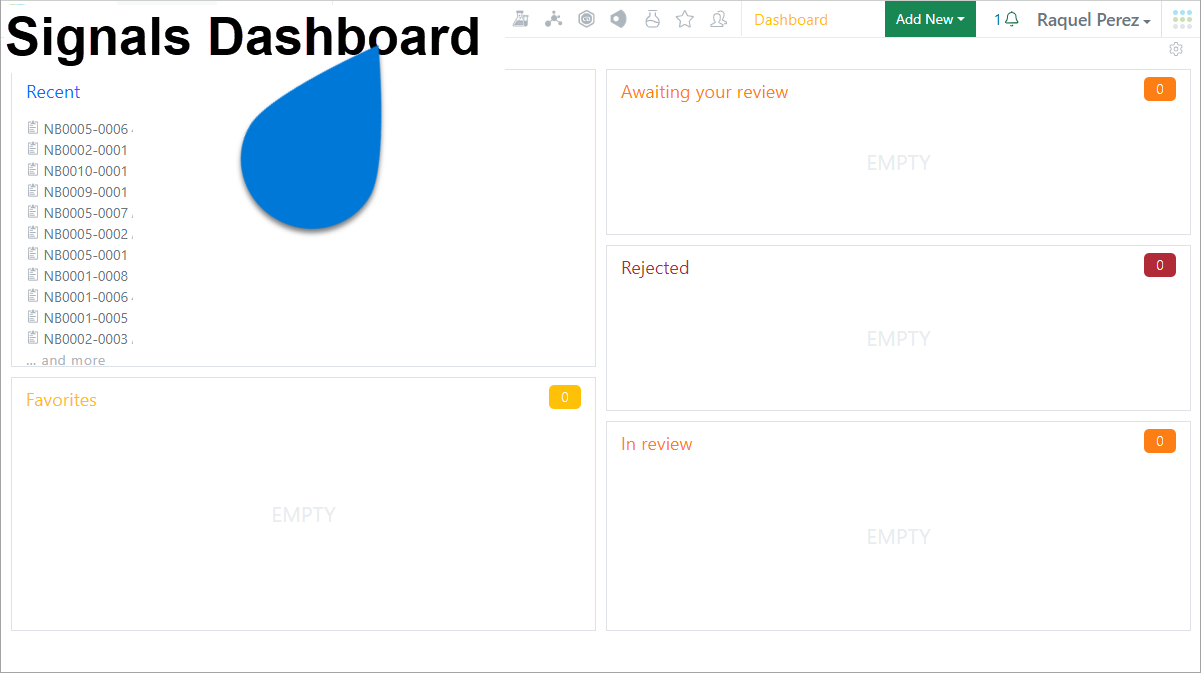

1️⃣ Signals Dashboard ➡ select [Experiments]

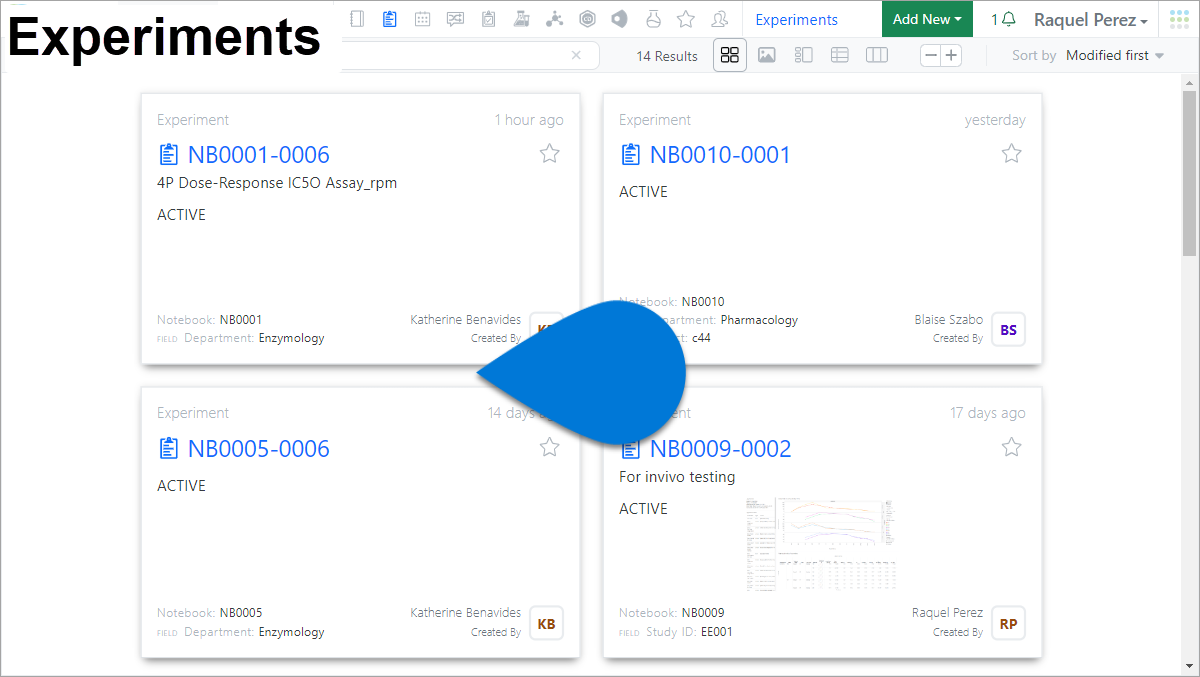

2️⃣ Experiments ➡ select experiment

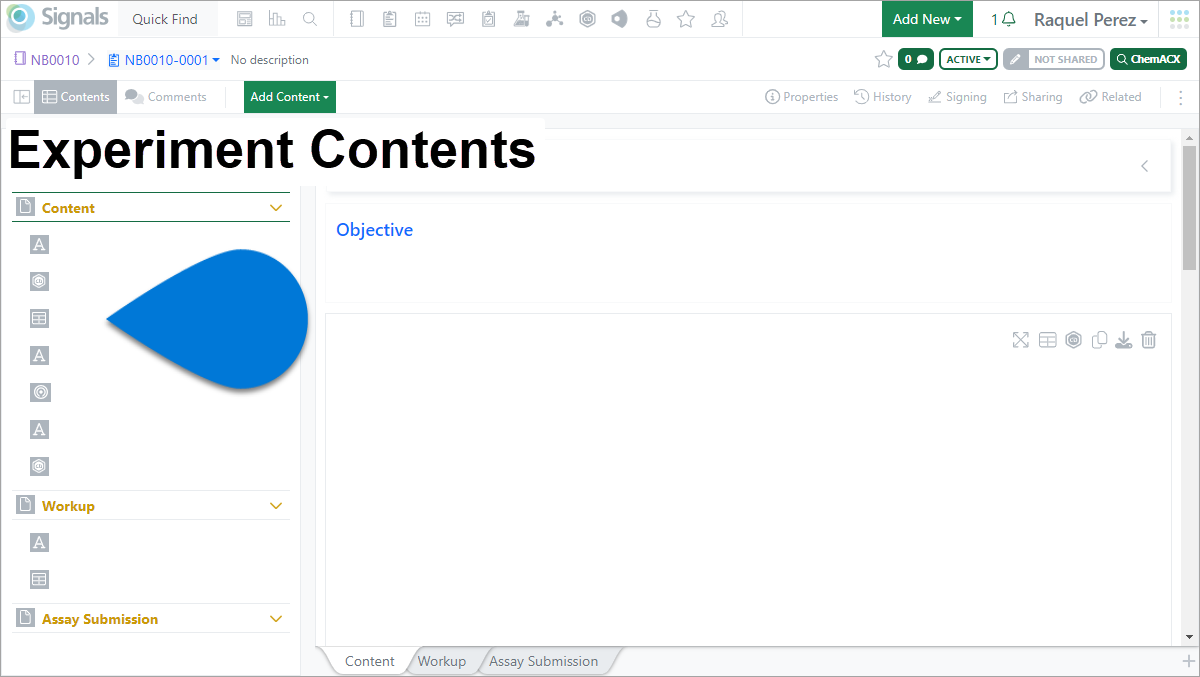

3️⃣ Experiment Contents pane ➡ select [“materials table name”]

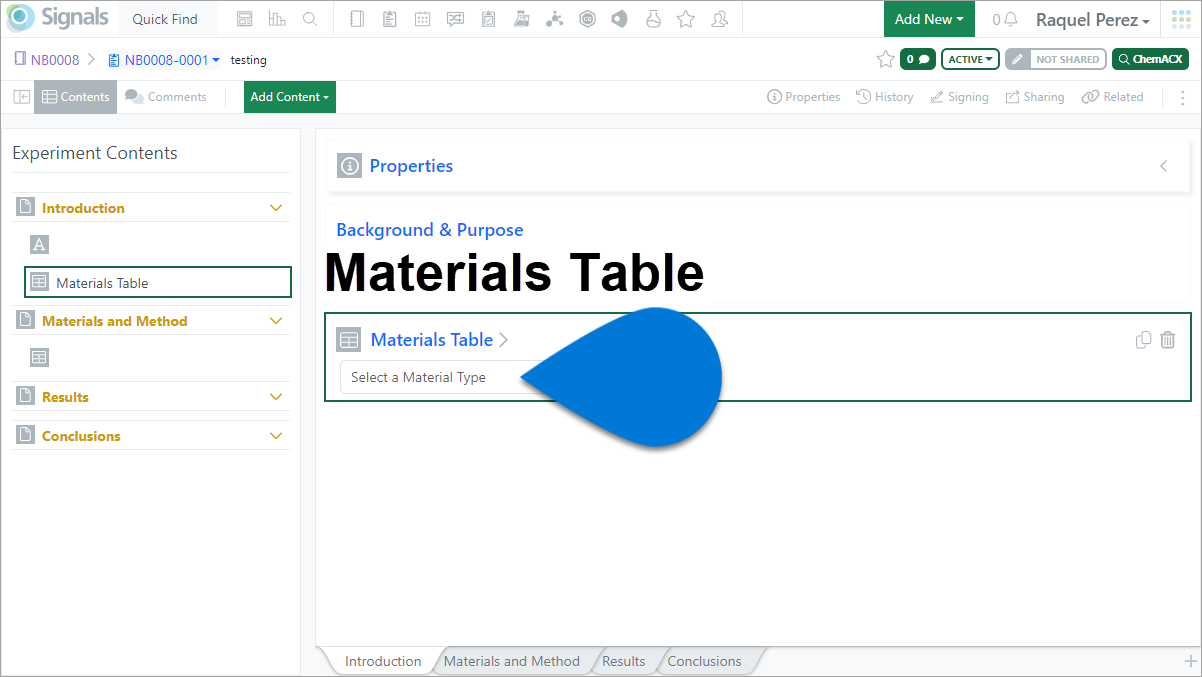

4️⃣ Materials Table section ➡ Select a Material type ➡ select library

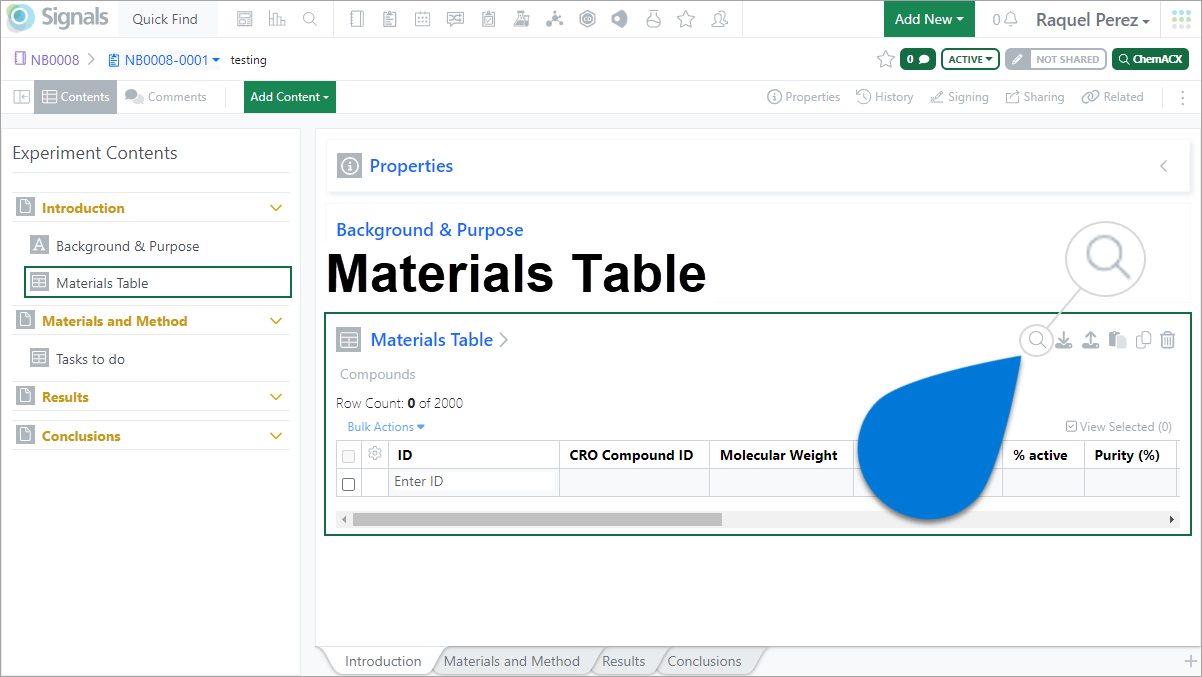

5️⃣ Materials Table section ➡ select [Search for materials]

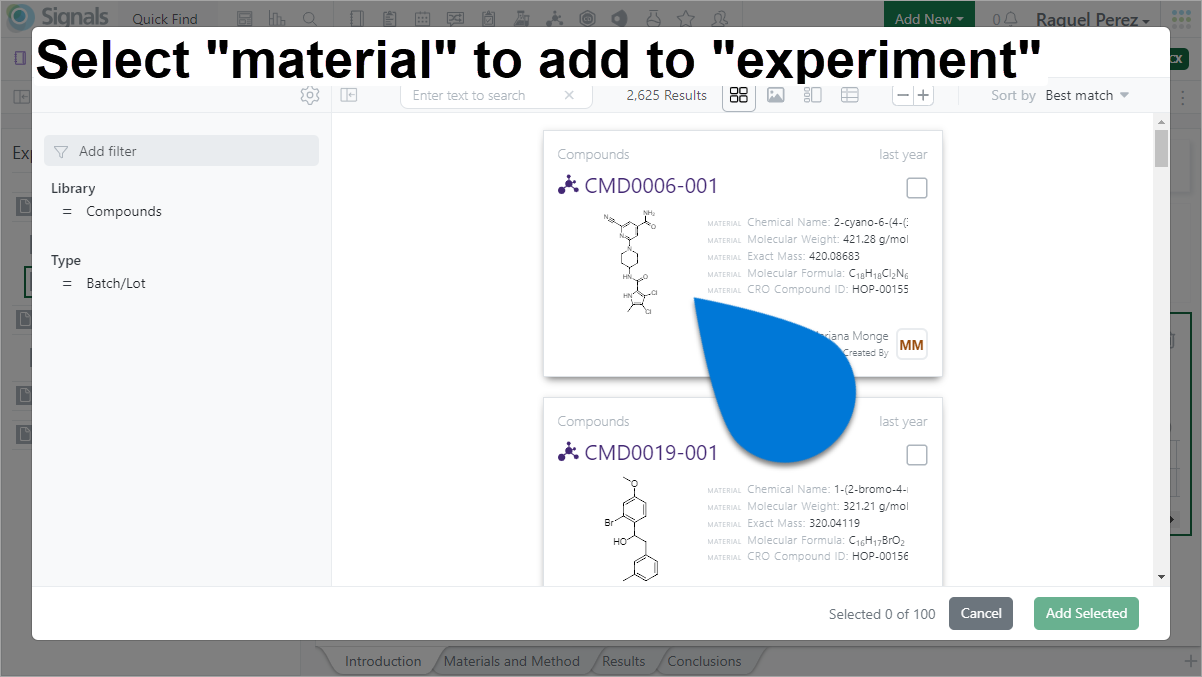

6️⃣ Select “material type” to add to “experiment name” window ➡ select Enter text to search ➡ type material search criteria material(s)

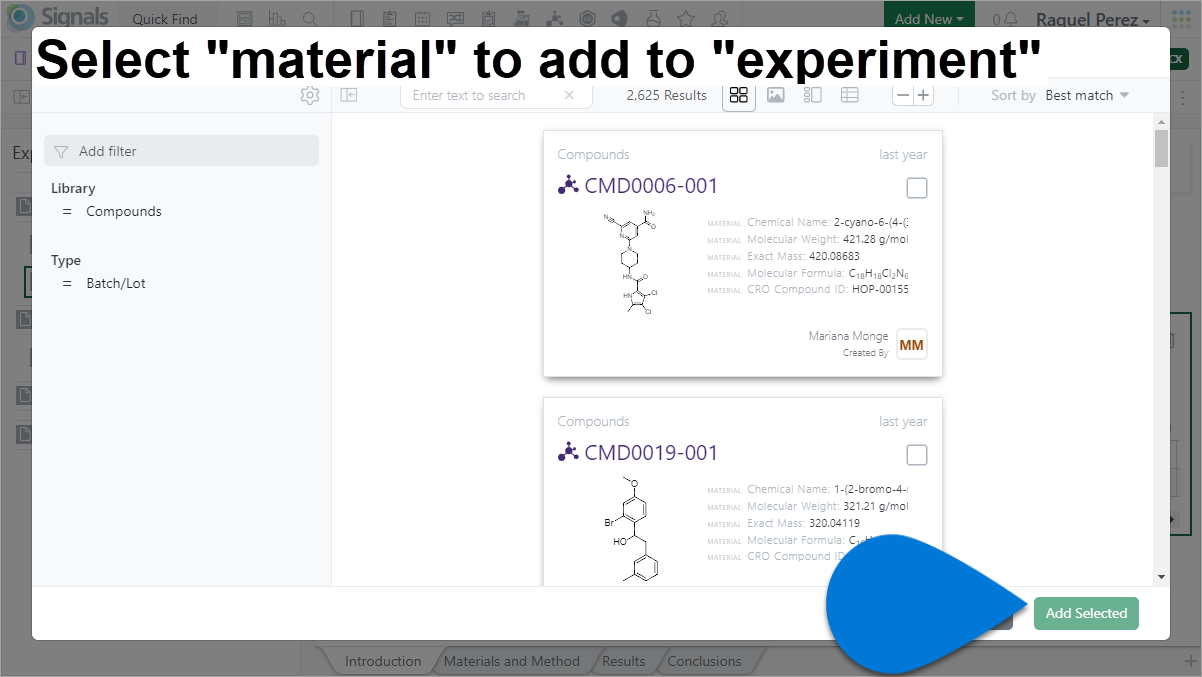

7️⃣ Select “material type” to add to “experiment name” window ➡ select [Add Selected]

Supporting Knowledge

Note: Materials search can be refined by using the filtering options.
