Calculate the solvent volume for a Chemical Reaction using the Limiting Moles/Solvent Ratio in Signals

✔ Experiment must be created.

✔ Chemical Drawing must be added to an experiment.

✔ Reactants and products must be added to a Chemical Drawing.

✔ Solvent must be added to the Solvents table.

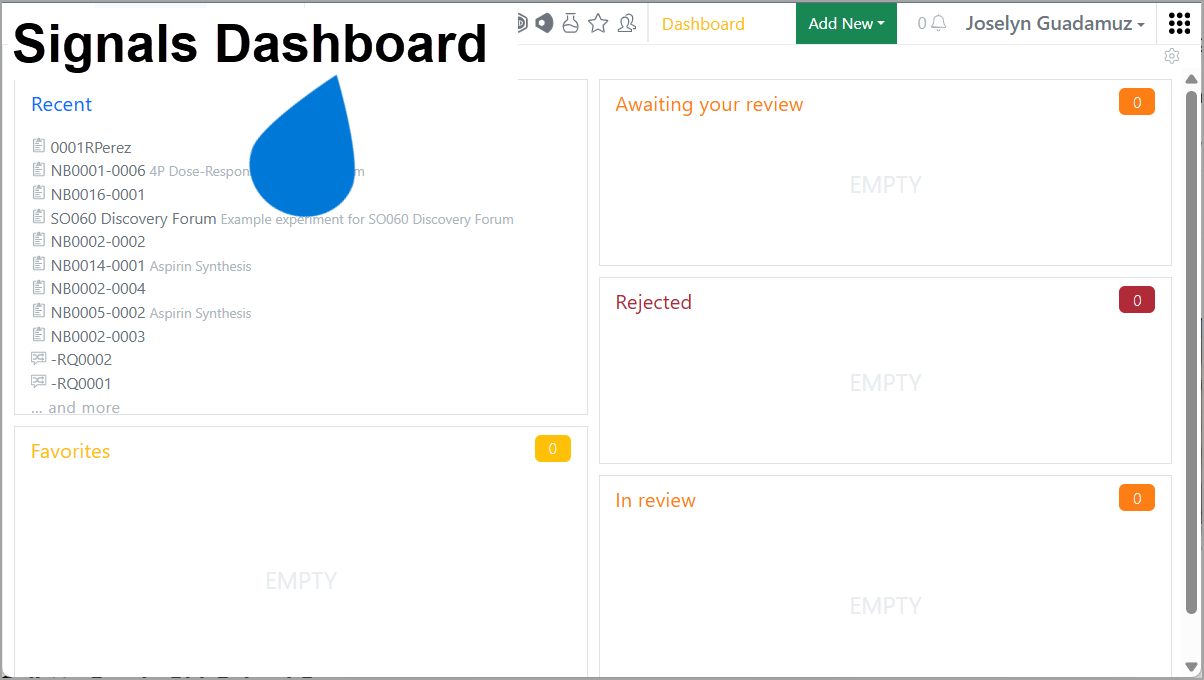

1️⃣ Signals Dashboard ➡ select [Experiments]

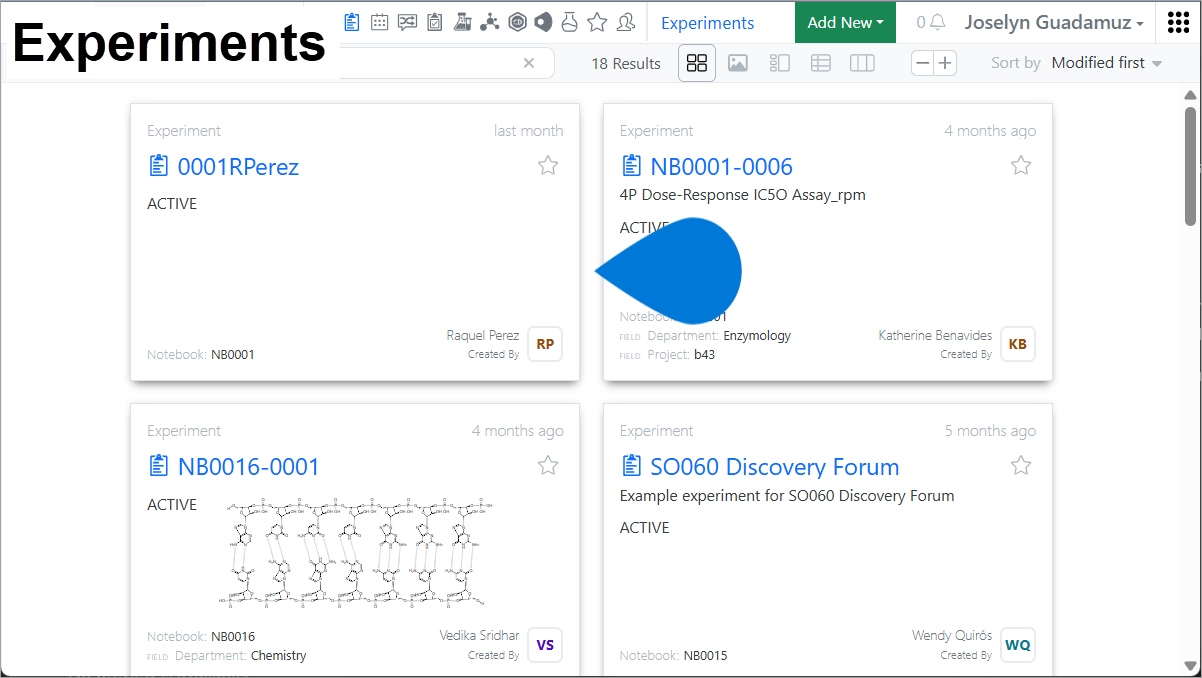

2️⃣ Experiments ➡ select experiment
3️⃣ Experiment Contents pane ➡ select ["chemical drawing name"]

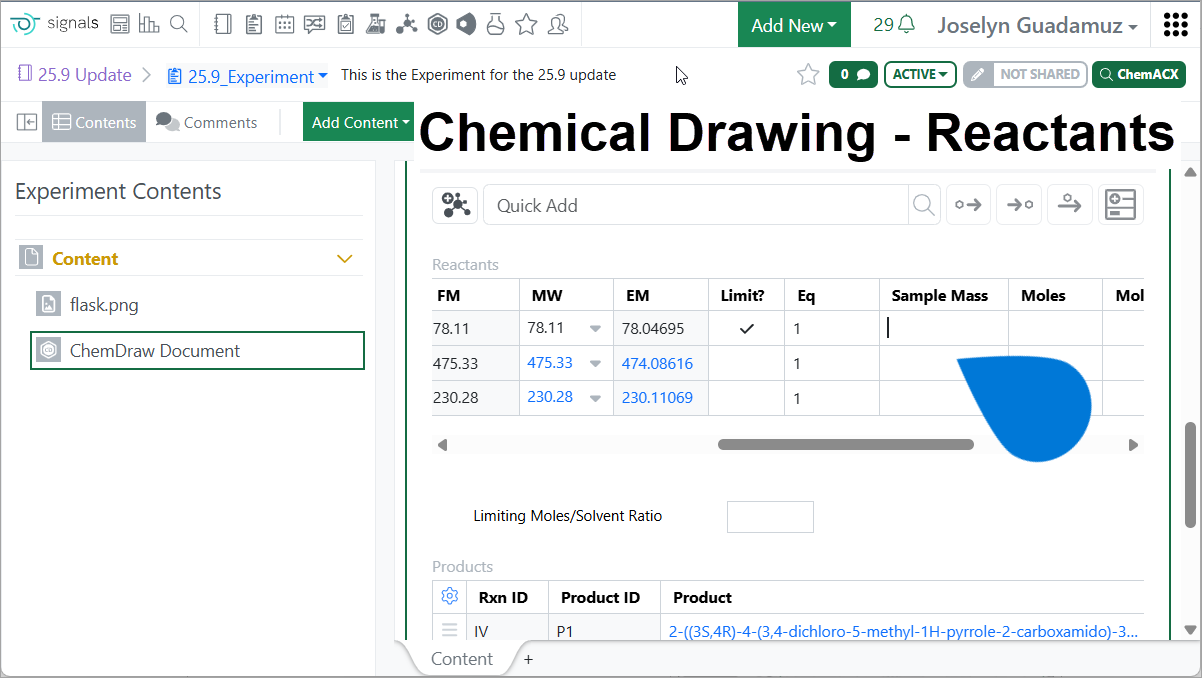

4️⃣ Chemical Drawing - Reactants table ➡ Sample Mass column ➡ enter value for limiting reactant

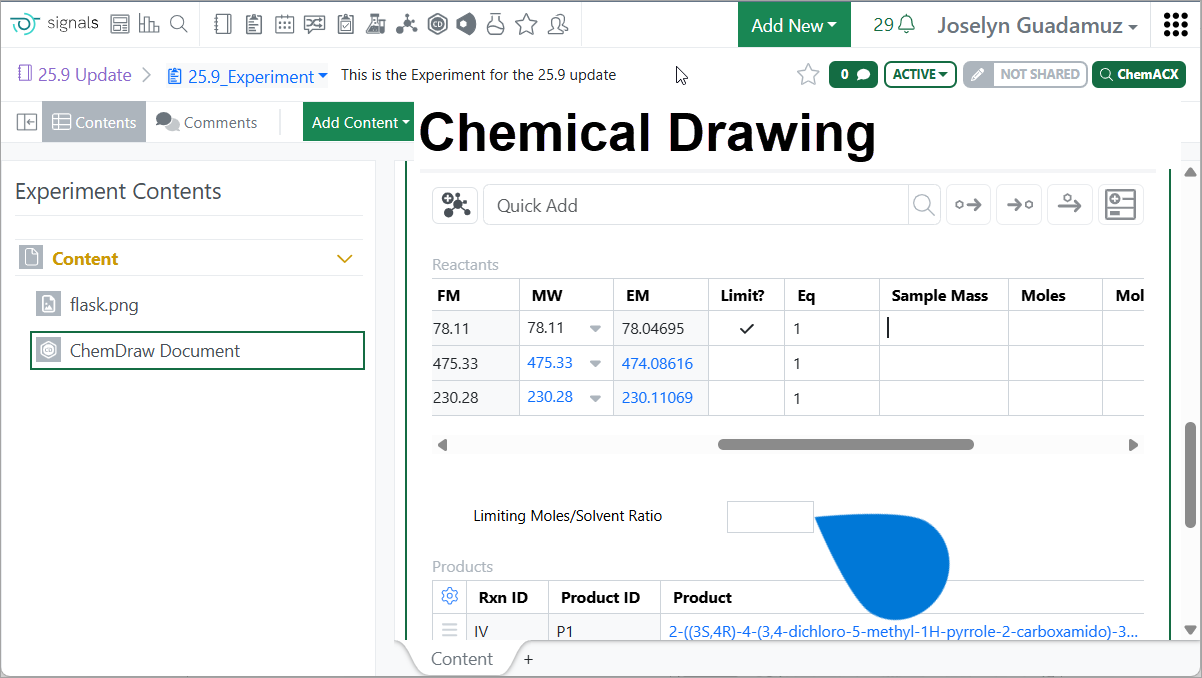

5️⃣ Chemical Drawing section ➡ Limiting Moles/Solvent Ratio ➡ enter value

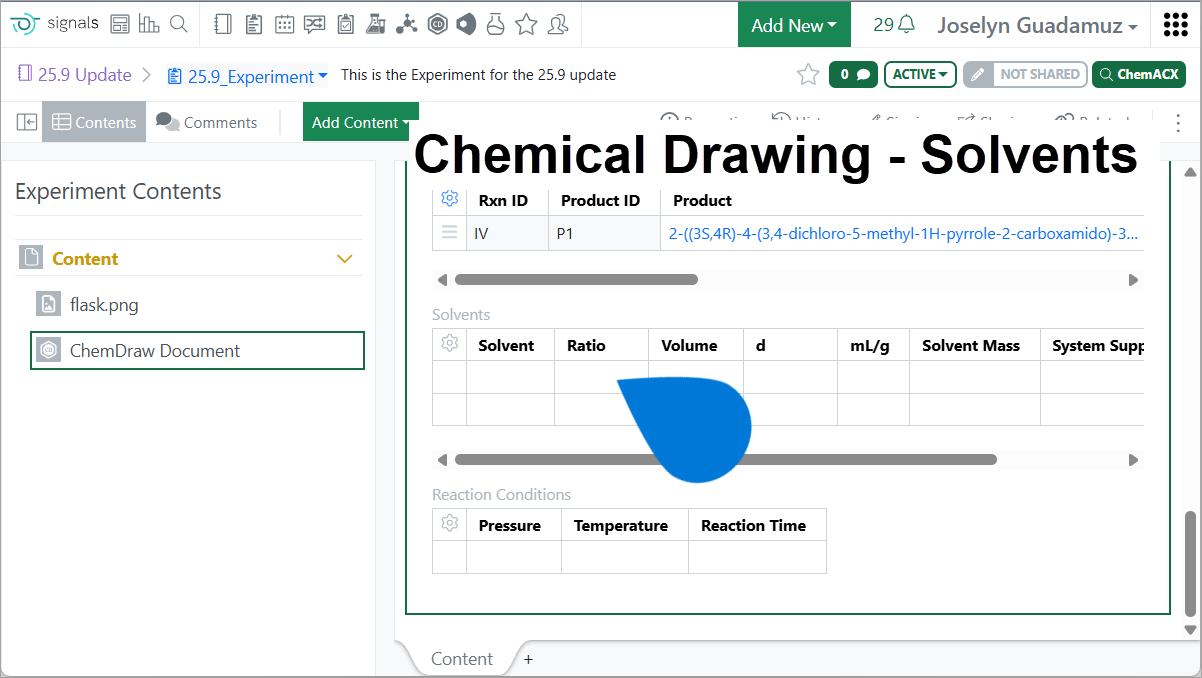

6️⃣ Chemical Drawing - Solvents table ➡ Ratio column ➡ enter value

Supporting Knowledge

Once the solvent's volume and density values are available, the solvent's mass will get automatically calculated and populated in the Solvent Mass cell. If the solvent's mass value is manually entered and the density is available, then the solvent's volume gets automatically calculated.
