Define an external SAML authentication from the Signals Configuration

For Administrators only.

Prior to this task:

✔ IdP must be configured.

*Required.

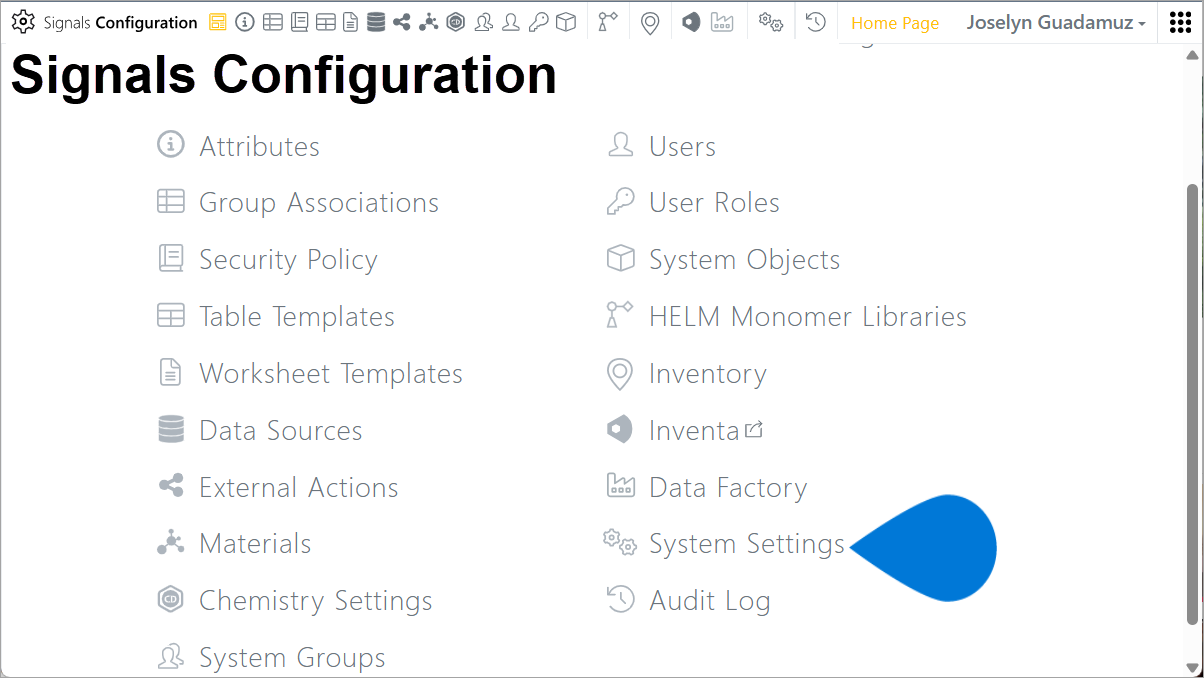

1️⃣ Signals Configuration ➡ select  [System Settings]

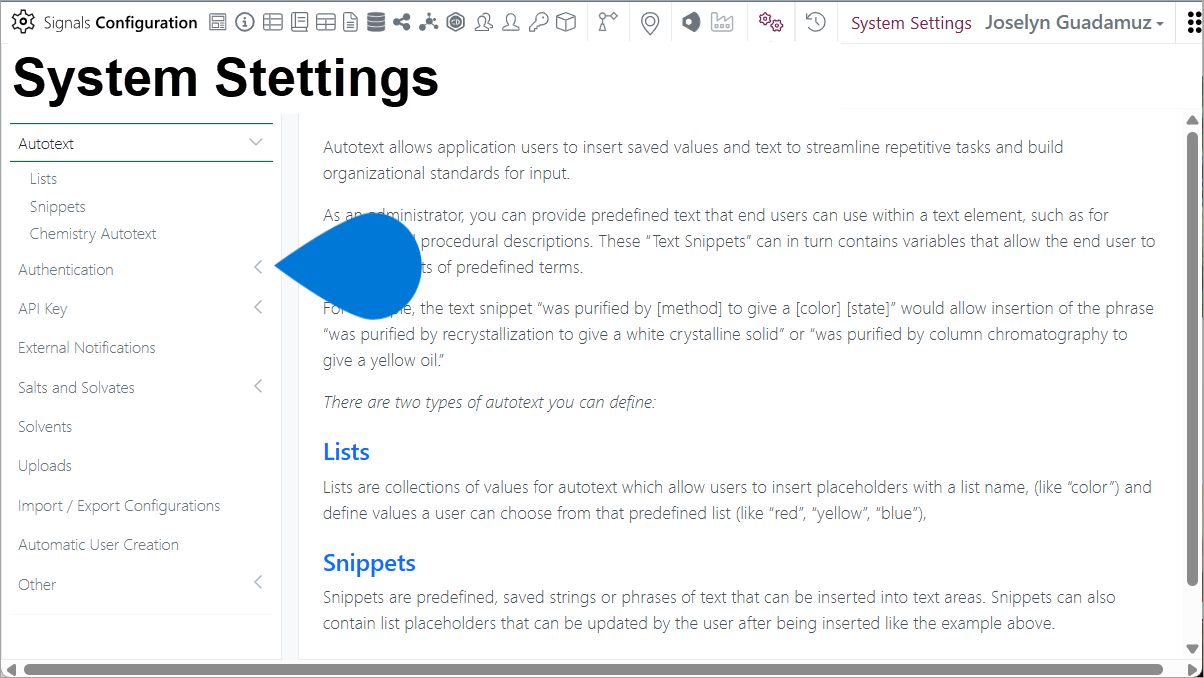

2️⃣ System Settings pane ➡ select Authentication ➡ select Authentication Provider Information

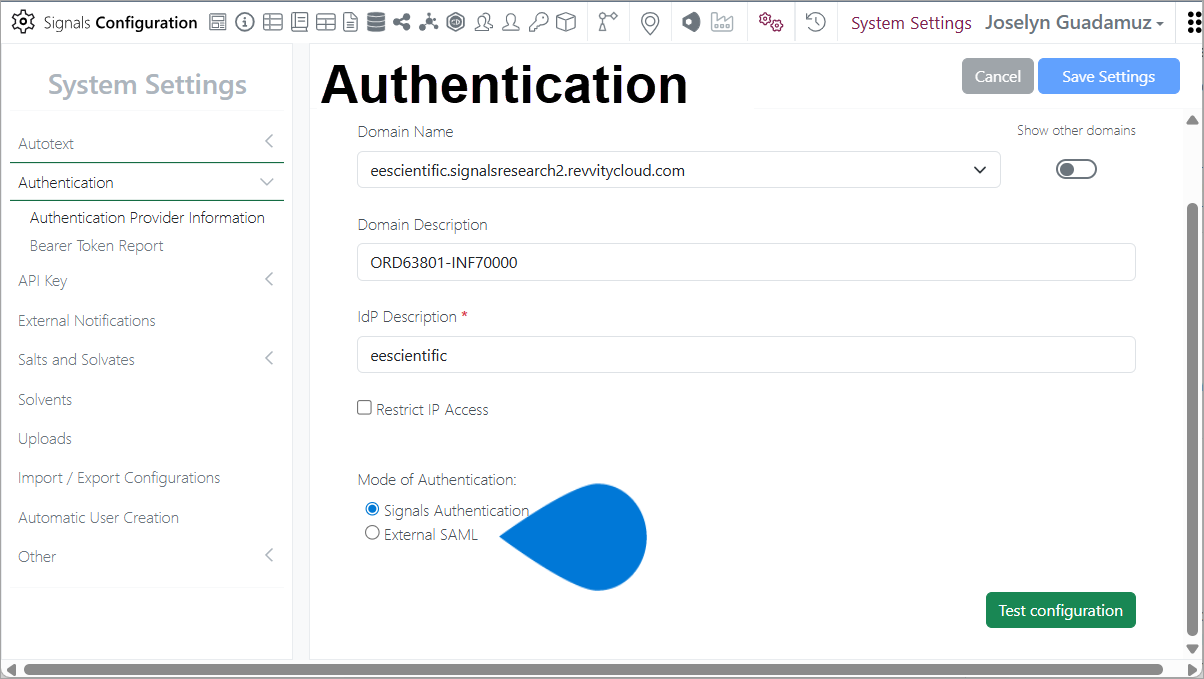

3️⃣ Authentication section ➡ Mode of Authentication ➡ select External SAML

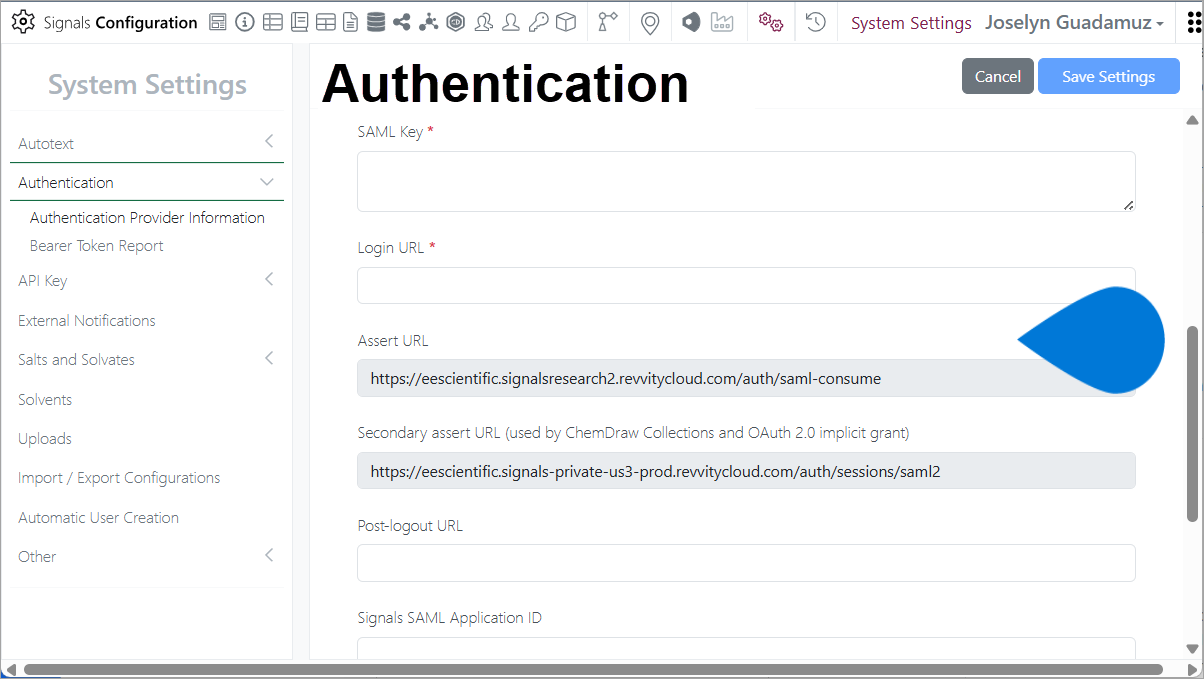

4️⃣ Authentication section ➡ enter SAML Key* Login URL* Post-logout URL Signals SAML Application ID

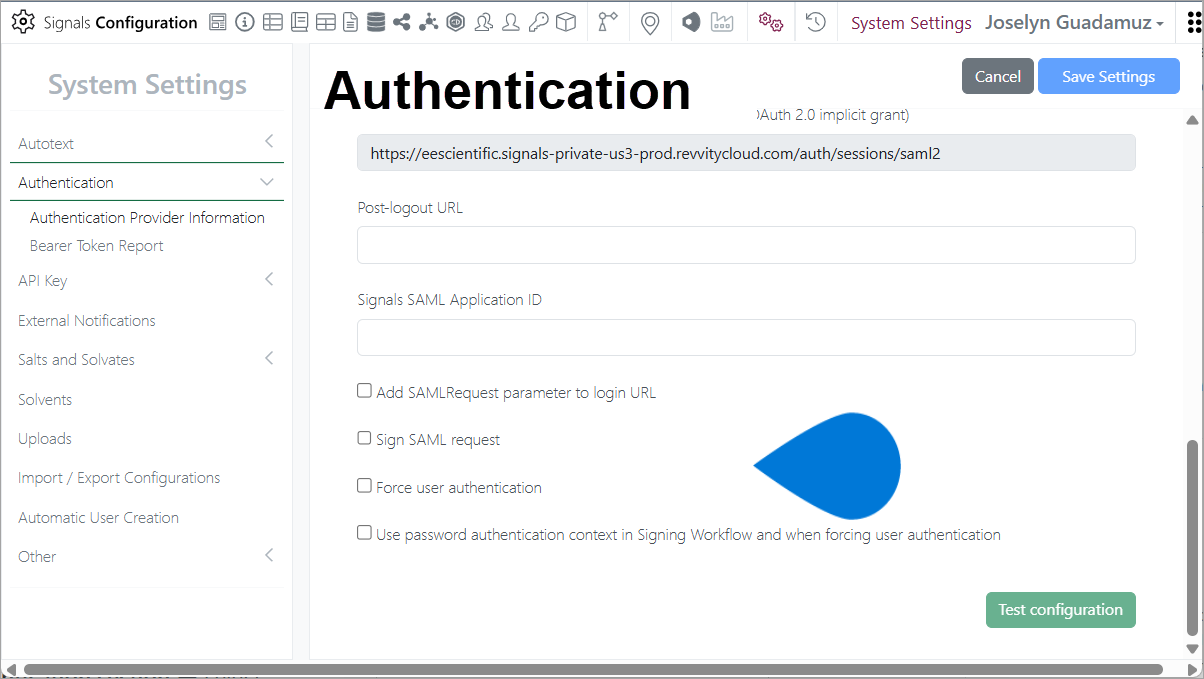

5️⃣ Authentication section ➡ select Add SAMLRequest parameter to login URL Sign SAML request Force user authentication Use password authentication context in Signing Workflow and when forcing user authentication

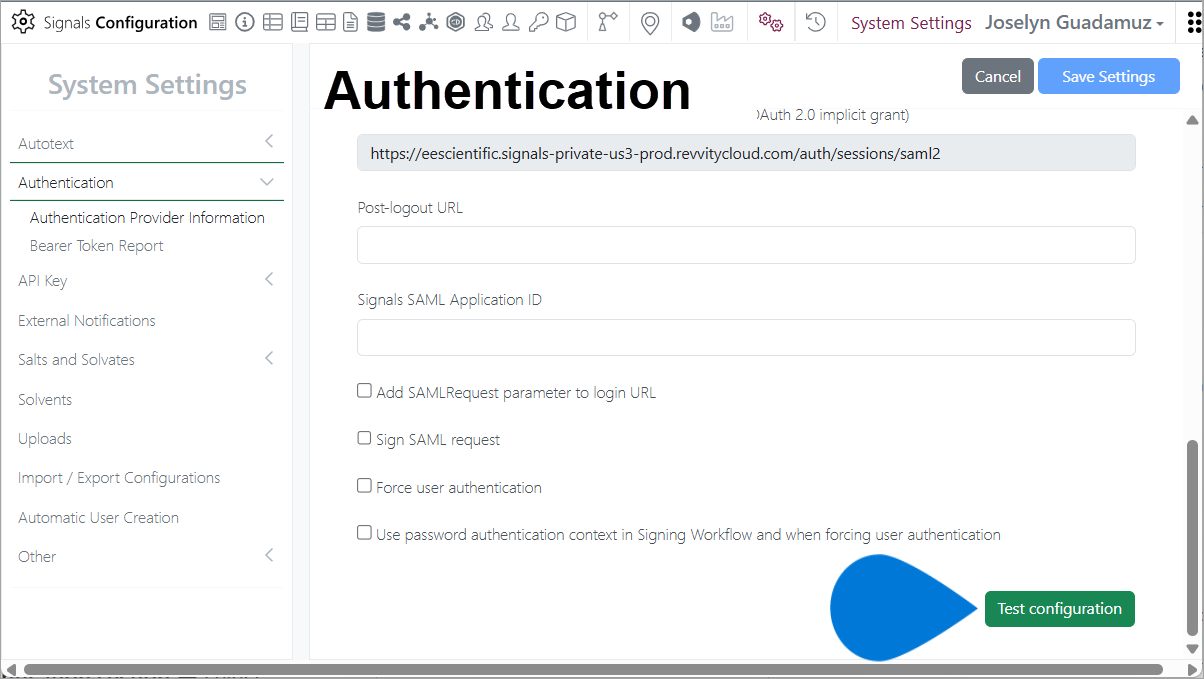

6️⃣ Authentication section ➡ select [Test configuration]

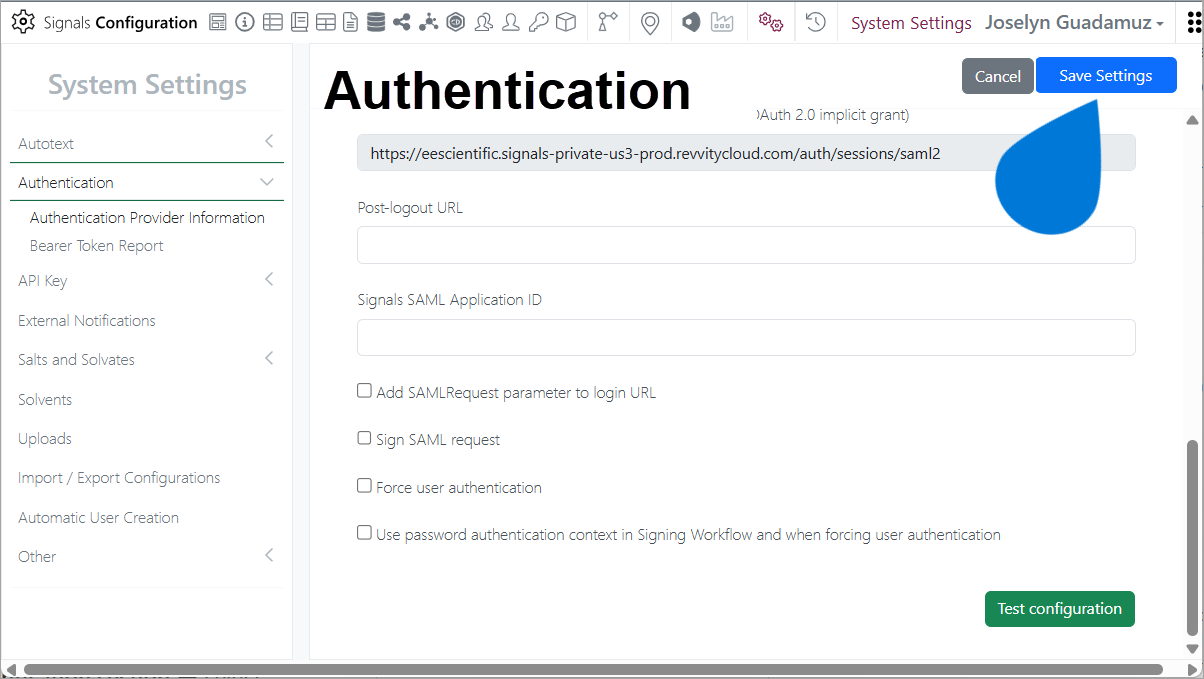

7️⃣ Authentication section ➡ select [Save Settings]

Supporting Knowledge

Caution: Do not save until the test is successful. Saving an incorrect SAML configuration can lock the user out.

SAML Fields:

• SAML Key: This is a mandatory field. It is the Base64-encoded PEM format of the IdP certificate, provided by the IT department. The SAML Key pasted into this field must be an X.509 certificate in PEM format; it should not contain the BEGIN/END, a header/footer, or any new lines. (SAML certificate) Identity Provider (IdP) provides a cryptographic key so that Signals Notebook can verify the response from IdP as part of the login process.
• Login URL: This is a mandatory field. It is the Identity Provider (IdP) login URL where the user will be redirected to trigger the login process.
• Assert URL: This is a read-only field. It is the SAML URL interface of the service provider, where the Identity Provider sends the authentication token.
• Secondary assert URL (used by ChemOffice+ and OAuth 2.0 implicit grant): This is a read-only field. It is a Callback URL for OAuth 2.0 implicit grant, used by desktop applications like ChemOffice+.
• Post-logout URL: The user is taken here when they log out of Signals Notebook with the SAML Authentication.
• Signals Notebook SAML Application ID: This can be the domain name. Provide any name for the Signals Notebook application to be sent to IdP.
• Add SAMLRequest parameter to login URL: Whether to select this checkbox should be determined by the IT department.
• Force User Authentication: Enabling this parameter makes Signals Notebook send the ForceAuthn SAML attribute set to true in the SAML request.
• Use password authentication context in Signing Workflow and when forcing user authentication: Enabling this parameter will require users to enter their credentials if:
  • Prompt all users for their password is enabled for signing and reviewing settings, or
  • Force User Authentication is enabled.
